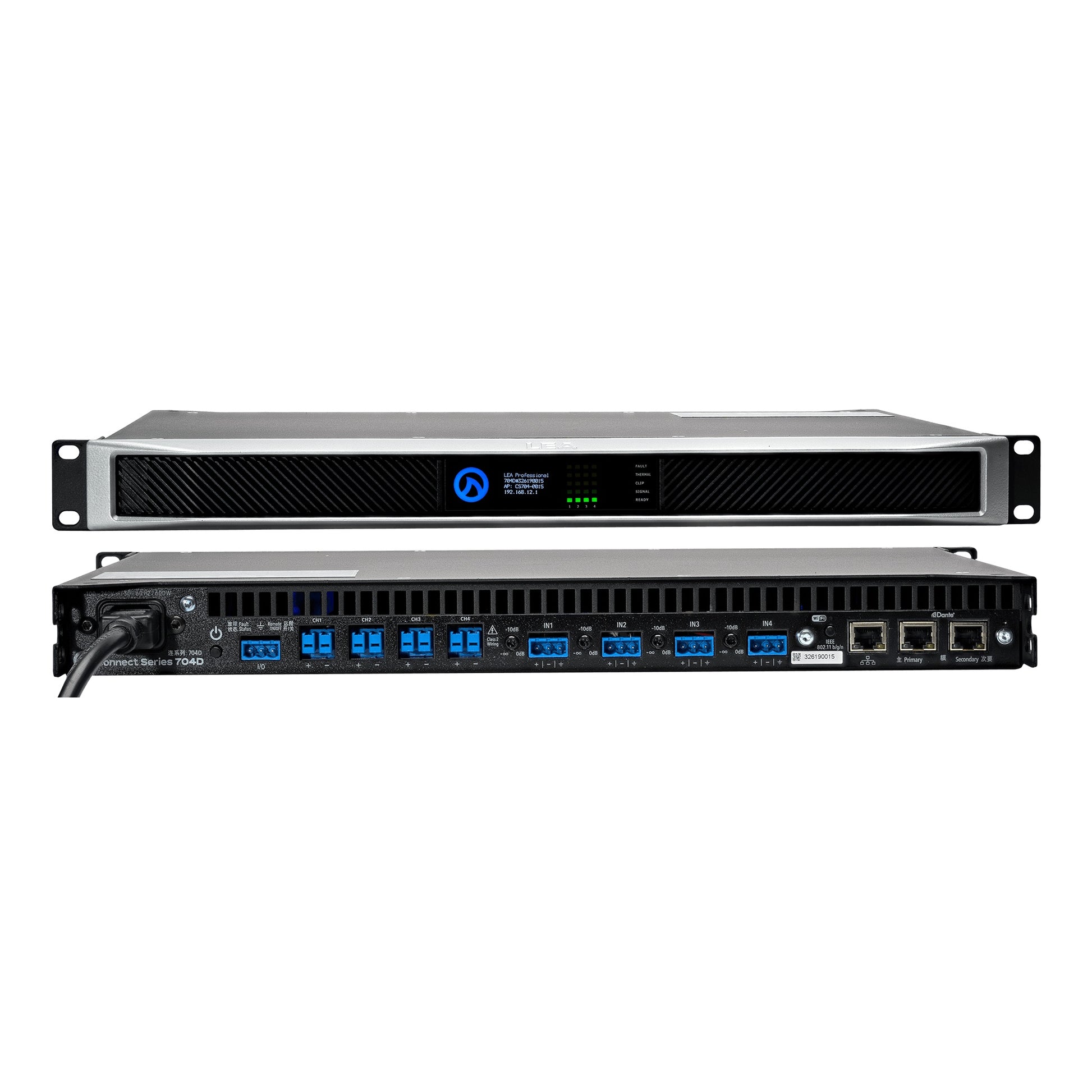

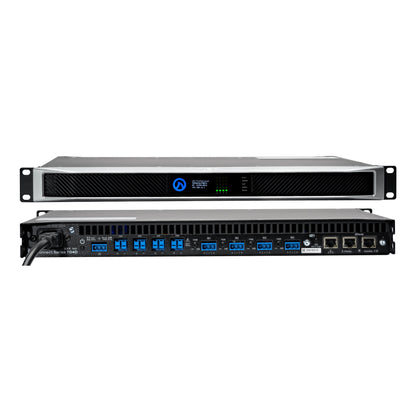

LEA Professional ConnectSeries 704D 4-Channel Dante Network Power Amplifier

LEA Professional ConnectSeries 704D 4-Channel Dante Network Power Amplifier

SoundPro Item: 200266 | Part Number: CS704D

$4,389.00
$4,389.00 $4,389.00
Your Price Sold out
MSRP: $4,389.00 | MAP: $4,389.00

Usually ships in 5-7 business days

  • Per-Channel HiZ/LoZ Selection Supports Mixed 70V, 100V, And Low-Impedance Topologies
  • IoT Cloud Integration Enables Remote Monitoring And Control From Any Device
  • Triple Network Connectivity Via Built-In Wi-Fi AP, Venue Wi-Fi, Or Fast Ethernet
  • Dante And AES67 Support Allows Flexible Digital Audio Routing Across Existing Infrastructure
  • Analog Devices Sigma DSP With Routable Matrix Enables Full System Signal Management
  • Class D Smart Power Bridge Technology Delivers Bridged Output Without Channel Sacrifice
  • External I/O Provides Hardware-Level Remote On/Off And Fault Health Indication
Log in or register for YOUR best price

The LEA Professional CS704D is built for AV integrators and system designers tackling small to medium-scale installed sound projects where remote management and network flexibility are non-negotiable. As part of the DANTE CONNECTSERIES — the first IoT-enabled professional amplifier family — the CS704D delivers four channels of output with per-channel selection between direct HiZ (70V or 100V) and LoZ, eliminating the need for separate transformers in mixed distributed and low-impedance systems.

Network connectivity sets this amplifier apart from conventional install amps. Integrators can leverage the built-in Wi-Fi access point, join an existing venue network wirelessly, or connect via Fast Ethernet over Cat5 or Cat6. LEA Cloud integration enables remote control, real-time monitoring, fault notifications, and system adjustments from any personal device without on-site presence — a direct operational advantage over amplifiers limited to local control only.

On the signal processing side, an Analog Devices Sigma 96kHz DSP with 32-bit core handles up to 48 dB/octave IIR crossovers, 8-band parametric EQ per channel, 100ms output delay, and a fully routable input matrix. Both analog balanced inputs and 8x8 Dante at 96kHz or 48kHz are supported alongside AES67 interoperability. External I/O provides hardwired remote on/off and amplifier health monitoring for installations requiring hardware-level integration alongside network control.

View full details

Specifications

Audio
Analog Inputs
4 Balanced Inputs, user selectable 26 dB and 34 dB input sensitivity
Dante Inputs/Outputs
8 x 8 at 96kHz or 48kHz, Multicast or Unicast
AES67
Configurable via Dante Controller Software
THD+N
0.1% (20Hz to 20kHz)
Frequency Response
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V; -2.5 dB @ 20kHz at 2Ω
Signal To Noise Ratio
105 dB (20Hz to 20kHz referenced to 8Ω)
Crosstalk
70 dB (20Hz to 20kHz)
Output Classification
Class D with Proprietary Smart Power Bridge Technology
DSP
DSP Processor
Analog Devices Sigma 96kHz with 32-bit Core and Sample Rate Converters
Input Matrix
Routable; any input to any output with primary and secondary input priority
Crossovers
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ
8 Band per channel
Output Delay
100ms per channel
Output Protection
DC, VHF, AC Mains, Overtemp, Current Limiter, Fan Fault Detection
Limiting
User adjustable Peak Voltage and RMS Voltage
Load Monitoring
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
Connectivity
Network
Built-in Wi-Fi Access Point, Venue Wi-Fi, Fast Ethernet (Cat5/Cat6)
User Interface
Web Browser UI, 3rd Party API, Cloud Control
External I/O In
Toggles Remote On/Off
External I/O Out
Indicates Amplifier Health
Electrical
AC Mains
100VAC - 240VAC +/- 15%, 50Hz or 60Hz
Power Supply
Universal Switch Mode with Power Factor Correction
Dimensions
Product (L x W x H)
14.25" x 19" x 1U (362mm x 482mm x 1U)
Shipping (L x W x H)
20" x 22.75" x 3.75" (508mm x 578mm x 95.25mm)
Weight
Product Weight
14 lbs / 4 kg
Shipping Weight
18.7 lbs / 8.5 kg
Cooling
Cooling Method
Front to Rear Variable Fan Speed
Fan Noise at Idle
50 dB @ 1m
Fan Noise at 50%
57 dB @ 1m
Fan Noise at Full Speed
63 dB @ 1m
