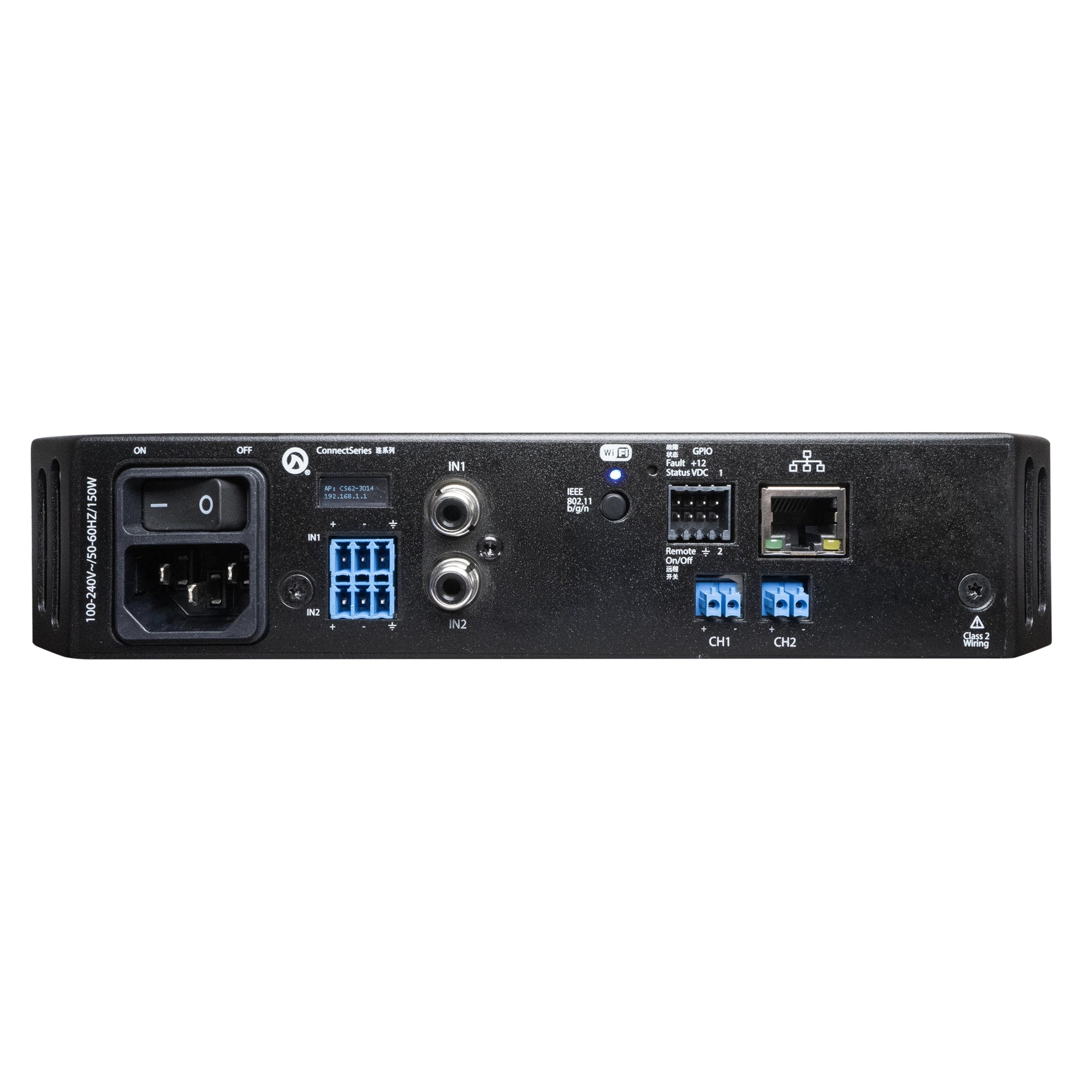

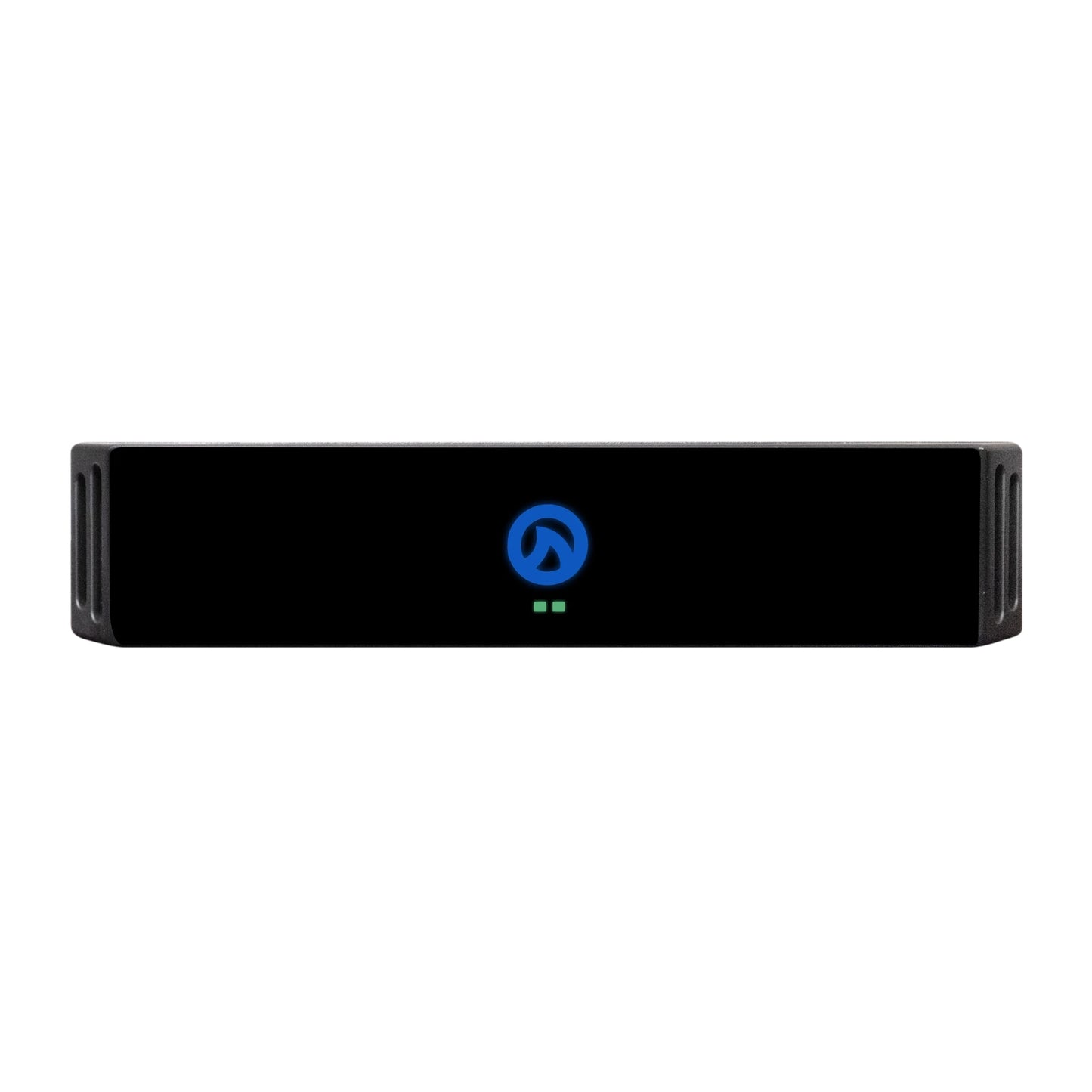

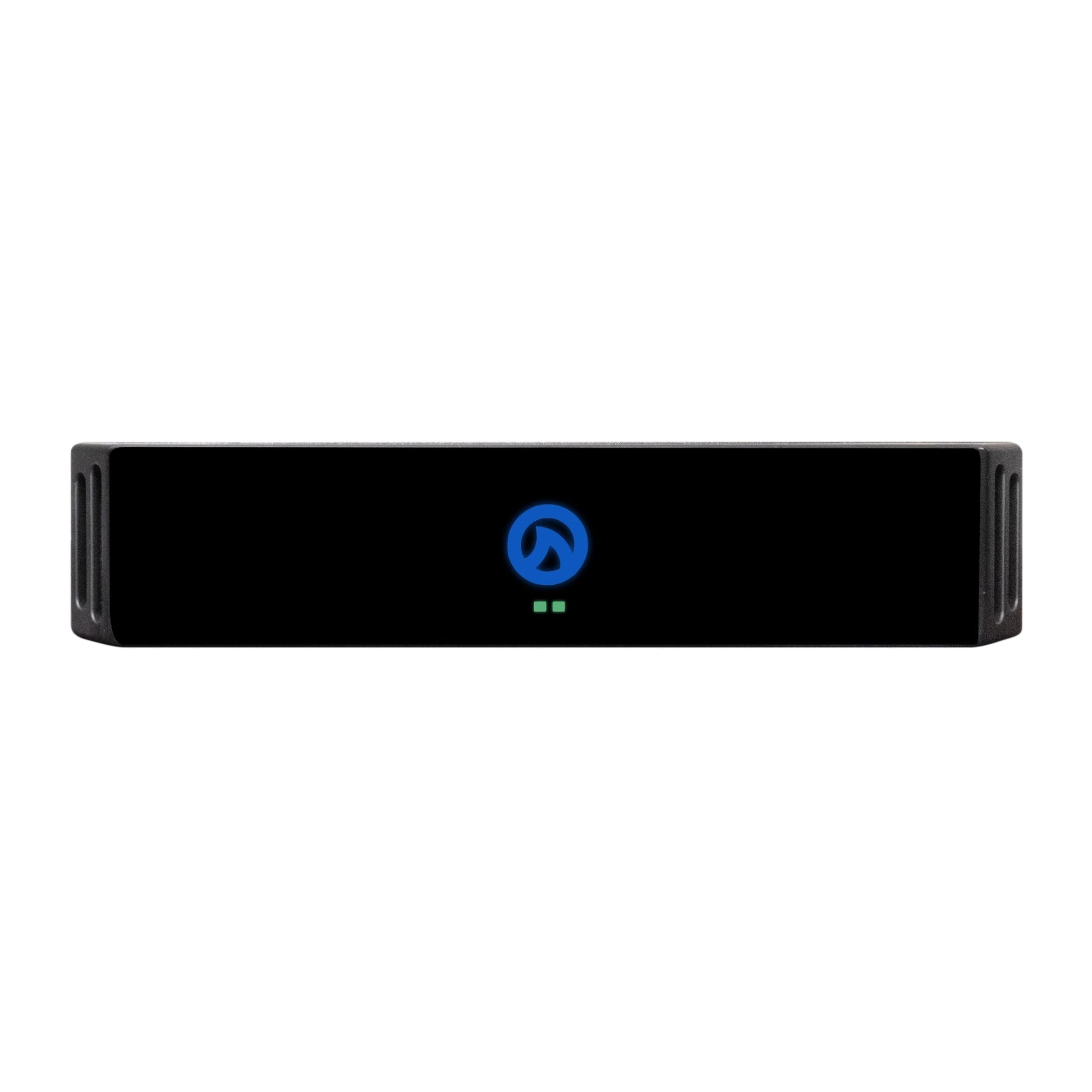

LEA Professional Connect Series Half-Rack Amplifier 2Ch Smart Amp | With Dante | 120W

LEA Professional Connect Series Half-Rack Amplifier 2Ch Smart Amp | With Dante | 120W

SoundPro Item: 208194 | Part Number: LEA CS122D

$1,498.00
$1,498.00 $1,498.00
Your Price Sold out
MSRP: $1,498.00 | MAP: $1,498.00

Usually ships in 5-7 business days

  • Selectable Lo-Z, 70V, And 100V Output Per Channel Covers Diverse Speaker Loads
  • Smart Power Bridge Doubles Single-Channel Headroom Without A Second Amplifier
  • Analog Devices Sigma 96kHz 32-Bit DSP Eliminates The Need For An External Processor
  • Three Network Connection Modes Support Commissioning And Permanent Install Scenarios
  • LEA Cloud And WebUI Enable Remote Monitoring And Diagnostics From Any Browser
  • Real-Time Load Monitoring And Pilot Tone Detection Aid Fault Identification
  • Available With Or Without Dante AoIP Networking To Match System Infrastructure
Log in or register for YOUR best price

The LEA Professional Connect Series half-rack amplifiers are purpose-built for systems integrators and installed AV professionals who need a full-featured, network-managed amplifier in a space-efficient form factor. Available in 60W and 120W per channel configurations, and with or without Dante AoIP networking, the series covers a broad range of distributed audio, paging, and background music applications in commercial, hospitality, education, and house-of-worship environments.

Every model in the Connect Series delivers 96kHz, 32-bit DSP powered by an Analog Devices Sigma processor, giving integrators precision control over signal routing, EQ, and dynamics without requiring an external DSP unit. Output impedance is selectable per channel across Lo-Z, 70V, and 100V, making each amplifier equally capable in low-impedance speaker systems and 70V distributed installations. Smart Power Bridge allows a single channel to draw on both amp sections, providing headroom for demanding zones without a separate amplifier.

Network management is built in from the ground up. Integrators can connect via the amplifier's own Wi-Fi Access Point during commissioning, hand off to an existing Wi-Fi network, or use wired LAN Ethernet for permanent installation. WebUI, SharkWare software, and LEA Cloud give teams real-time load monitoring, pilot tone detection, and remote diagnostics from any browser or the cloud platform. Third-party API support enables integration with control systems from leading automation manufacturers, making the Connect Series a practical choice wherever a networked, remotely serviceable amplifier is required.

Downloads

View full details

Specifications

Audio
Channels
2
Power Output
120W/ch @ 8 ohm, 4 ohm, 25V, 70V/100V; 60W/ch @ 2 ohm
Frequency Response
20Hz-20kHz +/-0.5dB
THD+N
0.1%
SNR
102dB
DSP
Processor
Analog Devices Sigma 96kHz, 32-bit
Connectivity
Network Audio
Dante
Dimensions
Product Width
8.58"
Product Length
11.82"
Product Height
1.71"
Package Width
11"
Package Length
18"
Package Height
2.75"
