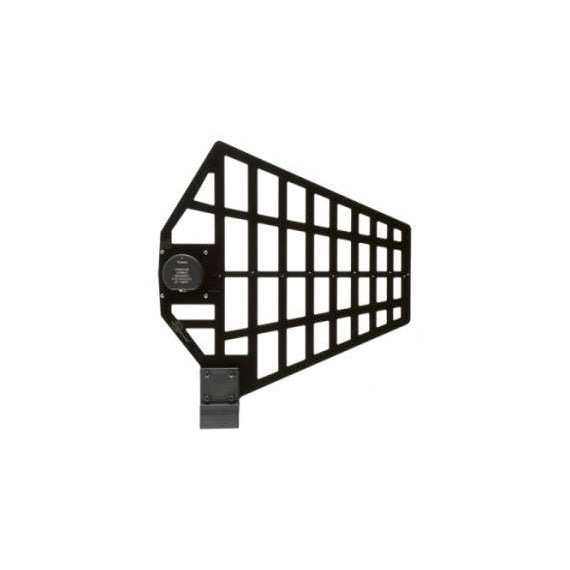

• ALP650 LPDA remote antenna angled front view showing black trapezoidal grid element, round onboard amplifier housing and mounting bracket at base, Lectrosonics
1 1

Lectrosonics Onboard Amplifier Remote Antenna LPDA With Onboard Amp | 640.000 - 870.000 MHz

Lectrosonics Onboard Amplifier Remote Antenna LPDA With Onboard Amp | 640.000 - 870.000 MHz

SoundPro Item: 91507 | Part Number: ALP650H/E

$958.00
$1,063.00 $958.00
Your Price Sold out
MSRP: $1,063.00 | MAP: $958.00

Usually ships in 5-7 business days

  • LPDA Design Delivers Directional Pattern Across Broad UHF Bandwidth For Multi-Channel Systems
  • Adjustable-Gain Onboard Amplifier Compensates For Long Cable Runs And Splitter Loss
  • Phantom Power Via Coax Eliminates Separate Power Runs To Antenna Position
  • Receive-Only Amplifier Design Protects Downstream Receivers From Transmit Interference
  • FR4 Fiberglass Construction With BNC Cover Suited For Field Production And Touring
  • Reposistionable Mounting Block Accepts Three Thread Sizes For Flexible Positioning
  • Available In Three UHF Frequency Ranges To Match Band Allocation Requirements
Log in or register for YOUR best price

The Lectrosonics ALP650 Series is designed for RF engineers, wireless technicians, and production integrators who need reliable antenna coverage across long coaxial cable runs and complex multi-channel wireless deployments. The Log Periodic Dipole Array design delivers a useful directional pattern across a broad UHF bandwidth, unlike narrowband gain antennas that become impractical in frequency-agile or multi-channel wireless setups. With VSWR below 2:1 from 450 to 862 MHz, the ALP650 covers the full range of Lectrosonics wireless microphone and IFB system frequencies while maintaining the directionality needed to reach talent at distance.

Where the ALP650 separates itself from passive antenna options is its built-in receive-only amplifier with three-position jumper-selectable gain, allowing technicians to compensate precisely for cable loss and splitter insertion loss without overdriving the receiver chain. DC power is supplied through the coaxial cable itself via a connected BIAS-T, UMC16B multicoupler, or VENUE receiver, eliminating the need for a separate power run to the antenna position. The FR4 fiberglass circuit board construction is rugged enough for field production, and a protective cover over the BNC connector adds additional durability in outdoor and touring environments.

The mounting block accepts three common thread sizes and can be repositioned horizontally or vertically to optimize pattern orientation away from reflective surfaces. This flexibility makes the ALP650 Series equally at home on a theater fly rail, a broadcast camera position, a festival RF cart, or a fixed installation rack. Three UHF frequency range variants are available to match the specific band allocation of the deployment.

Downloads

View full details

Specifications

Performance
Frequency Range
640.000 - 870.000 MHz
Pattern Gain
+7 dBi (isotropic); +4 dBd (over dipole)
RF Gain
+12 dB with 0 dB attenuator; +8 dB with 4 dB attenuator; +5 dB with 7 dB attenuator
Third Order Intercept
+27 dBm @ input (+41 dBm output)
VSWR
Below 2:1 from 450 to 862 MHz
Electrical
Power Requirements
8V to 16V DC at input jack; auto reset poly fuse protection; constant power switching supply
Current Draw
8V DC: 125-145 mA; 12V DC: 83-106 mA; 14.4V DC: 69-89 mA; 16V DC: 60-80 mA
Phantom Powering
DC via coaxial cable from UMC16B, VRM input jack, or BIAS-T power inserter (70-80 mA)
Power Consumption
1.2 W nominal (switching regulator)
Connectivity
Connector
50 Ohm BNC
Construction
Material
1/8" FR4 fiberglass circuit board
Mounting Thread Sizes
1/4"-20 (tripod); 3/8"-16 (pro tripod); 5/8"-27 (mic stand)
Dimensions
Dimensions
12" high x 10.5" deep x 1.5" wide (without mounting hardware)
Weight
Weight
12 oz.
Certifications
RoHS Compliance
Yes (ALP650H/E RoHS compliant)
Identifiers
MPN
ALP650H/E
Applies To
ALP650L/E, ALP650M/E, ALP650H/E
