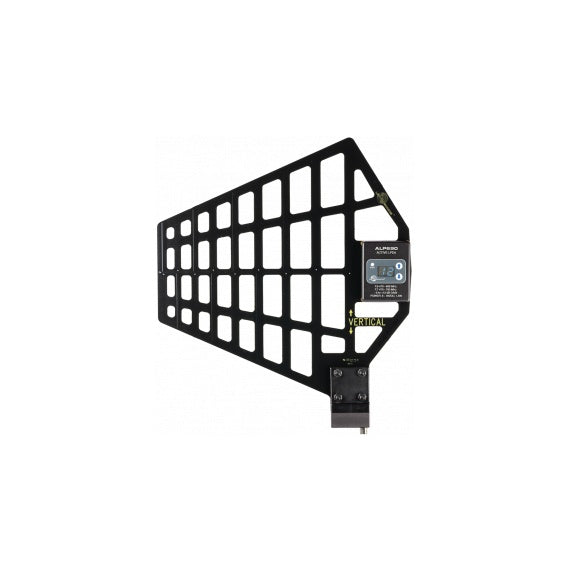

• ALP690 LPDA wireless antenna front view showing black grid-style element panel, gain display module and vertical orientation marking, Lectrosonics
1 1

Lectrosonics ALP690 LPDA Wireless Antenna With Variable Gain

Lectrosonics ALP690 LPDA Wireless Antenna With Variable Gain

SoundPro Item: 42506 | Part Number: ALP690

$1,070.00
$1,188.00 $1,070.00
Your Price Sold out
MSRP: $1,188.00 | MAP: $1,070.00

Usually ships in 5-7 business days

  • Directional LPDA Pattern Increases Forward Sensitivity To Extend Wireless Range
  • Selectable RF Filtering Supports Regional Frequency Allocations And Spectrum Conditions
  • Built-In RF Amplifier With Adjustable Gain Offsets Loss From Long Coaxial Cable Runs
  • Automatic Passive Fallback Requires No Manual Switching When DC Power Is Absent
  • Skeletal Construction Reduces Wind Loading For Reliable Outdoor Antenna Deployment
  • Glass Epoxy Laminate With Durable Finish Handles Indoor And Outdoor Environments
  • Membrane Switch Keypad And LED Display Allow On-The-Fly Gain And Bandwidth Control
Log in or register for YOUR best price

The Lectrosonics ALP690 is built for RF coordinators, sound mixers, and wireless technicians who need reliable antenna performance across demanding location and studio production environments. Its log periodic dipole array design provides a directional pickup pattern that increases forward sensitivity while rejecting interference from above, below, and behind the antenna, giving engineers better RF control in crowded spectrum conditions.

The ALP690 serves dual roles: it operates as an active or passive receiver antenna and as a passive transmitter antenna, making it a flexible asset across a range of wireless setups. When DC bias power is supplied via the coaxial cable from a Venue Series receiver, active multicoupler, or inline BIAS-T, the built-in amplifier compensates for coaxial cable loss with gain adjustable in 1 dB steps. Without power, the antenna reverts automatically to passive operation, requiring no manual switching. Selectable RF filtering between two bandwidth options allows the antenna to serve users operating in different regional frequency allocations.

The antenna structure uses copper traces on glass epoxy laminate, with a skeletal form factor that reduces wind loading for outdoor rigging. The control panel membrane keypad and LED display give technicians on-the-fly adjustment of RF gain, bandwidth, and display brightness. Optional stainless steel mounting hardware expands positioning options for stands, lighting clamps, and photo or video tripods.

Downloads

View full details

Specifications

Performance
Pattern Gain
+7 dBi (isotropic); +4 dBd (over dipole)
Passband (Passive)
450 - 850 MHz
Active Passband
470 - 608 or 470 - 700 MHz, selectable
RF Amplifier Gain Range
-6 to +12 dB in 1 dB steps
Third Order Intercept
+27 dBm @ input; +41 dBm output
Electrical
Power Requirements
DC bias on center pin of coaxial cable; 8V to 16V DC; 1.5 W max.; polarity protected
Environmental
Temperature Range
-20° - +45° C (4° - 113° F)
Dimensions
Dimensions
27 x 33 x 4 cm (11 x 13 x 1.5 in)
Weight
Weight
13 ozs.; 355 grams
Identifiers
MPN
ALP690
