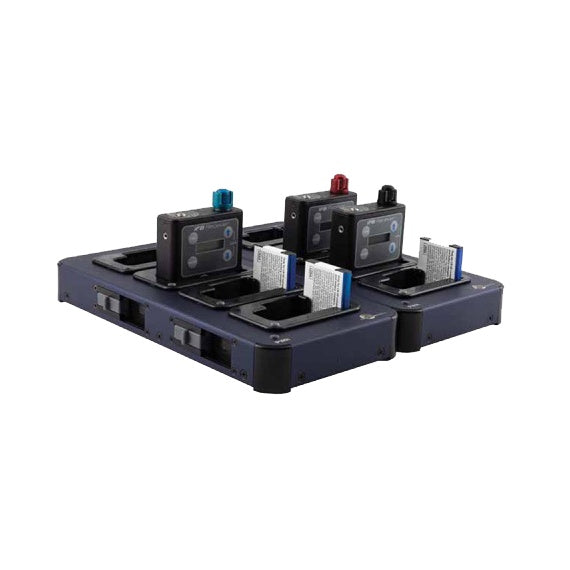

• CHSIFBR1B charging station angled view with three IFBR1B receivers docked, each with a blue, red or black connector, and two batteries seated in adjacent bays, Lectrosonics
1 1

Lectrosonics CHSIFBR1B IFBR1B Transmitter And Battery Charging Station

Lectrosonics CHSIFBR1B IFBR1B Transmitter And Battery Charging Station

SoundPro Item: 48832 | Part Number: CHSIFBR1B

$871.00
$967.00 $871.00
Your Price Sold out
MSRP: $967.00 | MAP: $871.00

Usually ships in 5-7 business days

  • Individual Charging Circuits Per Bay Prevent Cross-Bay Interference During Simultaneous Charging
  • Per-Bay LED Indicators Show Charging Or Fully Charged Status At A Glance
  • Daisy-Chain Support Scales Capacity Across Multiple Modules On One Power Supply
  • Reverse Polarity Protection On Each Module Guards Against Improper Battery Insertion
  • Individually Fused Charging Bays Reduce Risk During High-Volume Battery Rotation
Log in or register for YOUR best price

The Lectrosonics CHSIFBR1B is a dedicated charging station for production environments running the IFBR1B IFB transmitter system. Designed for broadcast, live event, and large installed audio applications where numerous batteries cycle through regular use, it provides a structured and space-efficient method for keeping LB-50 lithium-ion batteries and IFBR1B transmitters charged and ready without relying on ad hoc solutions.

Each charging module handles up to four LB-50 batteries or IFBR1B transmitters simultaneously, with individual charging circuits ensuring each bay operates independently. For large installations, up to four modules can be daisy-chained using a single DCR5/9AU AC-DC power supply, scaling capacity to 16 batteries or transmitters charging at once. This approach reduces power supply clutter and simplifies rack or cart organization on complex productions.

Where generic multi-bay chargers offer no circuit-level protection, the CHSIFBR1B includes reverse polarity protection and an individual 10A one-time fuse on each module, reducing risk of damage during high-volume battery management workflows. Per-bay LED indicators provide immediate status at a glance: red for charging, green for fully charged. Note that the required DCR5/9AU power supply is sold separately.

Downloads

View full details

Specifications

Charging
Charging Capacity Per Module
4 LB-50 batteries or IFBR1B transmitters
Max Daisy-Chain Capacity
16 units (LB-50s and/or IFBR1Bs)
Max Modules Per Chain
4
Charging Circuit Type
Individual per bay
Fuse Rating
10A one-time fuse per module
Reverse Polarity Protection
Yes
Indicators
Charging Status (Red)
Battery charging
Charging Status (Green)
Battery fully charged
Compatibility
Compatible Batteries
LB-50 Lithium Ion
Compatible Transmitters
IFBR1B
Required Power Supply
DCR5/9AU (not included)
