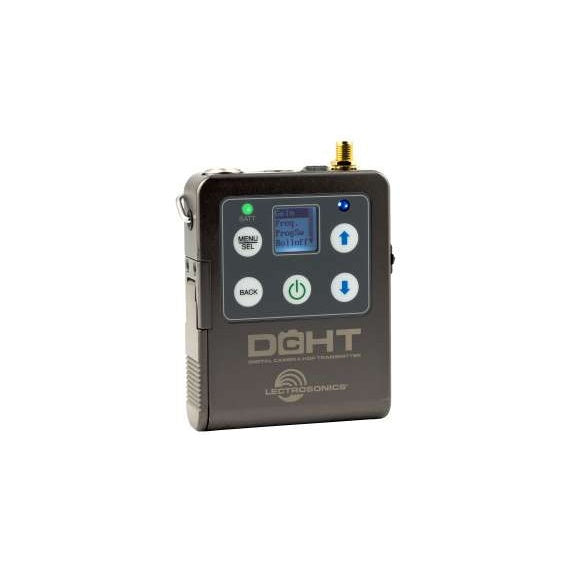

• DCHT stereo digital UHF transmitter front view showing LCD menu screen, MENU/SEL, BACK, power and up/down buttons, battery LED and SMA antenna connector, Lectrosonics
1 1

Lectrosonics DCHT Portable Stereo Digital UHF Transmitter

Lectrosonics DCHT Portable Stereo Digital UHF Transmitter

SoundPro Item: 91509 | Part Number: DCHT

$2,082.00
$2,311.00 $2,082.00
Your Price Sold out
MSRP: $2,311.00 | MAP: $2,082.00

Usually ships in 5-7 business days

  • Purely Digital Transmission Architecture Preserves Audio Integrity From Source To Receiver
  • AES 256-CTR Encryption Addresses Content Security Requirements For High-Value Productions
  • Wide-Range Input Gain Adjustment In 1 dB Steps Maximizes Dynamic Range For Any Source
  • DSP-Controlled Limiter Protects Against Input Overload Across Analog And Digital Paths
  • Selectable RF Power Output Provides Flexibility For Short And Long-Range Applications
  • Programmable Function Switch Configures As Mute, Power, Or Bypass For Fast Production Use
  • Machined Aluminum Housing With Electroless Nickel Finish Built For Location Durability
Log in or register for YOUR best price

The Lectrosonics DCHT is a portable stereo digital transmitter built for professional film and television production workflows. It serves two primary roles: as a wireless audio link from a bag or cart system to cameras and recorders, and as a portable IFB transmitter paired with the Duet M2R digital receiver. Sound mixers and production audio professionals working on narrative film, ENG, and broadcast productions will find it purpose-built for the signal integrity and security demands those environments require.

The DCHT accepts two channels of mic or line level analog signals, or an AES digital signal from a mixer, and delivers audio to the receiver in a purely digital format. Input gain is adjustable over a wide range in 1 dB steps, allowing a precise match to any input source and maximizing dynamic range. A DSP-controlled limiter and high-quality preamp circuitry provide studio-grade stereo audio performance across analog and digital input paths. The programmable function switch can be configured as a mute, power, or bypassed control, giving the operator flexible on-the-fly control in fast-moving production environments.

The DCHT tunes across a broad UHF range in 25 kHz steps, offering thousands of usable frequencies for coordination in congested RF environments. Selectable RF output at 10, 25, or 50 mW provides range flexibility to match the application. AES 256-CTR encryption addresses content security requirements for high-value productions. The solid machined aluminum housing with electroless nickel finish delivers lasting durability on location, while two AA batteries power extended operating sessions without interruption.

Downloads

View full details

Specifications

Performance
Operating Frequencies (DCHT)
470.100 - 607.950 MHz
Operating Frequencies (DCHT/E01)
470.100 - 614.375 MHz
Operating Frequencies (DCHT-B1C1 US)
537.600 - 607.950 MHz; 614.050 - 615.950 MHz; 653.050 - 662.950 MHz
Operating Frequencies (DCHT/E01-B1C1)
537.600 - 691.175 MHz
Operating Frequencies (DCHT-941)
941.525 - 959.825 MHz
Operating Frequencies (DCHT-961)
961.100 - 1014.900 MHz
Operating Frequencies (DCHT/E09-A1B1)
470.100 - 614.375 MHz
Frequency Selection Steps
25 kHz
Frequency Stability
+/- 0.002%
RF Power Output
Selectable: 10, 25 or 50 mW (20 mW max for Domestic B1C1; 10/25 mW for E09 version 470.100-614.375)
Digital Modulation
8PSK
Encryption
AES 256-CTR (per FIPS 197 and FIPS 140-2)
Spurious Radiation (DCHT)
Compliant ETSI EN 300 422-1 v1.4.2
Spurious Radiation (DCHT/E01)
Compliant ETSI EN 300 422-1 v2.1.2
Emission Designator
200KG7E
Audio
Equivalent Input Noise
-128 dBV
Frequency Response
15 Hz - 11.3 kHz, +0, -3 dB
Input Types
Analog mic and line level; AES digital
Input Level Mic
Nominal 2 mV to 300 mV before limiting; greater than 1V maximum with limiting
Input Level Line
+24 dBu before limiting
Input Impedance Mic
300 or 4.5 k ohm, selectable
Input Impedance Line
Greater than 100 k ohm
Input Limiter
Dual envelope type, 30 dB range
Gain Control Range
51 dB in 1 dB steps, digital control
Connectivity
Audio Input Jack
Switchcraft 6-pin locking (TA6F)
Antenna
Galvanized steel, flexible wire, SMA connector
Controls
Modulation Indicators
Bicolor LED (-20 and 0 dB referenced to full modulation); LCD bar graph
Controls
Top panel toggle switch (programmable as power, mute, or none); front panel membrane switches with LCD interface
Power
Battery
Two AA Lithium recommended
Battery Life
5 hours
Dimensions
Overall Dimensions
3.45 x 2.44 x 0.742 in. (88 x 62 x 19 mm)
Weight
Weight With Belt Clip And Lithium AA Batteries
5.75 oz (163 grams)
Weight With Belt Clip And Duracell Quantum AA Batteries
6.40 oz (181 grams)
Environmental
Operating Temperature Range
Celsius: -20 to +40; Fahrenheit: -5 to +104
Included Items
Included Accessories
26895 Wire Belt Clip; 40096 2x AA Batteries; AMJ-19 SMA-mount antennas; AMJ-22 SMA-mount antennas
