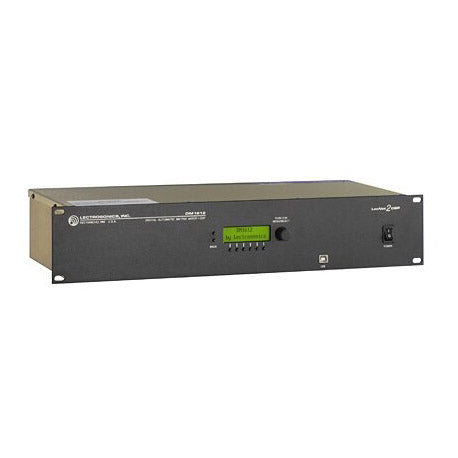

Lectrosonics DM1612F Digital Matrix Processor

Lectrosonics DM1612F Digital Matrix Processor

SoundPro Item: 69520 | Part Number: DM1612F

$5,243.00
$5,820.00 $5,243.00
Your Price Sold out
MSRP: $5,820.00 | MAP: $5,243.00

Usually ships in 5-7 business days

  • 16 mic/line inputs, 12 line outputs
  • (4 outputs are mic/line switchable)
  • 16 x 12 digital matrix mixing; gain is adjustable from -69 to +20 dB
  • Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776 and 5,402,500
  • Auto mixing operates at the output of the matrix - each input channel can participate differently in each output mix
  • Each output has its own NOM mixing bus
  • 6 filter stages plus compressor, ADFE and delay on each input
  • 9 filter stages plus compressor, limiter and delay on each output
  • 128 macros available for storing up to 64 commands per macro
  • USB and RS-232 interfaces for setup and control
  • Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
  • AMX© and CRESTRON™ compatible
  • Simultaneous LecNet2 and Third-Party control
  • Continuous fan cooling
Log in or register for YOUR best price

The Lectrosonics DM1612F Digital Matrix Processor is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.

The basic architecture consists of 16 mic/line inputs and 12 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 12 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.

View full details

Specifications

Electrical
Phantom Voltage
15 V, programmable
Audio
Input Impedance
2.5 k Ohm
Audio Outputs
Floating balanced, either side can be grounded
Output Impedance
Line Only: 50 Ohms differential line level only outputsMic/Line: 600 Ohm differential programmable outputs at line level, 130 Ohm differential programmable outputs at microphone level
Input Dynamic Range
96 dB at -50 dBu input level 102 dB at all other levels (unweighted 20 - 20 kHz)
Output Dynamic Range
105 dB (unweighted 20 - 20 kHz)
Audio Performance
IMD + noise 0.1% max.0.02% nominal input level, THD + noise 0.1% (worst case)0.02% nominal input level
Audio I/O
5-pin Phoenix
Connectivity
Connector
5-pin Phoenix
Cable Quality
Shielded CAT-5
Programmable Control Inputs Number of Inputs
22Analog voltage range: 0-5VLogic input: TTL, LVTTL, CMOS, LVCMOS
Number of Logic Outputs
16Logic control: active lowMax sink current: 100 mAMax supply voltage: 40VSupply voltage for control
Proprietary Network
Power requirements100-240 VAC, 47-63 Hz, Power consumption30 Watts, Fan CoolingContinuous; DM1612F and DM1624F only, Dimensions (HxDxW)3.5x7.5x19", Weight5lb 4oz (2.3814 kg)
Construction
Gain
-10 dB to +60 dB, programmable in 1 dB steps
General
Nominal Level
0 dBu all outputs, -40 dBu selectable on outputs 9 through 12
EIN
-126 dBu
Expansion
RJ45
Serial
Standard USB and mini TRS
Physical Level
LVDS (Low Voltage DIfferential Signal) high speed
Transmission Speed
50 Mbits/s
I/O
5VMax current: 750 mA
Processing
Logic I/O
DB25
