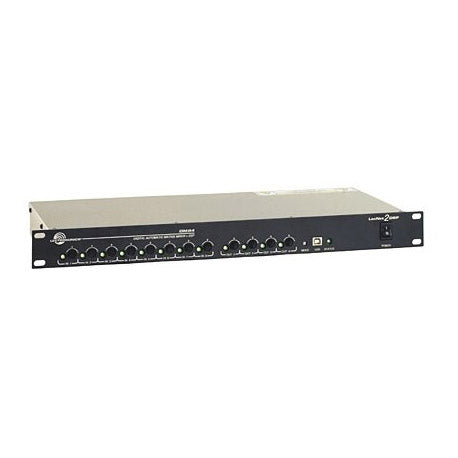

Lectrosonics DM84 Digital Matrix Processor
Lectrosonics DM84 Digital Matrix Processor
SoundPro Item: 69525 | Part Number: DM84
Usually ships in 5-7 business days
- 8-in/4-out digital matrix architecture
- Stackable with enlarged matrix up to 24-in/12-out
- Front panel level controls with activity LEDs
- 6 filters plus compressor on each input
- 9 filters plus compressor/limiter on each output
- USB and RS-232 interfaces for setup and control
- Fully balanced audio signal flow through entire system
- Digital I/O ports for connection to other LecNet 2 devices
- Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776
- Simultaneous LecNet2 and Third-Party control
The Lectrosonics DM84 Digital Matrix Processor can route any combination of inputs to any combination of outputs with extremely low throughput latency. Automatic microphone mixing is accomplished via a patented Adaptive Proportional Gain algorithm. Sophisticated filtering is offered on each input and output. A compressor is available on each input, a compressor and limiter on each output. In addition, each input and output can be configured with a delay setting of up to 100 ms for inputs, 250 ms for outputs. The DM84 runs on the latest-generation DSP architecture and can be integrated as part of a larger system by connecting other DM units (like the DMTH4) via the Digital Audio Network Interface (DANI) bus.
- Audio inputs
- Gain: -10 dB to +60 dB; programmable 1 dB steps
- Input impedance: 2.5 k Ohm
- Phantom voltage: 15V, programmable
- Connector: 5-pin Phoenix
- Audio outputs
- Floating balanced, either side can be grounded
- Nominal level: 0 dBu all outputs, -40 dBu selectable on outputs 9 through 12
- Output impedance
- 450 Ohm differential programmable outputs at line level
- 5 Ohm differential programmable outputs at microphone level
- Input Dynamic Range96 dB at -50 dBu input level; 102 dB at all other levels (unweighted 20 - 20 kHz)
- Output Dynamic Range105 dB (unweighted 20 - 20 kHz)
- Audio Performance
- IMD + noise
- 0.1% max.
- 0.02% nominal input level
- THD + noise
- 0.1% (worst case)
- 0.02% nominal input level
- EIN: -126 dBu
- IMD + noise
- Connectors
- Audio I/O: 5-pin Phoenix
- Expansion: RJ45
- Logic I/O: DB25
- Serial: Standard USB and mini TRS
- Digital Audio Network Interface ( DANI)
- Physical level: LVDS (Low Voltage DIfferential Signal) high speed
- Connector: Four RJ-45
- Cable quality: Shielded CAT-5
- Transmission speed: 50 Mbits/s
- Programmable control inputs
- Number of inputs: 11
- Analog voltage range: 0-5V
- Logic input: TTL, LVTTL, CMOS, LVCMOS
- Programmable control outputs
- Number of logic outputs: 8
- Logic control: Active low
- Max sink current: 100 mA
- Max supply voltage: 40 V
- Supply voltage for control I/O: 5 V
- Max current: 750 mA
- Power requirements100-240 VAC, 47-63 Hz
- Power consumption15 Watts
