Lectrosonics DPR-A Digital Plug-On XLR Transmitter With AES Encryption
Lectrosonics DPR-A Digital Plug-On XLR Transmitter With AES Encryption
SoundPro Item: 116741 | Part Number: DPR-A
Usually ships in 5-7 business days
- Wideband UHF Tuning Covers The Full UHF Television Band In Fine Steps
- AES 256-CTR Encryption With Four Key Policies For High-Security Wireless Applications
- Onboard 24-Bit Recorder With Timecode Jam Sync For Dual-System Post Alignment
- Selectable 5, 15, And 48 Volt Phantom Power Supports A Wide Range Of Condenser Mics
- Dual Envelope Limiter Provides Over 30 dB Of Headroom Above Full Modulation
- IR Port And LectroRM App Compatibility Enable Hands-Free Setup And Adjustment
- Solid Machined Aluminum Housing Withstands Daily Production Use

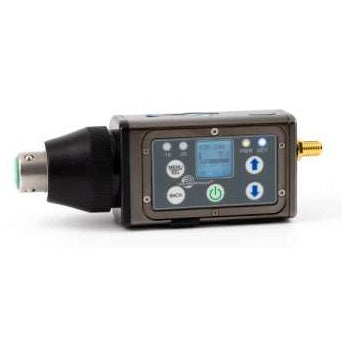

The Lectrosonics DPR-A is a wideband UHF digital plug-on transmitter built for production sound mixers, ENG crews, and broadcast engineers who need encrypted wireless audio from any standard XLR microphone or line-level source. Its purely digital architecture delivers a clean signal path, from an ultra-low-noise input amplifier with a dual envelope limiter providing over 30 dB of headroom, through a 24-bit A-D converter sampling at 48 kHz, out to a selectable 10, 25, or 50 mW RF output. Selectable phantom power at 5, 15, or 48 volts accommodates condenser microphones ranging from compact lavalieres to full-size shotguns without requiring an external adapter or power supply.
For high-security applications in government, corporate, or broadcast environments, AES 256-CTR encryption with four key policies prevents signal interception at the RF layer. The onboard recorder writes 24-bit BWF .wav files to a microSDHC card, and timecode jam sync via a 3.5 mm TRS connector with TCXO accuracy under 1 PPM simplifies dual-system audio alignment in post. The IR port pairs the unit quickly with compatible Lectrosonics receivers, while the LectroRM mobile app enables hands-free frequency and level adjustments using audible tone commands, reducing setup time on congested sets or stages.
A solid machined aluminum housing keeps the transmitter rigid under daily production use, and the external SMA antenna jack accepts AMM and AMJ series antennas for maximum operating range. Where competing plug-on transmitters offer analog or hybrid transmission, the DPR-A's fully digital signal path eliminates companding artifacts entirely, making it a direct upgrade for productions that have outgrown analog wireless systems.
Specifications
