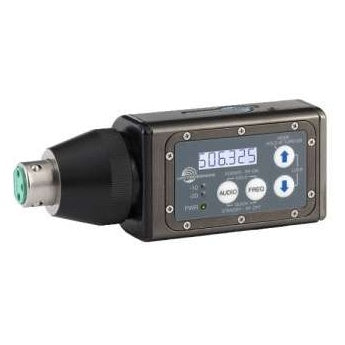

• HMa plug-on XLR wireless transmitter angled view showing LCD reading 506.325, AUDIO and FREQ buttons, up/down arrows and green-insert XLR connector, Lectrosonics
1 1

Lectrosonics HMa Plug-On XLR Wireless Transmitter | E07-941 Band

Lectrosonics HMa Plug-On XLR Wireless Transmitter | E07-941 Band

SoundPro Item: 132661 | Part Number: HMA/E07- 941 (US and Canada)

$1,455.00
$1,615.00 $1,455.00
Your Price Sold out
MSRP: $1,615.00 | MAP: $1,455.00

Usually ships in 5-7 business days

  • Digital Hybrid Wireless Encoding Eliminates Compandor Artifacts For Transparent Audio
  • Selectable Phantom Power Supports Dynamic, Condenser, And Line Level Sources
  • Dual Envelope Soft Limiter Provides Over 30 dB Headroom Above Full Modulation
  • IR Port Enables Fast System Setup With Compatible Receivers
  • Machined Aluminum Housing Withstands Rigorous Daily Production Use
  • USB Port Allows On-Location Firmware Updates Without Sending To Service
  • Multiple Compatibility Modes Extend Use To Legacy And Third-Party Receivers
Log in or register for YOUR best price

The Lectrosonics HMa is a professional plug-on XLR wireless transmitter built for broadcast engineers, ENG crews, theater production teams, and touring sound professionals who need to wirelessly deploy any microphone or line-level source without altering the source device. It connects directly to any standard 3-pin XLR output, making it equally at home on a boom pole, a handheld dynamic, or a wired boundary microphone in an installed environment. Phantom power is selectable at 5, 15, and 48 volts, or can be disabled entirely for dynamic mics and line-level signals, giving engineers the flexibility to work across any mic type without additional adapters.

The transmitter uses Lectrosonics Digital Hybrid Wireless technology, which digitally encodes audio in the transmitter and decodes it in the receiver while transmitting via an analog FM link. This approach eliminates the compandor artifacts common in conventional analog wireless systems and delivers wide frequency response with extremely low distortion across the full audio bandwidth. A dual envelope soft limiter provides more than 30 dB of headroom above full modulation, protecting against transient clipping in demanding live and studio environments. Compatibility modes extend usefulness across legacy Lectrosonics receivers and select third-party systems.

The machined aluminum housing is built to withstand the physical demands of daily production use. IR and USB ports streamline setup and firmware management on location or in a system rack. Multiple frequency band versions are available to match regional regulatory requirements, and frequency selection steps of 100 kHz or 25 kHz support precise channel coordination in congested RF environments. The HMa is the clear choice when reliability, audio transparency, and RF flexibility are non-negotiable.

Downloads

View full details

Specifications

Operating Frequency
HMa/E07-941 Band
941.525 - 951.975, 953.025 - 956.225, 956.475 - 959.825 MHz
Frequency Selection Steps
Selectable 100 kHz or 25 kHz
Frequency Stability
+/- 0.002%
RF Performance
RF Power Output
Selectable 50 or 100 mW
Spurious Radiation
60 dB below carrier
Emission Designator
110KF3E
Pilot Tone
25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode)
Compatibility Modes
Nu Hybrid, IFB
Audio Performance
Frequency Response
35 Hz to 20 kHz (+/-1 dB)
Equivalent Input Noise
-125 dBV (A-weighted)
Input Level
Nominal 2 mV to 300 mV before limiting; greater than 1V maximum with limiting
Input Impedance
1K Ohm
Input Limiter
Dual envelope soft limiter; greater than 30 dB range
Gain Control Range
55 dB
THD
0.2% typical (100 Hz to 20 kHz)
Signal To Noise Ratio
Up to 113.0 dB (SmartNR Full, with limiting)
Input Dynamic Range
125 dB (with full Tx limiting)
Low Frequency Roll-Off
Adjustable -3 dB at 30, 50, 70, 100, 120, or 150 Hz
Connectivity
Audio Input Jack
Standard 3-pin XLR (female)
Phantom Power
5V at 18 mA max; 15V at 15 mA max; 48V at 4 mA max; or OFF
USB Port
Firmware updates
IR Port
Quick setup via IR-enabled receiver
Antenna
Housing and attached microphone form the antenna
Controls & Indicators
Controls
Power/Phantom ON-OFF; Phantom voltage selector; Audio input gain; LCD with membrane switches
Modulation Indicators
Dual bi-color LEDs at -20, -10, 0, +10 dB referenced to full modulation
Power
Battery
Two 1.5V AA alkaline
Battery Life (No Phantom Power, Duracell Ultra AA)
5h 0m
Battery Life (48V Phantom Power, Duracell Ultra AA)
3h 30m
Environmental
Operating Temperature Range
−20 to 50 degrees C / −5 to 122 degrees F
Dimensions & Weight
Dimensions
4.25 x 1.62 x 1.38"
Weight
6.7 oz (190 g) without batteries
Included Items
Included Accessories
2x AA Alkaline Batteries; 1x HM Pouch (PHTRAN3); 1x Quickstart Guide
