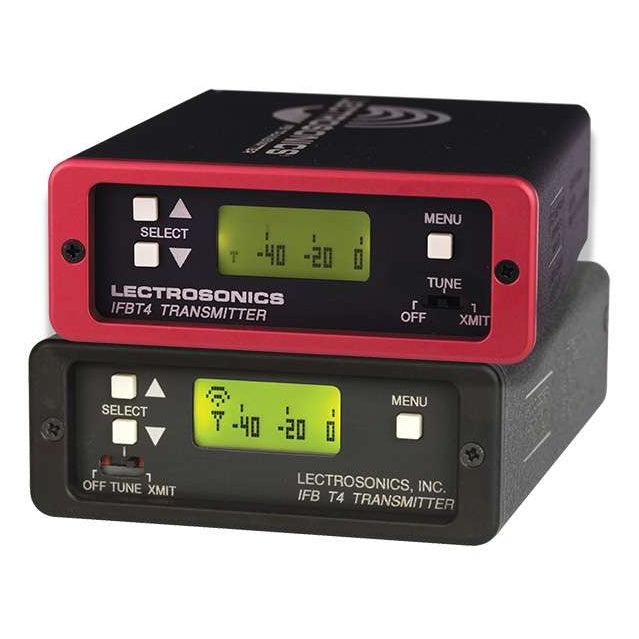

• IFBT4 IFB transmitter front view of two stacked units, red-trimmed IFBT4 above black IFB T4, each showing green LCD level meter, SELECT and MENU buttons, and OFF/TUNE/XMIT switch, Lectrosonics
1 1

Lectrosonics IFBT4 IFB Transmitter Compact Frequency-Agile Wireless Tx | VHF

Lectrosonics IFBT4 IFB Transmitter Compact Frequency-Agile Wireless Tx | VHF

SoundPro Item: 38691 | Part Number: IFBT4-VHF

$1,499.00
$1,664.00 $1,499.00
Your Price Sold out
MSRP: $1,664.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • Digital Hybrid Wireless Technology Ensures Compatibility With Multiple Lectrosonics Receiver Generations
  • Machined Aluminum Housing Withstands Daily Production And Touring Environments
  • Multi-Use XLR Input With Built-In Mic Preamp Handles Diverse Feed Sources Without External Adapters
  • DIP Switch Programmable Intercom Input Supports Line, Mic, RTS, And Clear-Comm Configurations
  • Tx Mute For Frequency Scrolling Allows Retuning Without Interrupting Connected Receivers
  • Backlit LCD Displays Modulation, Frequency, Mode, And Audio Level For Fast On-Set Monitoring
  • Menu-Selectable Low-Frequency Rolloff Optimizes IFB Intelligibility For Voice-Critical Applications
Log in or register for YOUR best price

The Lectrosonics IFBT4 is a frequency-agile IFB base station transmitter built for broadcast, film, and live production environments where talent monitoring and director cue delivery are critical. Available across UHF and VHF frequency blocks to suit different spectrum plans and regional licensing requirements, the IFBT4 integrates into existing Lectrosonics wireless ecosystems and supports compatibility modes including IFB, Nu Hybrid, and Digital Hybrid Wireless, making it a practical choice for facilities that operate mixed-generation gear.

Designed for the demands of daily production use, the IFBT4 accepts a wide range of intercom input configurations including Line, Mic, RTS, and Clear-Comm via its rear-panel DIP switch, eliminating the need for external adapters in most intercom wiring scenarios. The built-in microphone preamp and multi-use XLR input make it adaptable to both simple playback feeds and full two-way production workflows. A backlit LCD displays modulation, frequency, mode, and audio level at a glance, while momentary pushbutton channel selection and TX mute allow frequency scrolling without dropping the feed.

Where many compact IFB transmitters sacrifice build quality for size, the IFBT4 uses rugged machined aluminum construction sized to mount in a production rack or fit a portable bag kit. Its menu-selectable low-frequency rolloff, wide gain control range, and high signal-to-noise ratio make it suitable for demanding audio environments where IFB intelligibility directly affects on-air performance.

Downloads

View full details

Specifications

RF Performance
Operating Frequencies
174.100 to 215.750 MHz
Available Frequencies
239
Channel Spacing
175 kHz
RF Power Output
50 mW
RF Output Impedance
50 ohms
Frequency Stability
+/-.001% (10 ppm) @ 25 degrees C
Temperature Stability
+/-.001% (10 ppm) from -30 degrees C to +50 degrees C
Modulation
IFB Mode: FM, +/-20 kHz deviation; Nu Hybrid Mode: +/-75 kHz
Emission Designator
54K5F3E
Spurious Radiation
Compliant with ETSI EN 300 422-1 v1.4.2
Pilot Tone
US: 25 to 32 kHz; 3.5 kHz deviation (in Nu Hybrid mode)
Compatibility Modes
IFB and Nu Hybrid
Audio
Audio Frequency Response
IFB Mode: 100 Hz to 8 kHz, +/-1 dB; Nu Hybrid Mode: 30 Hz to 20 kHz, +/-1 dB
Rolloff
Low frequency audio rolloff menu selectable for 3 dB down at 35 Hz or 50 Hz
Output Impedance
50 ohms
Audio Input Levels
0 dBu for Line, RTS1 and RTS2; -10 dBu for Clear Com; -42 dBu for mic dry inputs (no phantom power); +/-50 Vdc max
Audio Input Impedance
Greater than 2 K balanced, greater than 1 K unbalanced at any gain setting
Gain Control Range
-18 dB to +24 dB (0 dB nominal center), menu selectable
Audio Input Config
Balanced and Unbalanced, rear panel selectable for Line, Mic, RTS 1, RTS 2, and Clear Comm
Connectivity
Audio Input Jack
Standard XLR female connector
Power Input Jack
Coax type, locking LZR RL26AE
Channel Selection
Momentary pushbutton switches, tune Up and Down
Controls
Front Panel Controls
MENU momentary pushbutton switch; Power OFF-TUNE-XMIT 3 position slide switch; Select Up momentary pushbutton switch; Select Down momentary pushbutton switch
Rear Panel Controls
Input Mode Select, 4 section DIP switch
Indicators
Backlit LCD; displays modulation meter, frequencies, modes, roll-off and audio level
Electrical
Input Power
12 to 14 VDC typical, 200 mA max; max input range 6 to 18 VDC
Dimensions
Size
5.25" L (including connectors) x 3.25" W x 1.25" H
Weight
Weight
9.6 ozs. (272 grams)
