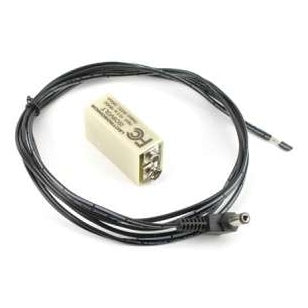

• ISO9VOLT isolated battery eliminator overall view with cream 9V-style module and coiled black cable ending in a barrel connector, Lectrosonics
1 1

Lectrosonics ISO9VOLT Isolated Battery Eliminator Without Door

Lectrosonics ISO9VOLT Isolated Battery Eliminator Without Door

SoundPro Item: 70213 | Part Number: ISO9VOLT

$175.00
$194.00 $175.00
Your Price Sold out
MSRP: $194.00 | MAP: $175.00

Usually ships in 5-7 business days

  • Isolated DC-to-DC Conversion Eliminates Ground Loops In Shared-Supply Bag Systems
  • Regulated 9V Output Maintains Stable Transmitter Power From Variable External Sources
  • Reverse Polarity Protection And Fusing Safeguard Transmitters During Field Deployment
  • Compatible With Standard Alkaline Or Lithium Batteries When External Power Is Unavailable
  • Modified Doors Available Separately For UM Beltpack And UH Plug-On Transmitter Types
Log in or register for YOUR best price

The Lectrosonics ISO9VOLT is a general-purpose isolated battery eliminator designed for field production engineers and bag system operators who need to run Lectrosonics wireless transmitters from a shared external DC supply without introducing ground loops. When a mixer, receivers, and transmitters share a common battery in a production bag, ground loops are a predictable result, manifesting as high-frequency whine or hiss in the audio chain. The ISO9VOLT breaks that loop by isolating the power ground from the audio ground inside the transmitter through a high-frequency DC-to-DC converter and transformer stage.

Internally, the incoming DC passes through a low-dropout 12V regulator before entering a converter that produces an 800 kHz square wave. That square wave passes through a transformer, is rectified, and then regulated down to a stable 9V DC output presented at the battery contacts. The result is a clean, regulated supply that coexists with the transmitter's normal alkaline or lithium battery operation. The unit is fused and reverse-polarity protected, adding a layer of hardware safety appropriate for unattended bag deployments.

This version ships without a modified battery door and without an external power supply, making it the right choice for integrators who are sourcing doors separately or retrofitting existing hardware. Compatible modified doors are available for both UM-type beltpack and UH-type plug-on transmitters. The ISO9VOLT has been tested exclusively with Lectrosonics transmitter types as specified by the manufacturer. Use outside those tested configurations voids the factory warranty.

Downloads

View full details

Specifications

Input
Minimum Voltage
10.5 VDC
Maximum Voltage
18 VDC
Connector
DC sleeve type
Output
Output Voltage
9 VDC regulated
Output Current
200 mA maximum
Dimensions
Height
0.67" (17 mm)
Width
0.99" (25 mm)
Length
1.76" (45 mm) housing only; 1.91" (49 mm) including battery contacts
Weight
Unit Weight
0.6 oz (16.4 g)
Identifiers
Supplied Cord
21472
