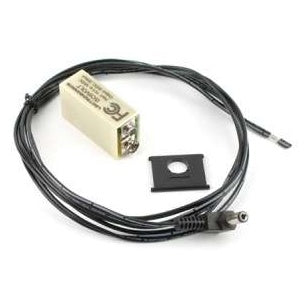

• ISO9VOLTH isolated battery eliminator overview showing cream 9V-style housing, coiled black cable with barrel plug connector and small black square spacer plate, Lectrosonics
1 1

Lectrosonics ISO9VOLTH Isolated Battery Eliminator for H-Style Plug-On TX

Lectrosonics ISO9VOLTH Isolated Battery Eliminator for H-Style Plug-On TX

SoundPro Item: 70214 | Part Number: ISO9VOLTH

$222.00
$246.00 $222.00
Your Price Sold out
MSRP: $246.00 | MAP: $222.00

Usually ships in 5-7 business days

  • Isolated Power Ground Eliminates Ground Loops In Bag-Powered Field Production Rigs
  • DC-To-DC Conversion With Transformer Isolation Delivers Clean Regulated Output
  • H-Style Modified Battery Door Fits UH Plug-On Transmitters With Flip-Open Doors
  • Machined Door Hole Exposes DC Connector Without Removing Or Replacing The Door
  • Dry-Cell Battery Compatibility Preserved For Flexible Power Backup In The Field
  • Reverse-Polarity Protection And Internal Fuse Safeguard Transmitter And Eliminator
Log in or register for YOUR best price

The Lectrosonics ISO9VOLTH is an isolated battery eliminator built for field production engineers and wireless technicians who need to run UH-type plug-on transmitters from an external power source inside a bag system. It slots into the transmitter's 9-volt battery compartment and uses the included H-style modified door, which features a machined hole that exposes the DC input connector while still allowing normal dry-cell battery operation when needed.

The core engineering challenge in bag systems is ground loops. When a mixer, receivers, and transmitters share a common battery rail, the shared ground path introduces high-frequency noise into the audio chain. The ISO9VOLTH addresses this directly by isolating the power ground from the audio ground inside the transmitter. Incoming DC passes through a low-dropout 12-volt pre-regulator, then into a DC-to-DC converter running at 800kHz, through a transformer, rectified, and finally regulated down to a clean 9-volt output at the battery contacts. The result is a floating supply that breaks the ground loop at the source.

Reverse-polarity protection and an internal fuse guard against wiring mistakes in fast-moving location sound environments. This unit has been tested exclusively with compatible Lectrosonics transmitter types and is the correct choice when bag-powering UH-style plug-on transmitters where audio integrity under shared-rail DC power is non-negotiable.

Downloads

View full details

Specifications

Input
Minimum Input Voltage
10.5 VDC
Maximum Input Voltage
18 VDC
Input Connector
DC sleeve type
Output
Output Voltage
9 VDC regulated
Maximum Current
200 mA
Dimensions
Height
0.67" (17 mm)
Width
0.99" (25 mm)
Length (Housing Only)
1.76" (45 mm)
Length (Including Battery Contacts)
1.91" (49 mm)
Weight
Unit Weight
0.6 oz (16.4 g)
Identifiers
Supplied Cord
21472
Cord Polarity Positive
Center pin (+), white stripe wire
Cord Polarity Negative
Sleeve (-)
