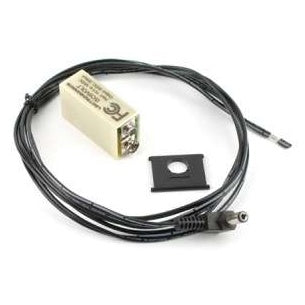

• ISO9VOLTM isolated battery eliminator overview showing cream 9V-style module with attached black coiled cable, barrel connector and square black retainer plate, Lectrosonics
1 1

Lectrosonics ISO9VOLTM Isolated Battery Eliminator for UM Transmitters

Lectrosonics ISO9VOLTM Isolated Battery Eliminator for UM Transmitters

SoundPro Item: 70215 | Part Number: ISO9VOLTM

$222.00
$246.00 $222.00
Your Price Sold out
MSRP: $246.00 | MAP: $222.00

Usually ships in 5-7 business days

  • Isolated DC-to-DC Conversion Eliminates Ground Loops In Bag Production Systems
  • Converts 10-18V External DC to Regulated 9V At Battery Contacts
  • M-Style Machined Battery Door Fits UM Series Belt-Pack Transmitters
  • Fused With Reverse Polarity Protection For Safe Field Deployment
  • Preserves Compatibility With Standard Alkaline Or Lithium Dry Cell Batteries
Log in or register for YOUR best price

The Lectrosonics ISO9VOLTM is designed for field production engineers and wireless technicians who need to run UM series belt-pack transmitters from external DC power in bag systems. It accepts 10 to 18 volts DC and converts it to a regulated 9 volts DC delivered directly to the transmitter's battery contacts, eliminating the need for disposable cells during extended shoots or live production workflows where battery management is a liability.

The defining advantage of this unit over standard battery eliminators is its isolated power ground architecture. In bag systems where a mixer, receivers, and wireless transmitters share a common battery supply, ground loops are a persistent problem that introduce high-frequency noise into the audio path. The ISO9VOLTM's DC-to-DC converter topology runs external DC through a low-dropout regulator, generates an 800kHz square wave through a transformer, rectifies it, and passes it through a second low-dropout 9-volt regulator. This approach keeps the power ground completely separate from the audio ground inside the transmitter, eliminating the whine and hiss common to non-isolated designs.

The included M-style battery door is machined with a clearance hole for the external power connector and still accepts standard alkaline or lithium dry cells, so the transmitter remains usable on battery power when needed. The unit is fused and protected against reverse polarity connection. It has been tested exclusively with compatible Lectrosonics transmitter types and is intended for professional use within that ecosystem.

Downloads

View full details

Specifications

Input
Minimum Input Voltage
10.5 VDC
Maximum Input Voltage
18 VDC
Input Connector
DC sleeve type
Output
Output Voltage
9 VDC regulated
Output Current
200 mA maximum
Dimensions
Height
0.67" (17 mm)
Width
0.99" (25 mm)
Length
1.76" (45 mm) housing only; 1.91" (49 mm) including battery contacts
Weight
Unit Weight
0.6 oz (16.4 g)
Identifiers
Supplied Cord
21472
