Specifications
Audio
Capsule Type
MEMS
Capsule Polar Pattern
Omni
Principle of Operation
Pressure
Frequency Response
20 Hz - 20 kHz
SNR Capsule (A-Weighted)
83 dB
SNR (A-Weighted)
11 dB (A) SPL
Equivalent Noise Level (A-Weighted)
14 dB (A) SPL
Maximum SPL / AOP (High Sensitivity)
120 dB SPL @ 10% THD
Maximum SPL / AOP (Low Sensitivity)
134 dB SPL @ 10% THD
Maximum SPL / AOP (Peak)
137 dB SPL
Dynamic Range (High Sensitivity)
106 dB
Dynamic Range (Low Sensitivity)
120 dB
Capsule Sensitivity High Mode (re 1V/Pa)
-34 dBV +/- 1 dB
Capsule Sensitivity Low Mode (re 1V/Pa)
-54 dBV +/- 1 dB
Standard Cap Frequency Boost
+3 dB from 8 - 20 kHz
High Boost Cap Frequency Boost
+9 dB from 12 - 14 kHz
Connectivity
Connector Type
LEMO 3-Pin Male
Dimensions
Mic Diameter
5.4 mm
Mic Length
22 mm
Connector Diameter
9 mm
Connector Length
56 mm
Cable Length
1.8 m
Construction
Color
Black
Weight
Total Mass
14.5 g
Product Weight
0.032 lbs
Environmental
Humidity Operating Range
0 - 95 %RH
Temperature Operating Range
-20C - +60C
Compatibility
Compatible Products

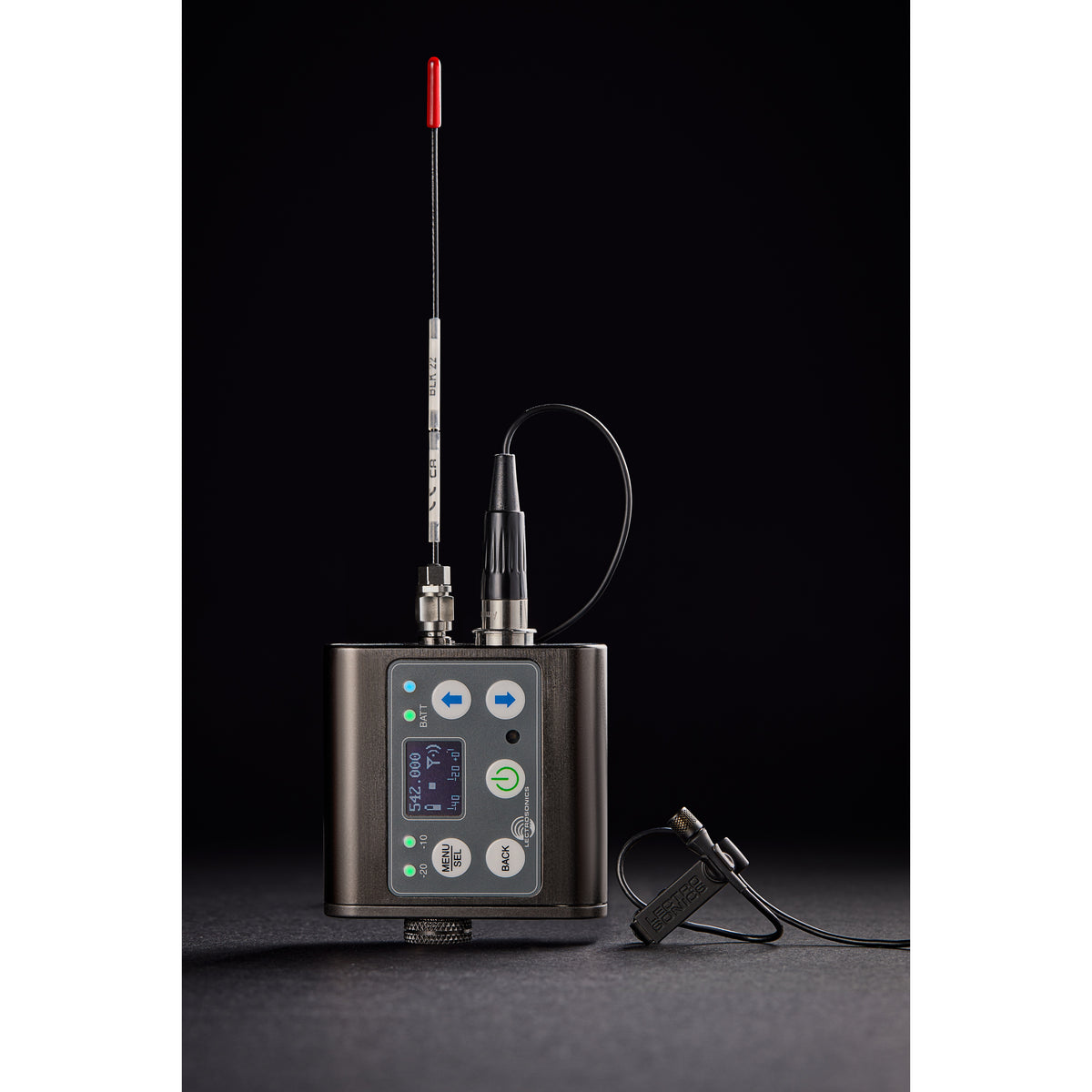

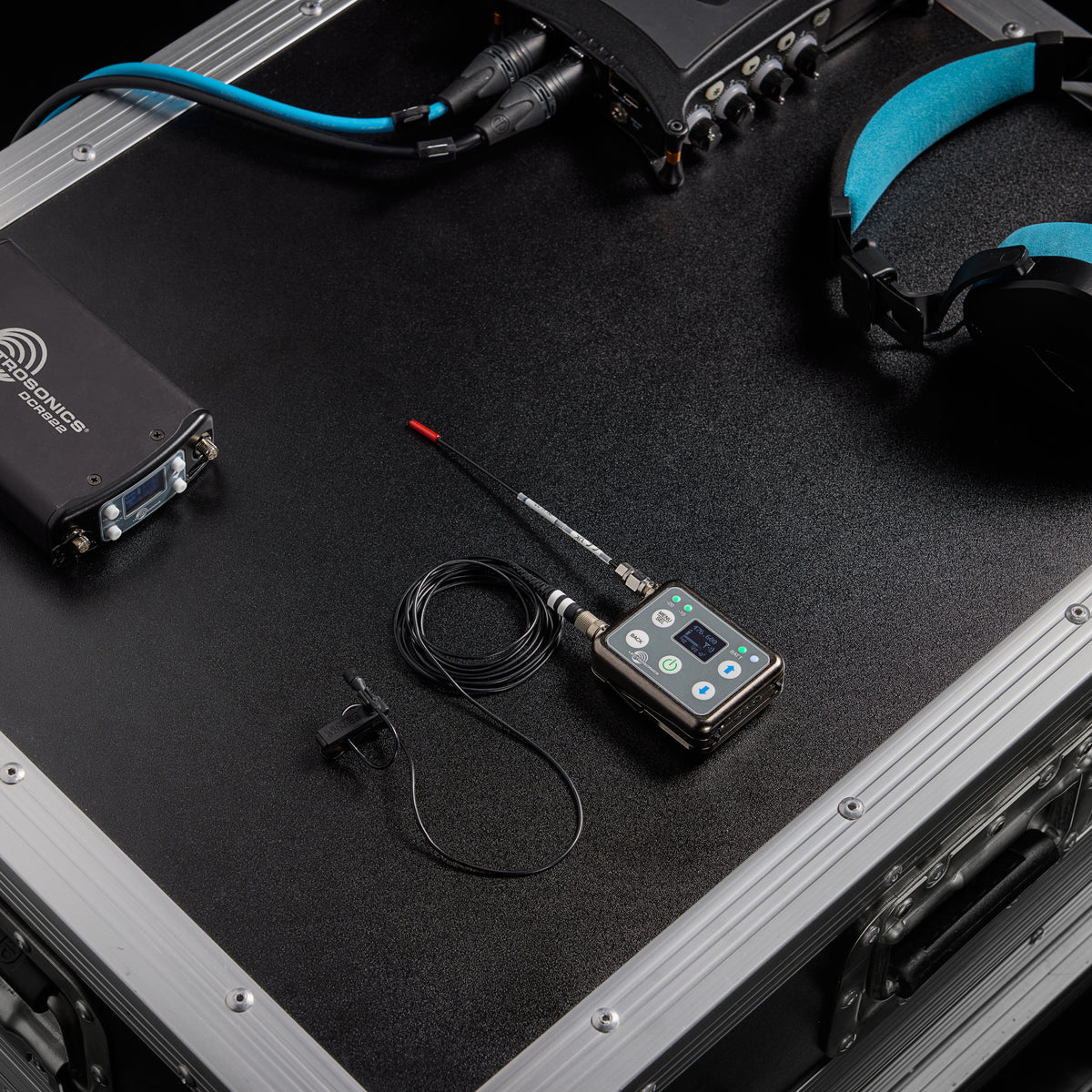

Lectrosonics DSSM

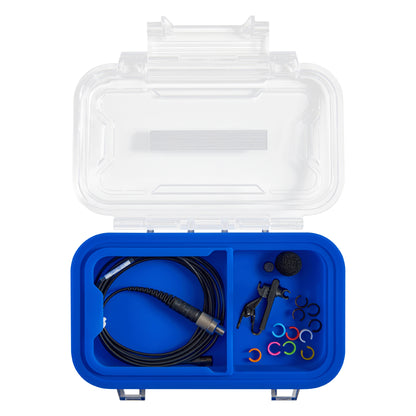

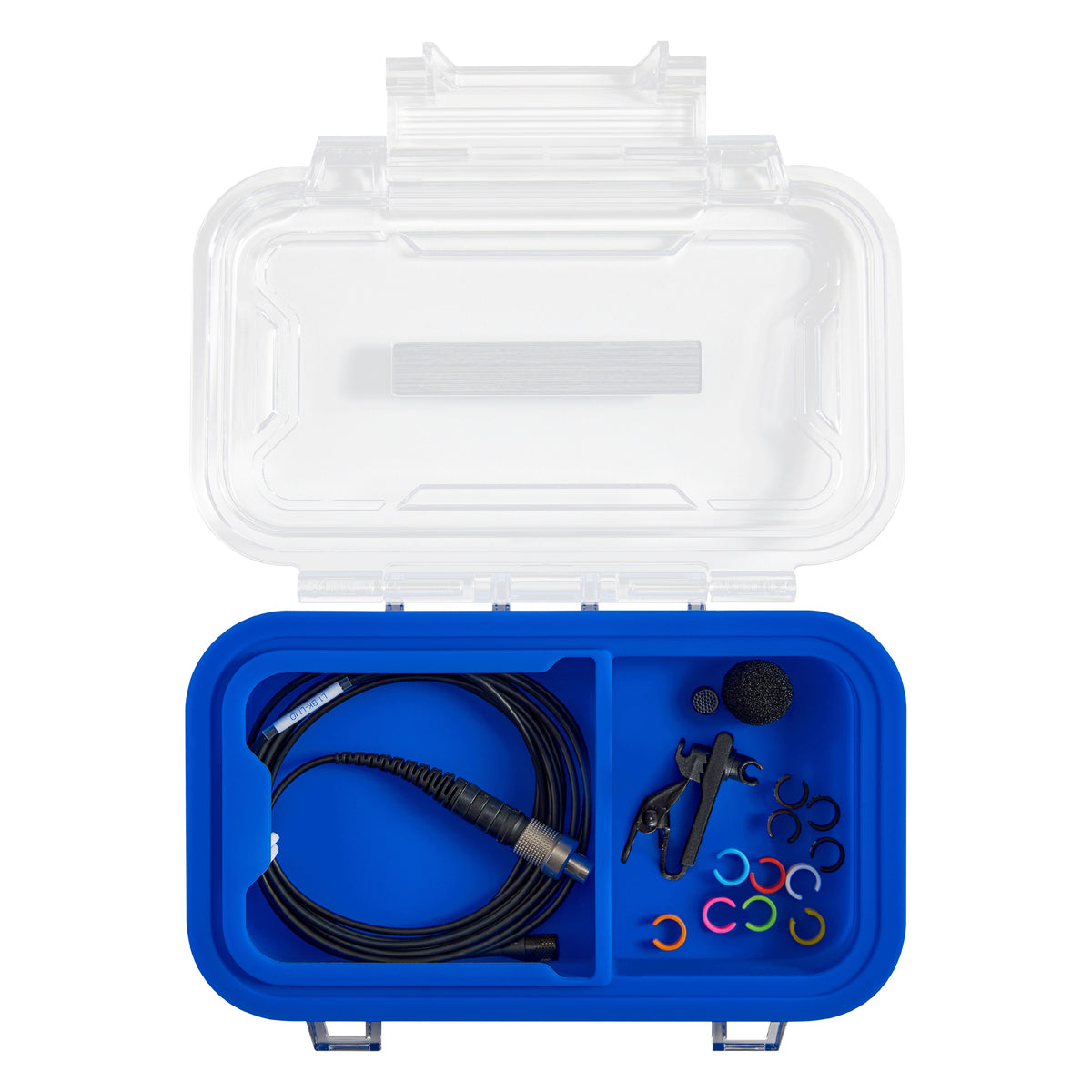

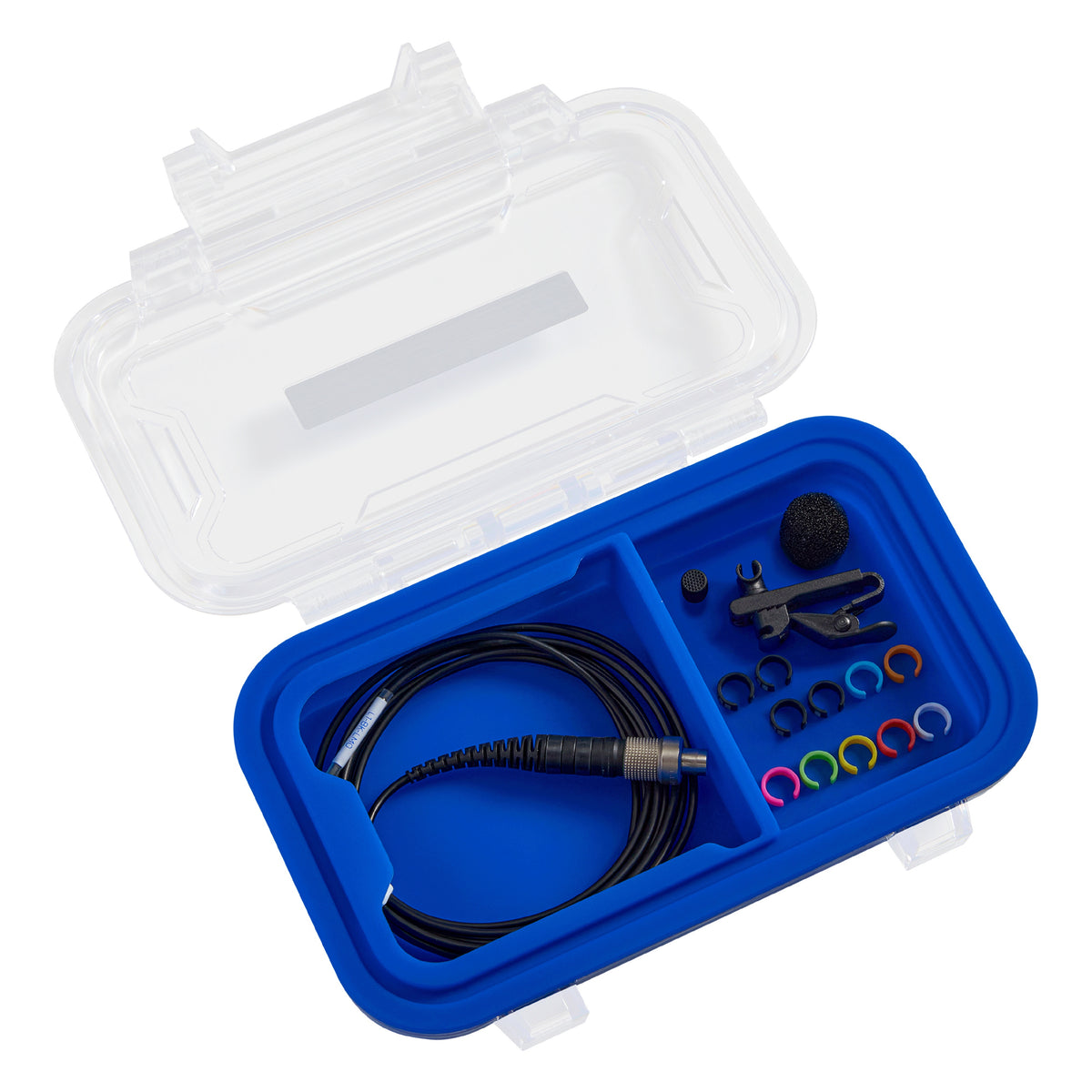

Included Items

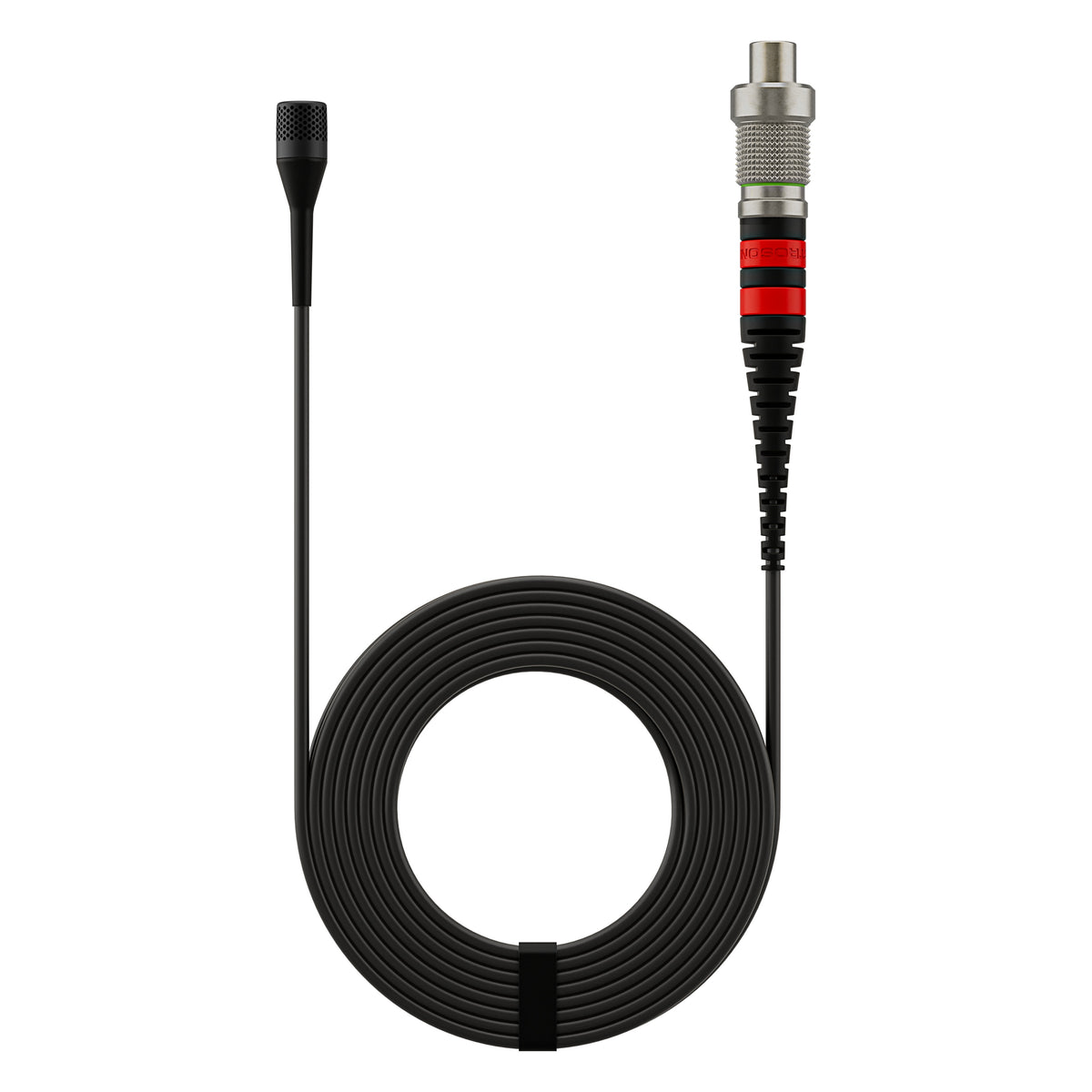

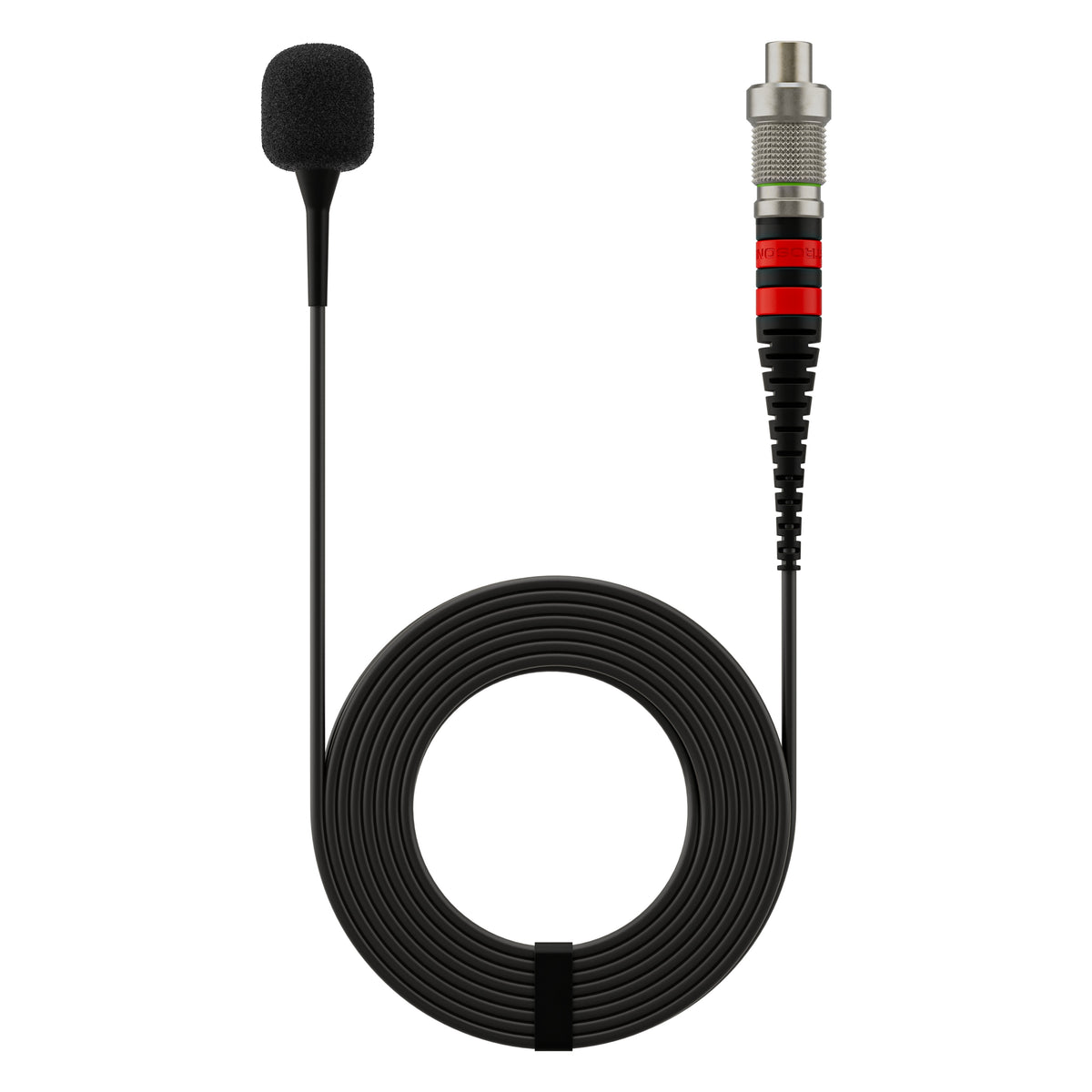

Lavalier Microphone
1x with LEMO 3-Pin Male Connector

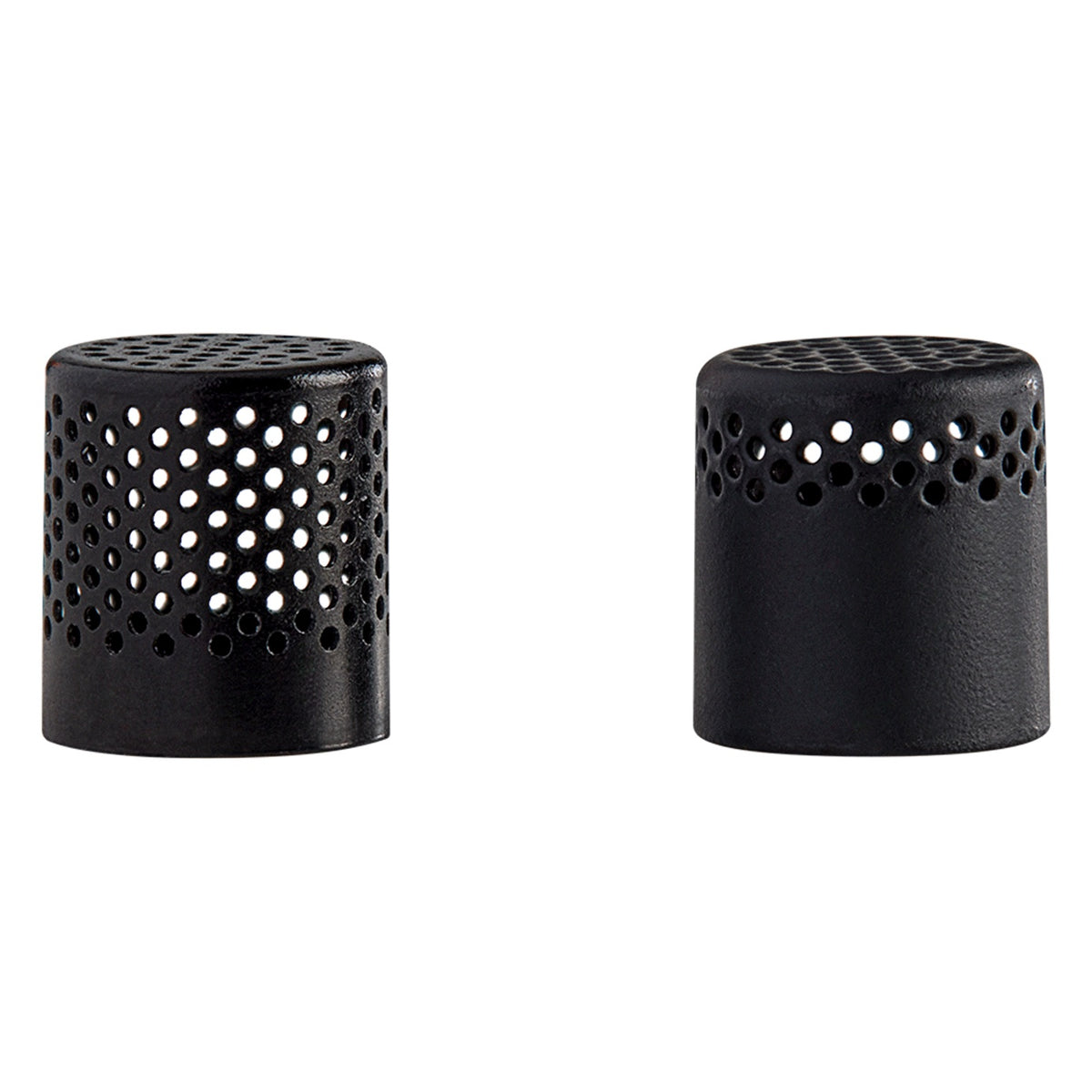

Cap (Standard)
1x
Cap (High Boost)
1x

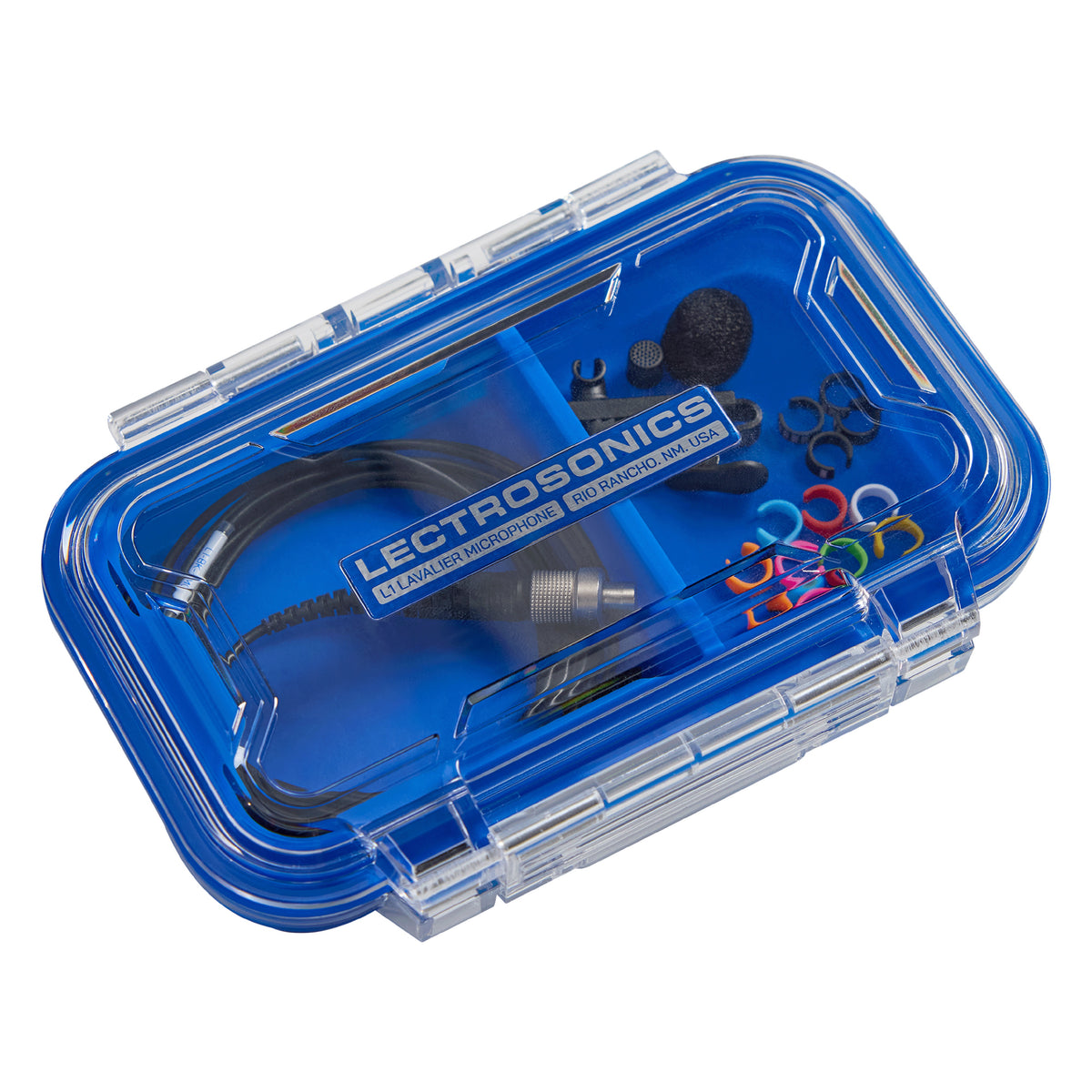

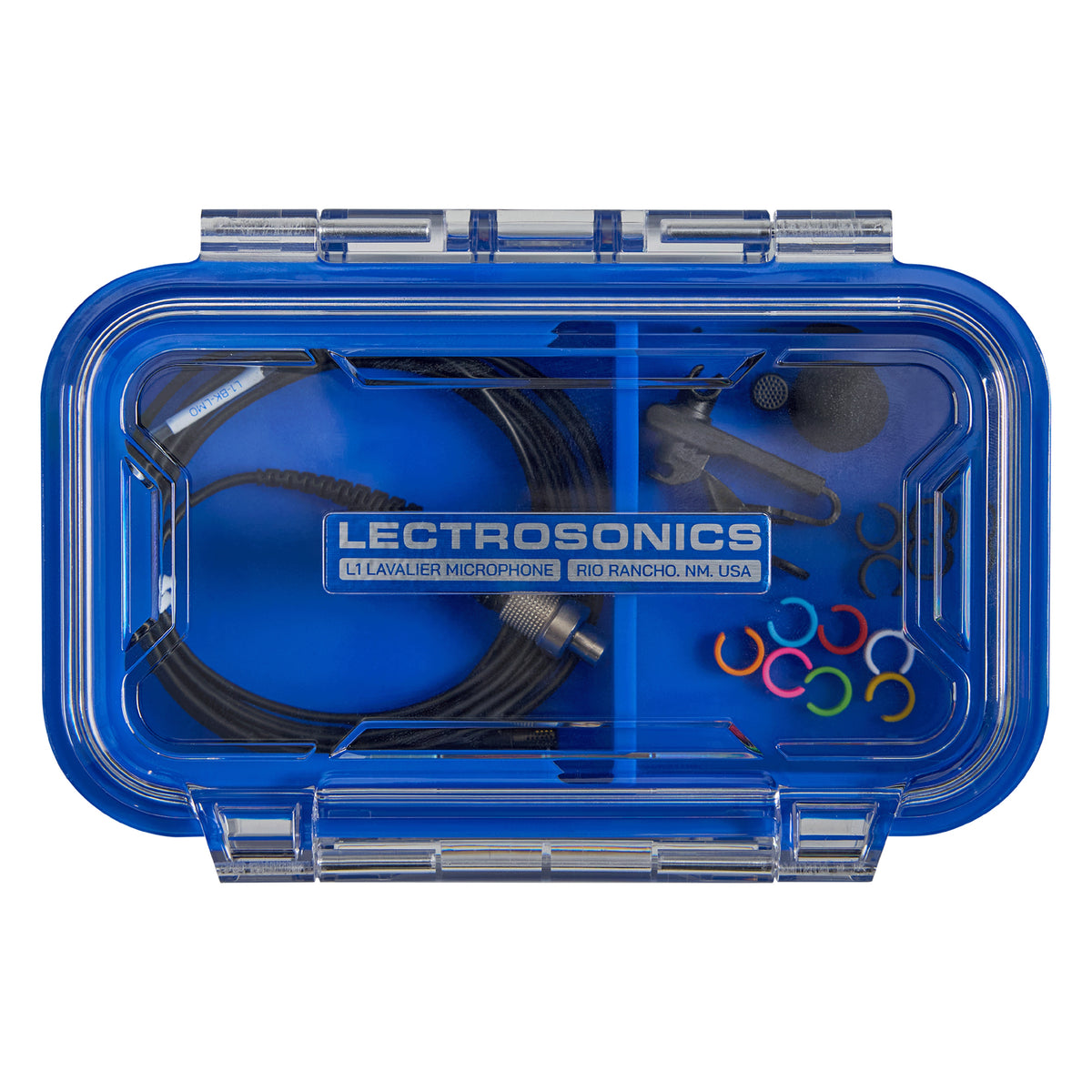

Carry Case
1x

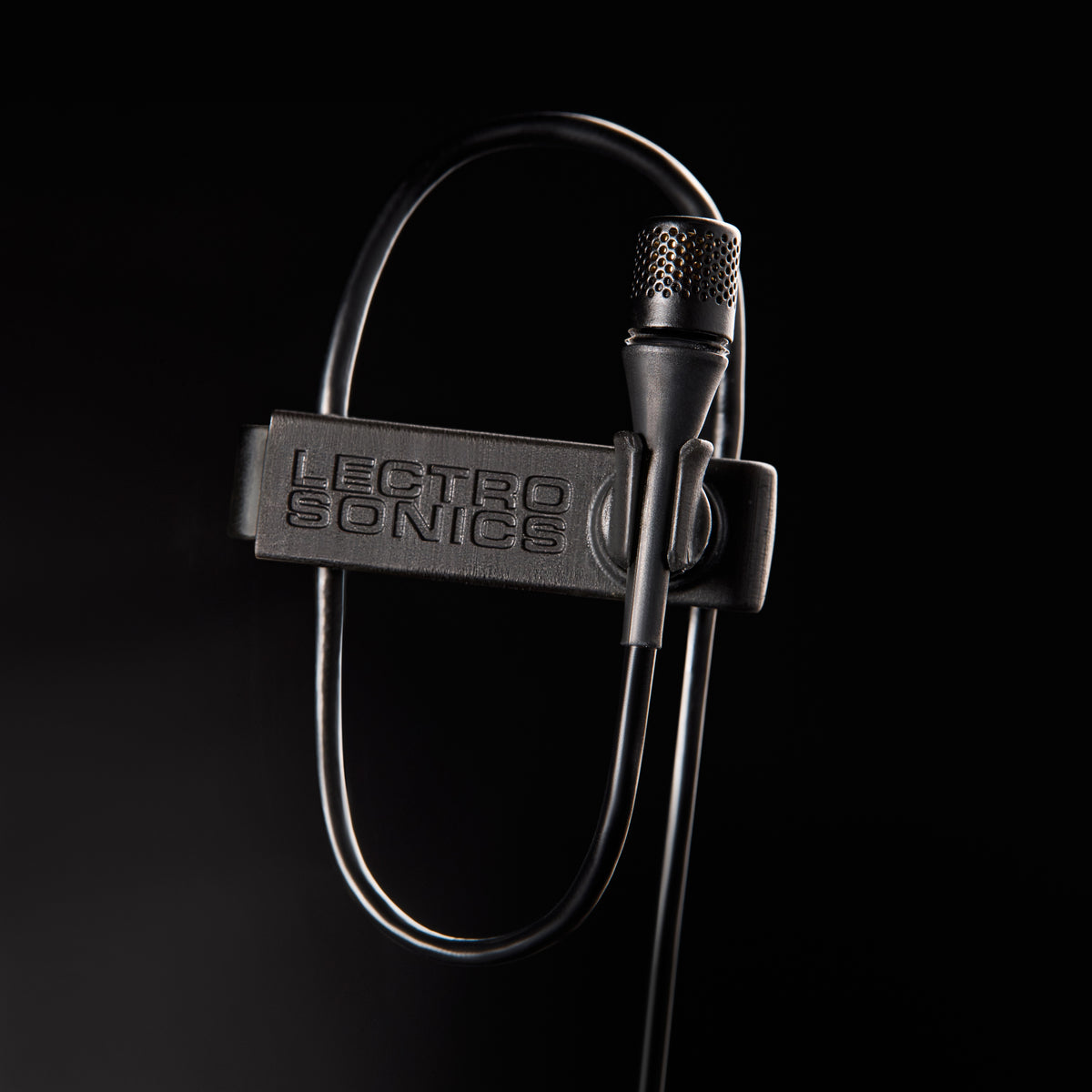

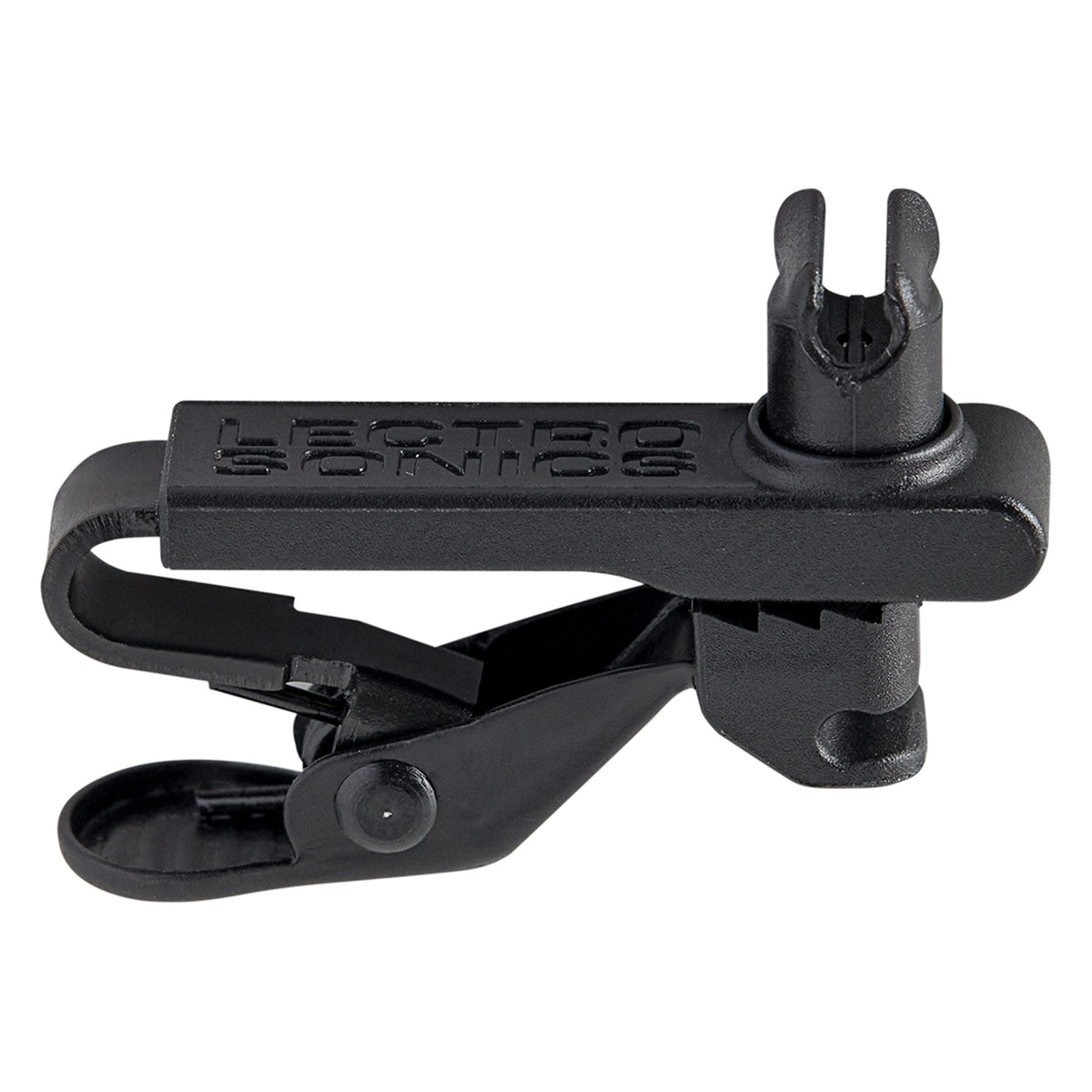

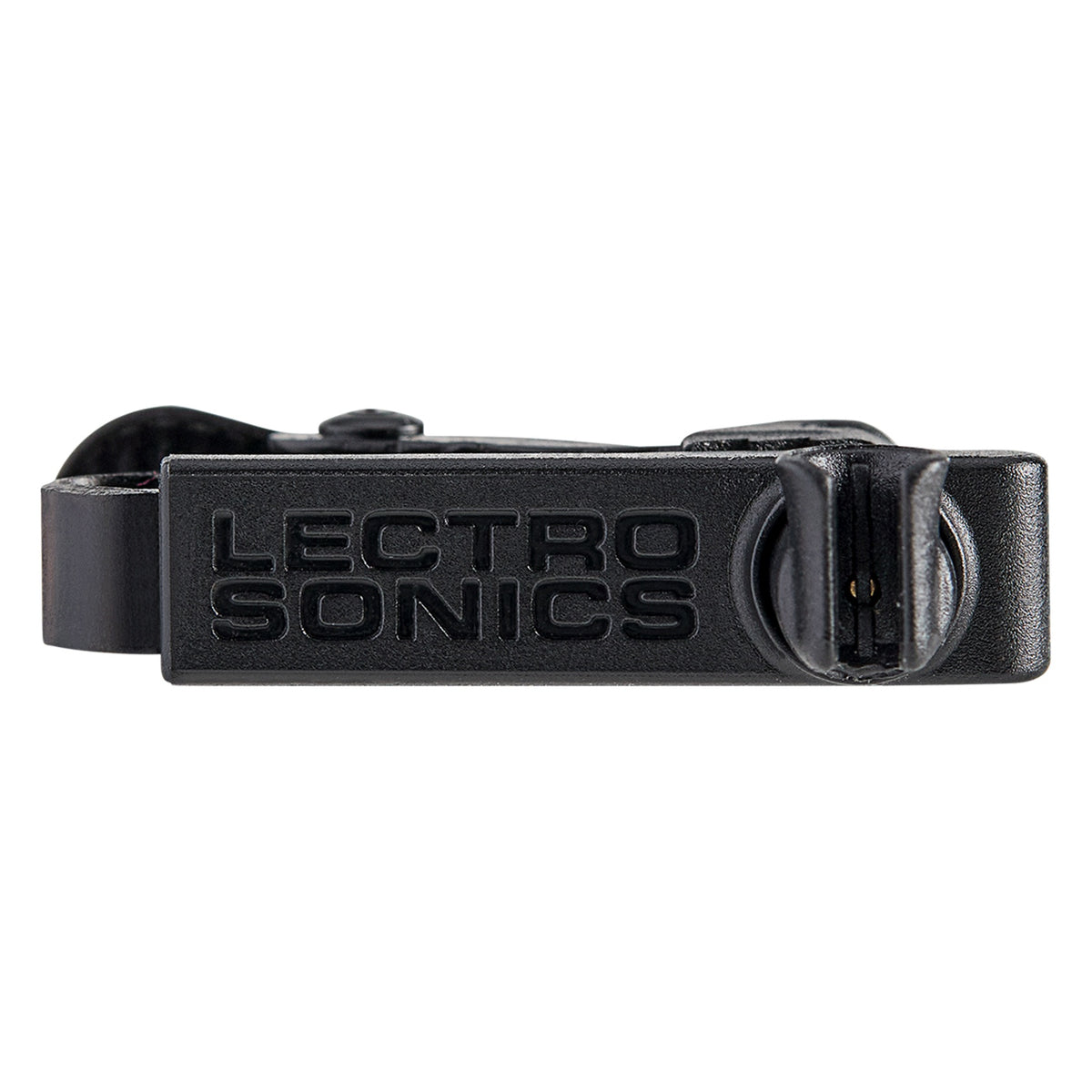

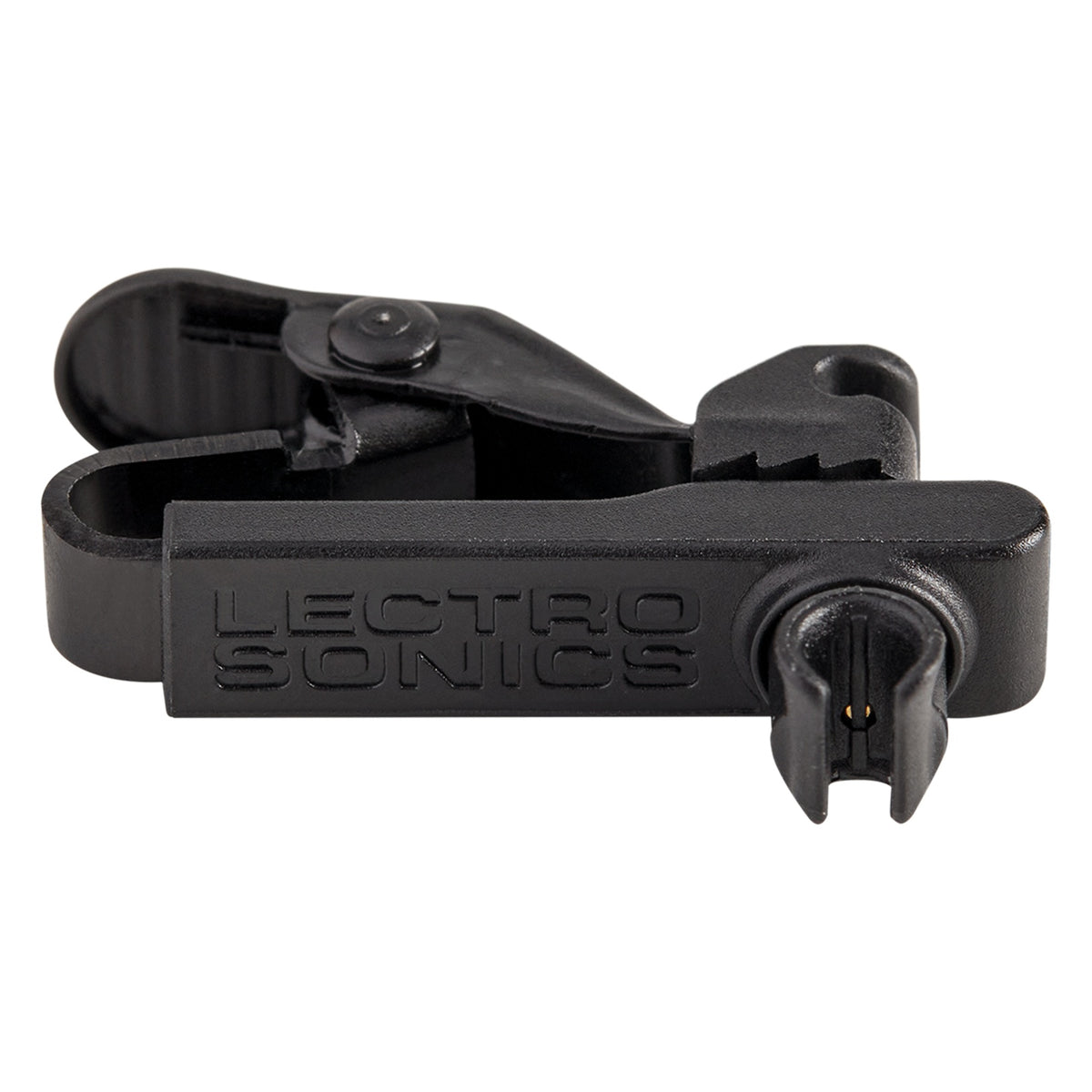

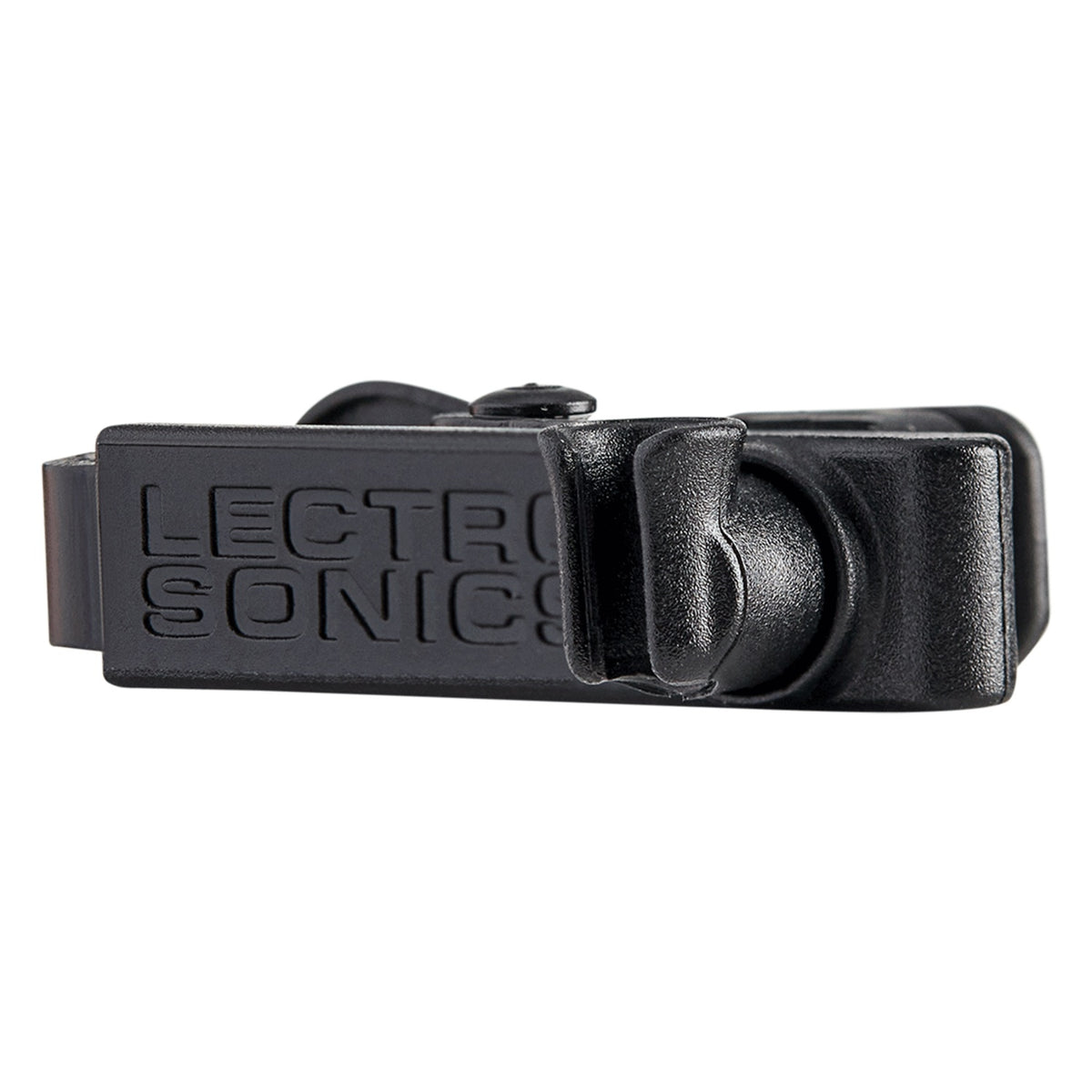

Clip
1x

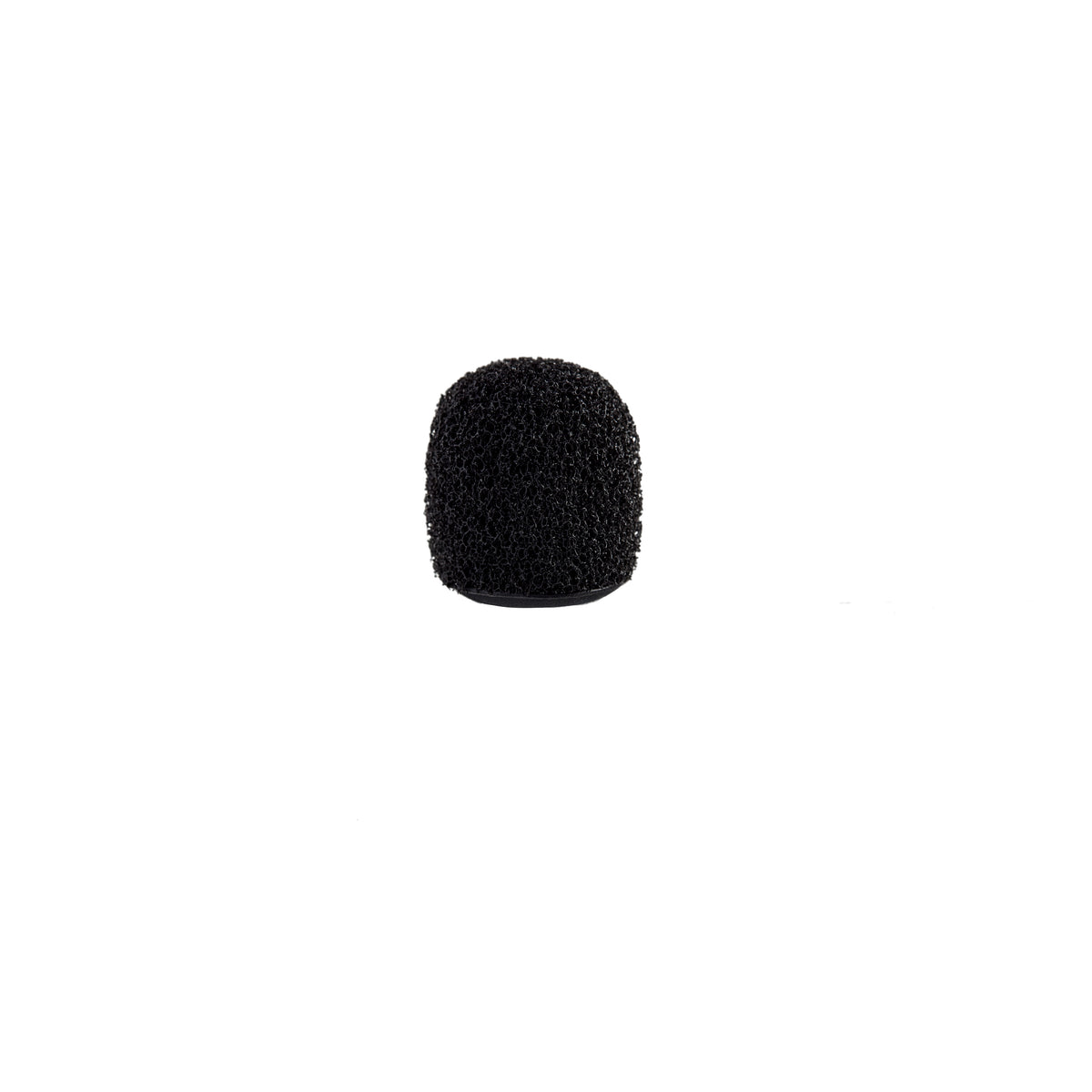

Pop Filter
1x

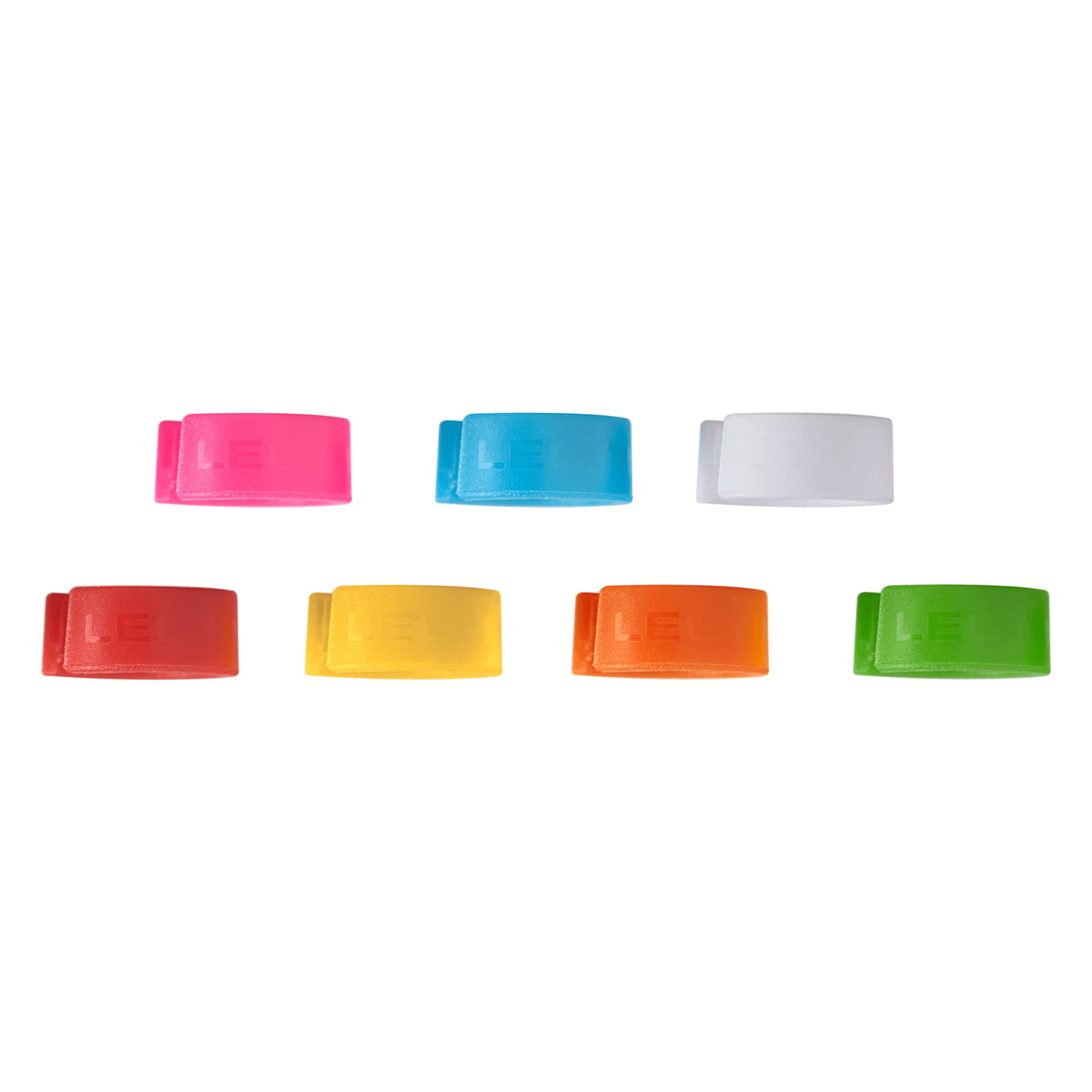

Color ID Rings
9x

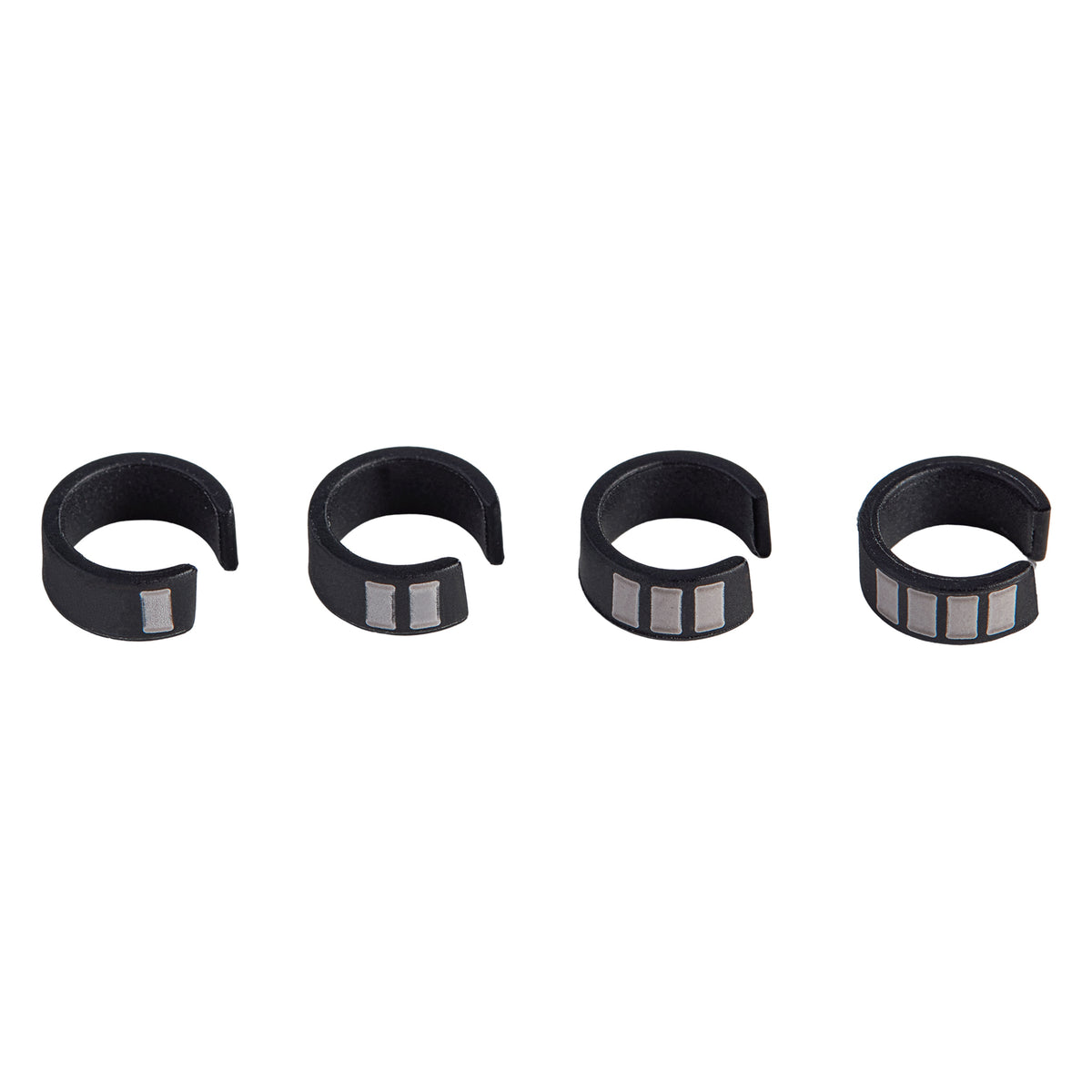

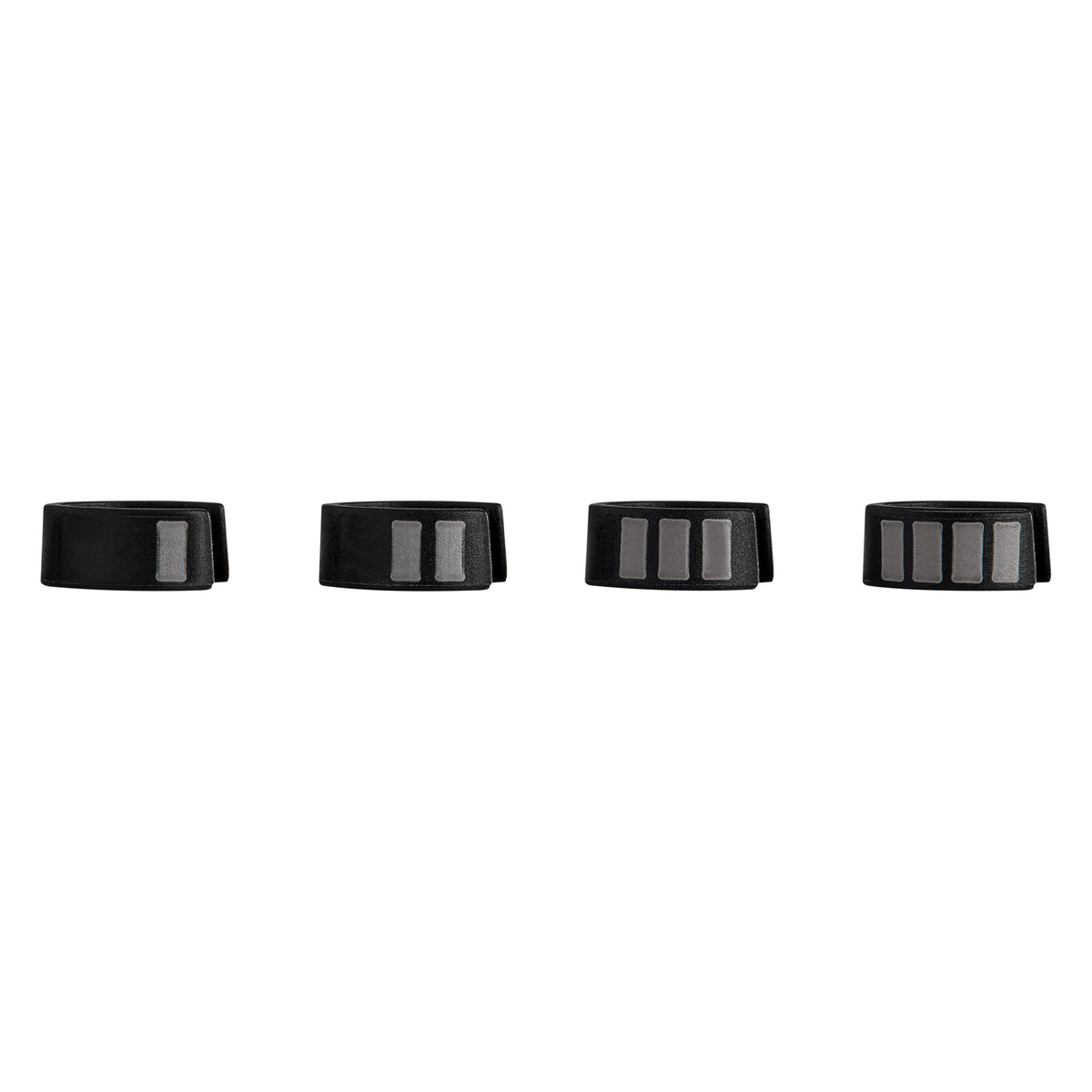

Number ID Rings
4x
