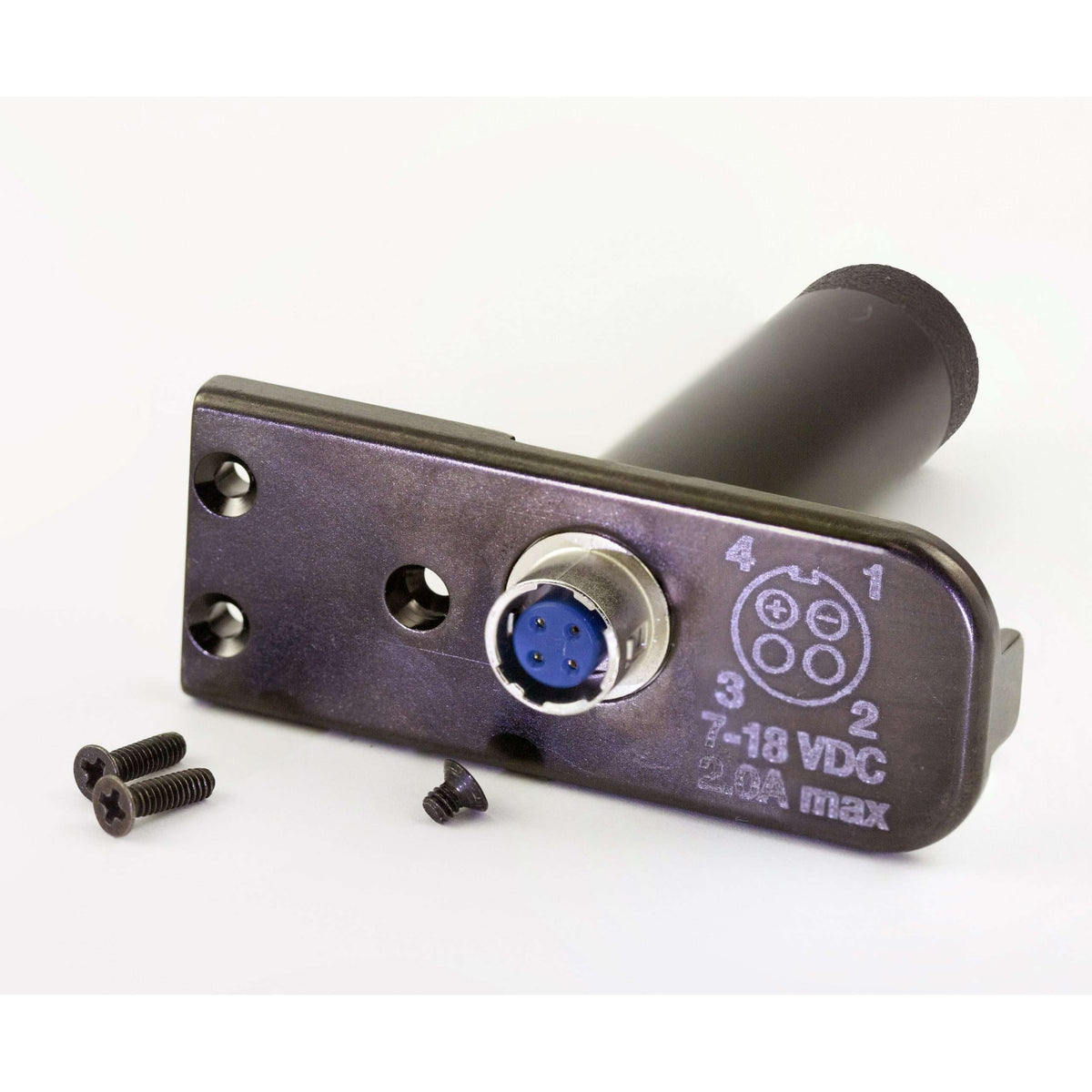

• LRBATELIM battery eliminator end plate with 4-pin Hirose-style power jack and pinout marked 7-18 VDC 2.0A max, three black mounting screws beside it, Lectrosonics
1 1

Lectrosonics LRBATELIM Battery Eliminator For LR Receiver

Lectrosonics LRBATELIM Battery Eliminator For LR Receiver

SoundPro Item: 91549 | Part Number: LRBATELIM

$152.00
$169.00 $152.00
Your Price Sold out
MSRP: $169.00 | MAP: $152.00

Usually ships in 5-7 business days

  • Replaces Battery Compartment For Uninterrupted External DC Power
  • Wide Input Voltage Range Supports Multiple Regulated DC Supply Options
  • Includes Mounting Screws For Secure Chassis Installation
  • Compact Form Factor Fits Directly Into LR Receiver Battery Bay
Log in or register for YOUR best price

The Lectrosonics LRBATELIM is designed for audio engineers and production teams who need a reliable, continuous power source for the LR receiver in installed or touring applications. By eliminating the battery compartment entirely, it removes the risk of power interruption during a show or broadcast, making it a practical choice for any deployment where the receiver stays in a fixed position or within reach of a DC supply.

The eliminator accepts a wide input voltage range, giving integrators flexibility to work with common regulated DC supplies already on the rack or production cart. Current draw scales inversely with voltage, so the unit can be efficiently powered from low-voltage sources without excessive draw. Mounting hardware is included, and installation follows a straightforward screw-down process directly into the LR receiver chassis.

This is a purpose-built accessory for the Lectrosonics LR receiver and should be paired with an appropriate regulated DC power supply selected for the target voltage. It is the right tool when battery operation is impractical and a clean, permanent power solution is required.

Downloads

View full details

Specifications

Electrical
Input Voltage Range
5 to 25 VDC
Current Consumption @ 5V
310 mA
Current Consumption @ 12V
130 mA
Current Consumption @ 25V
65 mA
Dimensions
Dimensions (mm)
53 x 60 x 21 mm
Dimensions (in)
2.09 x 2.38 x 0.84"
Weight
Weight
23 grams (0.81 oz)
Included Items
Included
Mounting screws
