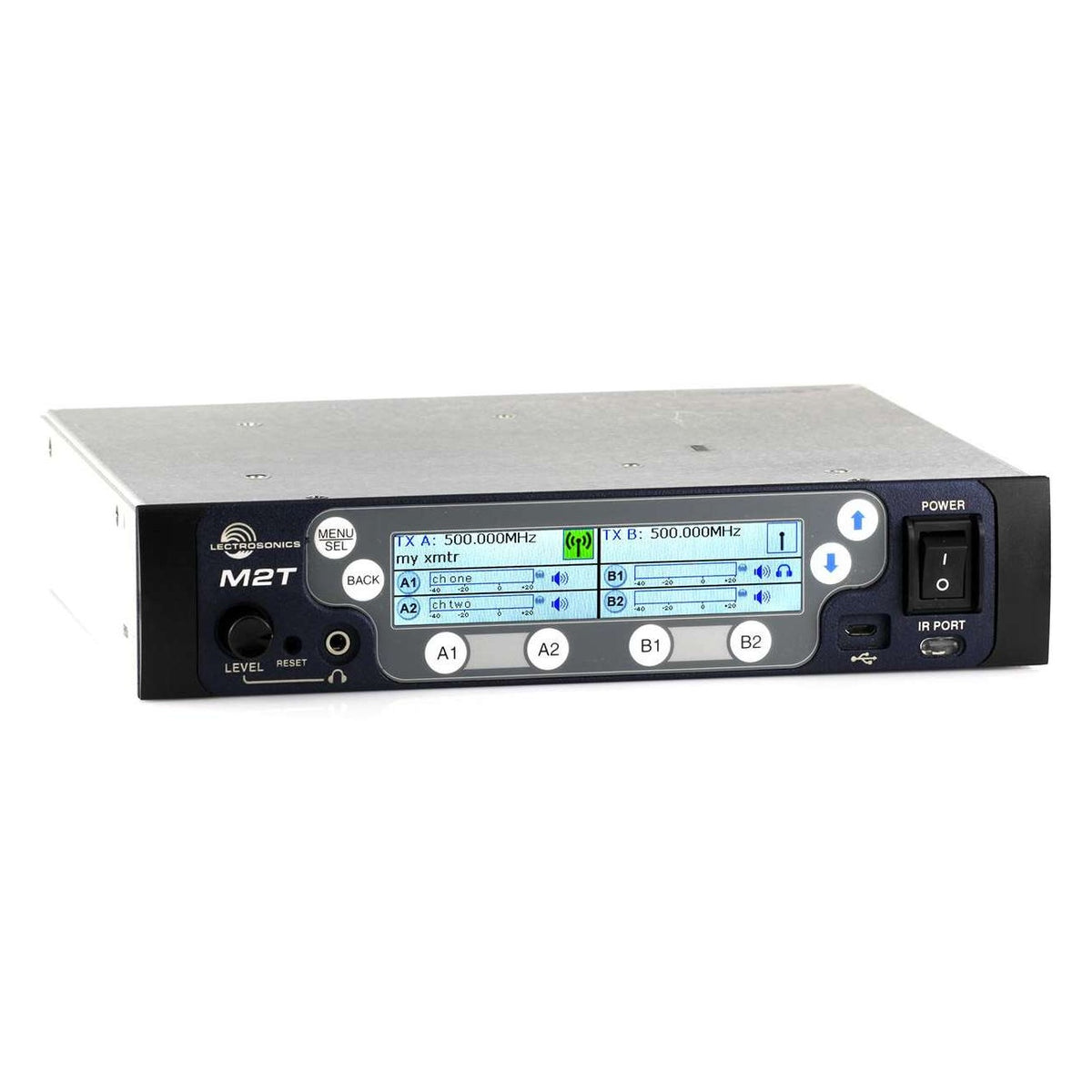

• M2T dual stereo IEM/IFB transmitter angled front view showing LCD with TX A and TX B 500.000MHz channel meters, menu buttons, headphone jack, level knob and power switch, Lectrosonics
1 1

Lectrosonics Digital Dual Stereo Rack IEM/IFB Transmitter | Non-Dante

Lectrosonics Digital Dual Stereo Rack IEM/IFB Transmitter | Non-Dante

SoundPro Item: 22966 | Part Number: M2TND

$2,884.00
$3,201.00 $2,884.00
Your Price Sold out
MSRP: $3,201.00 | MAP: $2,884.00

Usually ships in 5-7 business days

  • Two Independent Stereo Transmissions Per Half-Rack Enclosure For Efficient Rack Usage
  • Digital RF Modulation With 8 PSK Eliminates Compandor Artifacts For Crystal Clear Sound
  • AES 256-Bit Encryption In DCHX Compatible Mode Secures Wireless Audio Transmission
  • Four Locking XLR/TRS Combo Inputs Individually Configurable For Analog Or Network Sources
  • Ultra-Low System Latency Preserves Performer Monitoring Experience
  • Backlit Full-Color LCD With Membrane Switches Ensures Visibility In Any Lighting Condition
  • Wireless Designer Software Compatible For Remote Programming And Firmware Updates
Log in or register for YOUR best price

The Lectrosonics Digital Dual Stereo Rack IEM/IFB Transmitter is built for touring engineers, theater sound designers, broadcast coordinators, and installed-sound integrators who need reliable, high-fidelity wireless in-ear monitoring in a space-efficient format. Packing two independent stereo transmissions into a single half-rack unit, it delivers four configurable audio inputs, digital RF modulation with 8 PSK, and a measured total harmonic distortion below 0.15 percent, giving monitor engineers the clarity and stereo imaging that analog compandor-based systems cannot match.

Four audio inputs accept balanced line-level signals via full-size locking XLR/TRS combo connectors, and each input can be individually assigned to analog or networked audio sources depending on the variant in use. A special balanced amplifier with very high common mode rejection keeps hum and noise out of the signal path before conversion to the internal digital format. Input gain is adjustable in 1 dB steps across a wide range, allowing precise optimization of modulation and limiting for maximum signal-to-noise ratio. The all-aluminum extruded front panel with powder coat finish and the all-metal chassis are sized to rack singly or in pairs using the included hardware, making them a practical choice for both fly dates and permanent installs.

Where comparable half-rack IEM transmitters rely on analog RF or single-channel architectures, this platform delivers two simultaneous stereo channels with sub-1.8 ms system latency from analog sources, AES 256-bit CTR mode encryption in DCHX compatible mode, and full integration with Lectrosonics Wireless Designer software for programming, monitoring, and firmware updates via front-panel Micro-B USB or IR sync port. Available in Dante-enabled and non-Dante configurations to match existing network audio infrastructure.

Downloads

View full details

Specifications

RF Performance
RF Power Output
Two carriers; two audio channels each; power adjustable on each carrier to 10, 25 or 50 mW (M2T, M2T/E01)
M2T/E06 RF Power
Power adjustable on each carrier to 20, 50 or 100 mW EIRP
Antenna Output
2 x BNC sockets
Operating Frequencies
M2T 470.100-607.975 MHz; M2T/E01 470.100-614.375 MHz; M2T/E01 537.600-691.175 MHz; M2T/E02 470.150-614.375 MHz; M2T/E06 520.000-614.375 MHz
Frequency Selection Steps
25 kHz
Frequency Stability
+/- 0.002%
Modulation
8 PSK
Emission Designator
200KG7E
Spurious Radiation
Compliant with ETSI EN 300 422-1
Audio
Audio Frequency Response
10 Hz-11.5 kHz, -1 dB
Audio Input Level
-10 dBV or +4 dBu settings with +/-5 dB trim
Audio Input Jack
4 x combo XLR/TRS connectors
Input Impedance
Line: 2k Ohm
Equivalent Input Noise
-128 dBV
Latency (Analog Source)
<1.8 ms
Encryption
Encryption
AES 256-bit CTR mode, in DCHX compatible mode
Connectivity
Ethernet Connection
RJ45
USB Connection
Micro-B USB on front panel
IR Sync
IR transceiver for receiver sync
Headphone Jack
3.5 mm stereo jack
Environmental
Operating Temperature
-20 to 40 degrees C / -5 to 104 degrees F
Power
Power Requirements
9-18 VDC
Power Consumption
11 Watts
Dimensions
Height
1.750 in. / 44.45 mm
Width
8.375 in. / 212.7 mm
Depth
7.750 in. / 196.8 mm
Weight
Product Weight
2.2 lbs (997.903 grams)
Construction
Housing
All-metal chassis with aluminum extruded front panel, powder coat finish
Origin
Designed and manufactured in the USA
Included Items
Included Accessories
USB cable (21926), rear tie bracket (25990), front tie bracket (25991), rack flange bracket (27076), rack handle RMP2T (27082), 4x cap screws (28885), 4x rubber feet (35664), hex L key wrench (35800), hole plug (35959), 2x antenna (A500RA20), DC power supply (DCR15/4AU), instruction manual
Identifiers
MPN
M2TND
