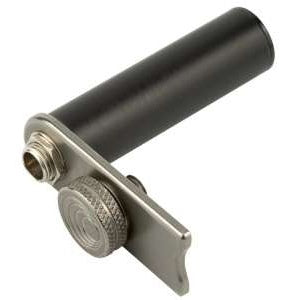

• SMBATELIM battery eliminator angled side view showing black cylindrical dummy battery body, nickel-finish mounting plate with knurled thumb screw and threaded jack connector, Lectrosonics
1 1

Lectrosonics SMBATELIM Battery Eliminator For SM Series Transmitters

Lectrosonics SMBATELIM Battery Eliminator For SM Series Transmitters

SoundPro Item: 10564 | Part Number: SMBATELIM

$184.00
$204.00 $184.00
Your Price Sold out
MSRP: $204.00 | MAP: $184.00

Usually ships in 5-7 business days

  • Wide 6-36V DC Input Range Integrates With Existing Production Power Runs
  • Mounts In Place Of Standard Battery Door With No Tools Or Transmitter Modification
  • Locking Coaxial Connector Prevents Accidental Disconnection During Live Operation
  • Notched Panel Prevents Battery From Being Trapped In Dual-Battery Transmitter Models
  • Dust And Moisture Protective Insert Included For Unused Battery Compartment
  • Short Circuit And Reverse Polarity Protection Guards Against Wiring Errors
Log in or register for YOUR best price

The Lectrosonics SMBATELIM is designed for broadcast engineers, theater audio engineers, and touring production teams who need continuous, uninterrupted power delivery from their SM Series wireless transmitters without relying on AA batteries. By accepting a wide 6 to 36 volt DC input, it integrates cleanly with existing power distribution infrastructure on broadcast carts, theatrical belt packs, or permanently installed wiring runs.

Installation requires no tools or modification to the transmitter. The assembly mounts in place of the standard battery door using the same thumbscrew retention system, and the circuitry occupies the battery compartment in a cylindrical housing sized to fit a standard AA cell. A locking coaxial connector secures the power cable against accidental disconnection, which is critical in live performance and broadcast environments where a lost connection cannot be recovered mid-show.

Dual-battery SM transmitter users are accommodated by a notched panel design that prevents a battery from being trapped in the unused compartment, and a dust and moisture protective insert is included for that compartment. Built-in short circuit and reverse polarity protection guards the transmitter from wiring errors during setup. For any production that runs SM Series transmitters in fixed or semi-fixed positions, the SMBATELIM is a straightforward path to eliminating battery costs and runtime limits.

Downloads

View full details

Specifications

Electrical
Input Voltage
6.0 VDC minimum; 36 VDC maximum
Minimum Input Current
400 mA at 6 VDC
Output Voltage
1.8 VDC regulated
Output Current Maximum
1.0 A
Current Limiting Shutdown
2.0 A activates internal current limiting shutdown
Connectivity
Connector Type
Coaxial type; locking LZR; RL26AE
Dimensions
Dimensions (in)
2.375 x 1.830 x 0.642"
Dimensions (mm)
60.0 x 46.5 x 16.3 mm
Weight
Product Weight
0.8 oz; 23 g
