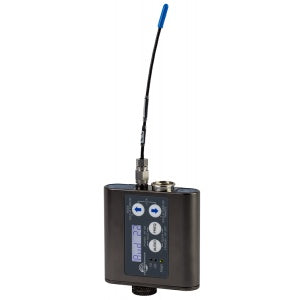

• SMQV beltpack transmitter front view with blue-tipped flexible antenna, LCD screen and navigation buttons, Lectrosonics
1 1

Lectrosonics Variable Power AA Battery Transmitter 941-960 MHz | SMQV | 2 AA

Lectrosonics Variable Power AA Battery Transmitter 941-960 MHz | SMQV | 2 AA

SoundPro Item: 132663 | Part Number: SMQV/E07-941 (US and Canada)

$1,825.00
$2,026.00 $1,825.00
Your Price Sold out
MSRP: $2,026.00 | MAP: $1,825.00

Usually ships in 5-7 business days

  • Digital Hybrid Wireless Eliminates Compandor Artifacts For Transparent Audio Quality
  • Selectable Power Output Balances Operating Range Against Battery Runtime
  • Circulator/Isolator Output Stage Reduces RF Intermodulation In Dense Multichannel Setups
  • Servo Bias TA5M Input Accepts Lavaliere, Dynamic, And Line Level Sources
  • DSP-Controlled Analog Limiter Provides More Than 30 dB Of Overload Protection
  • Machined Aluminum Housing With Non-Corrosive Finish Withstands Harsh Environments
  • LectroRM App Compatibility Enables Hands-Free Remote Setup And Sleep Mode Control
Log in or register for YOUR best price

The Lectrosonics Variable Power AA Battery Transmitter series targets working sound professionals who need reliable, high-quality wireless transmission in RF-congested environments. Available in single and dual AA battery configurations, these transmitters operate in the 941-960 MHz band and are designed for theatrical productions, broadcast, and live event applications where channel count, battery endurance, and audio fidelity are non-negotiable. The selectable power output lets engineers trade output strength for battery runtime depending on conditions, a practical advantage during long shows or multi-act runs where pack swaps are difficult.

Digital Hybrid Wireless technology encodes audio digitally in the transmitter and decodes it in the receiver while using an analog FM radio link, eliminating compandor artifacts without sacrificing RF spectral compatibility with existing analog wireless infrastructure. The servo bias TA5M input accepts electret lavaliere mics, dynamic mics, and line level signals without external adapters. A DSP-controlled analog limiter with more than 30 dB of range protects the audio chain from overload while remaining acoustically transparent through its dual-release envelope design. Bicolor LEDs give engineers a visual read on modulation level for fast gain staging.

The housing is machined from solid aluminum block, keeping weight low while providing the structural rigidity that touring and broadcast environments demand. A non-corrosive finish resists salt water and perspiration. The water-resistant control panel with LCD and membrane switches allows frequency and gain adjustments without tools. Compatibility with the LectroRM iOS and Android app enables hands-free setup via audible tones, a genuine advantage when transmitters are concealed inside costumes or rigging. The circulator/isolator output stage suppresses RF intermodulation when multiple units operate in close proximity, a critical feature for large-format multichannel deployments.

Downloads

View full details

Specifications

RF Performance
Operating Frequencies (E07-941, US and Canada)
941.525 - 951.975 MHz, 953.025 - 956.225 MHz, 956.475 - 959.825 MHz
Channel Spacing
Selectable, 25 or 100 kHz
Frequency Selection
Control panel mounted membrane switches
RF Power Output
Selectable, 50 or 100 mW
Compatibility Modes
Nu Hybrid, IFB
Pilot Tone
27 to 32 kHz, 3 kHz deviation (Nu Hybrid Mode)
Frequency Stability
+/- 0.002%
Spurious Radiation
60 dB below carrier
Emission Designator
110KF3E
Audio
Equivalent Input Noise
–125 dBV, A-weighted
Input Level (Dynamic Mic)
0.5 mV to 50 mV before limiting, greater than 1 V with limiting
Input Level (Electret Lavaliere)
1.7 uA to 170 uA before limiting, greater than 5000 uA (5 mA) with limiting
Input Level (Line Level)
17 mV to 1.7 V before limiting, greater than 50 V with limiting
Input Impedance (Dynamic Mic)
300 Ohms
Input Impedance (Electret Lavaliere)
Virtual ground with servo adjusted constant current bias
Input Impedance (Line Level)
2.7 k Ohms
Input Limiter
Soft limiter, 30 dB range
Bias Voltages
Fixed 5 V at up to 5 mA; Selectable 2 V or 4 V servo bias
Gain Control Range
44 dB
Low Frequency Roll-Off
Adjustable from 35 to 150 Hz
Audio Frequency Response
35 Hz to 20 kHz, +/-1 dB
Total Harmonic Distortion
0.2% typical (Nu Hybrid mode)
Signal To Noise Ratio (SmartNR Off, No Limiting)
103.5 dB
Signal To Noise Ratio (SmartNR Off, With Limiting)
108.0 dB
Signal To Noise Ratio (SmartNR Normal, No Limiting)
107.0 dB
Signal To Noise Ratio (SmartNR Normal, With Limiting)
111.5 dB
Signal To Noise Ratio (SmartNR Full, No Limiting)
108.5 dB
Signal To Noise Ratio (SmartNR Full, With Limiting)
113.0 dB
Modulation Indicators
Dual bicolor LEDs, -20, -10, 0, +10 dB referenced to full modulation
Audio Input Jack
Switchcraft 5-pin locking (TA5F)
Connectivity
Antenna
Flexible, unbreakable, detachable steel cable
Power
Battery Type
1.5 Volt AA (Lithium recommended)
Battery Count
2 AA
Battery Life At 50 mW
14.5 hrs
Battery Life At 100 mW
14 hrs
Battery Life At 250 mW
7.5 hrs
Dimensions
Overall Dimensions
2.3 x 2.4 x 0.64 inches (58 x 60 x 16 mm)
Weight
Weight With Battery
3.7 oz. (105 grams)
