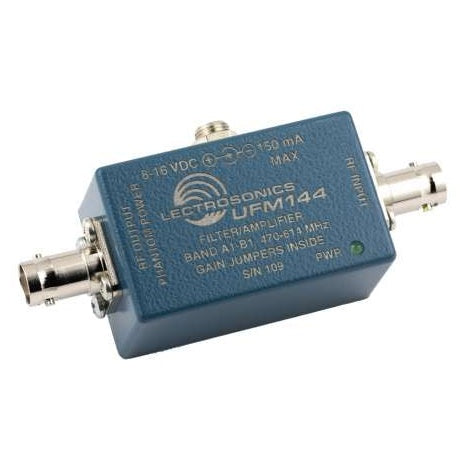

• UFM144-A1B1 UHF wideband RF filter amplifier top angled view showing blue enclosure with BNC RF input and output connectors, DC power jack and green PWR LED, Lectrosonics
1 1

Lectrosonics UFM144-A1B1 UHF Wideband RF Filter Amplifier Module

Lectrosonics UFM144-A1B1 UHF Wideband RF Filter Amplifier Module

SoundPro Item: 91798 | Part Number: UFM144-A1B1

$629.00
$698.00 $629.00
Your Price Sold out
MSRP: $698.00 | MAP: $629.00

Usually ships in 5-7 business days

  • Ceramic Resonator Input Filtering Minimizes Intermodulation In Dense RF Environments
  • GaAsFET Amplifier Delivers High Linearity For Clean Signal Gain
  • Internal Jumper Gain Selection Allows Precise Loss Compensation Per System
  • DC Bias Powering Via Coaxial Output Simplifies Cabling In Permanent Installs
  • Switching Regulator Maintains Low Heat Dissipation Across Wide Supply Voltages
  • Cast Aluminum Housing With Locking BNC And Power Connectors For Field Reliability
Log in or register for YOUR best price

The Lectrosonics UFM144-A1B1 is a wideband UHF filter/amplifier module designed for RF system engineers and production audio professionals who need to extend antenna coverage or distribute signals across multiple wireless receivers without degrading signal quality. Placed at the antenna, it applies gain ahead of long coaxial runs and compensates for cumulative loss introduced by splitters and cable in multi-channel distribution systems. It is well suited for touring productions, broadcast field units, corporate AV installations, and any application where receiver density and cable distance challenge RF link reliability.

Two ceramic resonator filters at the input suppress out-of-band interference before gain is applied, which minimizes intermodulation products and prevents amplifier overload in congested RF environments. The high-quality GaAsFET amplifier stage delivers strong linearity, reflected in a +41 dBm output third-order intercept point, making it a technically sound choice over generic inline boosters that sacrifice IM performance. Gain is set via internal jumpers to match the actual cable and splitter loss in a given system, so the amplifier compensates precisely rather than over-driving the receiver input.

A constant-power switching regulator accepts 8 to 16 volts DC, keeping current draw and heat dissipation predictable across a wide supply range. This is particularly valuable in mobile field production racks where thermal management and battery compatibility both matter. Power can be sourced from an external supply or via DC bias on the RF output jack from a compatible Lectrosonics multicoupler or Venue receiver, simplifying cabling in permanent installations. The cast aluminum housing with rugged BNC connectors and a thread-locking power jack is built to survive repeated setups in live production environments.

Downloads

View full details

Specifications

Performance
Frequency Range
470 - 614 MHz
Filter Bandwidth
144 MHz, factory set
RF Gain
+12 dB with 0 dB attenuator; +8 dB with 4 dB attenuator; +5 dB with 7 dB attenuator
Third Order Intercept
Input IP3 = +27 dBm; Output IP3 = +41 dBm
Connectivity
RF IN
50 ohm BNC
RF OUT (Phantom Power In)
50 ohm BNC
DC IN
2.1 mm locking power jack
Power
Power Requirements
8V to 16V DC at input jack
Power Consumption
1 Watt nominal (switching regulator)
Current Draw at 8V DC
125 to 145 mA
Current Draw at 12V DC
83 to 106 mA
Current Draw at 14.4V DC
69 to 89 mA
Current Draw at 16V DC
60 to 80 mA
DC Bias / Phantom Power
70 to 80 mA via coaxial cable from UMC16B, VRM input jack, or BIAS-T power inserter
Protection
Auto reset poly fuse
Dimensions
Unit Dimensions
2.26" x 1.39" x 1.14" (not including BNC connectors)
Weight
Unit Weight
3.3 oz / 94 g
Construction
Housing
Cast aluminum with brushed aluminum cover plate
Compatible Accessories
Coaxial Cable ARG2
1 dB loss
Coaxial Cable ARG15
2 dB loss
Coaxial Cable ARG25
1.9 dB loss
Coaxial Cable ARG50
2.8 dB loss
Coaxial Cable ARG100
4.6 dB loss
Passive Splitter ZSC24 (2-way)
3 dB loss
Passive Splitter ZSC41 (4-way)
6 dB loss
Passive Splitter ZSC843 (8-way)
9 dB loss
