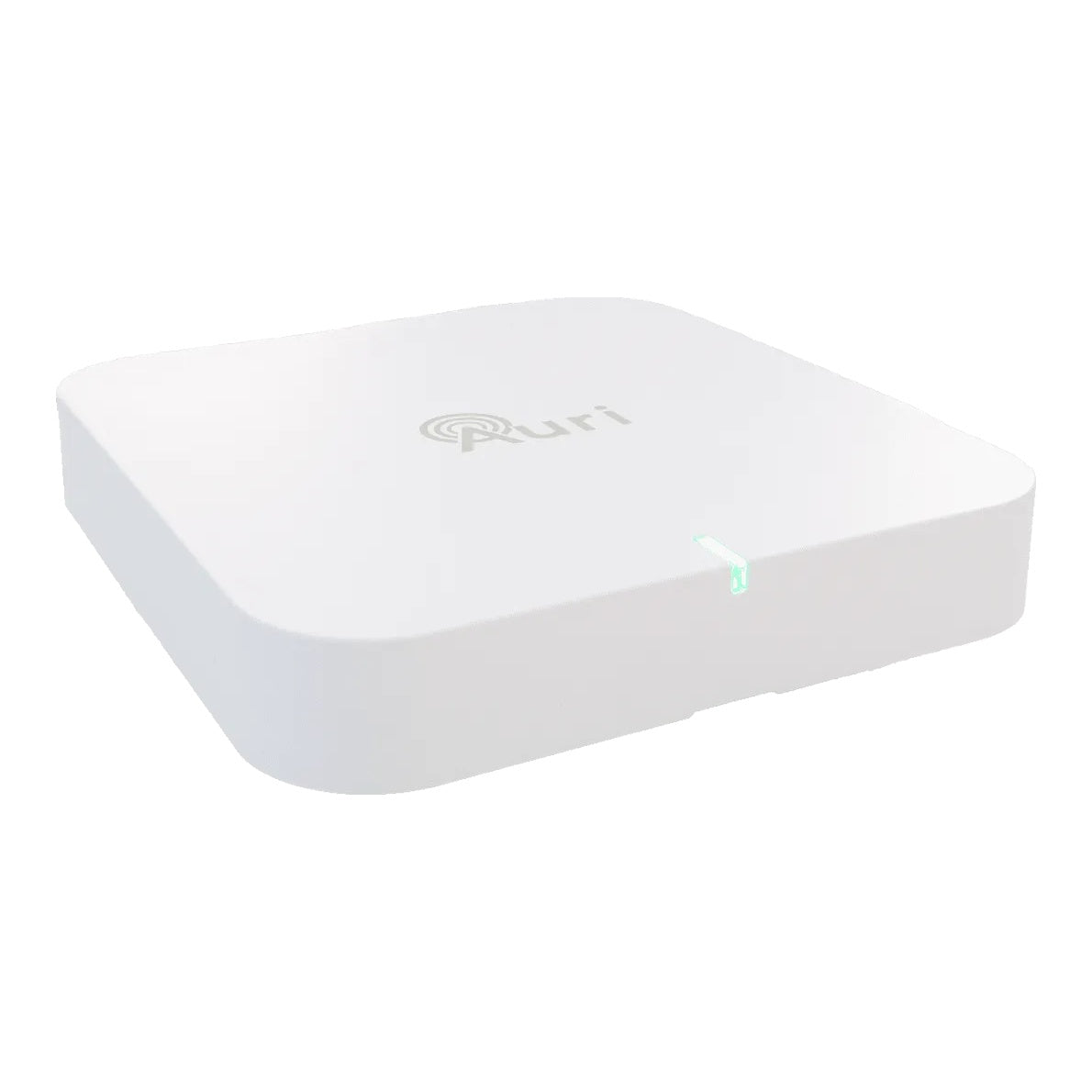

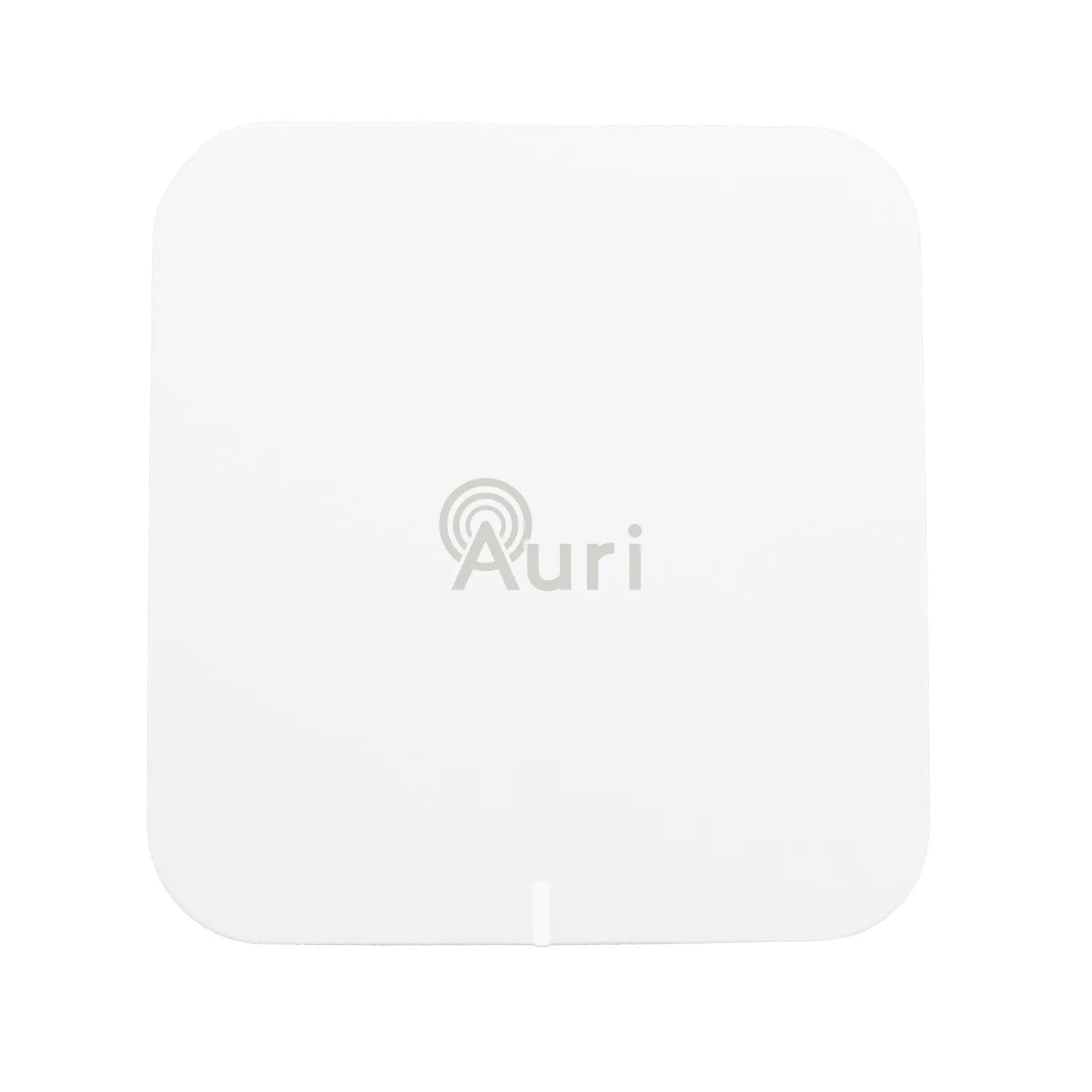

Listen Technologies Auri 2 Channel Transmitter PoE Auracast | White

Listen Technologies Auri 2 Channel Transmitter PoE Auracast | White

SoundPro Item: 148053 | Part Number: AURI-TX2N-A0

$1,889.00
$2,099.00 $1,889.00
Your Price Sold out
MSRP: $2,099.00 | MAP: $1,889.00

Usually ships in 5-7 business days

  • Dual-Radio Broadcast Architecture Transmits Two Independent Auracast Streams Simultaneously
  • Balanced Euroblock Mic And Line Inputs With Switchable Phantom Power Support Dynamic Sources
  • Network Audio Routing Pulls Stereo Feeds From Other Transmitters On Same Subnet
  • Integrated AGC And Selectable Low-Cut Filters Optimize Speech Intelligibility Automatically
  • Single-Cable PoE Installation Eliminates External Power Supplies And Simplifies Commissioning
  • Repeater Mode Expands Coverage Into Remote Zones Without Additional Infrastructure
  • AES128-CCM Encryption With Password Protection Secures Broadcast Streams From Unauthorized Access
Log in or register for YOUR best price

The Listen Technologies Auri 2 Channel Transmitter transforms accessibility infrastructure for houses of worship, performing arts centers, conference facilities, and municipal venues requiring ADA-compliant assistive listening. Its dual-radio architecture enables simultaneous broadcast of two independent Auracast streams, each fed by balanced analog mic or line sources, optional Dante inputs, or Audio over IP from other networked transmitters. Built-in AGC and selectable sample rates ensure intelligible speech reproduction across mono and stereo formats. Repeater mode extends coverage into large or acoustically challenging spaces without additional cabling.

Integrators gain streamlined deployment through single-cable PoE connectivity that delivers power, control, and network audio over one Cat6 run. The low-profile enclosure mounts to standard electrical back boxes or VESA 75 patterns, blending into architectural environments while providing secure AES128-CCM encrypted broadcasts. Web-based Auri Manager software centralizes configuration and monitoring across distributed installations, eliminating the need for on-site adjustments after commissioning. Switchable phantom power and loop-through line outputs accommodate microphone systems and downstream mixers within a single rack-free workflow.

Downloads

View full details

Specifications

Certifications
IP Rating
IP30 (with mounting bracket attached)
Compliance Standards
FCC, ISED, CE, UKCA, RCM, MIC, RoHS, REACH, WEEE
Dimensions
Dimensions
183 x 173 x 48 mm (7.20" x 6.81" x 1.89")
Weight
Weight (TX2N)
0.45 kg (0.99 lbs)
Weight (TX2ND)
0.47 kg (1.04 lbs)
Shipping Weight (TX2N)
1.03 kg (2.27 lbs)
Shipping Weight (TX2ND)
1.05 kg (2.31 lbs)
Electrical
PoE
IEEE 802.3af
USB-C
5V PD Compliant
Power Consumption
USB-C: 5V, 370mA (1.85W) PoE: 48V, 53mA (2.54W)
Audio
Input Selection
2 x audio inputs individually selectable between mic, line or optional Dante modes
Mic Input Max Level Before Clipping
-25 dBu
Mic Input Sensitivity
-65 dBu
Line Input Max Level Before Clipping
+16 dBu
Line Input Sensitivity
-25 dBu
Line Output Nominal Level
+1dBu
Line Output Impedance
150Ω
Input Impedance
15kΩ
THD+N
0.03% at 0dBu (line mode) 0.02% at -25dBu (mic mode)
Common Mode Rejection
56dB
Sample Rates
16 kHz, 24 kHz (Auracast Standard - required), 48 kHz (Auracast High)
Frequency Response +/- 3 dB (16 kHz)
50 Hz - 7.5 kHz
Frequency Response +/- 3 dB (24 kHz)
50 Hz - 11.0 kHz
Frequency Response +/- 3 dB (48 kHz)
50 Hz - 22.5 kHz
Latency (internal, line in to line out)
13ms
Latency (end to end, Auri RX1)
29 ms to 45 ms (dependent on sample rate and mono/stereo)

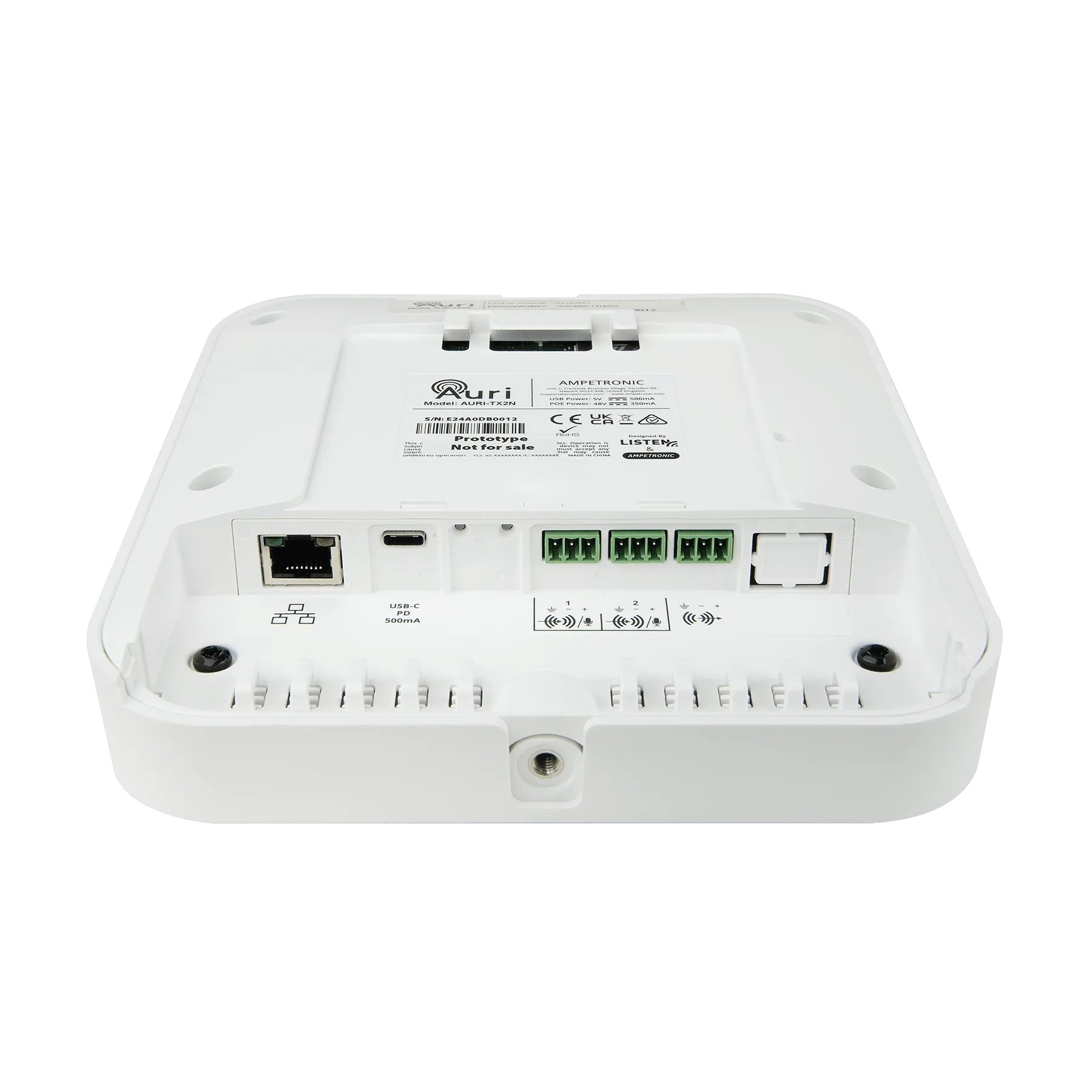

Connectivity
Mic/Line Connection
2x 3-way 3.5 mm pitch Euroblock
Line Output Connection
1x 3-way 2.5 mm pitch Euroblock

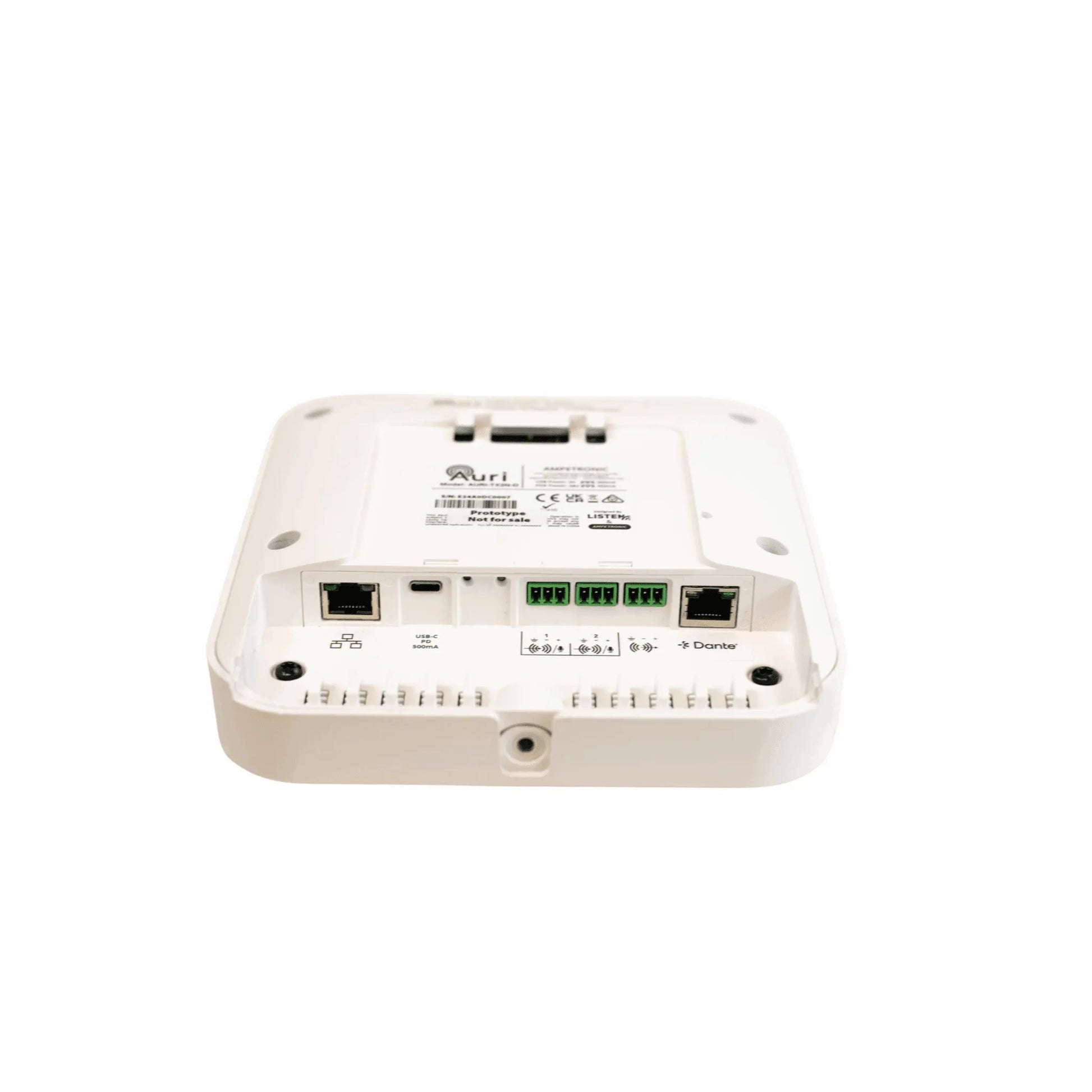

Dante Connection (optional)
Dedicated RJ45 socket
Dante Port Speed (optional)
100 Mbit
Dante Channels (optional)
2
Dante Sample Rates (optional)
48 kHz
Radio
Bluetooth Version
5.3
Operating Frequency
2400 to 2482 MHz
Operating Mode
Auracast Compliant, Broadcast Only
Supported Codec
LC3
Maximum Output Power
North America: +20 dBm, Rest of World: +10 dBm
Output Power Control
Attenuation from regional max to -10dBm
Encryption
AES128-CCM encryption, with 4-16 character password
Supported Formats
Mono or Stereo
Network
Port Speed
100 Mbit
IP Address
DHCP, static or link-local
Protocols
mDNS, UDP (unicast), RTP (multicast), RTCP (multicast)
Security
UDP communication, AES256 - GCM
Network Audio Channels
2x stereo inputs, 2x stereo outputs
Network Audio Format
Multicast RTP
Network Audio Bit Depth
16 bit
Network Audio Sample Rate
16kHz, 24kHz, or 48kHz, matched to broadcast
Network Audio Bandwidth
0.5Mbit/s (16kHz) to 1.5Mbit/s (48kHz) per stereo stream
Network Audio Latency
5 ms nominal
Audio Processing
Input Routing
Disabled, Input 1 only, Input 2 only, input 1 & 2 Stereo Pair, Input 1 & 2 Mono Sum
AGC
Switchable, 20dB gain control range
Low Cut
Switchable, 24 dB/oct, frequency based on sample rate
Low Cut Frequency (16 kHz)
75 Hz
Low Cut Frequency (24 kHz)
110 Hz
Low Cut Frequency (48 kHz)
220 Hz
Controls
Buttons
Recessed restart and factory reset buttons
Setup/Programming
Via Auri Manager Software
Status LED
RGB multi-function LED
Construction
Enclosure Material
PC-ABS
Color
White
Mounting
Removable wall/ceiling bracket. Multiple holes to support mounting on standard UK, EU and US electrical back boxes and VESA 75
Phantom Power
+24 V
Environmental
Storage Temperature
-40 °C (-40 °F) to 70 °C (+158 °F)
Operating Temperature
-10 °C (14 °F) to 40 °C (+104 °F)
Relative Humidity
0 to 95% relative humidity, non-condensing
Included Items
Includes
1x AURI-TX2N or AURI-TX2N-D (Dante) Transmitter, 1x Universal mounting bracket, 3x Euroblock connectors, 1x 1.8 m (6 ft) Cat6 cable, 1x Quick Start Guide and Safety Data Sheet
