Specifications
Certifications
Compliance
ETL Listed
Environmental Protection
IP20
Audio
Frequency Response
80 Hz to 6.5 kHz ± 3 dB
Distortion
THD+N < 0.2%, 1 kHz Sine Wave at Full Current
AGC
Optimized for Speech, Dynamic Range > 36 dB
Performance
Coverage 1:1 Aspect Ratio
1,290 sq ft (120 m²)
Coverage 2:1 Aspect Ratio
1,615 sq ft (150 m²)
Coverage 3:1 Aspect Ratio
2,150 sq ft (200 m²)
Connectivity
Input 1
Balanced Mic/Line (-73/-31 dBu), 12 VDC Phantom Power
Input 2
Balanced Line (-33 dBu)
Input 3
Isolated 100 V/Low Impedance Mono/Stereo Speaker
Input Impedance
120k, 120k, 7.8k Ohms
Minimum Level
+14/+14/-9 dBu
Maximum Level
+47/+47/+27 dBu
Loop Connector
Screw Terminal
Electrical
Power
230/115 VAC, 30W, 45-65 Hz
Drive Voltage
6.4 V RMS at Maximum Output Current
Drive Current
3.5 A RMS, 5.0 A Peak with 1 kHz Sine Wave
Drive Current Peaks
Short Term > 7 A
Input Power Fuse
T250 mA
Controls
Gain Control
Front Recessed Input Level Control
Metal Loss Correction
Corrects System Frequency Response Due to Metal Structures
Cooling
Natural Convection
Indicators
LEDs
AGC Activated, Loop Current, Power
Drive Current Indication
LED
Construction
Mounting
Vertical Panel Mounting
Dimensions
Width
7.9"
Height
1.7"
Depth
7.9"
Weight
Weight
4.0 lbs
Shipping
Shipping Weight
5.1 lbs
Environmental
Relative Humidity
20 to 90%
Operating Temperature
32°F to 95°F (0°C to 35°C)
Included Items
Includes

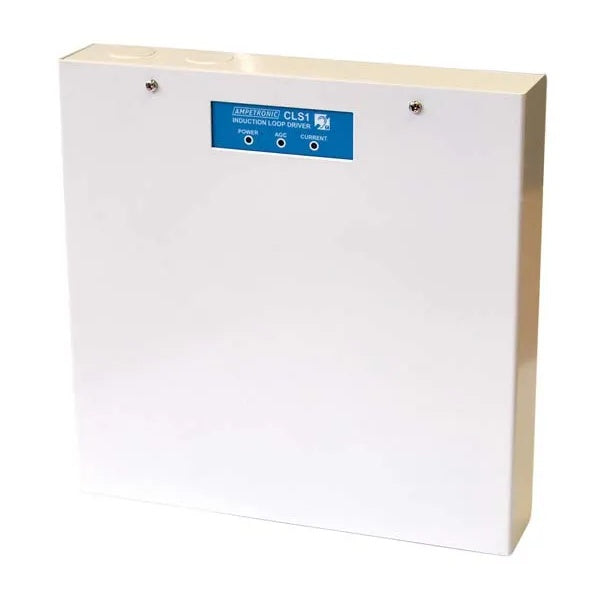

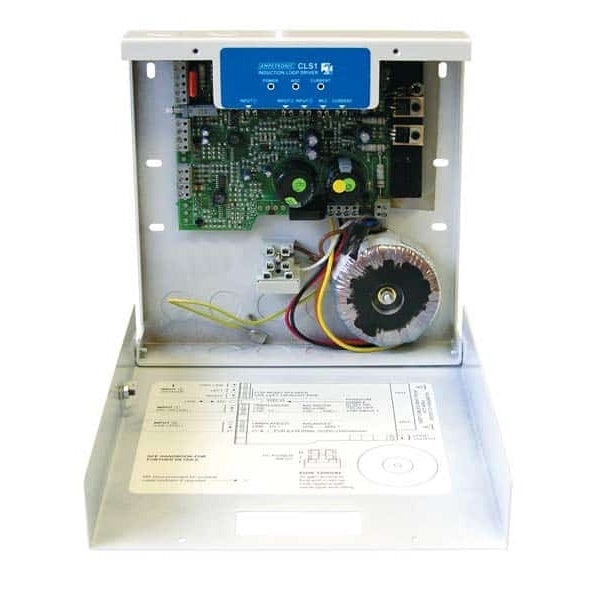

CLS1 Induction Loop Driver, Handbook and Installation Instructions, "T" Logo Installed Adhesive Sign (11.7" x 8.3"), P-clip, Nut and Washer
Cable Length
10 AWG
Max Distance 357 ft (109 m) at Full Current
14 AWG
Max Distance 330 ft (101 m) at Full Current
18 AWG
Max Distance 224 ft (68 m) at Full Current
22 AWG
Max Distance 125 ft (38 m) at Full Current
FB1.8
Max Distance 436 ft (133 m) at Full Current
