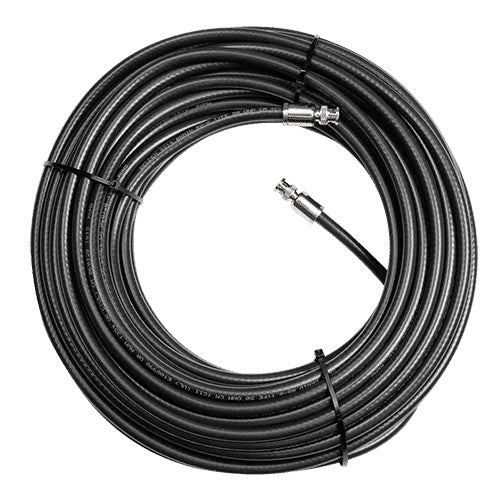

Listen Technologies 50 Ohm Preassembled Coaxial Cable | RG-8 | 100'

Listen Technologies 50 Ohm Preassembled Coaxial Cable | RG-8 | 100'

SoundPro Item: 146165 | Part Number: LA-390-100

$1,247.35
$1,313.00 $1,247.35
Your Price Sold out
MSRP: $1,313.00 | MAP: $1,247.35

Usually ships in 5-7 business days

  • Factory-Installed BNC Connectors Eliminate Field Termination And Ensure Consistent Impedance Matching
  • Foam Polyethylene Dielectric Reduces Attenuation For Extended Coverage In Multi-Zone Installations
  • Bare Copper Conductor And Braided Shield Construction Maintains Signal Integrity Through High-Loss Environments
  • Low-Loss Performance Preserves Transmitter Power Over Long Antenna Distribution Runs
  • PVC Jacket Protects Cable During Permanent Installation In Walls And Ceiling Spaces
Log in or register for YOUR best price

Professional integrators installing RF and IR assistive listening systems require cabling that maintains signal strength over extended runs without field termination delays. This preassembled coaxial solution arrives with both BNC connectors factory-installed on low-loss RG-8 cable, eliminating on-site crimping and ensuring consistent impedance matching across the entire antenna distribution network.

Engineered for commercial accessibility installations in houses of worship, performing arts centers, and conference facilities, the foam polyethylene dielectric and bare copper conductor construction deliver superior attenuation performance compared to solid dielectric alternatives. At 72 MHz the cable loses only 1 dB per 50 feet, while 216 MHz signals experience 2 dB per 50 feet—specifications that preserve transmitter power and extend effective coverage areas in challenging RF environments.

The .403-inch outer diameter and PVC jacket provide mechanical durability for permanent installations behind walls, above ceilings, and through conduit without sacrificing flexibility during pulls. Contractors benefit from immediate deployment capability, while facility managers gain long-term reliability through factory-quality terminations that eliminate the primary failure point in field-assembled RF distribution systems.

View full details

Specifications

Certifications
Cable Type
RG-8/U Low Loss 50 Ohm
Dimensions
Outer Diameter
.403" (10.24 mm)
Inner Diameter
.285" (7.24 mm)
Weight
Unit Weight
14.2 lbs (6.5 kg) per 100 ft.
Shipping Weight
15.0 lbs (6.8 kg) per 100 ft.
Audio
Attenuation
1 dB per 50 ft. on 72 MHz, 2 dB per 50 ft. on 216 MHz
Construction
Material
Foam Polyethylene Insulation, PVC Jacket, bare copper conductor, bare copper braided shield
Included Items
Includes
One (1) RG-8 50 Ohm Preassembled Coaxial Cable
Length
100'
