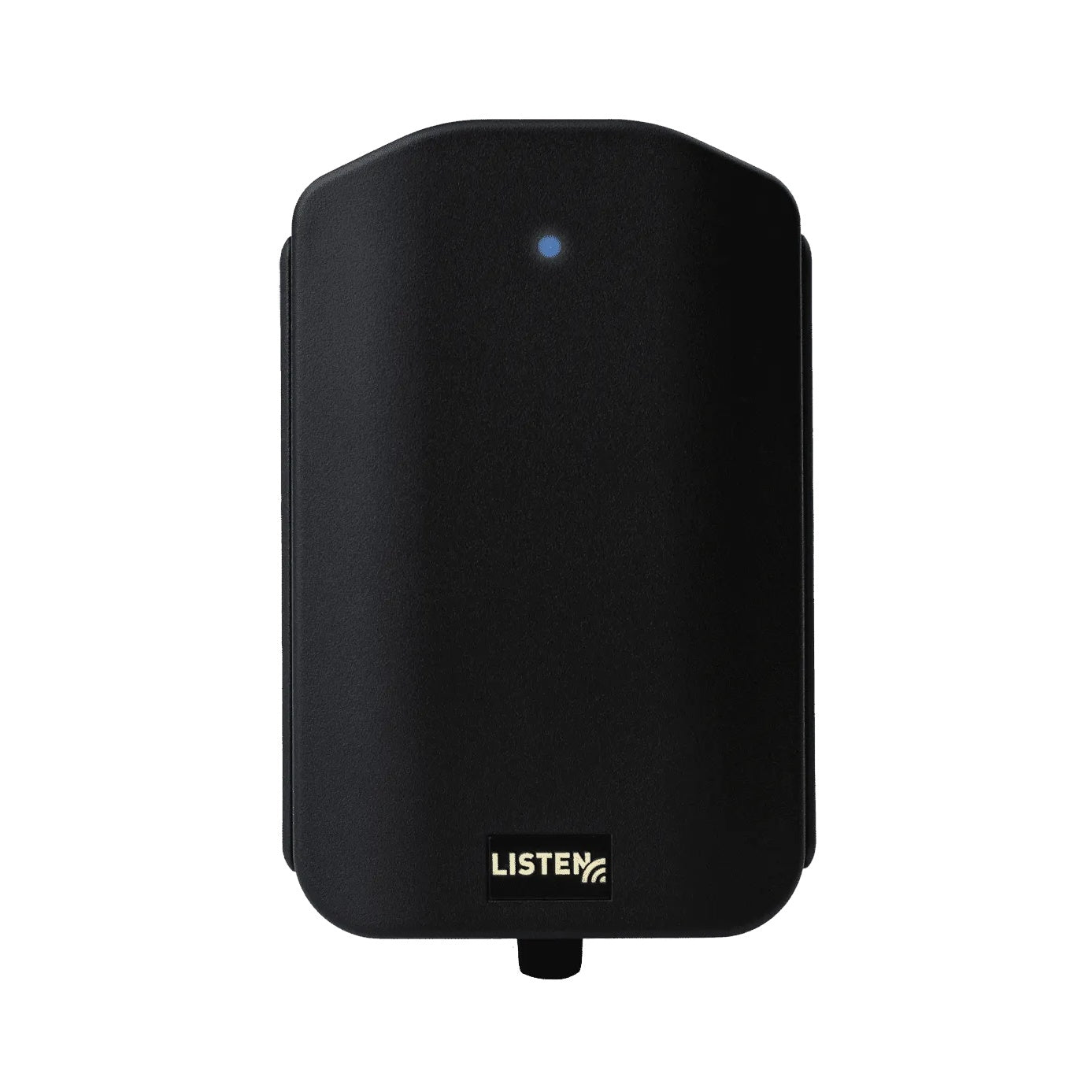

Listen Technologies LA-490 Bluetooth/IR Beacon | Black

Listen Technologies LA-490 Bluetooth/IR Beacon | Black

SoundPro Item: 144296 | Part Number: LA-490-BK-W9

$283.00
$314.00 $283.00
Your Price Sold out
MSRP: $314.00 | MAP: $283.00

Usually ships in 5-7 business days

  • Bluetooth And Infrared Triggering In One Device Simplifies Installation For Dual-Mode Coverage
  • Adjustable Power And Transmission Intervals Enable Custom Coverage Footprints For Each Zone
  • Battery Or USB Power Options Support Both Temporary And Permanent Installation Requirements
  • Wall Mount Or Electrical Box Attachment Provides Flexible Placement Throughout Venue Spaces
  • PIN-Protected Configuration Via ListenWIFI Manager Prevents Unauthorized System Changes
  • Multi-Colored LED Indicators Communicate Operation Status And Low Battery Warnings At A Glance
Log in or register for YOUR best price

The LA-490 provides automated channel selection for assistive listening systems by broadcasting Bluetooth and infrared signals that pinpoint listener locations. Designed for venues serving multiple language groups or program streams, it eliminates the need for manual channel switching or QR code scanning. ListenWIFI mobile apps and LWR-1050 Wi-Fi Audio Receivers automatically connect to the correct audio feed based on the beacon's position, ensuring every attendee receives content in their preferred language without staff intervention.

Compact wall-mount design integrates into single-gang electrical boxes or mounts directly to finished surfaces. Battery operation supports temporary installations, while USB power enables extended range and continuous deployment. Adjustable transmission power and intervals let integrators balance coverage footprint with battery life across worship facilities, conference centers, theaters, and courtrooms. PIN-protected programming via ListenWIFI Manager software prevents unauthorized configuration changes and simplifies centralized system management.

Downloads

View full details

Specifications

Certifications
Regulatory Marks
FCC, CE, ROHS, UKCA
Dimensions

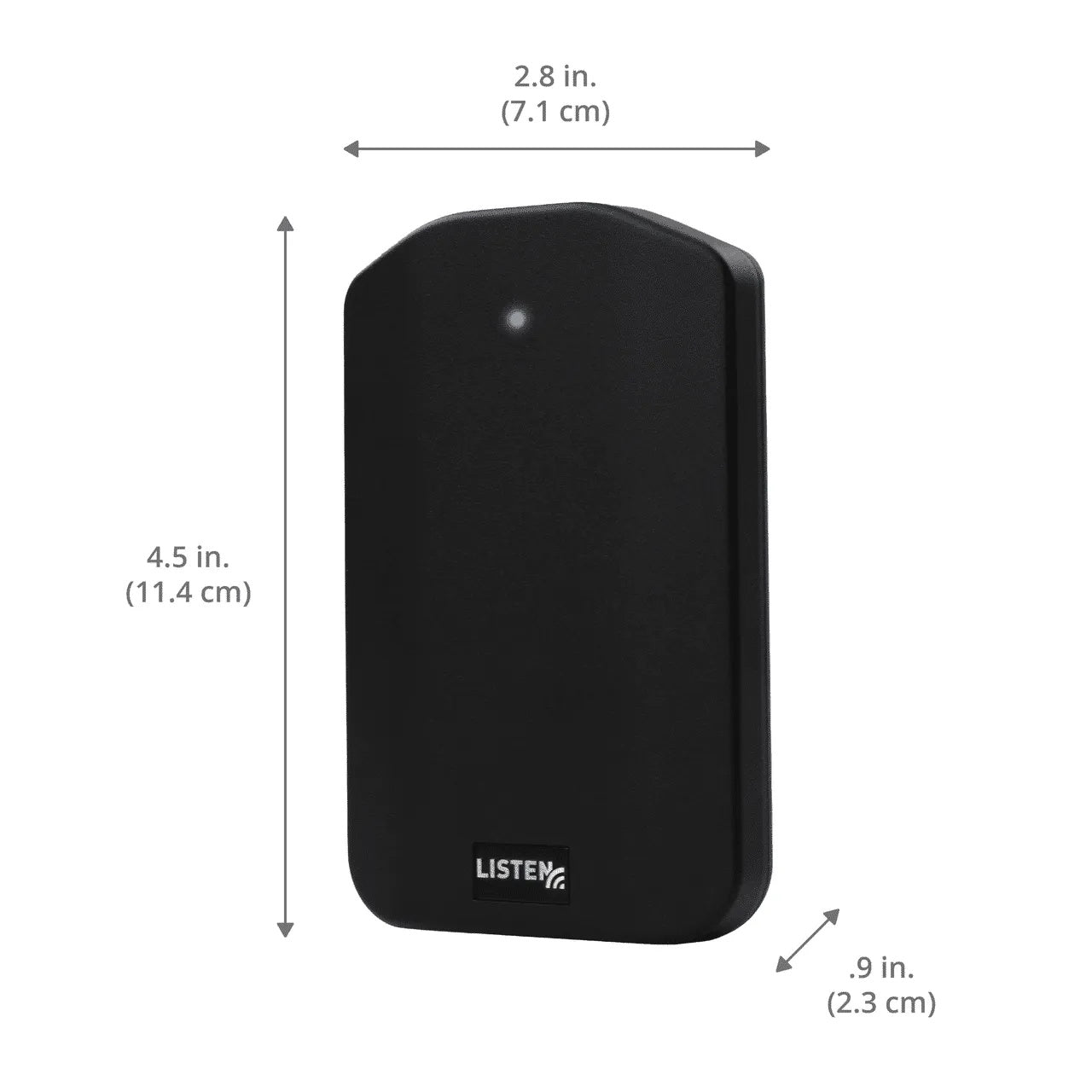

Unit Dimensions (H x W x D)
11.4 x 7.1 x 2.3 cm (4.5 x 2.8 x 0.9")
Dimensions With Mounting Plate (H x W x D)
11.7 x 7.6 x 2.5 cm (4.6 x 3.0 x 1.0")
Weight
Unit Weight
76 g (2.7 oz.)
Unit Weight With Batteries
143 g (5.0 oz.)
Connectivity
Bluetooth
5.0, Bluetooth Low Energy (BLE)
Infrared
Disney SyncLink Technology
USB Connection
USB-Micro for power and programming
USB Standard
2.0
Protocols
Disney SyncLink Technology (Infrared triggering), iBeacon protocol (Bluetooth triggering)
Security
PIN-protected for tamper-proof operation, restricted to authorized software only (OTA)
Performance
Bluetooth Range
Low = 3 meters (10'), Medium = 9 meters (30'), High = 33 meters (110'), line of sight
Infrared Range
Low = 3 meters (10'), Medium = 9 meters (30'), High = 33 meters (110'), line of sight
Construction
Enclosure/Mounting Materials
PC plastic (IR transparent)
Color
Dark Grey, chrome logo
LED
Multi-colored, multi-function

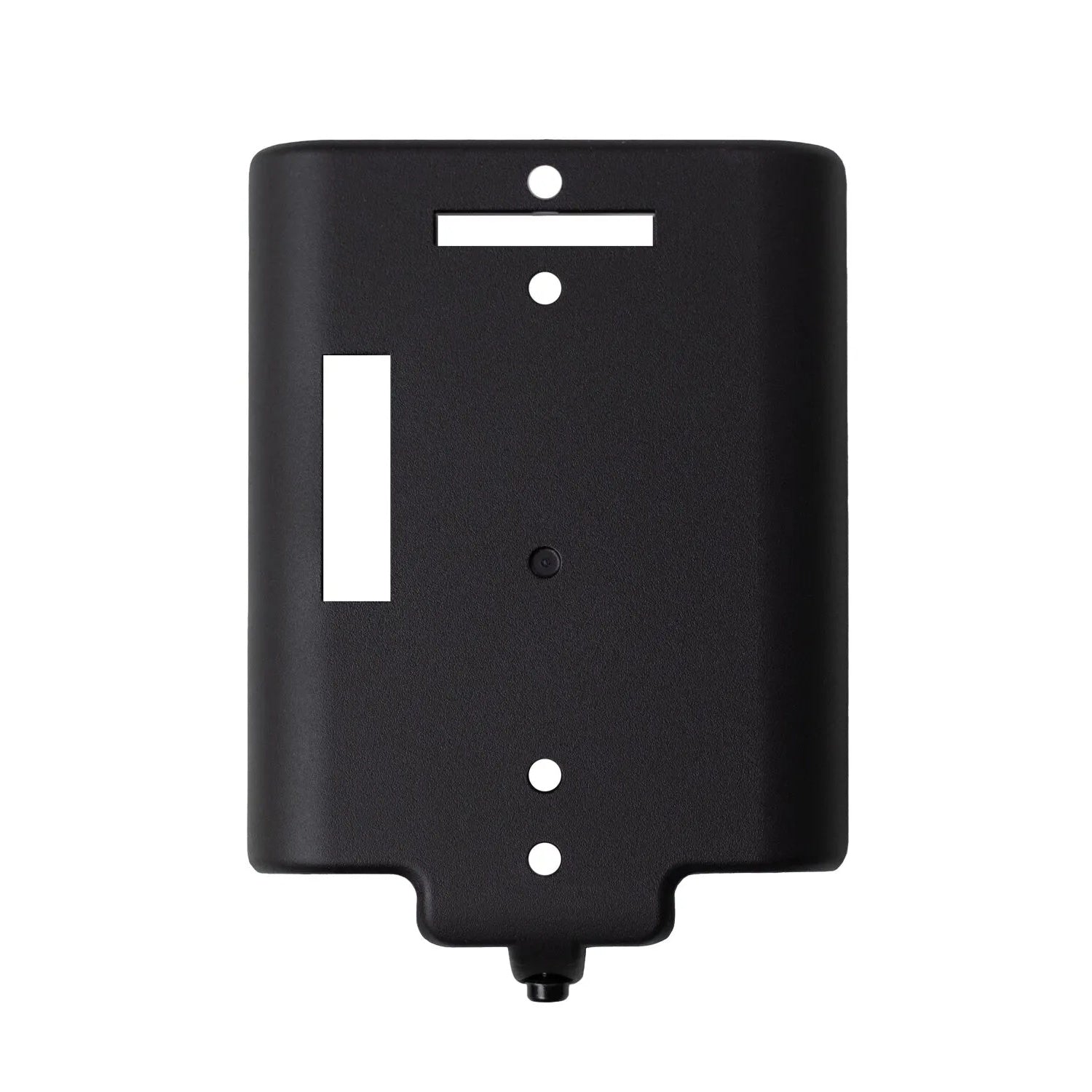

Mounting Hardware
Mounts to wall or single gang electrical box (US and European), tamper proof hex screw

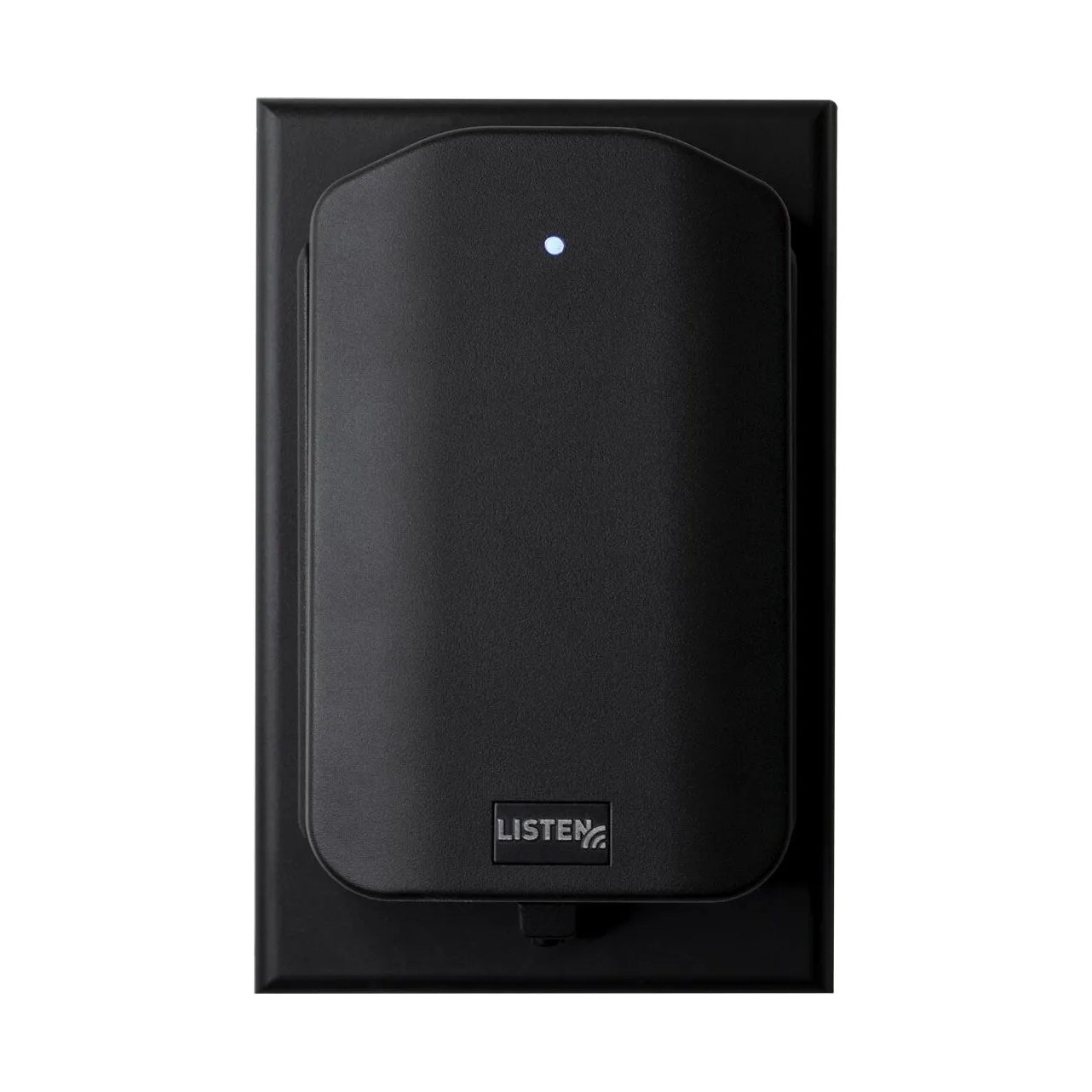

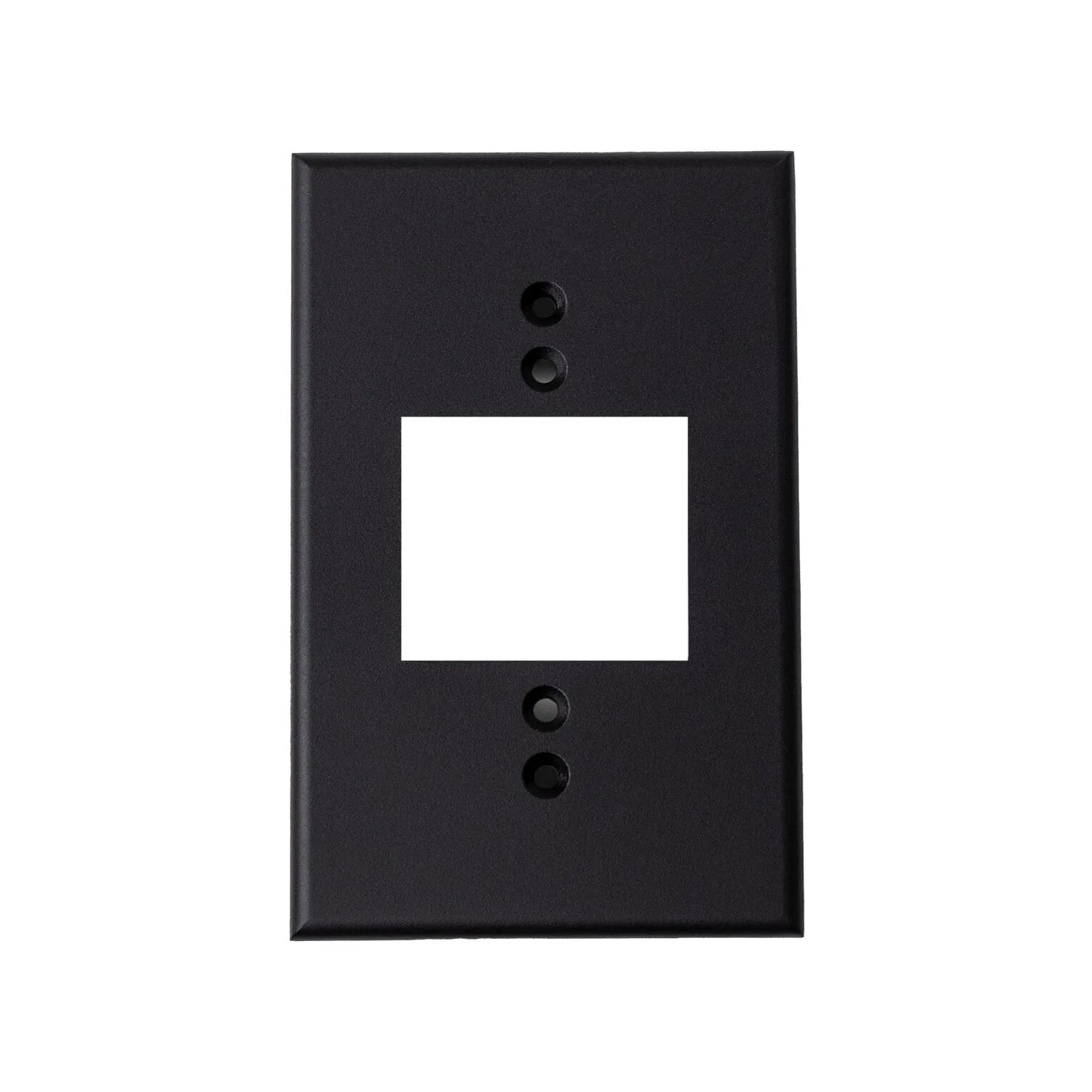

Oversized Wall Plate
Fits standard US and European single gang electrical box
Battery Door
Removable for battery replacement
Controls
User Controls
Bluetooth triggering, Bluetooth power, Infrared triggering, Infrared power, transmit interval, LED indicators, low battery LED, OTA configuration, trigger ID, UUID, firmware updates, reset to defaults
Setup/Programming
Programming via USB connection or Bluetooth OTA connection with ListenWIFI Manager software
LED Indicators
Blue flash every 5 seconds indicates normal operation (can be disabled); Red flashing every 5 seconds indicates low battery (can be disabled); Green flash every second indicates active Bluetooth OTA connection with ListenWIFI Manager software; Alternating Amber/Red indicates beacon is performing a firmware upgrade
Power
Power Supply
USB-Micro - 5V, 500mA
Battery Type
Alkaline batteries, non-rechargeable, field replaceable
Battery Size
AA
Battery Life
3 weeks - 1 year, depending upon configuration
Environmental
Operating Temperature
-10 ºC (14 ºF) to +40 ºC (104 ºF)
Storage Temperature
-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity
0 to 95% relative humidity, non condensing
Shipping
Shipping Weight
430 g (15.2 oz.)
Warranty
Beacon Warranty
1 year
