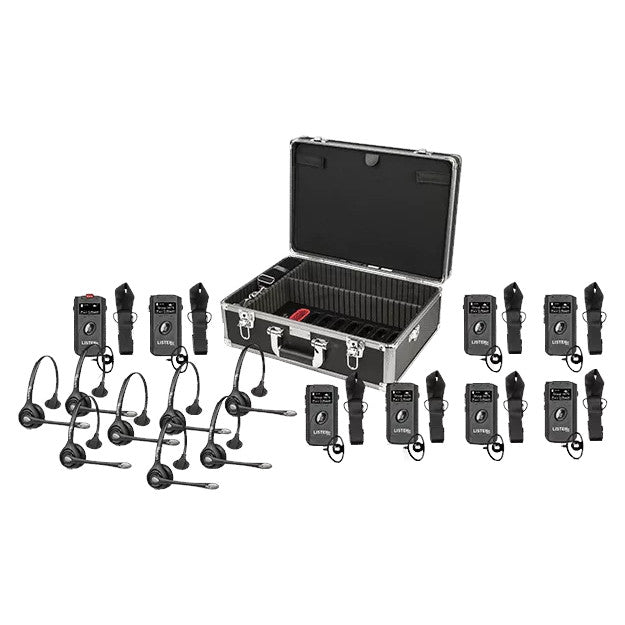

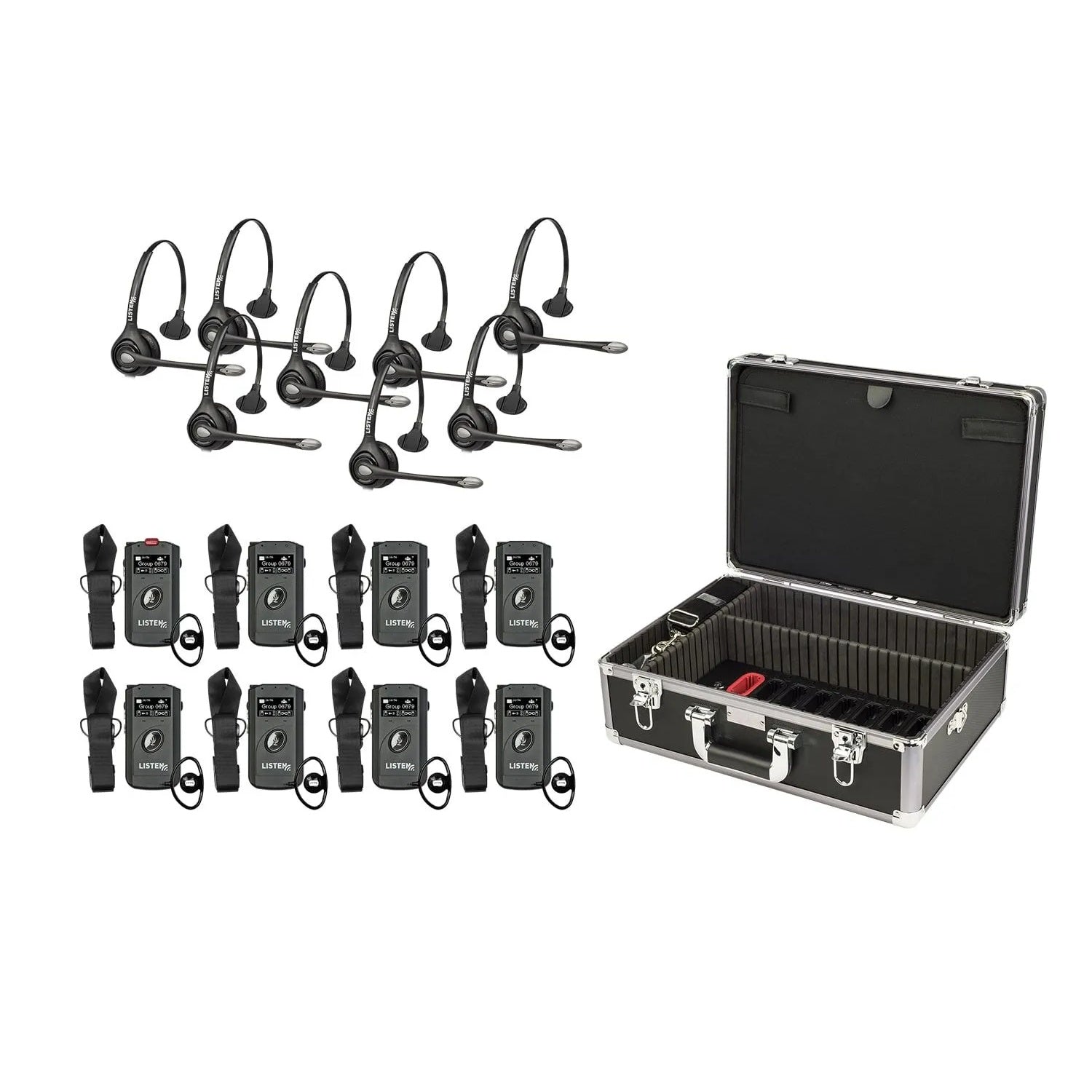

  • Listen Technologies LKS-3-A1 ListenTALK Collabor-8 System
1 2

Listen Technologies LKS-3 Collabor-8 System With 8 Transceivers

Listen Technologies LKS-3 Collabor-8 System With 8 Transceivers

SoundPro Item: 59970 | Part Number: LKS-3-A1

$5,407.00
$6,062.00 $5,407.00
Your Price Sold out
MSRP: $6,062.00 | MAP: $5,407.00

Usually ships in 5-7 business days

  • Eight Independent Transceivers Enable Simultaneous Multi-Talker Collaboration Without Push-To-Talk Delays
  • LA-481 Docking Station Charges All Units And Provides Hard Case Transport Protection
  • Over-Head Boom Headsets Deliver Hands-Free Operation For Production And Tour Environments
  • Breakaway Lanyards Reduce Equipment Damage Risk During High-Activity Operations
  • Leader Clips Included For Visual Role Identification In Multi-Group Deployments
Log in or register for YOUR best price

The Listen Technologies LKS-3 addresses multi-leader communication demands in tour operations, manufacturing facilities, broadcast production, and interpretation environments where eight or more participants require simultaneous talk and listen capability. Each transceiver operates independently within the same discussion group, eliminating the single-talker bottleneck common to traditional push-to-talk systems.

Built for integrators and AV managers supporting complex workflows, this configuration ships deployment-ready with headsets, lanyards, batteries, and a docking station that recharges all eight units simultaneously. The LA-481 case doubles as transport protection and a charging hub, simplifying logistics for rental houses and production teams managing multi-site events. Transceivers pair automatically within range, and the expandable architecture supports adding units to the same talk group as operational requirements grow.

Downloads

View full details

Specifications

Certifications
Compliance Standards
FCC part 15, ICS-03, CE, RCM, MIC, RoHS, WEEE
Dimensions
Dimensions (HxWxD)
3.93x2.13x0.63"(10x5.4x1.6 cm)Unit
Weight
UnitsUnit Weight
5.13 kg (11.3 lbs)Shipping
Electrical
Power Power Supply Input
100-240VAC, 50-60
Cord
182.9 cm (72 in.) Input Power Cord, 109.3 cm (43 in.) Output Cord
Audio
Audio Microphone Element
ElectretMicrophone Polar Pattern: Unidirectional – Noise CancellingMicrophone Impedance: 1.5 kOhms typicalMicrophone Sensitivity: -40 dBV/Pa @ 1 kHzMicrophone Bandwidth: 200 Hz – 6.8 kHzMicrophone Bias: 1.5 – 3 VDCHeadphone Impedance: 140 OhmsHeadphone Bandwidth: 200 Hz – 6.8 kHz
Connectivity
HzPower Supply Output
12 VDC, 4.0 A, 48
WPower Supply Connector
5.5 mm (.22 in.) OD x 2.3 mm (.09 in.) ID, barrel typePower
Construction
Physical Color
Black and GrayCable Length: 93 cm (37 in.)Unit Weight: 2.21 oz (0.14 lbs)Shipping Weight: 71 g (2.5 oz) with 454 g (1 lbs) minimum
Physical Case Color
Gray &
ChromeTray Color
Black, Chrome Buttons
Included Items
Transceivers
Eight (8) LK-1 ListenTALK Transceivers w/Leader Clips
Headsets
Eight (8) LA-452 Headset 2 (Over Head w/ Boom Mic)
Docking Station
One (1) LA-481 Docking Station Case
Accessories Per Transceiver
Ear Speakers (LA-401), Battery (LA-365), Breakaway Lanyard (LA-445-BK)
Environmental
Environmental Temperature
Operation- -10 °C (14 °F) to 40 °C (+104 °F)Storage: -20 °C (-4 °F) to 50 °C (+122 °F)Relative
Humidity
0 to 95% relative humidity, non-condensing
Shipping
Shipping Weight
11.25 kg (25.0 lbs.)
Weight
2.79 oz (79 g)Shipping
General
Belt Clip
3.93x2.13x0.93" (10x5.4x2.4 cm)Unit
PC ABS PlasticColor
Black, Chrome ButtonsIndicators Display- 64 x 128 OLED, Variable brightnessLED- RED/White multifunction (Mute
Charge Status)User Controls
Volume up, Volume Down, Talk, Power/Status, Talk Modes
PairingProgramming
Via software and USB port on unit or via software and USB port on Docking StationConnections Headset- 3.5mm TRRS, CTIA complaintUSB- Micro USB, Control and ChargingCharger- 4 Contact, Control and Charging
LK-1 Transceiver
Audio Headphone Output Speaker Load- 16 - 32 ohm loadMax Output Power- 67 mW, 16 ohm load, Threshold of ClippingSide Tone- AdjustableMicrophone Input Compatibility- Electret, external biasBias- 3 volt, 2 mA Current MaximumSensitivity Requirement -28 to - 50 dBV/PaInternal Microphone Switching- Auto detect on jack insertion or ManualMaximum Input Level- 109 DBSPLGain- Adjustable, 30 dB rangeSystem Frequency Response- 40 Hz to 15 kHz +/- 3dB, 22kHz low pass filterSNR- 70 dB, A- weighted, Threshold of ClippingTHD- 0.5% @ 1kHz, 22kHz low pass enabled, Radio Operating Frequency 1920 to 1930 MHz - North America1880 to 1900 MHz - Europe, Australia1895 to 1905 MHz – JapanAverage Power 4 mW - North America10 mW - Europe, Australia5 mW – JapanTypical Range Indoor 100 m, Outdoor 200 m, depending upon conditions - North America, JapanIndoor 150 m, Outdoor 300 m, depending upon conditions - Europe, AustraliaModulation GFSK - FHSSTDD/TDMA/DCASecurity Subscription- 40 bit (Pin Free)Authentication- 32 bitEncryption- 64 bitNFC Frequency (Near Field Communications): 13.56 MHz, Power and Battery Management Battery Type Lithium – ion, rechargeable non-proprietary removable, 1200 mAhOptional- 3 AAA Battery CompartmentTypical Operating Time Li-ion- Participant- 12 HoursAAA – Participant Mode – 7 HoursLi-ion – Leader Mode – 7 hoursAAA – Leader Mode – 4 hoursTypical Charge time 4 HoursPower Save Modes Power down on loss of signalPower down on disconnection of headset (1 min)Power down on charging
Interconnections
Male 3.5 mm (TRRS), CTIA complaint
Red Leader PocketDimensions (HxWxD)
7.48x13.78x18.31" (190x350x465mm)Unit
Capacity
16
