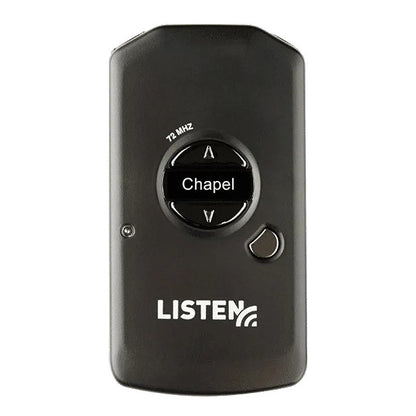

Listen Technologies LR-5200-072 Advanced DSP RF Receiver | 72 MHz
Listen Technologies LR-5200-072 Advanced DSP RF Receiver | 72 MHz
SoundPro Item: 17293 | Part Number: LR-5200-072
Usually ships in 5-7 business days
- Ultra-Sensitive RF Front End Captures Weaker Signals In Challenging Venues With High Interference
- Compact Ergonomic Housing Reduces Wear Fatigue And Simplifies Storage In High-Volume Dispense Operations
- Rechargeable Lithium-Ion Cell Provides Eight Hours Runtime And Eliminates Disposable Battery Waste
- Integrated Neck Loop With Onboard DSP Driver Delivers Consistent Induction Field For T-Coil Hearing Aid Users
- OLED Status Display Shows Channel Assignment And Battery Level Without External Software
- Micro-USB Programming Port Enables Fast Firmware Updates And Fleet Configuration Via iDSP Software
The LR-5200-072 brings professional-grade DSP processing to assistive listening installations where space, budget, and audio quality all matter. Designed for houses of worship, performing arts centers, conference facilities, and educational venues, this 72 MHz receiver combines best-in-class RF sensitivity with a body size 30% smaller than legacy models, making it easier to deploy, wear, and maintain across large listener populations.
Lithium-ion rechargeable battery technology delivers eight hours of continuous operation and eliminates the recurring cost and waste associated with disposable cells. Micro-USB charging and firmware updates simplify fleet management, while iDSP software enables venue-specific programming including channel lockouts, volume limits, and custom labeling. The integrated neck loop with onboard DSP loop driver ensures consistent induction field strength for T-coil users without external amplification.
Built-in OLED display provides real-time feedback on channel selection, battery status, and audio levels, reducing help desk calls and improving user independence. Wide-band and narrow-band channel modes support legacy and high-density RF environments, making the LR-5200-072 a future-ready choice for AV integrators managing assistive listening mandates and ADA compliance.
- Audio
- Frequency Response: 50 Hz - 15 kHz (±3 dB)
- System Distortion: < 2% total harmonic distortion (THD) at 80% deviation
- Output/s: Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
- System Signal to Noise Ratio: SQ enabled 80 dB, SQ disabled 60 dB
- Controls
- User Controls: Power, up/down volume, Listen button for end user channel selection
- Programming: Via software and USB port
- Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
- Indicators
- LEDs: Flashes when batteries are low or to indicate charging, solid when fully charged
- Display: Channel designation, battery level, unit number, charging status
- RF
- Frequency Range: 72.025 - 75.950 MHz
- Number of Channels: 17 wide band, 40 narrow band
- Sensitivity: .6uV typical, 1 uV maximum for 12 dB sinad
- Frequency Accuracy: ± .005% stability 32 to 122 ºF (0 to 50 ºC)
- Squelch: Programmable in 20 steps, automatic on loss of RF signal
- Antenna Type: Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
- Power
- Power Supply: Micro USB connector, 5 V, 500 mA
- Battery Type: Lithium Ion 3.7 Vdc, 1200 mAh
- Battery Life: 8 Hours of continuous use
- Battery Charging Time: Fully charged in 2.5 Hours
- Physical
- Color: Black
- Unit Weight with Batteries: 2.4 oz. (68 g)
- Shipping Weight: 3.2 oz. (91 g) with 1.0 lbs. (454 g) minimum
- Dimensions (HxWxD): 3.75x2x0.64” (9.6x5x1.7 cm)
- Unit Weight: 1.6 oz. (45 g)
- Dimensions with Belt Clip: 3.75x2x0.8” (9.6x5x2.1 cm)
- Environmental
- Temperature – Operation: 14 to 104 ºF (-10 to 40 ºC)
- Temperature – Storage: (-)4 to 122 °F (-20 to 50 °C)
- Relative Humidity: 0 to 95% relative humidity, non-condensing
- Compliance StandardsFCC Part 15, Part 90, Industry Canada, RoHS
