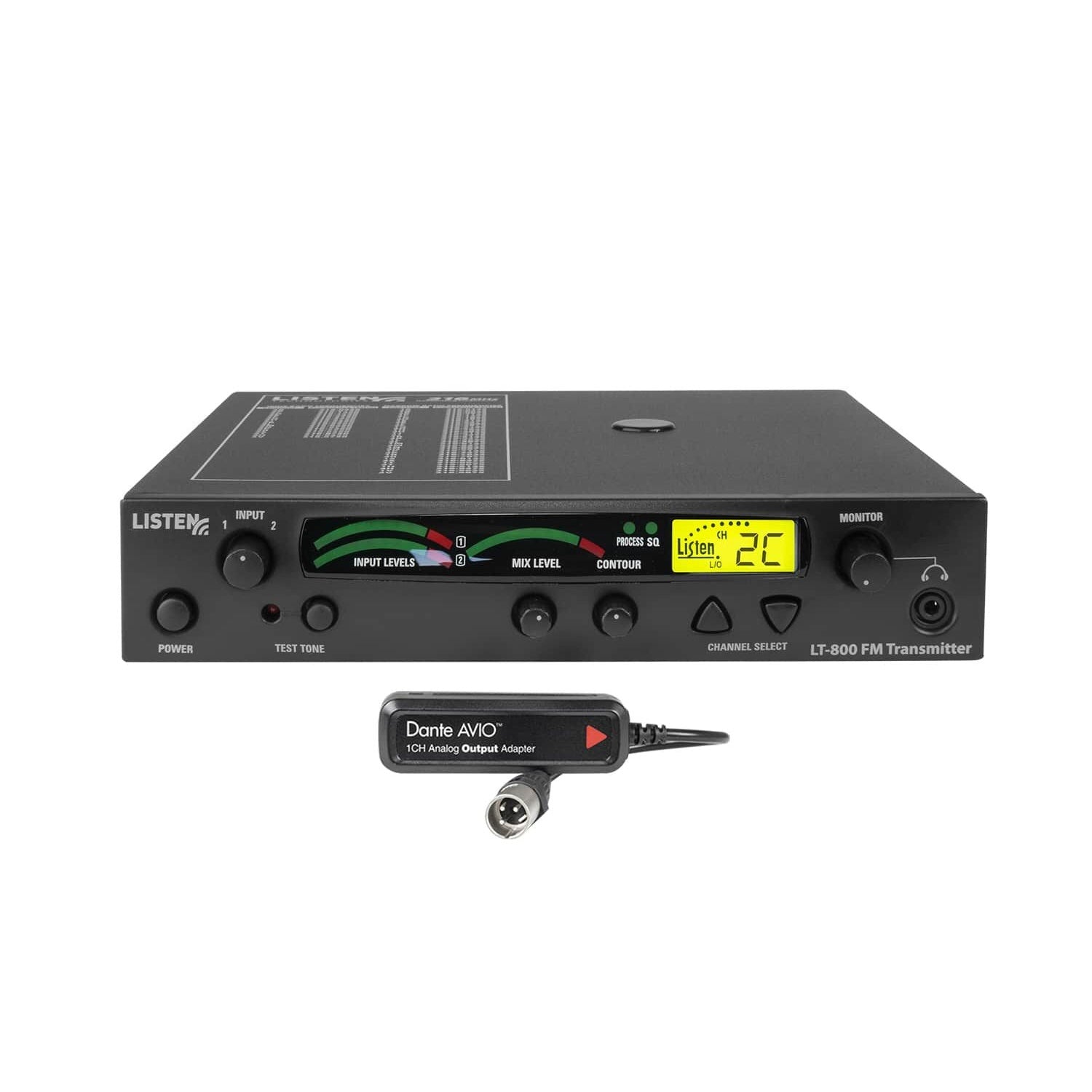

Listen Technologies LT-800 Stationary RF Transmitter | 216 MHz | Dante

Listen Technologies LT-800 Stationary RF Transmitter | 216 MHz | Dante

SoundPro Item: 119817 | Part Number: LT-800-216-01-D

$1,238.00
$1,378.00 $1,238.00
Your Price Sold out
MSRP: $1,378.00 | MAP: $1,238.00

Usually ships in 5-7 business days

  • Look & Listen LCD Displays Channel Designation And Lock Status For Immediate Verification
  • Dual Path Audio Inputs Accept Balanced XLR And Unbalanced RCA Sources Simultaneously
  • Onboard Audio Processor With Adjustable Compression Optimizes Voice And Music Prior To Broadcast
  • Fifty-Seven Selectable Channels Support Multi-Room Installations Without Interference
  • Front Panel VU Meter And Test Tone Simplify Gain Staging During Setup
Log in or register for YOUR best price

The Listen Technologies LT-800 provides professional-grade RF transmission for fixed assistive listening installations in houses of worship, theaters, courtrooms, and conference centers. With dual input paths—balanced XLR/combo and unbalanced RCA—it integrates seamlessly into existing audio infrastructure. Fifty-seven selectable channels accommodate multi-room venues while the built-in compressor and contour filter optimize voice and music reproduction before broadcast.

The Look & Listen LCD provides at-a-glance channel status, lock confirmation, and RF power level monitoring, eliminating guesswork during installation and daily operation. Front-panel VU metering and test tone simplify gain staging with belt pack and stationary receivers up to 1,000 feet away. Half-rack form factor allows single or dual mounting in standard equipment racks.

Designed for permanent installations requiring FCC Part 15 and Part 90 compliance, this transmitter supports up to eight simultaneous units for large or complex venues. The LA-207 power supply and channel lock programming ensure long-term stability across seasonal temperature and humidity variations.

Downloads

View full details

Specifications

Included Items
Includes
One (1) LT-800-216-01 Stationary Transmitter (216 MHz) One (1) LA-465 Dante 1 Channel Output XLR Adapter (POE required) One (1) LA-207 12 VDC Replacement Power Supply for LT-800 One (1) Quick Reference Card
Audio
Frequency Response
50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio
SQ enabled 70 dB, SQ disabled 50 dB
Audio Input 1
Rear panel, one (1) Female XLR or 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
Audio Input 2
Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
Audio Processing
Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1
Contour
Cuts and boosts frequencies above 5 kHz
Distortion
< 2% total harmonic distortion (THD) at 80% deviation
Audio Output
Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
Headphone Output
Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
Controls
User Controls
Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
Internal Adjustments
Compression ratio for audio processor
Programming
SQ on/off, process on/off, channel lock
Indicators
LCD
Channel designation, lock status, RF power level, programming (front panel)
Audio Input Status LEDs
Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
Processing
Indicated by a green LED when on (front panel)
Test Tone
Red LED illuminates when test tone is enabled
RF Power
Indicated on the LCD (low, mid, high)
RF
Frequency Range
216.0125 - 216.9875 MHz
Number of Channels
19 wide band, 38 narrow band
Frequency Accuracy
± .005% stability +32º to +122 ºF (0º to +50 ºC)
Antenna Type
Various antennas available
Transmitter Stability
50 PPM
Transmission Range
Up to 3,000 ft. (914 m)
Antenna Connector
BNC, 50 Ohms (Use RG-58 < 50 ft or RG-8 > 50 ft)
Output Power
100 mW (max allowed by FCC)
Number of Simultaneous Transmitters
Up to 5
Power
Power Supply
In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
Power Supply Input
100-240 VAC, 50-60 Hz, 0.4 A
Power Supply Output
12 VDC, 1.3 A, 15.6 W
Power Supply Connector
0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
Compliance
UL, CE, GS, TÜV, RoHS
Dimensions
Width
8.50 in. (21.5 cm)
Height
1.75 in. (4.5 cm)
Depth
9.13 in. (23 cm)
Weight
Unit Weight with Power Supply
3.5 lbs. (1.6 kg)
Shipping Weight
6.0 lbs. (2.7 kg)
Weight
2.6 lbs. (1.2 kg)
Construction
Color
Dark Grey with white silk screening
Rack Mounting
One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space, optional rack mount (LA-326)
Environmental
Temperature - Operation
-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage
-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity
0 to 95% relative humidity, non condensing
Certifications
Safety
RoHS
RF
FCC Part 15, Part 90, Industry Canada
