Listen Technologies LT-84 ListenIR 2-Channel Transmitter/Radiator Combo | Dante

Listen Technologies LT-84 ListenIR 2-Channel Transmitter/Radiator Combo | Dante

SoundPro Item: 119820 | Part Number: LT-84-01-D

$1,102.00
$1,252.00 $1,102.00
Your Price Sold out
MSRP: $1,252.00 | MAP: $1,102.00

Usually ships in 5-7 business days

  • Dual-Channel Infrared Transmission With Four Selectable Carrier Frequencies Eliminates Need For Frequency-Specific Hardware
  • Integrated Radiator Covers Up To 30,000 Square Feet Single-Channel Without Expansion
  • Single-Cable Expansion Link Delivers RF Signal And Power To Four LA-141 Radiators Per Output

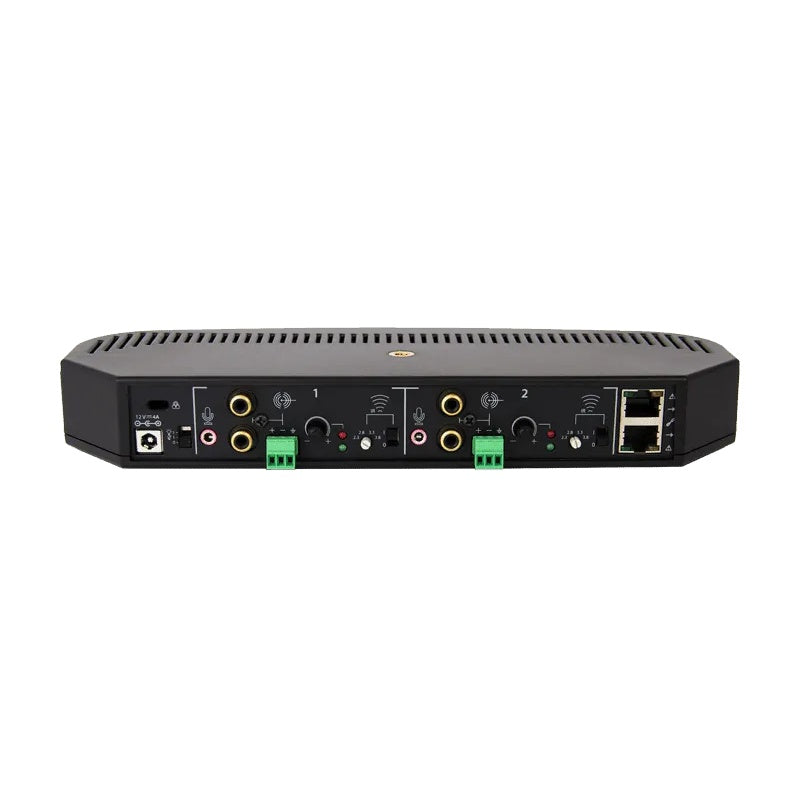

  • Dual Balanced Phoenix And Dual Unbalanced RCA Inputs Accommodate Installed And Portable Sources
  • Automatic Carrier Shutoff After 15 Minutes Of Silence Extends Radiator Service Life
  • Dual Independent Level Controls With Four-LED Metering Prevent Clipping Across Both Channels

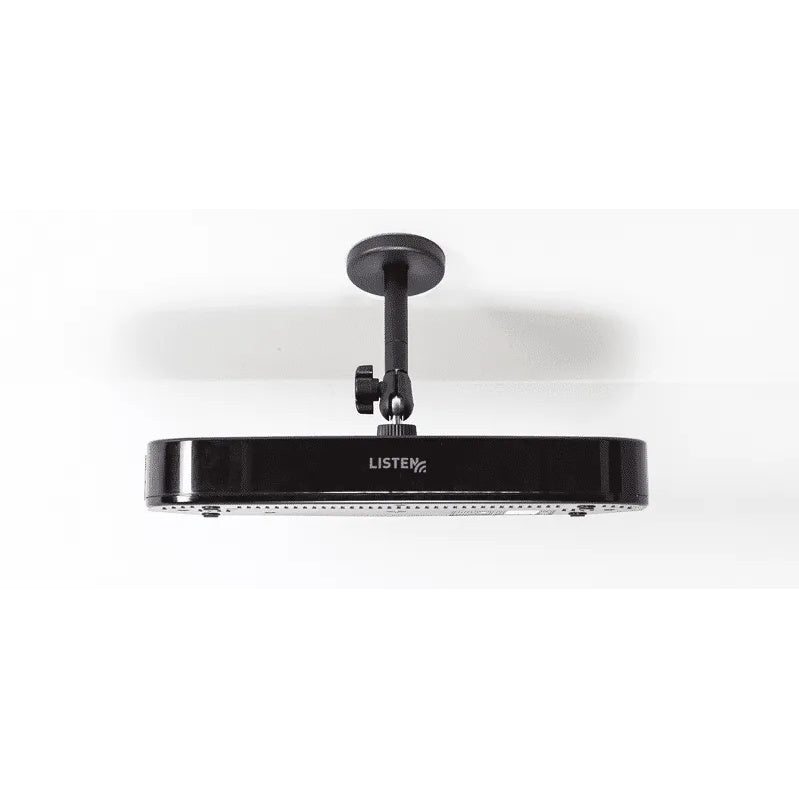

  • Universal Mounting Hardware Supports Wall Ceiling Or Tabletop Placement Without Optional Accessories
Log in or register for YOUR best price

The Listen Technologies LT-84 ListenIR transmitter/radiator addresses the ADA compliance and assistive listening needs of courtrooms, boardrooms, classrooms, and houses of worship by delivering twice the IR power and up to six times the coverage area of competing two-channel infrared systems. The integrated radiator design covers up to 2,787 square meters without dropouts, and the system accepts up to four LA-141 expansion radiators via single-cable CAT-5e connections that carry both RF signal and power. This architecture eliminates the need for separate transmitter and radiator components while simplifying large-space installations.

Four selectable carrier frequencies (2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz) enable integrators to avoid interference in multi-system facilities without stocking frequency-specific hardware. Dual balanced Phoenix inputs, dual RCA unbalanced inputs, and dual 3.5mm mic inputs provide mixing flexibility across installed sound, portable PA, and conferencing applications. The power-save mode automatically disables the carrier after 15 minutes of silence to extend radiator service life, while dual-channel level controls and four-position LED metering maintain optimal signal without clipping.

Universal mounting hardware and a compact 1.5" x 10.7" x 4.1" profile support wall, ceiling, or tabletop placement, and an optional LA-347 plate adapts the unit to standard single-gang electrical boxes for retrofit installations. The included LA-303 multilingual signage, North America Type B power cord, and complete accessory kit enable immediate deployment in commercial and institutional settings.

Downloads

View full details

Specifications

Included Items
Includes

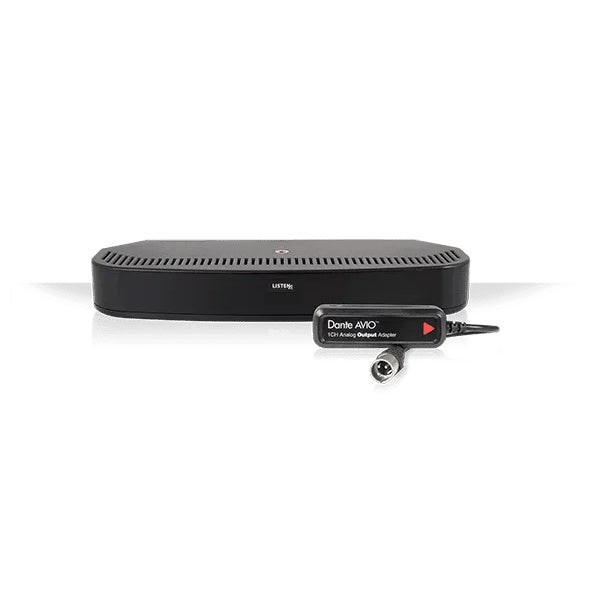

One (1) LT-84 ListenIR 2-Channel Transmitter/Radiator Combo, One (1) LA-465 Dante 1 Channel Output XLR Adapter (POE required), One (1) LA-507 XLR-F to Terminal Block Cable, One (1) LA-210 12 VDC Universal Power Supply/Power Cord, One (1) LA-344 Flexible Mounting Hardware, Two (2) Phoenix Type Connectors, One (1) LA-303 Multi-Lingual Assistive Listening Notification Sign, One (1) Quick Start Guide
Audio
Frequency Response
20 Hz - 20 kHz (+/- 1 dB) Line Input, 63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44)
Signal-to-Noise Ratio
> 70 dB (SNR) Line Input, > 60 dB (SNR) System Specification (wireless end-to-end with LR-44)
Microphone Input
Two (2) 3.5 mm (0.14 in.) Tip/Sleeve connector, -30 dBu nominal input, +14 dB headroom, impedance 4.4k Ohms, 5 VDC bias supply
Total Harmonic Distortion
< 0.1% (THD) Line Input, < 2% (THD) System Specification (wireless end-to-end with LR-44)
Unbalanced Line Input
Stereo/Mono Input. Two (2) Dual (RCA) Phono connectors, unbalanced, -10 dBu nominal input, +14 dB headroom, impedance 10k Ohms
Balanced Line Input
Mono Input. Two (2) Phoenix Type connector, balanced, + 4 dBu nominal input, +14 dB headroom, impedance 100k Ohms
Controls
Power Switch
Three (3) position switch - Power OFF, Power ON-Indicator Lights OFF, Power ON-Indicator Lights ON
Carrier Frequency Selection
Two (2), four (4) position rotary switches (2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz)
Level Control Knob
Two (2) audio taper rotary potentiometer, counter-clockwise decreases input mix level, clockwise increases input mix level
Indicators
Power Supply LED
Green LED on in-line power supply indicates AC power is applied
Audio Level Indicators
Two (2) Green LEDs, two (2) Red LEDs, Green LED indicates Audio presence and Red LED indicates peaks in the audio
RJ-45 Amber LED
Solid Amber indicates carrier is present and IR is being transmitted
RJ-45 Green LED
Solid Green indicates power is applied to unit, flashing indicates unit has entered power save mode
RF
Carrier Frequencies
2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz, Selectable
Number of Channels
Two (2) channels, Selectable carrier frequency
Frequency Accuracy
+/- .005% stability 0 to 50 °C
Transmitter Stability
50 PPM
Modulation
FM Wideband, ±50kHz deviation max, 50 ?S pre-emphasis
Power Save Mode
Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life
Expansion Link Output
Two (2) RJ-45 connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft. maximum cable length, two (2) LA-141s per output connector
IR
Coverage Area
2,787 m² (30,000 ft²) single channel with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) single channel with LR-42/LR-44 receivers
IR Emitter Power
1.49 W
Power
Power Supply Input
100-240 VAC, 50-60 Hz
Power Supply Output
12 VDC, 4 A, 48 W
Power Supply Connector
2.5 mm ID barrel connector, center positive
Power Output
Two (2) RJ-45 connectors, providing Power and RF signal for up to two (2) LA-141 expansion radiators on each output
Power Supply Type
In-line switching mode power supply, Listen part number LA-210
Power Supply Line Cord
IEC line cord, North America Type B (LT-84-01), Asia and UK Type G (LT-84-02), Euro Type F (LT-84-03), Australia Type I (LT-84-04), India Type D (LT-84-05)
Dimensions
Dimensions (H x W x D)
1.5 x 10.7 x 4.1 in. (3.81 x 27.2 x 10.5 cm)
Weight
Unit Weight
0.8 lbs. (0.4 kg)
Unit Weight with Power Supply
1.8 lbs. (0.8 kg)
Construction
Color
Black with White Silk Screening
Mounting
Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box.
Environmental
Temperature - Operation
14 °F (-10 °C) to +104 °F (40 °C)
Temperature - Storage
-4 °F (-20 °C) to +122 °F (50 °F)
Relative Humidity
0 to 95% relative humidity, non-condensing
Compliance
Standards
FCC part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE, BIS
Power Supply Compliance Marks
CUL, UL, CE, CCC, C-Tick, KC, PSE, GS, FCC, RoHS, BIS
Shipping
Shipping Weight
3.4 lbs. (1.54 kg)
