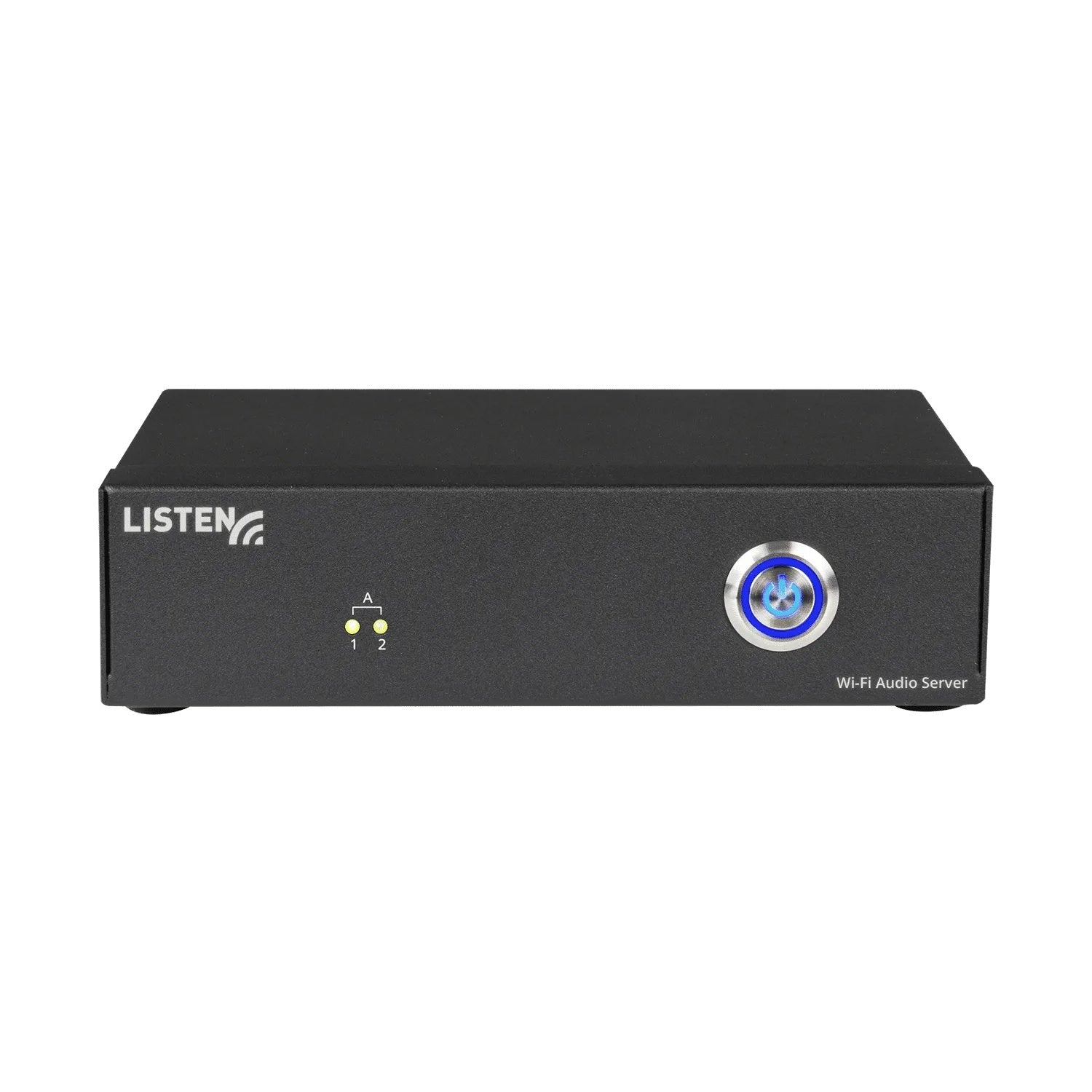

Listen Technologies ListenWIFI Wi-Fi Audio Server | 2 Channel | Standard | Compact

Listen Technologies ListenWIFI Wi-Fi Audio Server | 2 Channel | Standard | Compact

SoundPro Item: 202261 | Part Number: LW-120-02-09

$1,322.00
$1,465.00 $1,322.00
Your Price Sold out
MSRP: $1,465.00 | MAP: $1,322.00

Usually ships in 5-7 business days

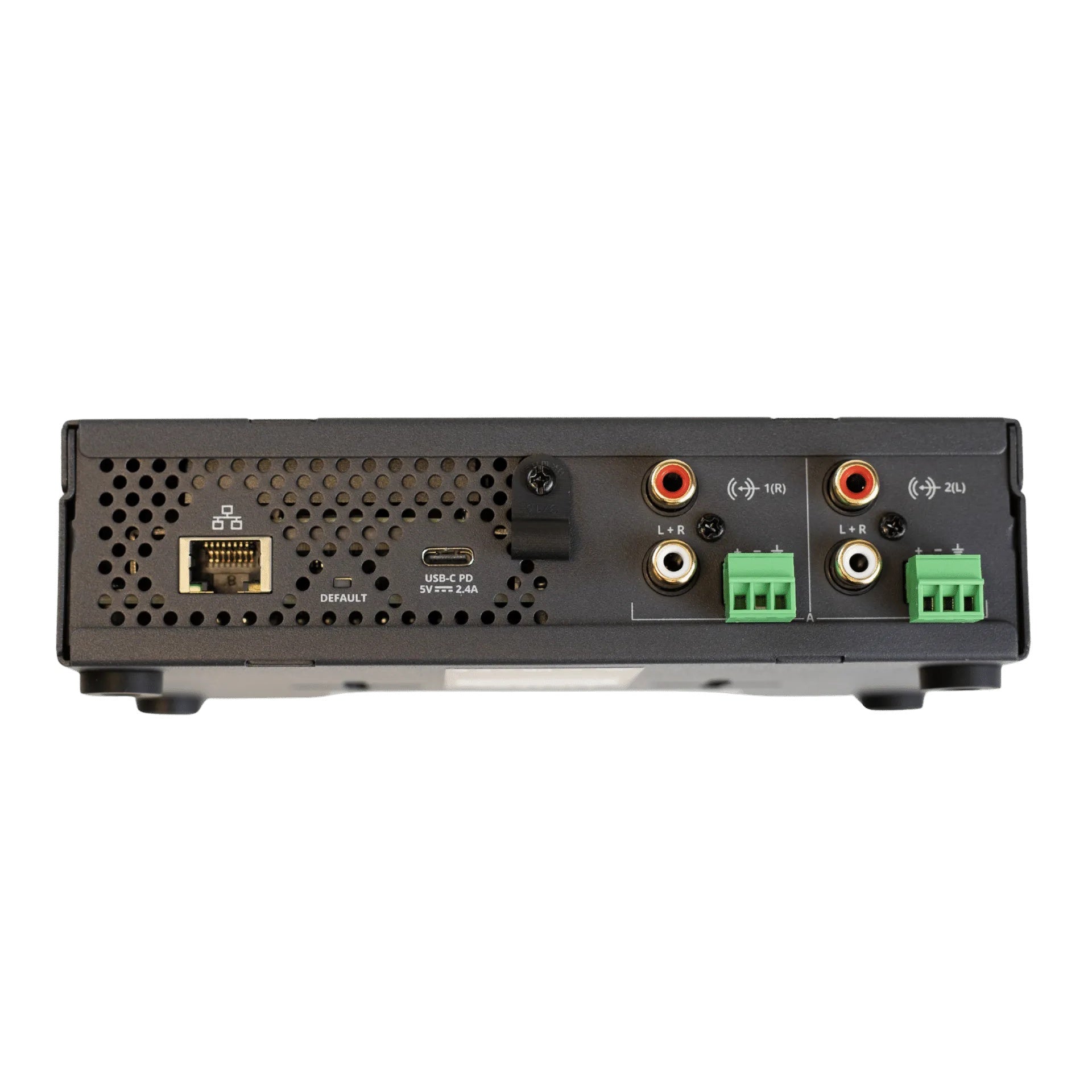

  • Dual Analog Input Formats Accept Both Consumer RCA And Professional Balanced Terminal Block Sources
  • Wi-Fi Distribution Eliminates Dedicated RF Infrastructure While Leveraging Existing Network Investment
  • QoS And ToS Prioritization Maintains Audio Integrity On Shared Enterprise Networks
  • Public Address Override Broadcasts Emergency Announcements Across All Active Listening Devices
  • Windows Management Software Centralizes Configuration And Mobile App Branding From Single Interface
  • USB-C Power Delivery Simplifies Installation With Common Connectivity Standard
Log in or register for YOUR best price

Designed for venues requiring assistive listening solutions, this compact server broadcasts synchronized audio to up to 500 listeners simultaneously using existing Wi-Fi networks. Integrators benefit from flexible input options—both consumer RCA and professional terminal block connections—allowing seamless integration into installed sound systems without additional analog-to-digital conversion hardware.

The platform scales horizontally by adding multiple units to increase channel count and user capacity, while optional LA-490 beacons enable location-based automatic channel switching throughout multi-zone facilities. Public address override capability ensures emergency announcements reach all connected devices instantly, regardless of selected channel.

Central management through Windows-based software allows complete control over server configuration, receiver checkout tracking, and mobile app customization including venue branding, channel graphics, and promotional content. The system supports both BYOD smartphone implementations and dedicated LWR-1050 receivers for compliance-mandated applications where personal devices cannot be guaranteed.

Downloads

View full details

Specifications

Certifications
Regulatory Standards
UL, FCC, CE, ROHS, UKCA
Warranty
2 years
Dimensions
H x W x D
1.77" x 6.69" x 4.6"
Rack Space
1RU 19" (requires LW-327 rack mount kit)
Weight
Unit Weight
1.3 lbs
Shipping Weight
3.6 lbs
Electrical
Input Voltage
100-240 VAC, 50-60 Hz
Output Voltage
5 VDC
Current
2.4 A
Power
12 W
Connector
USB-C
Audio
Frequency Response
20 Hz - 20 kHz ± 1 dB (at nominal level)
Total Harmonic Distortion
< 1% (at nominal level)
Signal to Noise Ratio
> 74 dB (at nominal level)
Dynamic Range
86 dB (at maximum level)
Latency
40-60 ms (dependent on network, traffic, QoS, and listening device)
Connectivity
Balanced Audio Inputs
Terminal blocks, two analog inputs, balanced, +4 dBu nominal, +16 dBu maximum, 100k ohm impedance
RCA Audio Inputs
Dual summing RCA connectors, two analog inputs, unbalanced, -10 dBu nominal, +2 dBu maximum, 100k ohm impedance
PA Input Trigger Level - Terminal
-19 dBu (23 dB below +4 dBu nominal)
PA Input Trigger Level - RCA
-33 dBu (23 dB below -10 dBu nominal)
Ethernet
RJ-45, 10/100/1000 Mbps, left LED amber (link), right LED green (activity), 328' maximum cable length
IP Address
DHCP, Static, Reserved
Prioritization
QoS/ToS
Transport Protocols
Unicast RTP, UDP, HTTPS
Discovery Protocols
mDNS, DNS-SD, DNS
Security
TLS 1.2 (AES 128 bit)
Performance
Users per Server
500 (multiple servers increase capacity)
Channels per Server
2 mono (1 stereo)
Bandwidth per Device
125 kbps
Bit Depth
16 bits
Sampling Rate
48 kHz
WAP Support
802.11n or better with WMM enabled
Supported Listening Devices
iOS and Android smartphones with ListenWIFI app; LWR-1050 Wi-Fi Audio Receivers
Construction
Enclosure Material
Powder coated stainless steel
Color
Dark grey
Power Button
Chrome-plated steel with built-in LED
Controls
User Controls
Power button (front), reset button (rear)
Power Button LED States
Flashing blue (booting/connecting), solid blue (connected), rapid flash blue (updating/resetting)
Setup/Programming
ListenWIFI Manager software for Windows (servers, beacons, receivers, mobile app management)
Environmental
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Storage Temperature
-20 °C to +50 °C (-4 °F to 122 °F)
Relative Humidity
0 to 95%, non-condensing
