Listen Technologies ListenWIFI Wi-Fi Audio Server For LW-210 1RU Rackmount Streaming Device | 4 Channel

Listen Technologies ListenWIFI Wi-Fi Audio Server For LW-210 1RU Rackmount Streaming Device | 4 Channel

SoundPro Item: 144291 | Part Number: LW-210-04-01

$2,267.00
$2,519.00 $2,267.00
Your Price Sold out
MSRP: $2,519.00 | MAP: $2,267.00

Usually ships in 5-7 business days

  • Global Compliance Solution Supports Regional Assistive Listening Standards With Compatible Endpoints
  • Balanced Terminal Block Inputs Integrate Directly With Installed DSP And Mixer Outputs
  • Scalable Multi-Server Architecture Expands User Count And Channel Availability Across Facilities
  • Enterprise Network Compatibility Supports VLAN Segmentation And QoS Prioritization
  • Automated Channel Selection Via Beacons Eliminates Manual User Configuration In Multi-Zone Venues
  • Public Address Override Broadcasts Emergency Announcements To All Active Listeners
  • Centralized Management Software Enables Receiver Inventory Tracking And Mobile App Branding
Log in or register for YOUR best price

Designed for houses of worship, performing arts centers, and educational facilities, this rackmount streaming appliance transforms installed audio systems into scalable assistive listening networks. Integrators benefit from professional balanced inputs, enterprise-grade network compatibility, and centralized management through dedicated Windows software. The solution supports both personal smartphones via a free mobile app and dedicated Wi-Fi receivers for venues requiring ADA-compliant hardware distribution.

Automated channel selection using optional beacons eliminates manual user configuration in multi-zone environments. Public address override ensures emergency announcements reach all connected listeners regardless of selected channel. Each unit occupies one rack space and scales horizontally—deploy additional servers to increase simultaneous user capacity or expand channel availability across campus or multi-room installations.

QoS-aware transport protocols and low system latency make this platform suitable for live interpretation, sermon distribution, theatrical translation tracks, and lecture reinforcement where real-time synchronization with visual content is critical. The terminal block input configuration accommodates existing DSP matrix outputs or mixer direct outs without adapter cables.

Downloads

View full details

Specifications

Certifications
Regulatory Standards
UL, FCC, CE, ROHS, UKCA
Warranty
2 years
Dimensions
H x W x D
45mm x 483mm x 117mm (1.77" x 19.02" x 4.6")
Rack Space
1 RU (rack ears included)
Weight
Unit Weight
1.6 kg (3.5 lbs)
Shipping Weight
2.6 kg (5.8 lbs)
Audio
Frequency Response
20 Hz - 20 kHz ± 1dB (at nominal level)
Total Harmonic Distortion
< 1% (at nominal level)
Signal to Noise Ratio
> 74 dB (at nominal level)
Dynamic Range
86 dB (at maximum level)
Latency
40-60 ms, dependent on network, traffic, QOS, and listening device
Audio Output Method
RJ-45 Ethernet Port
Connectivity
Balanced Audio Inputs

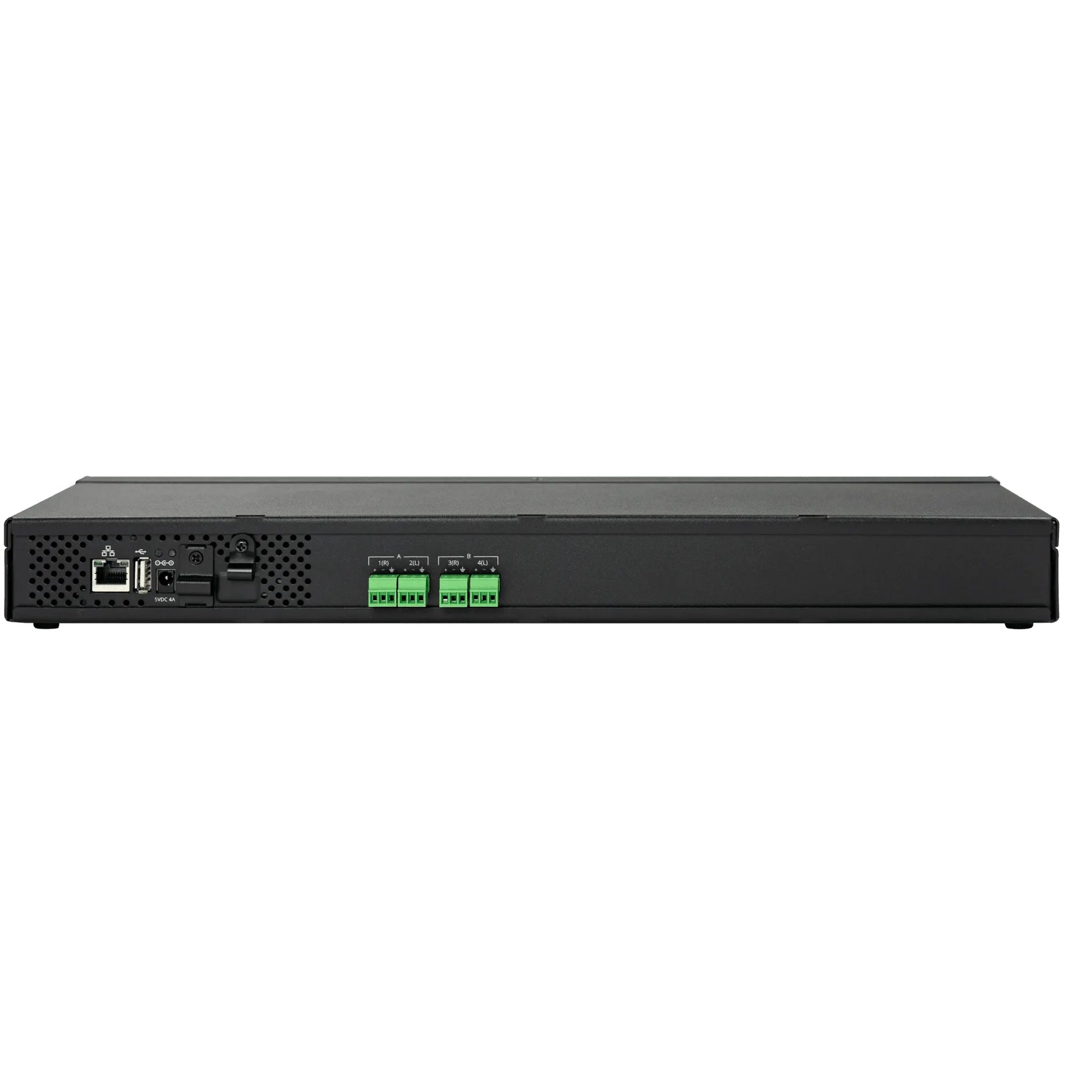

Terminal Blocks: Four analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
Public Address Input Trigger Level
-19 dBu (nominal +4 dBu), channel override occurs when audio is detected 23 dB below nominal input
Ethernet
RJ-45 supports 10/100/1000 Mbps speed, Maximum 100m (328') CAT5/6 cable length
USB
Type A 2.0 (female) - supports reset to defaults USB drive
Communications
IP Address
DHCP, Static, Reserved
Prioritization
QoS/ToS
Users
500 per server - Multiple servers may be used to increase the number of users
Max Channels
4 mono (2 stereo) - Multiple servers may be used to increase the number of channels
WAP Support
802.11n or better with WMM (Wireless Multi-Media) enabled
Bandwidth
125 kbps per listening device
Bit Depth
16 bits
Sampling Rate
48 kHz
Transport Protocols
Unicast RTP, UDP, HTTPS
Discovery Protocols
mDNS, DNS-SD, DNS
Security
TLS 1.2 (AES 128 bit)
Supported Listening Devices
iOS and Android personal smartphones supported with the ListenWIFI mobile app installed. Free download from the Google Play and Apple App stores. LWR-1050 Wi-Fi Audio Receivers - for dedicated applications, for compliance, for use as backup devices, for accessibility requirements, etc.
Construction
Enclosure Material
Powder Coated Stainless Steel
Color
Dark Grey

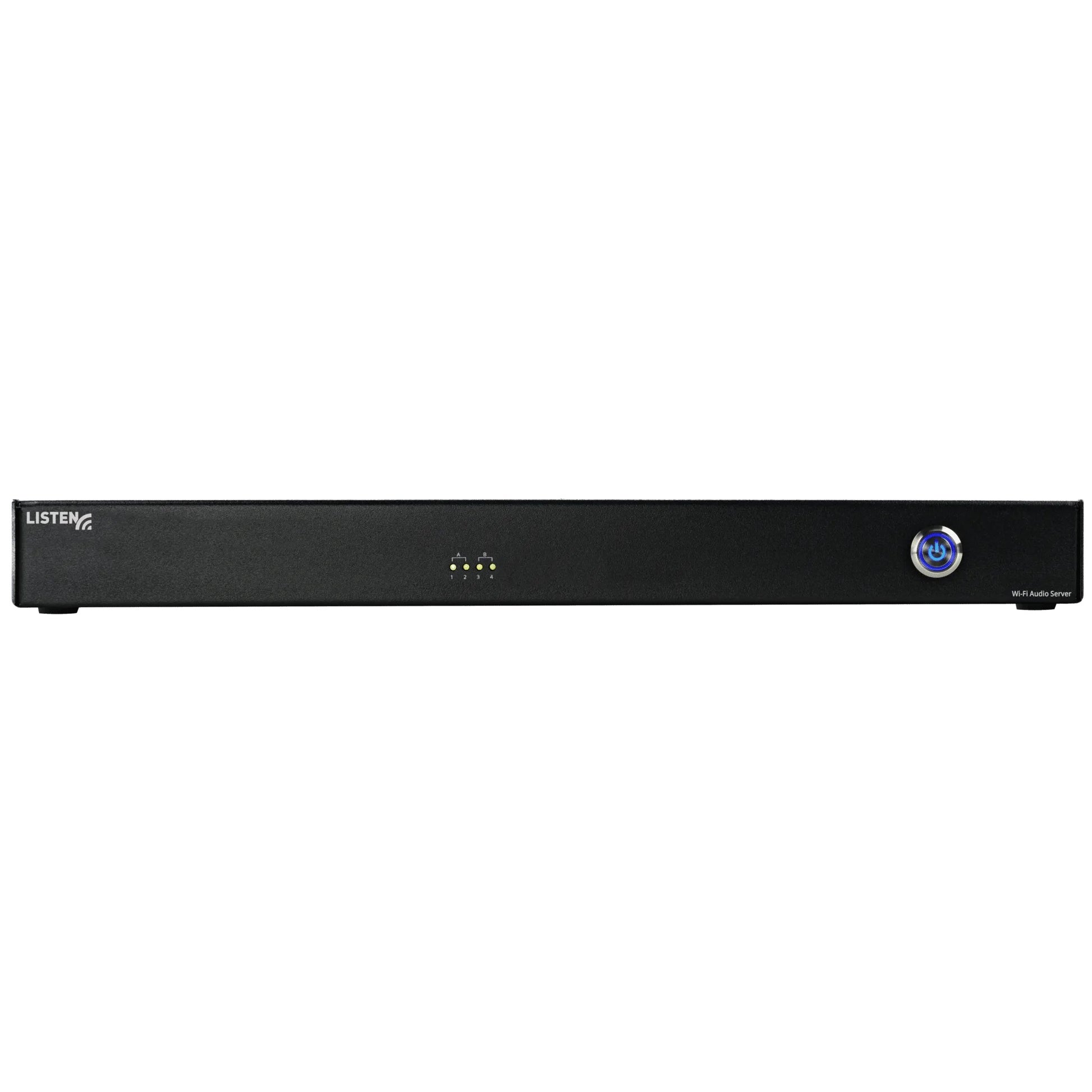

Power Button w/LED
Chrome-plated steel with built in LED
Controls
User Controls
Power Button
Power Button LED
Flashing blue - server is booting up establishing network connection; Solid blue - server is fully booted with valid network connection; Rapid flash blue - server firmware is being updated or reset to defaults
Setup/Programming
Free software available for on-premise central management of all Wi-Fi audio servers on the network. The ListenWIFI Manager software provides central management of the entire ListenWiFI system, including Servers, Beacons, Receivers, and Mobile Apps. Software also facilitates checkout / check-in of receivers, as well as mobile app customizations to support venue branding
Power
Connector
5 VDC Barrel (center positive)
Input Voltage
100-240 VAC, 50-60Hz
Output Voltage
5 VDC
Current
6.0 A
Power
30 W
Configurations
01 = North America Plug Type B; 02 = United Kingdom Plug Type G; 03 = European Union Plug Type F; 04 = Australia, Plug Type I
Environmental
Temperature - Operation
-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage
-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity
0 to 95% relative humidity, non condensing
