Listen Technologies Meeting House RF Assisted Listening System With Drop-In Charging | Complete Package

Listen Technologies Meeting House RF Assisted Listening System With Drop-In Charging | Complete Package

SoundPro Item: 54181 | Part Number: MH-01-01

$4,357.00
$4,848.00 $4,357.00
Your Price Sold out
MSRP: $4,848.00 | MAP: $4,357.00

Usually ships in 5-7 business days

  • iDSP Audio Processing With Telecoil-Compatible Neck Loop Delivers Crystal Clear Intelligibility For Aided And Unaided Listeners
  • Field-Replaceable Lithium-Ion Batteries Provide Eight-Hour Runtime And Eliminate Alkaline Cell Disposal
  • Twelve-Position Charging Tray Enables Wall, Drawer, Rack, Or Tabletop Mounting For Streamlined Dispensing
  • Up To 1,000-Foot Transmission Range Covers Large Worship Spaces Without Dead Zones
  • Programmable Channel Selection Allows Users To Adjust Frequency Without Staff Intervention
Log in or register for YOUR best price

Built for houses of worship requiring reliable assistive listening coverage across large sanctuary spaces, this complete RF system combines field-proven transmission hardware with rechargeable iDSP receiver technology. The integrated transmitter broadcasts across 72 MHz bandwidth to support up to six simultaneous systems, while eight included receivers feature DSP loop drivers for direct telecoil coupling and lithium-ion cells that eliminate alkaline battery replacement cycles.

The drop-in charging station streamlines pre-service preparation and post-service collection, mounting to walls, drawers, or rack enclosures for accessible dispensing. Engineered for institutions managing recurring services where consistent audio quality and simplified device maintenance directly impact congregant experience and volunteer workflow.

Included accessories—rack mount hardware, universal antenna kit, and earphone options—enable immediate deployment without supplemental purchases. The result is a fully contained listening solution that reduces setup complexity and operating costs while delivering broadcast-grade clarity for hearing-impaired attendees.

Downloads

View full details

Specifications

Certifications
Compliance Standards
FCC Part 15, Part 90, Industry Canada, RoHS
Compliance Safety
RoHSRF: FCC Part 15, Part 90, Industry Canada
Dimensions
Physical Dimensions (WxHxD)
8.5x1.75x9.13" (21.5x4.5x23cm)Color: Dark Grey with white silk screeningUnit
Dimensions (HxWxD)
Rack Mount: 19x1.75x8" (48.3x4.4x20.3cm); Shipping Box: 14.2x2.95x10.6" (36x7.5x27cm)
Mounting Dimensions (WxDxH)
Bracket - 11x18x6.4cm (4.5x7x2.5"); Grounding Base - 20.4x20.4x5.1cm (8x8x2"); Mounting Plate - 11.4x11.6 (4.48x4.55")
Dipole Vertical Length
72 MHz - 203.2 cm (80"), 216 MHz - 68.6cm (27 in.)
Weight
Weight with Power Supply
3.5 lbs. (1.6 kg)Shipping
Electrical
Power Power Supply
Micro USB connector, 5 V, 500 mABattery
Power Power Supply Input
100-240VAC, 50-60
Audio
Audio Frequency Response
50 Hz - 15 kHz (±3 dB)System
Distortion
< 2% total harmonic distortion (THD) at 80% deviationOutput/s: Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohmSystem
Signal to Noise Ratio
SQ enabled 80 dB, SQ disabled 60 dB
Operation
14 to 104ºF (-10 to 40ºC)Temperature -
Neck Loop Field Strength
400 mA/m (+/- 3dB)Neck
Loop Frequency Response
100Hz to 5kHz (+/- 3 dB ref 1kHz)
Sensitivity
115 dB +/- 4dB @ 1 kHz, 1 mWRated
Output
Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohmHeadphone
Connectivity
USB Portset-up Controls
Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
HzPower Supply Output
5.0 VDC, 8 A, 40
WPower Supply Connector
5.5 mm (.22 in.) OD x 2.3 mm. (09 in.) ID, barrel typeCord: 182.9 cm (72 in.) Input Power Cord, 114.3 cm (45 in.) Output Cord
Power Input
50 mWMax
Input Status LEDs
Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)Processing: Indicated by a green LED when on (front panel)Test
Supply Input
100-240 VAC, 50-60 Hz, 0.4
APower Supply Output
12 VDC, 1.3 A, 15.6
Construction
Physical Color
BlackShipping Weight: 2.7kg (6 lbs)Dimensions (HxWxD): 4.45x35.56x19.05cm (1.75x14x7.5")Height with Receivers: 10.64 cm (4.19")Unit Weight: 2.27 kg (5 lbs)Unit Capacity: 12 Units

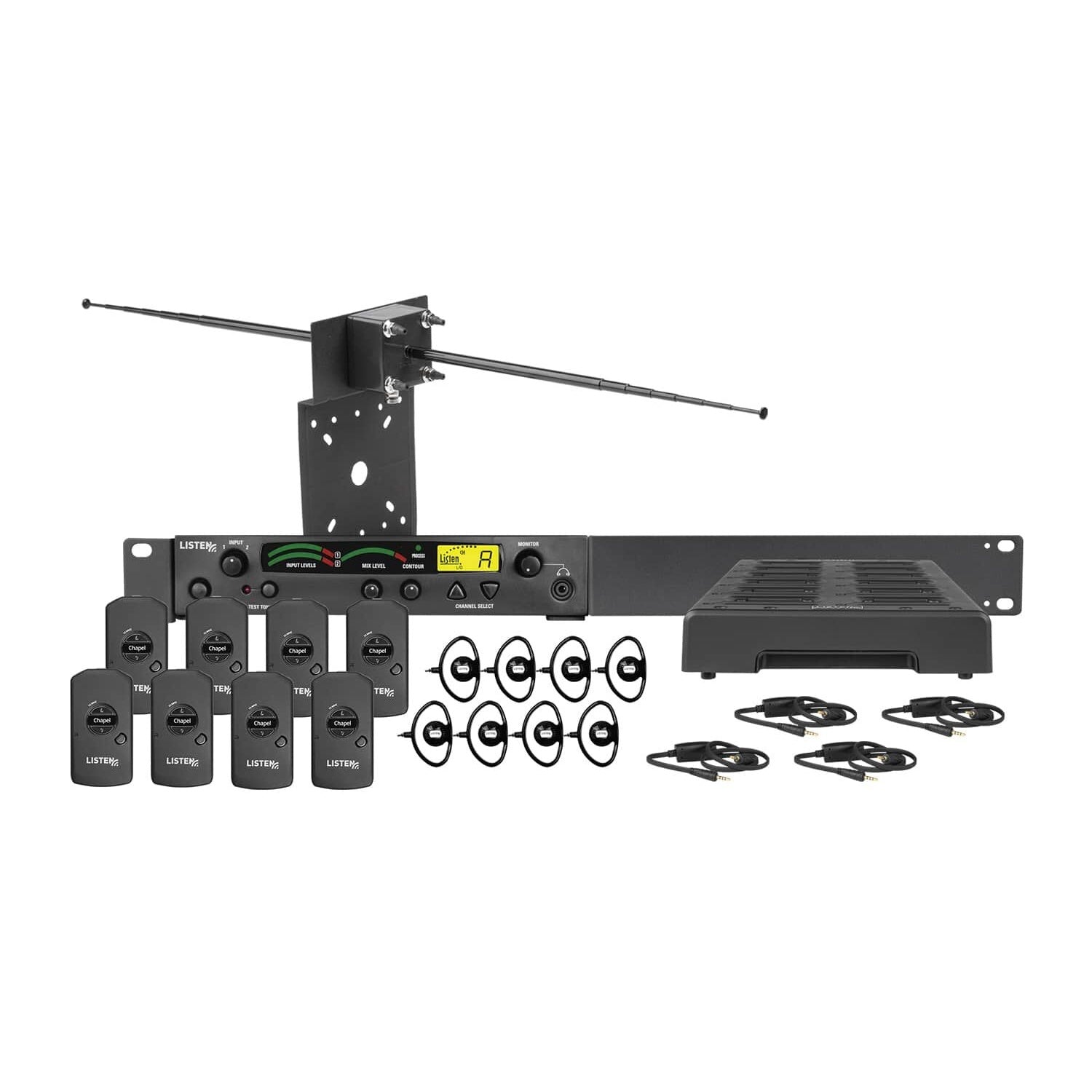

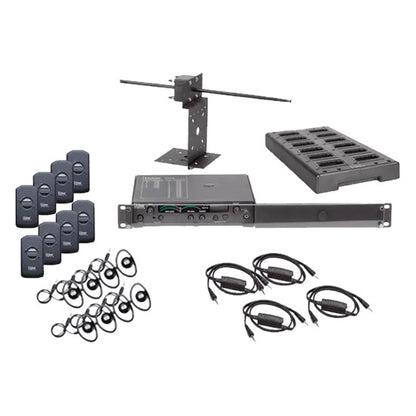

Included Items
Receivers
Eight (8) MH-5200-072 Meeting House Receiver
Transmitter
One (1) MH-800-072-01 Meeting House Transmitter
Charging Tray
One (1) LA-381-01 Intelligent 12-Unit Charging Tray
Earphone/Lanyard
Four (4) LA-430 Intelligent Earphone/Neck Loop Lanyard
Ear Speakers
Eight (8) LA-401 Universal Ear Speaker
Rack Kit
One (1) LA-326 Universal Rack Mounting Kit
Antenna Kit
One (1) LA-122 Universal Antenna Kit (72 MHz and 216 MHz)
Environmental
Humidity
0 to 95% relative humidity, non-condensing
Shipping
Shipping Weight
24.0 lbs. (10.87 kg)
Weight
3.2 oz (91 g) with 1 lb (454 g) minimumDimensions (H x
General
Controls User Controls
Power, up/down volume, Listen button for end user channel selectionProgramming: Via software and
Indicators LEDs
Flashes when batteries are low or to indicate charging, solid when fully chargedDisplay: Channel designation,battery level, unit number, charging status
RF Frequency Range
72.025 - 75.950
MHzNumber of Channels
17 wide band, 40 narrow bandSensitivity: .6uV typical, 1 uV maximum for 12 dB sinadFrequency
Accuracy
± .005% stability 32 to 122 ºF (0 to 50 ºC)Squelch: Programmable in 20 steps, automatic on loss of
RF Signalantenna Type
Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
Type
Lithium Ion 3.7 Vdc, 1200 mAhBattery
Life
8 Hours of continuous useBattery
W X D)
3.75x2x0.64" (9.6x5x1.7cm)Unit
Belt Clip
3.75x2x0.8" (9.6x5x2.1cm)
Storage
(-)4 to 122°F (-20 to 50°C)Relative
Interconnections Connection to Receiver
Male 3.5 mm (TRRS) to Male 3.5 mm (TRRS)Connection to
Short Ear Phone
Female 3.5 mm (TRS)
Interconnections
Male 3.5 mm (TRS)
Ratio
SQ enabled 80 dB, SQ disabled 60 dBAudio Input 1: Rear panel, one (1) Female XLR or 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDCAudio Input 2: Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohmAudio
Indicators LCD Channel
designation, lock status, RF power level, programming (front panel)Audio
Tone
Red LED illuminates when test tone is enabled.
Power
Charging Time
Fully charged in 2.5 Hours
Indicators
Processing
Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1Contour: Cuts and boosts frequencies above 5 kHzDistortion: < 2% total harmonic distortion (THD) at 80% deviationAudio
RF Power
Indicated on the LCD (low, mid, high)
