Listen Technologies Meeting House RF Assisted Listening System With Drop-In Charging | Transmitter Only

Listen Technologies Meeting House RF Assisted Listening System With Drop-In Charging | Transmitter Only

SoundPro Item: 117395 | Part Number: MH-800-072-01

$892.00
$1,007.00 $892.00
Your Price Sold out
MSRP: $1,007.00 | MAP: $892.00

Usually ships in 5-7 business days

  • iDSP Audio Processing With Telecoil-Compatible Neck Loop Delivers Crystal Clear Intelligibility For Aided And Unaided Listeners
  • Field-Replaceable Lithium-Ion Batteries Provide Eight-Hour Runtime And Eliminate Alkaline Cell Disposal
  • Twelve-Position Charging Tray Enables Wall, Drawer, Rack, Or Tabletop Mounting For Streamlined Dispensing
  • Up To 1,000-Foot Transmission Range Covers Large Worship Spaces Without Dead Zones
  • Programmable Channel Selection Allows Users To Adjust Frequency Without Staff Intervention
Log in or register for YOUR best price

Built for houses of worship requiring reliable assistive listening coverage across large sanctuary spaces, this complete RF system combines field-proven transmission hardware with rechargeable iDSP receiver technology. The integrated transmitter broadcasts across 72 MHz bandwidth to support up to six simultaneous systems, while eight included receivers feature DSP loop drivers for direct telecoil coupling and lithium-ion cells that eliminate alkaline battery replacement cycles.

The drop-in charging station streamlines pre-service preparation and post-service collection, mounting to walls, drawers, or rack enclosures for accessible dispensing. Engineered for institutions managing recurring services where consistent audio quality and simplified device maintenance directly impact congregant experience and volunteer workflow.

Included accessories—rack mount hardware, universal antenna kit, and earphone options—enable immediate deployment without supplemental purchases. The result is a fully contained listening solution that reduces setup complexity and operating costs while delivering broadcast-grade clarity for hearing-impaired attendees.

Downloads

View full details

Specifications

Included Items
Includes
One (1) MH-800-072-01 Meeting House Transmitter (LT-800-072 with customized setting) One (1) LA-207 Power Supply for LT-800 One (1) Line Cord One (1) Quick reference card
Audio
Frequency Response
50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio
SQ enabled 80 dB, SQ disabled 60 dB
Audio Input 1
Rear panel, one (1) Female XLR or 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
Audio Input 2
Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
Audio Processing
Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1
Contour
Cuts and boosts frequencies above 5 kHz
Distortion
< 2% total harmonic distortion (THD) at 80% deviation
Audio Output
Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
Headphone Output
Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
Controls
User Controls

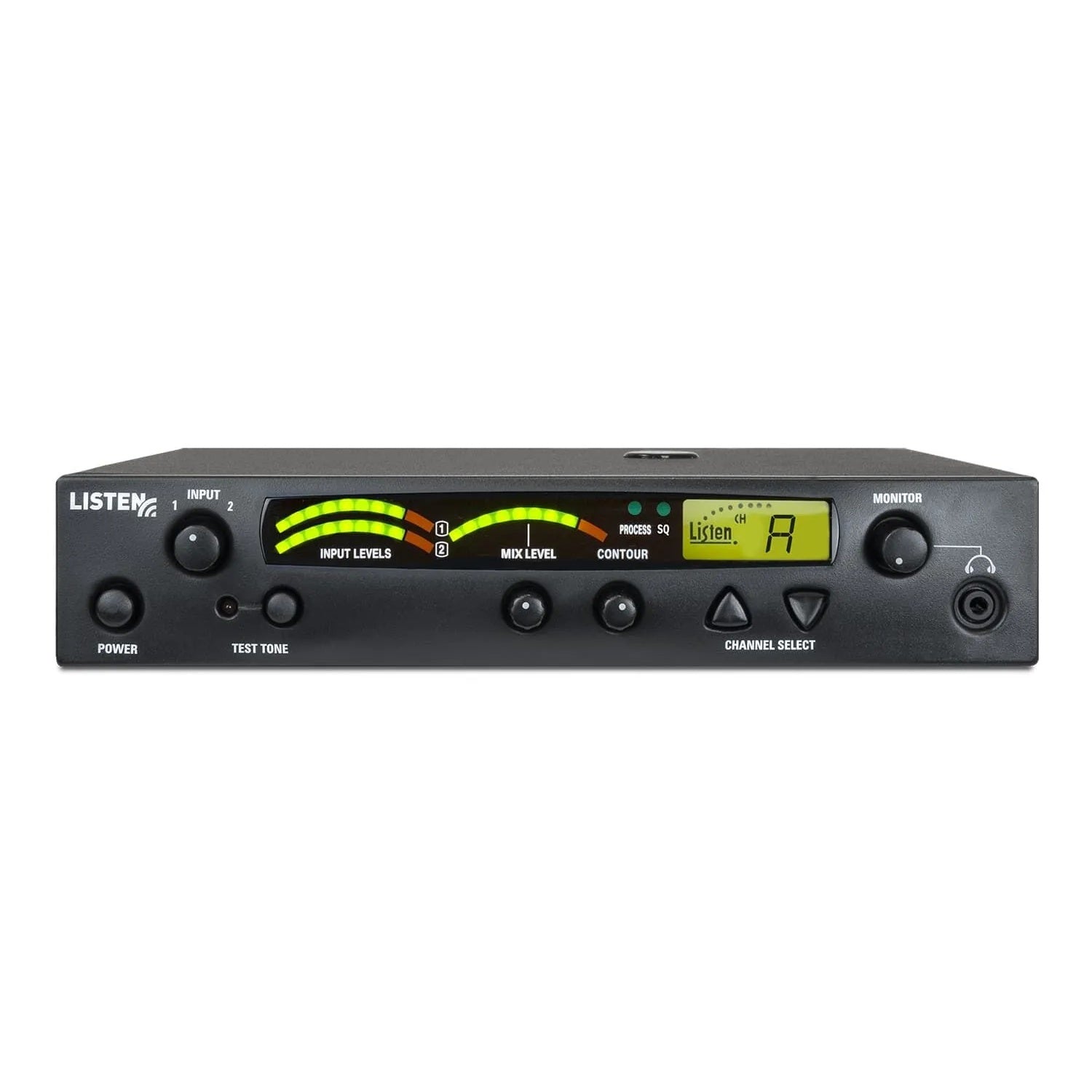

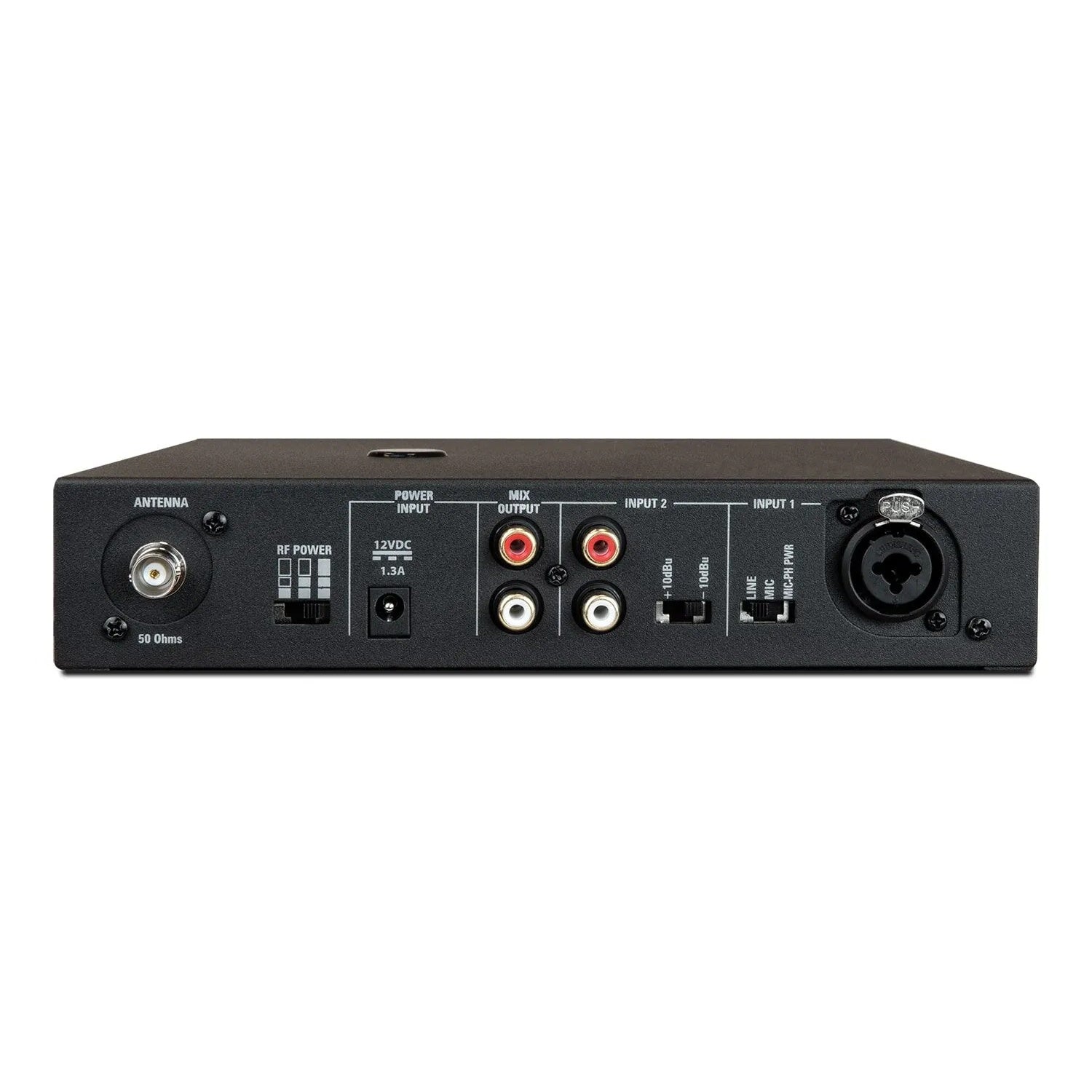

Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
Internal Adjustments
Compression ratio for audio processor
Programming
SQ on/off, process on/off, channel lock
Indicators
LCD
Channel designation, lock status, RF power level, programming (front panel)
Audio Input Status LEDs
Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
Processing
Indicated by a green LED when on (front panel)
Test Tone
Red LED illuminates when test tone is enabled.
RF Power
Indicated on the LCD (low, mid, high)
RF
Frequency Range
72.025 - 75.950 MHz
Number of Channels
17 wide band, 40 narrow band
Frequency Accuracy
± .005% stability +32º to +122 ºF (0º to +50 ºC)
Antenna Type
Various antennas available
Transmitter Stability
50 PPM
Transmission Range
Up to 1,500 ft. (457 m)
Antenna Connector
BNC
Output Power
80,000 uV at 3 m
Number of Simultaneous Transmitters
6
Power
Power Supply
In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
Power Supply Input
100-240 VAC, 50-60 Hz, 0.4 A
Power Supply Output
12 VDC, 1.3 A, 15.6 W
Power Supply Connector
0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
Compliance
UL, CE, GS, TÜV, RoHS
Physical
Width
8.50 in. (21.5 cm)
Height
1.75 in. (4.5 cm)
Depth
9.13 in. (23 cm)
Color
Dark Grey with white silk screening
Unit Weight with Power Supply
3.5 lbs. (1.6 kg)
Shipping Weight
6.0 lbs. (2.7 kg)
Rack Mounting
One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space, optional rack mount (LA-326)
Weight
2.6 lbs. (1.2 kg)
Environmental
Temperature - Operation
-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage
-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity
0 to 95% relative humidity, non condensing
Compliance
Safety
RoHS
RF
FCC Part 15, Part 90, Industry Canada
