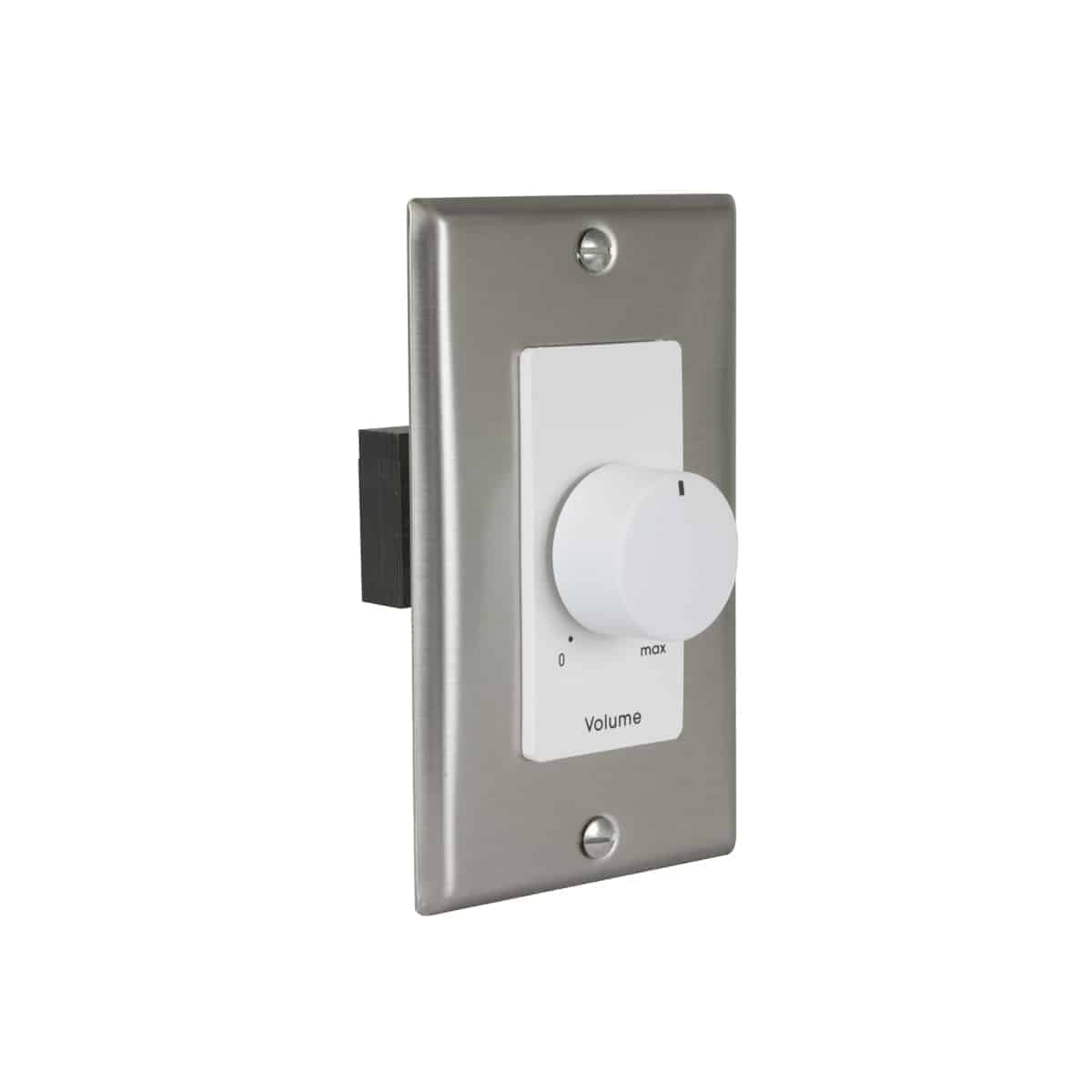

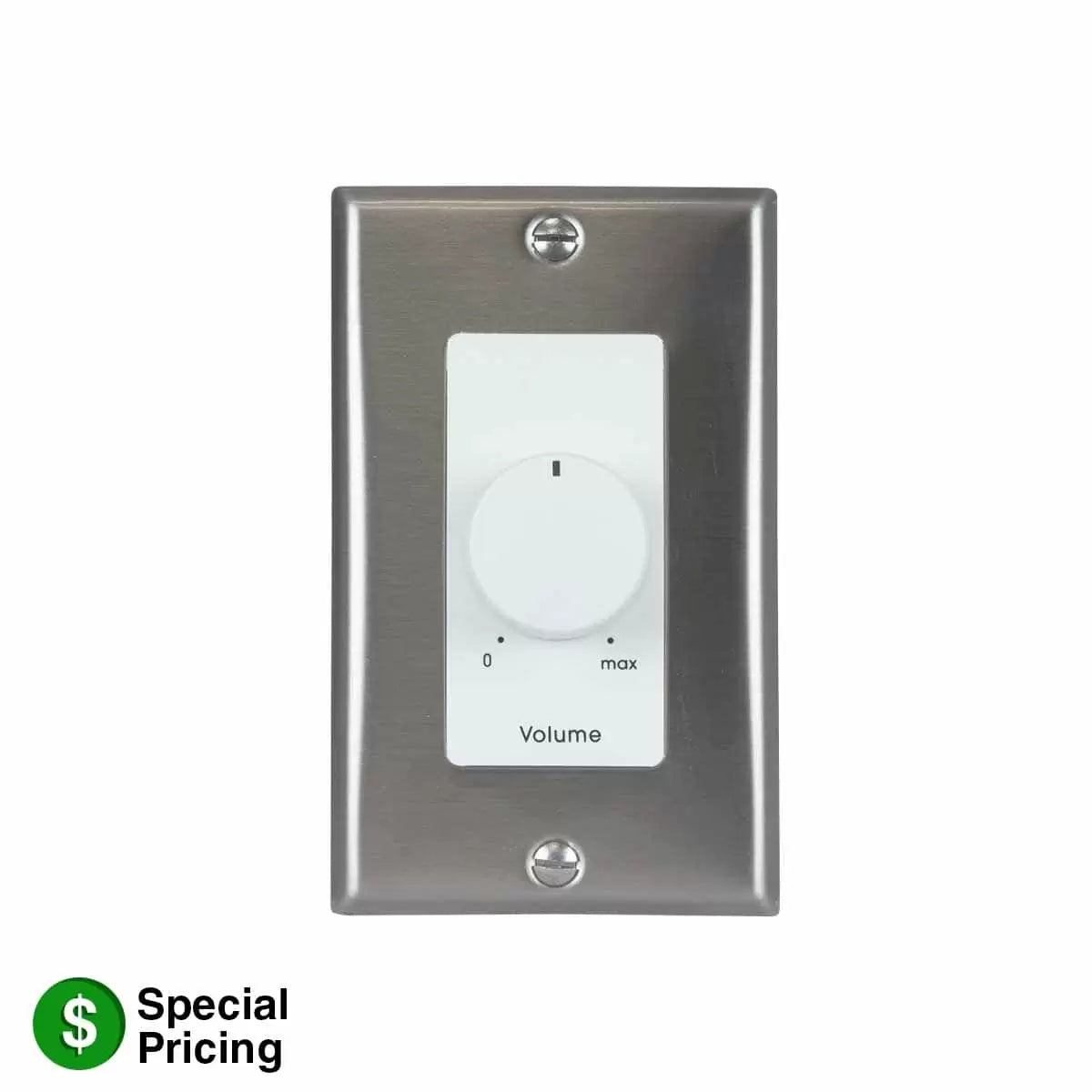

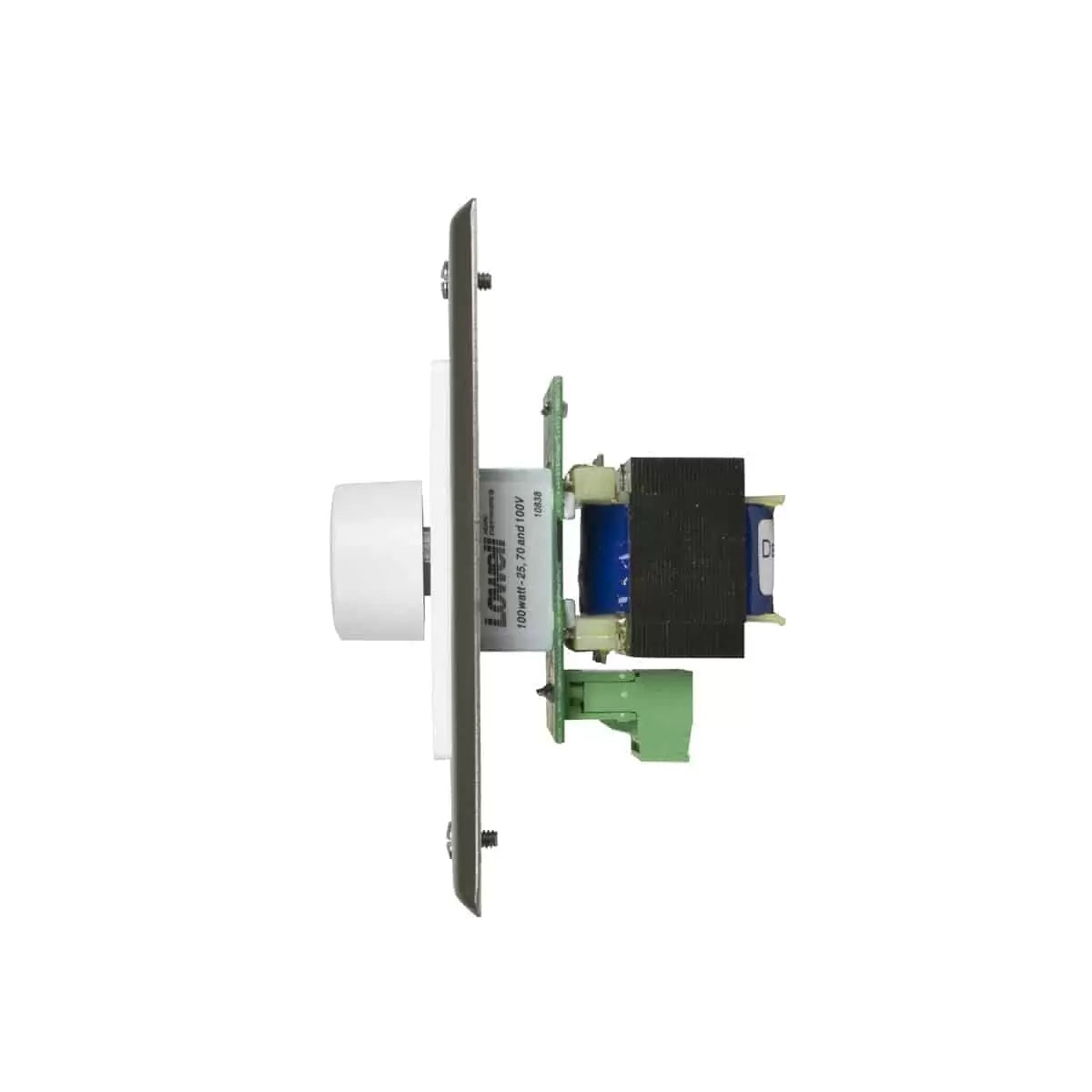

Lowell 100W Mono Volume Control With Decorator Wall Plate | Without Bypass | Stainless Steel & White

Lowell 100W Mono Volume Control With Decorator Wall Plate | Without Bypass | Stainless Steel & White

SoundPro Item: 34190 | Part Number: 100LVC-DSW

$54.56
$62.00 $54.56
Your Price Sold out
MSRP: $62.00 | MAP: $54.56

Usually ships in 5-7 business days

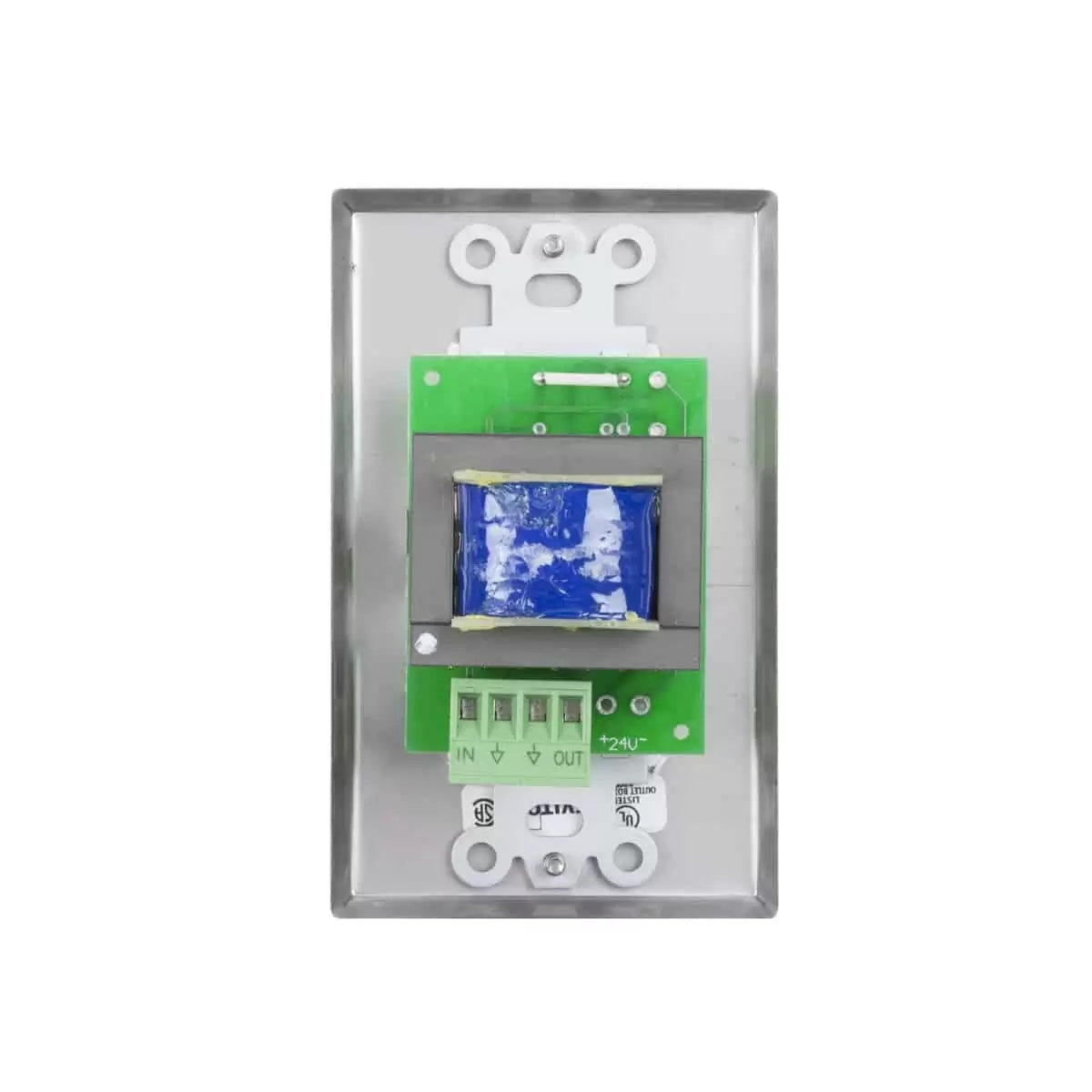

  • Autoformer Attenuator Design Maintains Consistent Impedance On 25V/70V Lines
  • Phoenix-Style Plug-In Termination Simplifies Field Wiring And Reduces Install Time
  • Rotary Switch With Eleven Positions Provides Repeatable Zone Level Control
  • Fits Standard Electrical Outlet Box For Straightforward Wall Integration
  • Available With Or Without Priority Relay For Emergency Signal Bypass
  • Included 1-Gang Decorator Wall Plate Available In Multiple Finish Options
Log in or register for YOUR best price

Designed for installed audio integrators and AV systems contractors, this Lowell mono autoformer attenuator volume control is built for 25V/70V distributed speaker systems in commercial environments such as restaurants, retail spaces, houses of worship, schools, and corporate facilities. The rotary switch provides consistent 3dB-per-step attenuation across eleven positions, giving zone occupants precise, repeatable level control without degrading signal quality on the transformer line.

Phoenix-style plug-in screw termination strips simplify field wiring and reduce installation time, while compatibility with standard electrical outlet boxes keeps rough-in requirements straightforward for integrators working within existing wall construction. The unit is available with or without a priority relay, making it suitable both for standard background music zones and for life-safety or paging applications where emergency override capability is required. Decorator-style wall plates are included in multiple finish options to match a variety of interior aesthetics without requiring a separate plate purchase.

At 100W, this volume control handles demanding distributed audio loads and provides a durable, professional-grade solution where consumer-grade attenuators fall short. The autoformer design maintains consistent impedance across the transformer line, protecting amplifier performance and preserving system headroom across multi-zone installations.

Downloads

View full details

Specifications

Audio
Power Rating
100W
Attenuation
3dB per step (33dB total)
Compatibility
25V/70V speaker line
Controls
Activation
Rotary dial
Volume Positions
0-10
Connectivity
Termination
Phoenix-style plug-in screw strips
Wire Capacity
14-gauge
Construction
Finish
Stainless Steel & White
Wall Plate
1-gang decorator style
Sub-Plate
White
E.O. Box Compatibility
Fits standard E.O. box (2.125 in. min. depth)
Identifiers
MPN
100LVC-DSW
