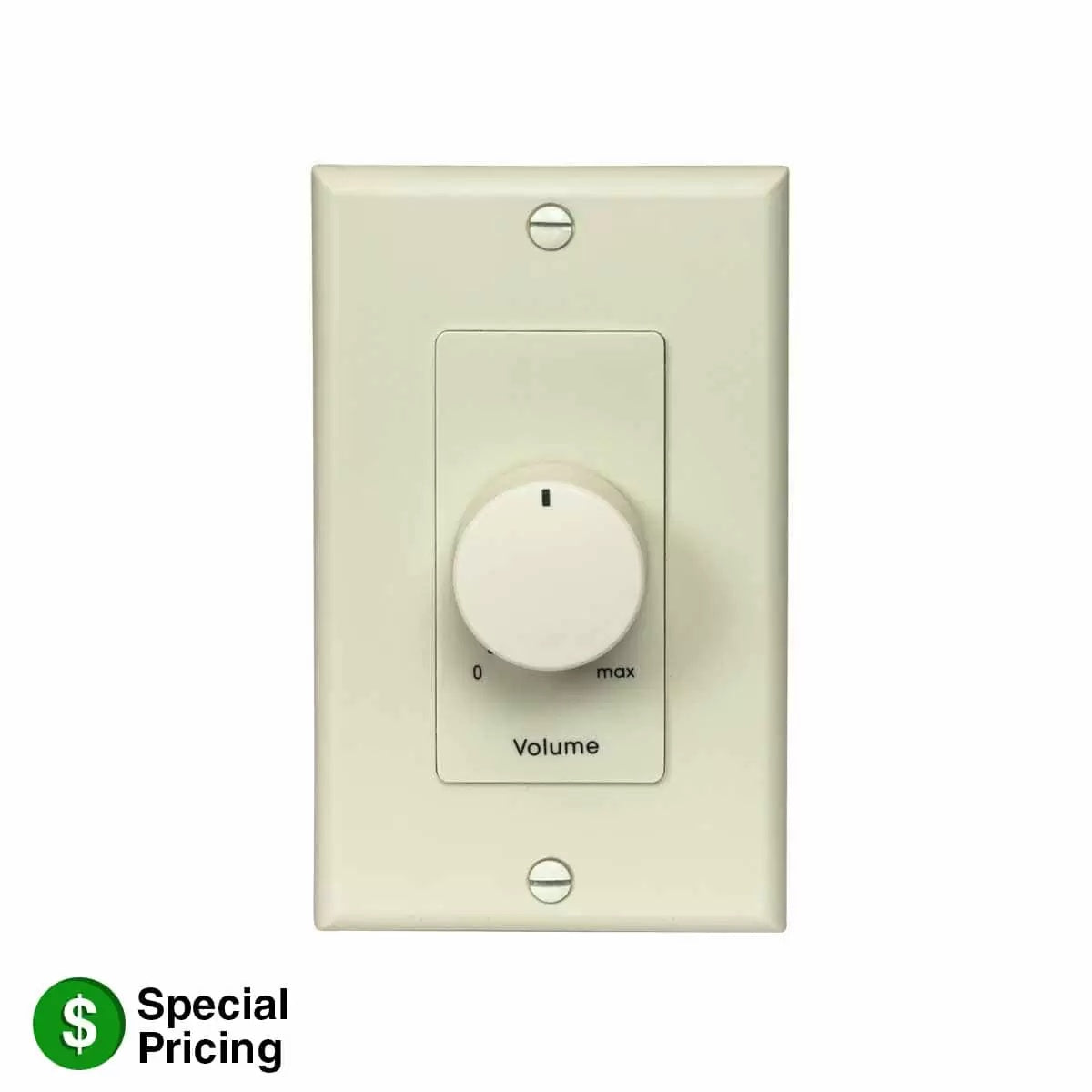

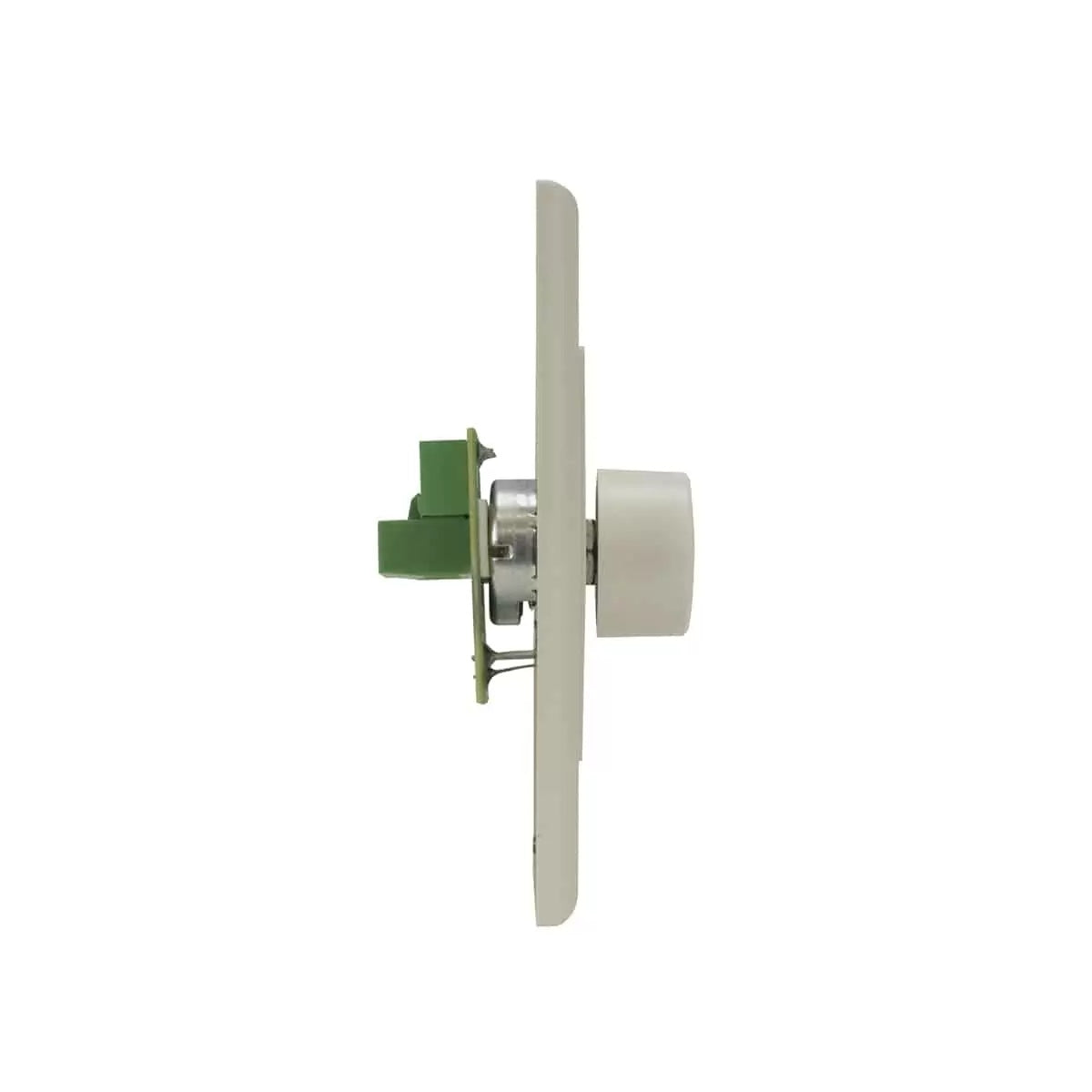

Lowell 10k ohm Potentiometer With Decorator Wall Plate Remote Level Control | Almond

Lowell 10k ohm Potentiometer With Decorator Wall Plate Remote Level Control | Almond

SoundPro Item: 34197 | Part Number: 10KLVC-DA

$52.45
$59.60 $52.45
Your Price Sold out
MSRP: $59.60 | MAP: $52.45

Usually ships in 5-7 business days

  • Linear Taper Control Enables Precise Single-Point Remote Level Adjustment For VCA Amplifiers
  • Compatible With Three-Wire, 0 To 10 Volt VCA Control Inputs For Direct Amplifier Integration
  • Incremental Detents With Hard Stops Provide Tactile Precision And Prevent Over-Adjustment

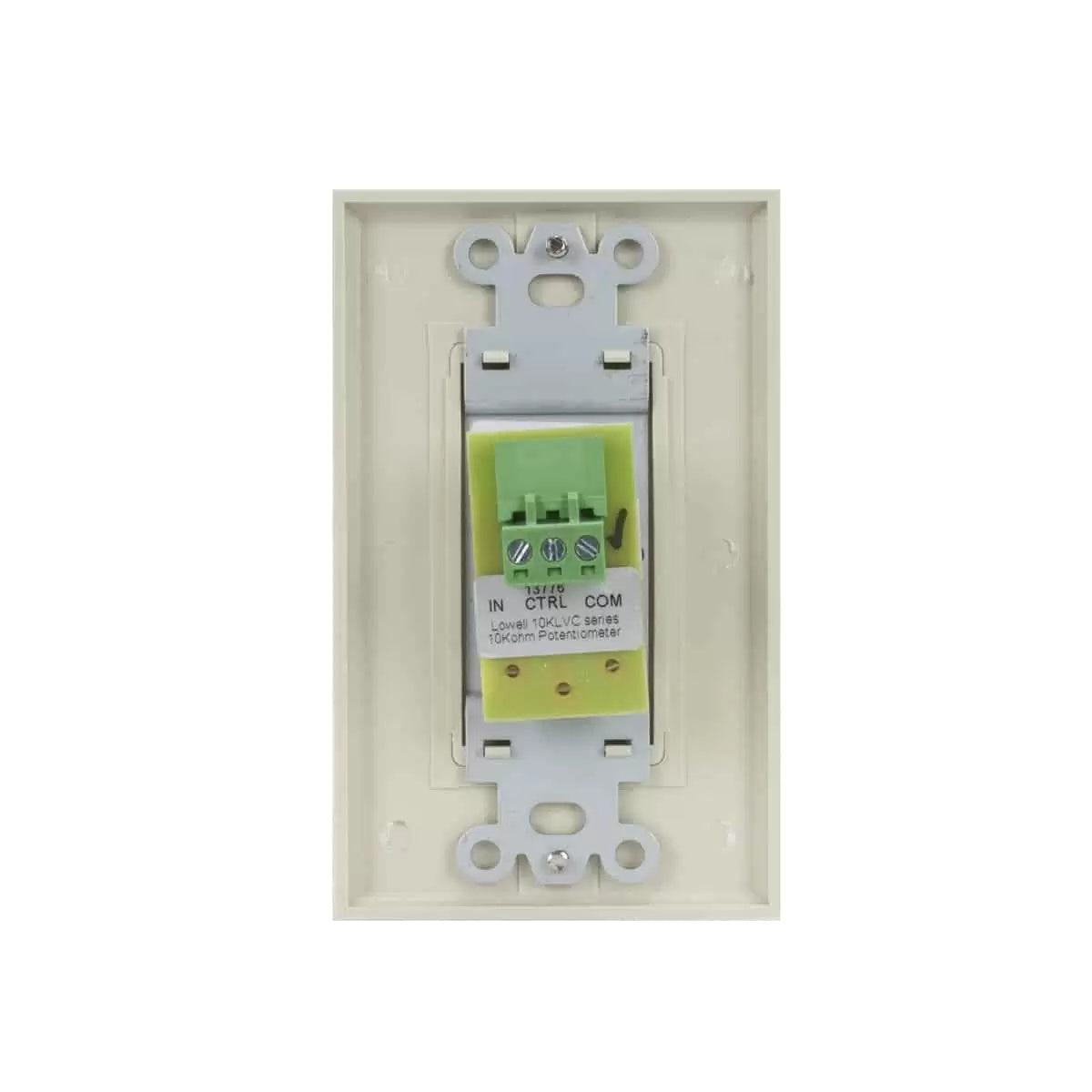

  • Phoenix-Style Termination Simplifies Field Wiring During Installed Audio Deployments
  • Fits Standard Electrical Outlet Boxes For Consistent Wall Installation
  • Includes 1-Gang Decorator Wall Plate, Eliminating The Need For A Separate Plate Purchase
  • Available In Almond And Black Finishes To Match Existing Wall Plate Color Schemes
Log in or register for YOUR best price

The Lowell 10k ohm Potentiometer With Decorator Wall Plate is designed for installed audio environments where voltage-controlled amplifiers require remote level adjustment from a single, accessible location. The 10k ohm linear taper control interfaces directly with three-wire, 0 to 10 volt control inputs standard on VCA-type amplifiers, giving system integrators and AV professionals a clean, purpose-built solution for distributed audio control without complex wiring schemes.

This control is suited for boardrooms, houses of worship, classrooms, and other fixed-installation spaces where end users need intuitive level management from a wall-mounted position. The rotary knob with incremental detents provides tactile precision, while continuous attenuation with hard stops at minimum and maximum prevents accidental over-adjustment. Phoenix-style termination simplifies field wiring, and the unit fits standard electrical outlet boxes, keeping installation consistent with existing infrastructure.

Available in almond and black finishes to coordinate with common wall plate color schemes, this potentiometer is a practical alternative to custom-configured control panels in installations where a single remote adjustment point covers the requirement. The included 1-gang decorator wall plate means no separate plate purchase is needed, reducing both parts count and installation time.

Downloads

View full details

Specifications

Electrical
Resistance
10k ohm
Power Rating
1/2W
Control Voltage Range
0 to 10V
Wire Capacity
14-gauge
Controls
Activation
Rotary knob
Attenuation
Continuous (stops at 0/max.)
Detents
Incremental
Connectivity
Termination
Phoenix-style
Construction
Finish
Almond
Wall Plate Style
1-gang decorator style
Box Compatibility
Fits standard E.O. box (2.125 in. min. depth)
Identifiers
MPN
10KLVC-DA
