Lowell ACSP-2002-RPC-HW Advanced Surge Suppression 20A Power Supply

Lowell ACSP-2002-RPC-HW Advanced Surge Suppression 20A Power Supply

SoundPro Item: 86408 | Part Number: ACSP-2002-RPC-HW

$442.46
$502.80 $442.46
Your Price Sold out
MSRP: $502.80 | MAP: $442.46

Usually ships in 5-7 business days

  • Triple Clamping Redundancy Suppresses Surges Up To 72,000A Across Three Active Stages
  • Line-To-Neutral Clamping Eliminates Ground Contamination In Sensitive AV Signal Chains
  • Remote Power Control Input Enables Sequencer Or Control System Integration Via Dry Contact
  • Rotating Outlet Plate Provides Front Or Side Access To Fit Tight Rack Configurations

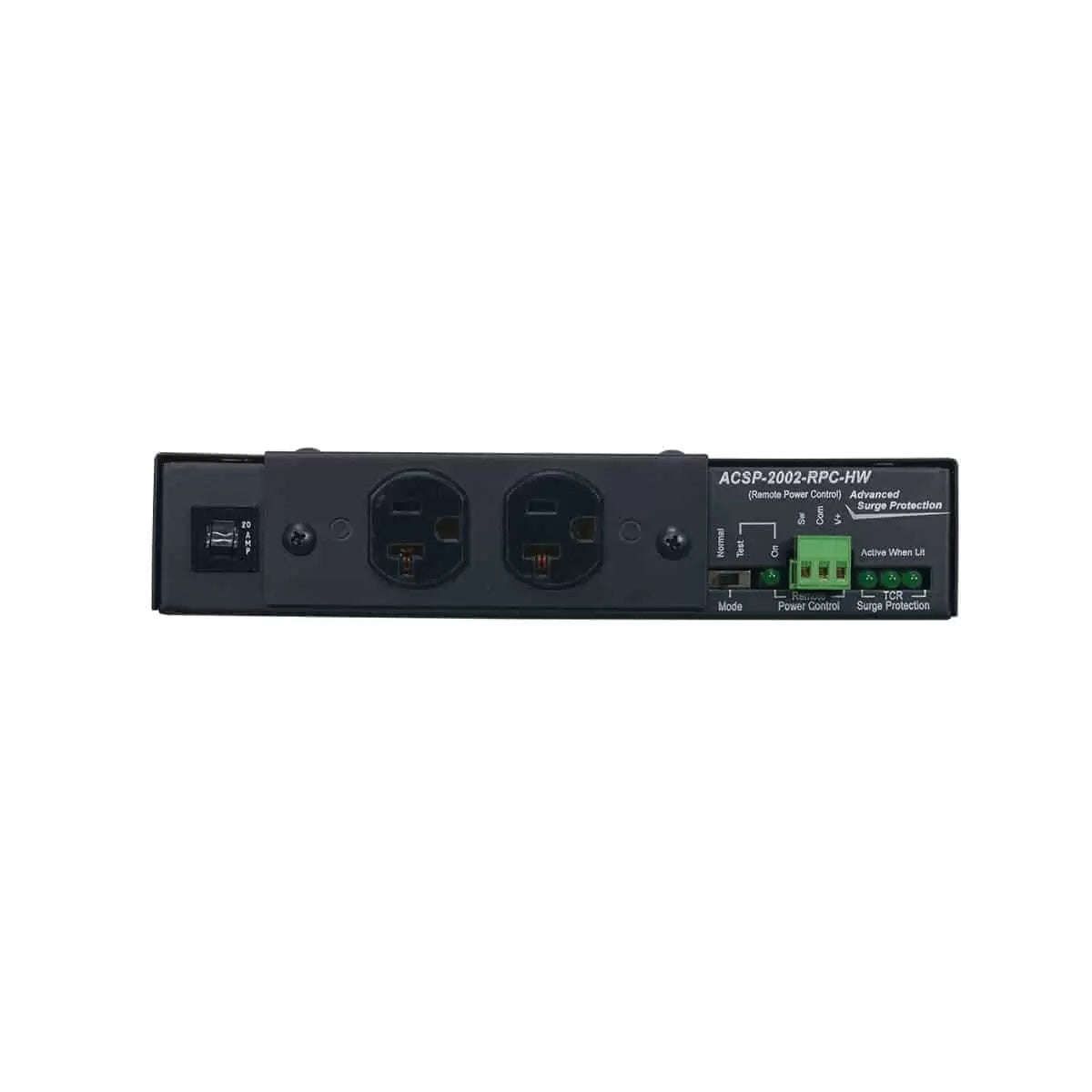

  • Front-Panel Status LEDs Confirm Full Three-Stage Surge Protection Is Active
  • Hardwired Conduit Connection Eliminates External Power Cord For Permanent Installs
  • Universal Mounting Brackets Support Versatile Rack And Enclosure Placement
Log in or register for YOUR best price

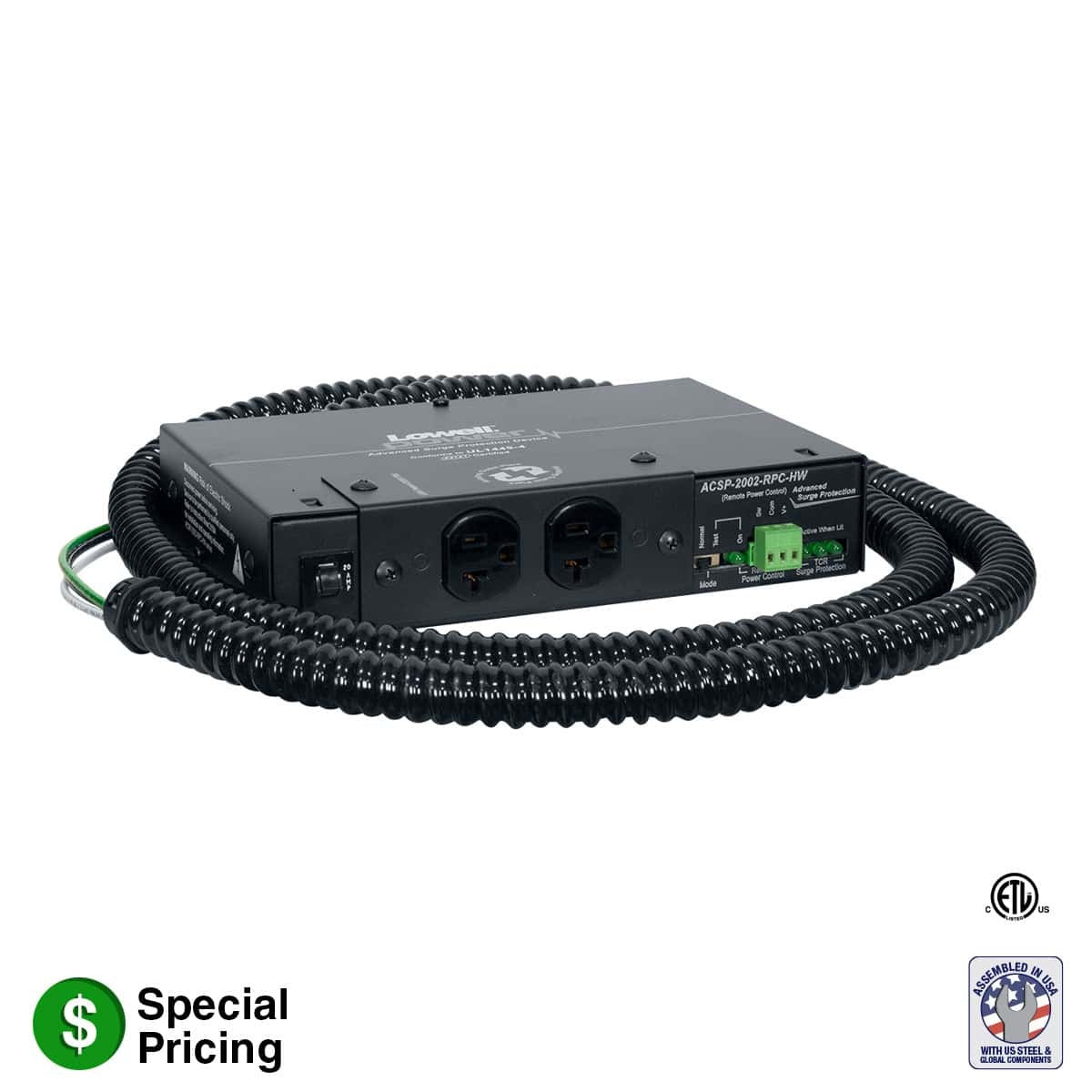

The Lowell ACSP-2002-RPC-HW is built for AV integrators and system designers who need reliable, multi-layer power protection on a single circuit in rack-based installations. Triple Clamping Redundancy (TCR) suppresses surges up to 72,000 amps while keeping ground paths clean with line-to-neutral clamping only, preventing ground contamination that can introduce noise into sensitive audio and video systems.

The Remote Power Control (RPC) input terminal is the key differentiator for installed AV environments. It allows the unit to be switched on and off by a low-voltage sequencer, a control system with maintained dry contact closure, or a simple remote switch, making it a natural fit for AMX, Crestron, or custom control architectures where coordinated power sequencing is required. Two NEMA 5-20R receptacles spaced to accommodate large power supply bricks, combined with a patented plate that rotates 90 degrees for front or side access, give installers flexibility in tight rack or enclosure spaces.

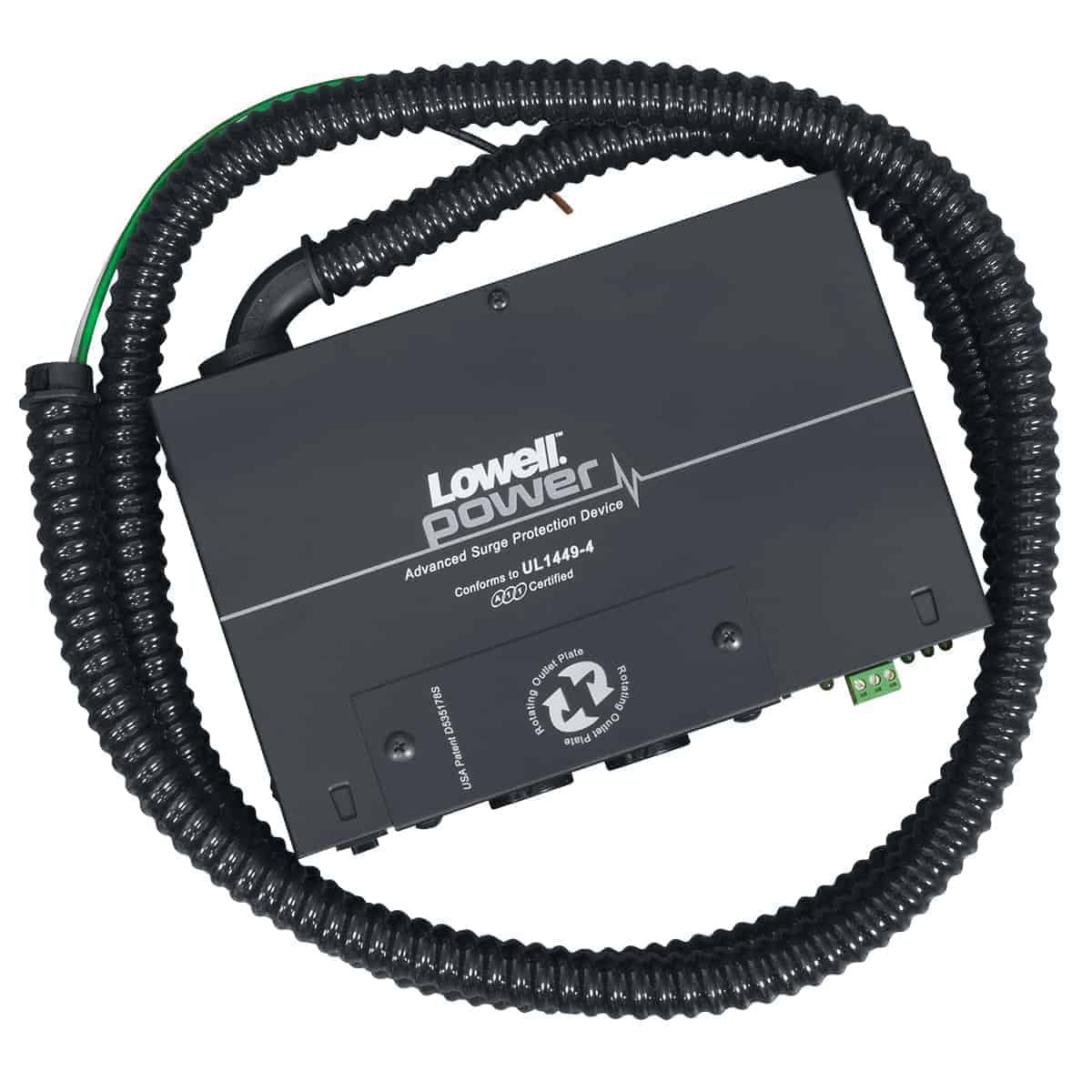

Visual system status is confirmed via front-panel LEDs that indicate full three-stage protection is active. A 6-foot non-metallic flexible conduit with pigtail leads supports direct hardwired connection, eliminating the need for an additional power cord in permanent installations. Universal mounting brackets accommodate a range of rack and enclosure configurations. A ten-year limited warranty backs the unit for long-term deployed systems.

Downloads

View full details

Specifications

Electrical
Outlet Type
NEMA 5-20R
Outlet Count
2
Outlet Current Rating
20A
Surge Suppression Rating
72,000A
Construction
Chassis Width
6 in.
Chassis Height
1.75 in.
Chassis Depth
9 in.
Conduit Length
6 ft.
Conduit Type
Non-metallic flexible with pigtail leads
Outlet Plate Rotation
90 degrees (front or side access)
Connectivity
Remote Power Control
Dry contact closure (maintained contact)
Remote Control Input
Low-voltage sequencer, switch, or control system
Certifications
Warranty
10-year limited
