Lowell ACSPR-RPC1-2009 19" 1U PDU With Surge Protection and Remote Control

Lowell ACSPR-RPC1-2009 19" 1U PDU With Surge Protection and Remote Control

SoundPro Item: 86425 | Part Number: ACSPR-RPC1-2009

$1,201.73
$1,365.60 $1,201.73
Your Price Sold out
MSRP: $1,365.60 | MAP: $1,201.73

Usually ships in 5-7 business days

  • TCR Triple Clamping Redundant Surge Protection Carries a 10-Year Warranty
  • VTE Voltage Monitor Auto-Resets Outlets When Line Voltage Returns To Normal Range
  • Remote Power Control Circuitry Enables DSP, Alarm, And Sequencer Integration
  • Integral Override Supports Life Safety And Fire Code Alarm Interface Requirements
  • LED Status Indicators Alert When The Unit Requires Repair Or Replacement
  • Switched And Unswitched Outlet Zones Allow Independent Circuit Management
Log in or register for YOUR best price

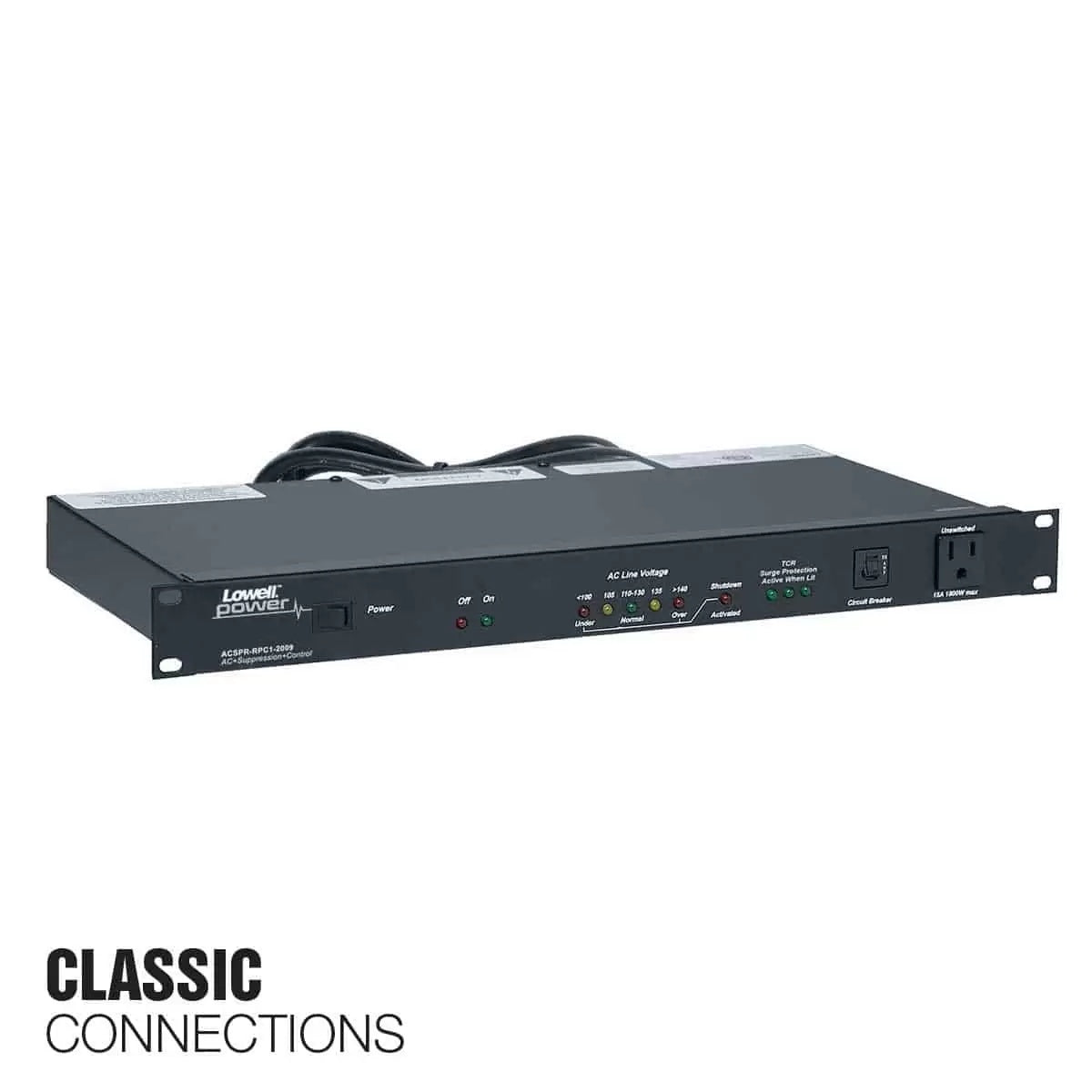

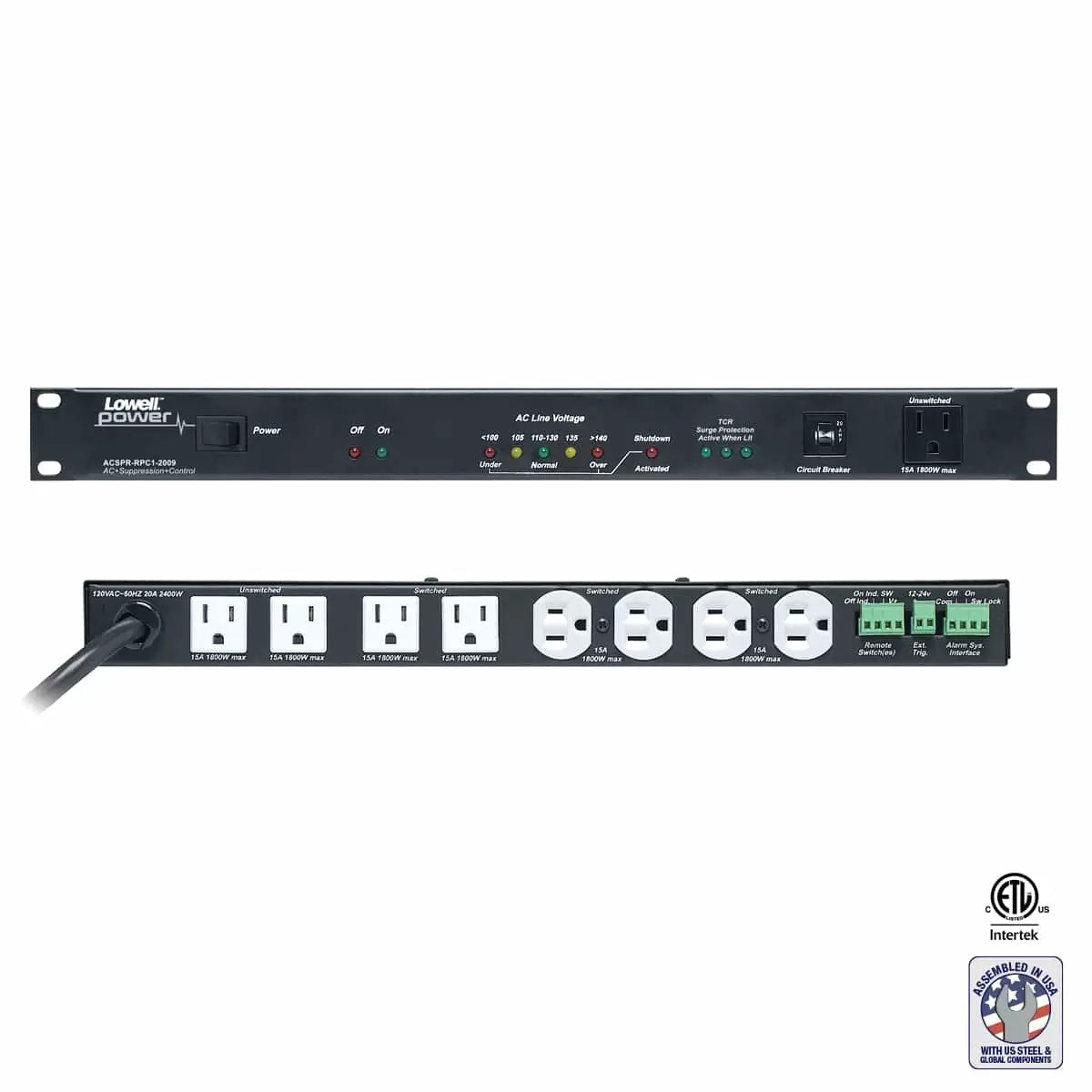

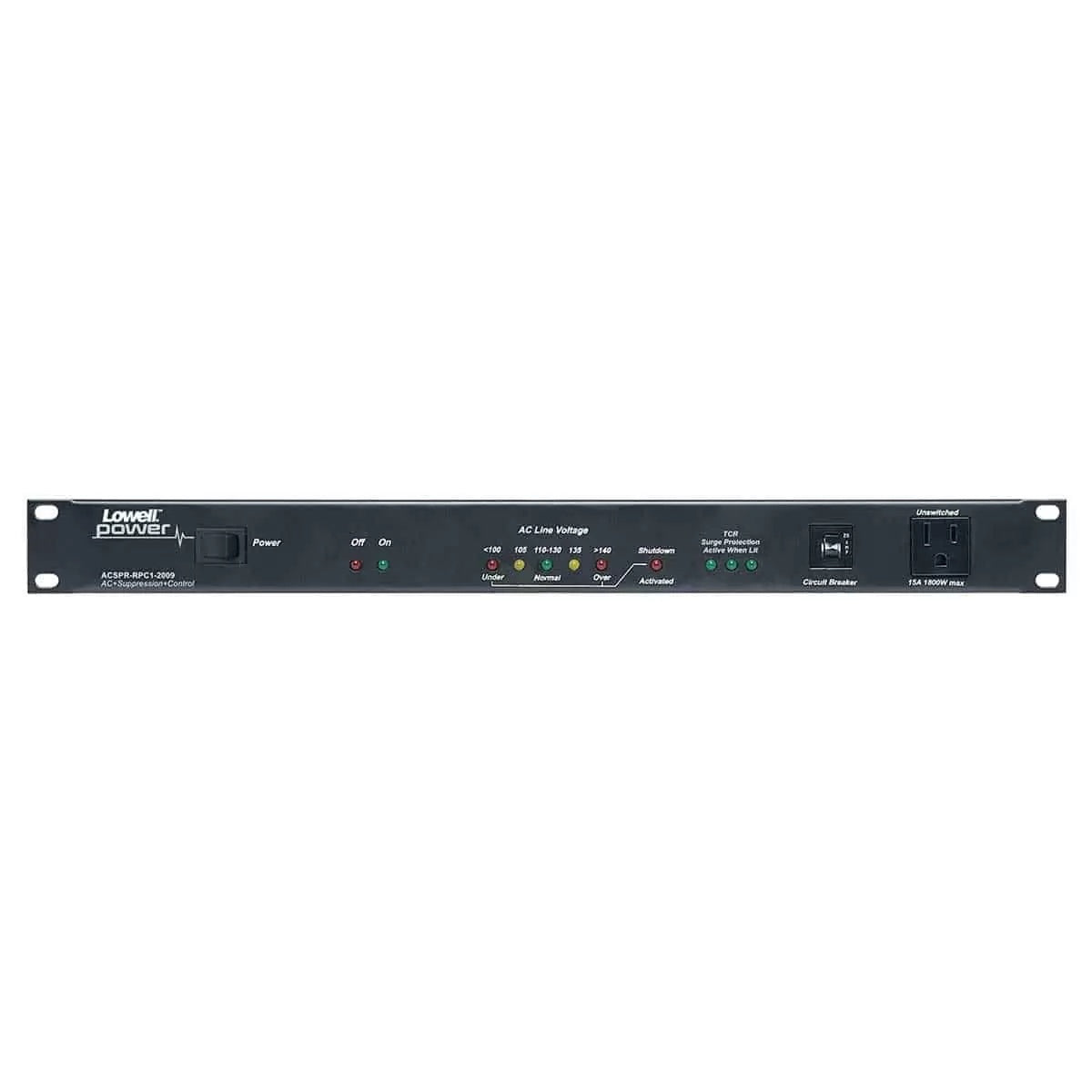

The Lowell ACSPR-RPC1-2009 is a 1U rack-mount power distribution unit engineered for installed AV systems, control rooms, and production rack builds where reliable power conditioning and remote management are non-negotiable. With a 20A rating and nine NEMA 5-15R receptacles distributed across a front and rear panel, it accommodates mixed switched and unswitched outlet configurations to suit signal processors, amplifiers, and network gear in a single rack space.

The Advanced Multi-Stage Surge Protection uses Triple Clamping Redundant technology to defend connected electronics against surges and spikes up to 72,000A. The VTE monitor continuously evaluates line voltage and automatically disconnects outlets when voltage strays outside the 100V-140V tolerance window, then restores power when conditions normalize. This auto-reset behavior eliminates the need for manual intervention in unattended installs. LED status indicators provide visible confirmation of unit health, and a 10-year warranty backs the TCR surge circuitry.

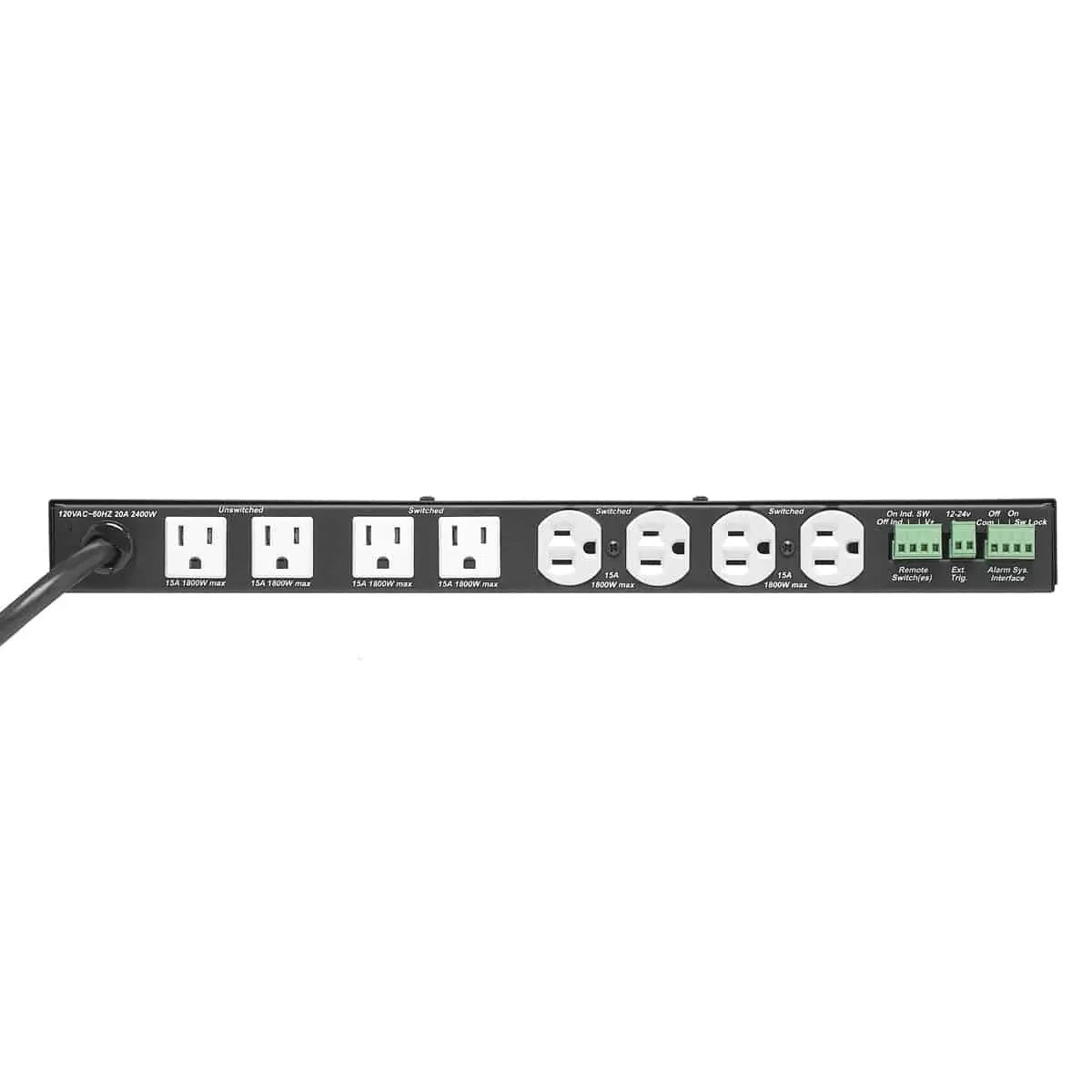

The remote power control circuitry separates this unit from basic strip-style PDUs. Rear terminal blocks accept momentary switches, maintained triggers, DSP-timed events, alarm systems, or sequencers, enabling integration into building automation, fire-code alarm interfaces, and AV control system sequences without additional relay modules. For integrators building life-safety-compliant rack systems or managing distributed equipment rooms, the ACSPR-RPC1-2009 delivers a level of control infrastructure that basic PDUs cannot match.

Downloads

View full details

Specifications

Electrical
Unit Rating
20A
Voltage
120VAC
Frequency
60Hz
Surge Protection
72,000A
Over-Voltage Shutoff
140V
Under-Voltage Shutoff
100V
Outlets
Total Outlets
9
Outlet Type
NEMA 5-15R (15A)
Front Outlets
1 (unswitched)
Rear Outlets Unswitched
2
Rear Outlets Switched
6
Power Cord
Cord Length
9 ft.
Plug Type
NEMA 5-20P
Termination
Attached cord
Controls
On/Off Switch
Rocker
Remote Control
Rear terminal blocks (momentary switch, maintained trigger)
Construction
Chassis Width
19"
Chassis Depth
9.00"
Chassis Height
1.75" (1U)
Certifications
TCR Warranty
10 Years
