Lowell ACSPR-SEQ6-2009 20A Rack PDU With Sequencer and Surge Protection
Lowell ACSPR-SEQ6-2009 20A Rack PDU With Sequencer and Surge Protection
SoundPro Item: 32579 | Part Number: ACSPR-SEQ6-2009
Usually ships in 5-7 business days
- Four-Step Sequencer With Adjustable Delay Protects Gear During Power-Up and Shutdown
- Remote Terminal Blocks Accept External Triggers, Switches, and Alarm System Inputs
- TCR Triple Clamping Redundant Surge Technology Carries a 10-Year Warranty
- Color-Coded LED Status Indicators Alert When Surge Protection Needs Replacement
- Lock-On, Lock-Off, and Switch-Lock Functions Support Fire-Code Alarm Integration
- Two Dry Contact Closures Extend Sequencing to External RPC Control Devices
- Unswitched Front Outlet Provides Always-On Access Without Disrupting Sequenced Loads

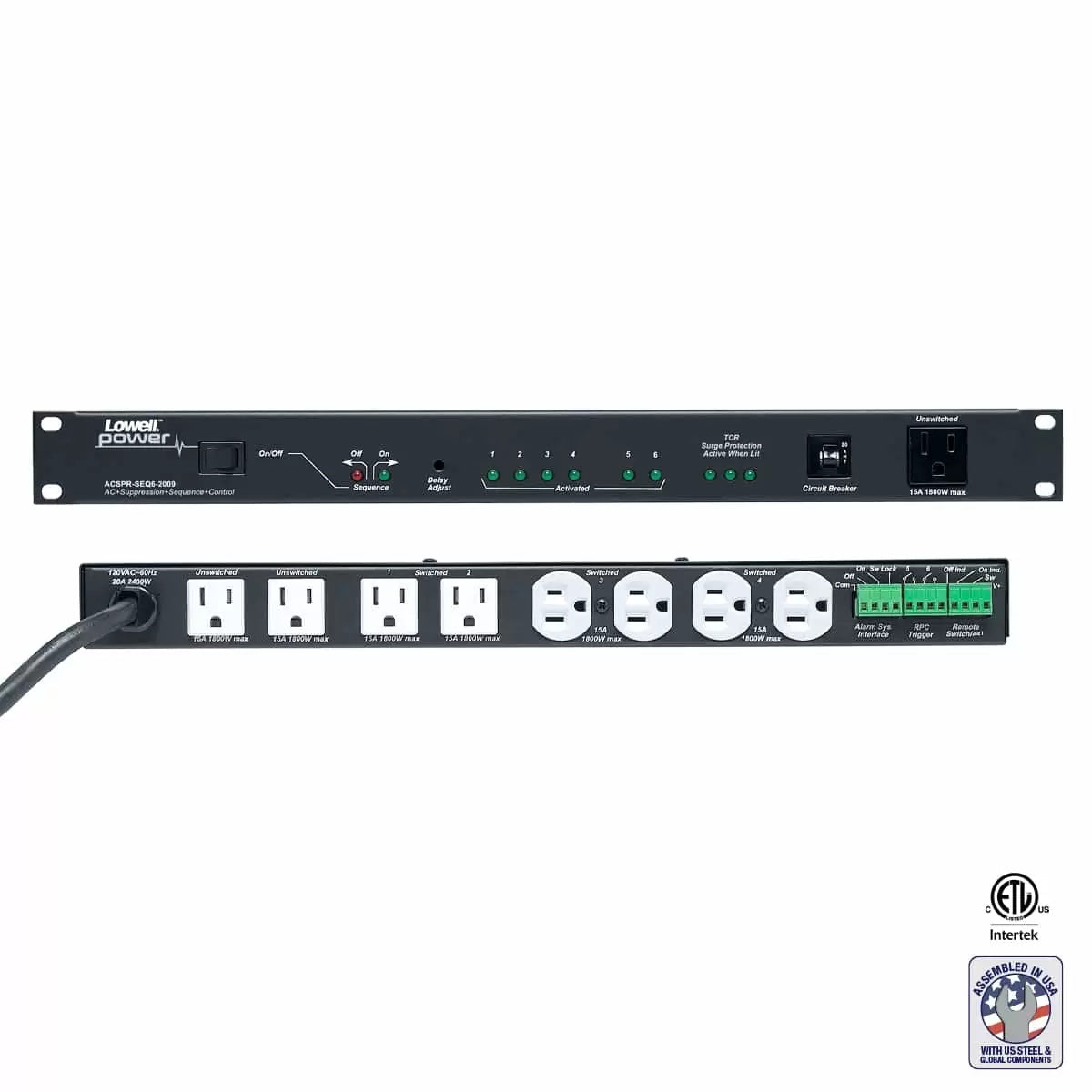

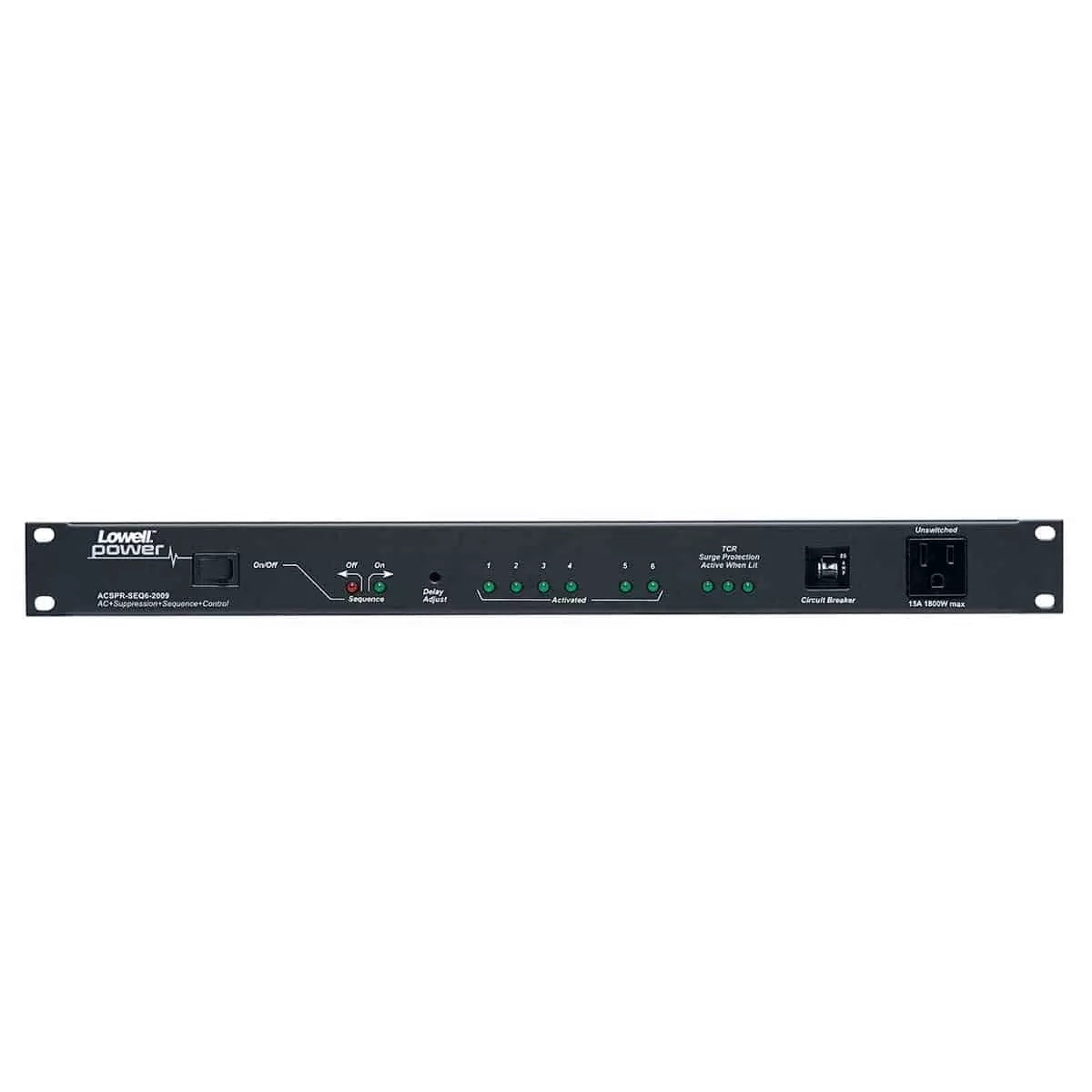

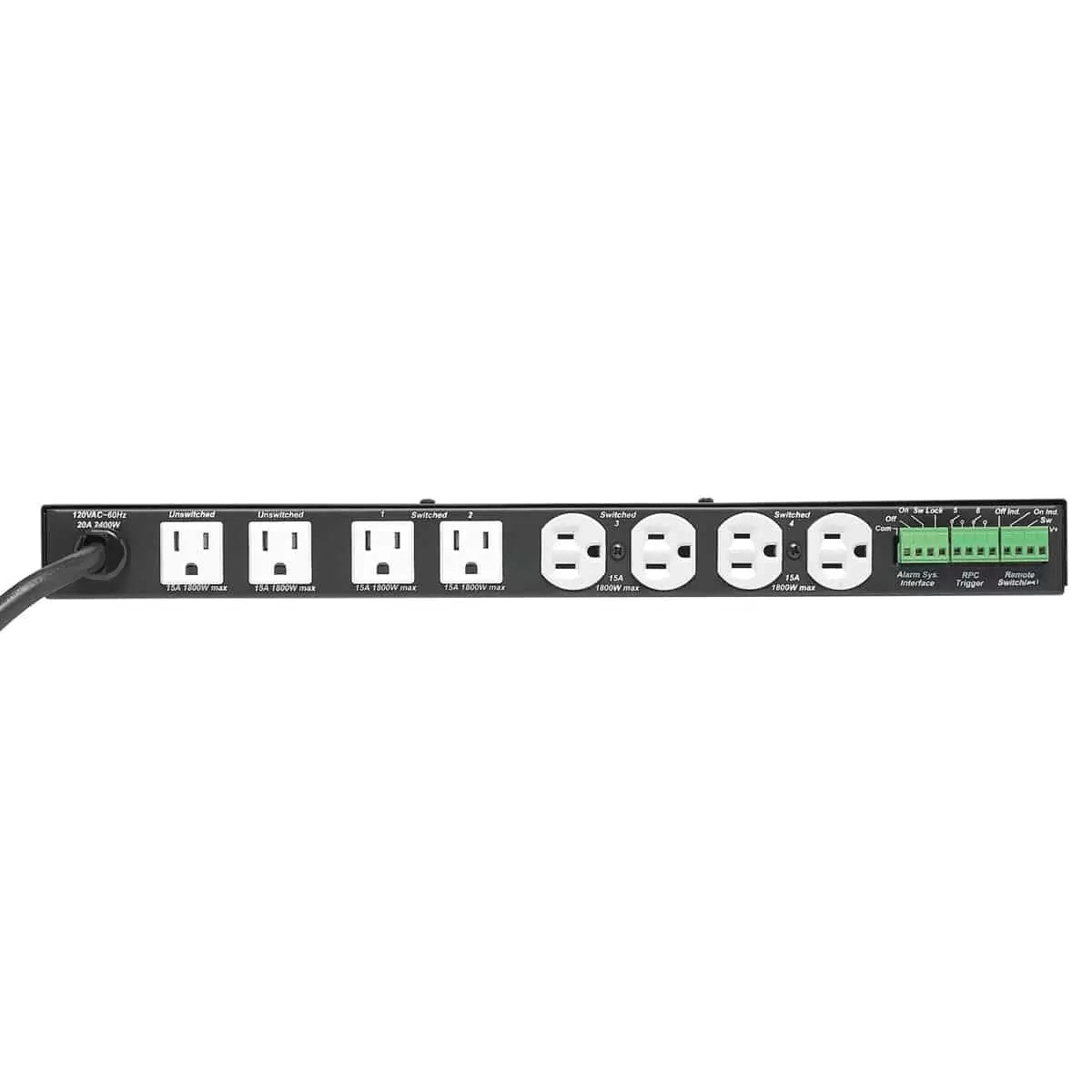

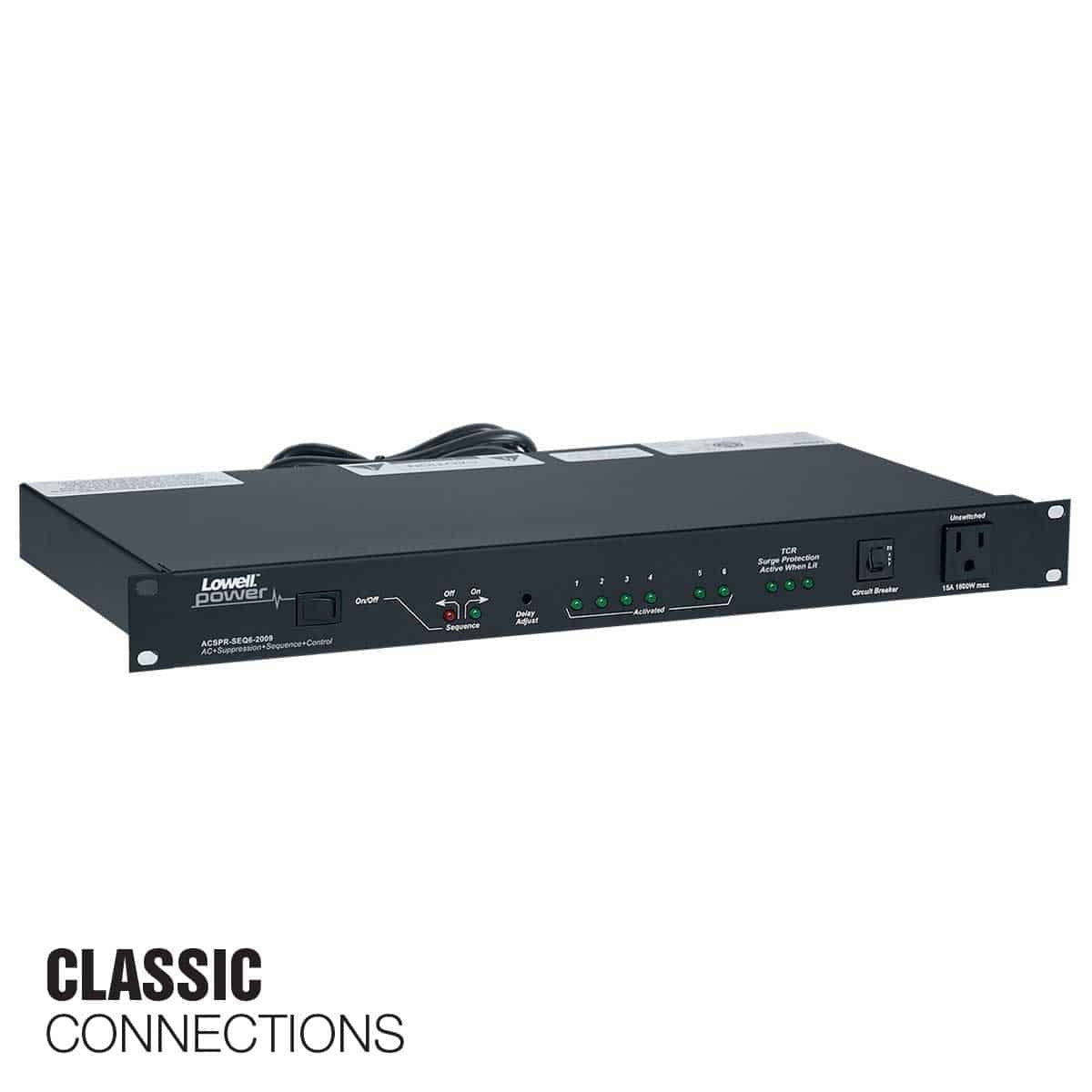

The Lowell ACSPR-SEQ6-2009 is a 1U rack-mount power distribution unit built for permanent AV installations where controlled power sequencing, reliable surge protection, and remote system integration are operational requirements. The unit carries a 20A rating and delivers nine 15A NEMA 5-15R outlets: one unswitched front outlet for local test access, two unswitched rear outlets for always-on devices, and six switched rear outlets managed through the four-step sequencer. A front panel rocker switch initiates or shuts down steps 1 through 4 with a user-adjustable delay between 0.5 and 10 seconds per step, protecting amplifiers, processors, and displays from inrush current conflicts during power-up and shutdown.
Remote integration capabilities make this unit well suited for boardrooms, houses of worship, courtrooms, and any install where the AV system must respond to external control. Rear terminal blocks accept momentary remote switches, external triggers, and alarm system inputs including lock-on, lock-off, and switch-lock functions for fire-code-compliant applications. Two dry contact closure outputs at steps 5 and 6 drive external Lowell RPC Series remote power control units, extending sequencing beyond the rack itself.
Advanced Multi-Stage Surge Protection with Triple Clamping Redundant technology suppresses surges up to 72,000A at full capacity, with color-coded LED status indicators alerting technicians when protection has been compromised. TCR surge protection carries a 10-year warranty, adding long-term value in installed environments where replacing a PDU mid-deployment is disruptive and costly.
Downloads
Downloads
Specifications
