Lowell Steel Enclosure for 8" Speaker, Surface Mount | 11.50" × 11.50" × 6.00"

Lowell Steel Enclosure for 8" Speaker, Surface Mount | 11.50" × 11.50" × 6.00"

SoundPro Item: 128101 | Part Number: CB86-SGA

$90.29
$102.60 $90.29
Your Price Sold out
MSRP: $102.60 | MAP: $90.29

Usually ships in 5-7 business days

  • Available In Multiple Depths And Footprints To Match Project Acoustic Volume Requirements
  • Galvanized Steel And US Steel Versions Suit Both Outdoor-Adjacent And Interior Installs
  • Welded Seam Construction Provides Rigid, Rattle-Free Enclosure For Speaker Mounting

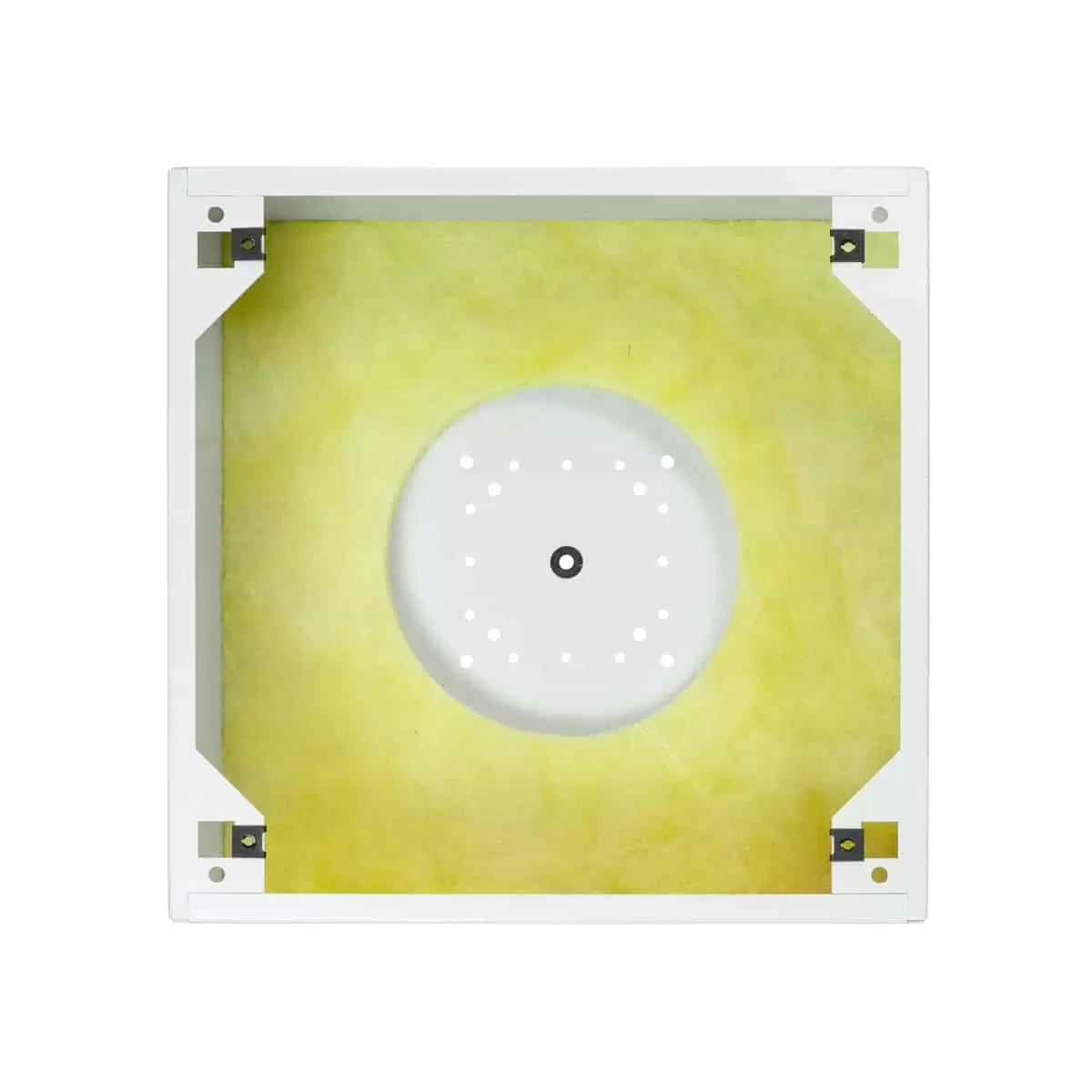

  • Included Acoustic Batting Controls Internal Reflections Without Additional Materials
  • Universal E.O. Box Mounting Pattern Simplifies Rough-In For Distributed Audio Systems
  • Wire Access Provisions And Side Knockouts Reduce Field Fabrication Time
  • White Powder Epoxy Finish Blends With Standard Ceiling And Wall Surfaces
Log in or register for YOUR best price

This family of Lowell surface-mount steel enclosures is built for integrators and installers specifying 8-inch speaker systems in schools, offices, hotels, restaurants, and similar commercial or institutional environments. Each enclosure accepts a screw-mount grille and a standard 8-inch speaker, providing a finished, architecturally clean appearance that suits both ceiling and wall placements.

Available in multiple depths and footprint sizes, and in either domestic US steel or galvanized steel construction, the family accommodates a range of acoustic volume requirements and installation conditions. Galvanized variants are rated for applications where moisture resistance is a priority, while standard US steel versions deliver a cost-effective solution for climate-controlled interiors. All units include one-inch thick acoustic batting to control internal reflections without requiring additional materials on site.

Each enclosure ships with mounting hardware provisions including a universal pattern for electrical outlet boxes, wire access provisions, and side knockouts for wiremold compatibility, reducing field fabrication time. The white powder epoxy finish integrates with standard ceiling and wall finishes without requiring touch-up. For integrators building out multi-zone distributed audio systems, these enclosures standardize the rough-in and trim-out process across an entire project.

Downloads

View full details

Specifications

Construction
Material
20-gauge one-piece steel, welded seams
Finish
White powder epoxy
Dimensions
Height
11.50"
Width
11.50"
Depth
6.00"
Volume
0.459 cu.ft.
Acoustical
Acoustical Treatment
1 in. thick batting
Compatibility
For Grille Type
Screw-mount
Mounting
Mounting Aids
Timmerman clips on front flange, universal mounting pattern for E.O. box (not included), 0.375 in. hole with grommet for wire access, side knockouts for 500 Series wire mold
Identifiers
MPN
CB86-SGA
