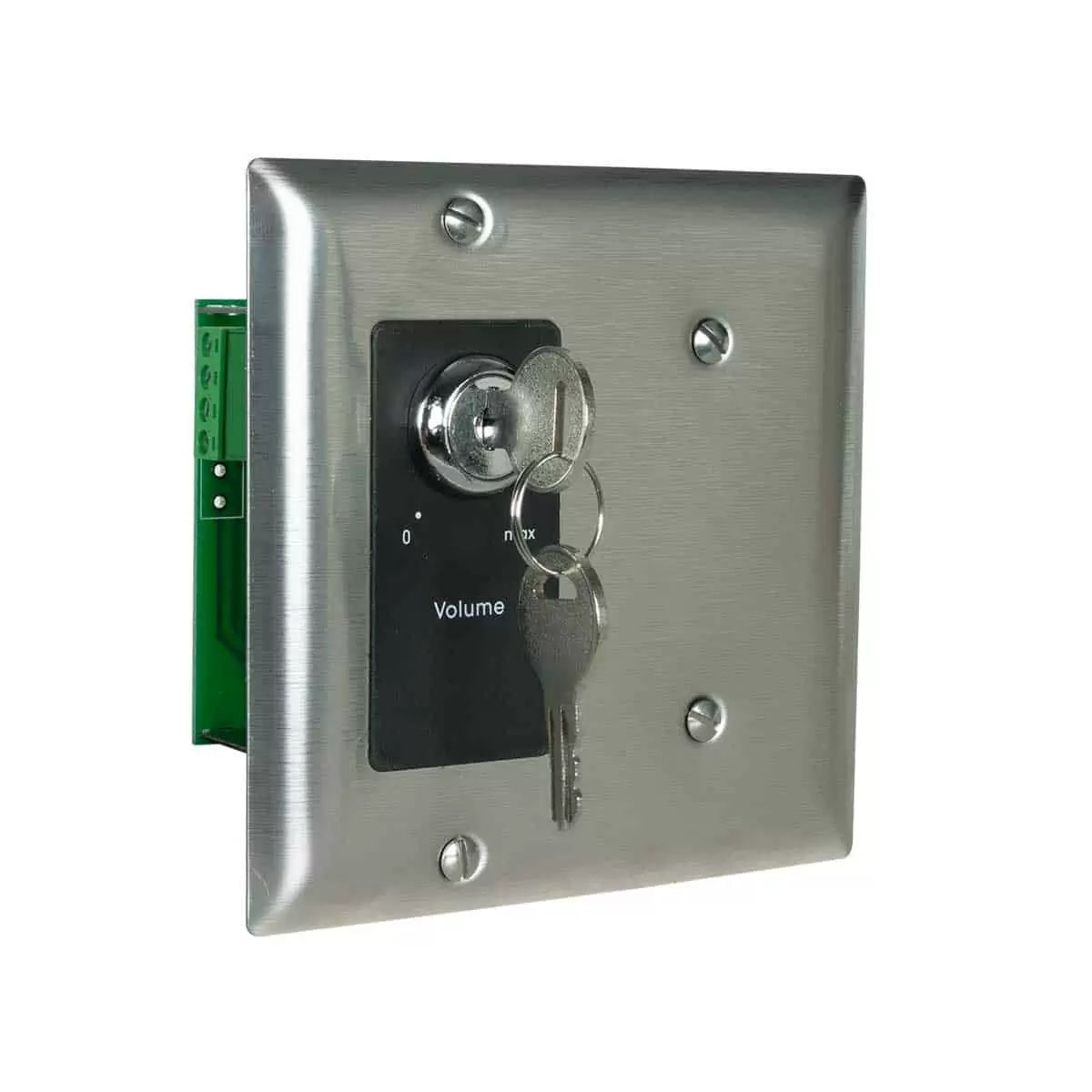

Lowell KL200-DSB 200W Mono 70V Volume Control With Key Switch
Lowell KL200-DSB 200W Mono 70V Volume Control With Key Switch
SoundPro Item: 128179 | Part Number: KL200-DSB
Usually ships in 5-7 business days
- Key Activation Switch Restricts Volume Adjustment To Authorized Personnel

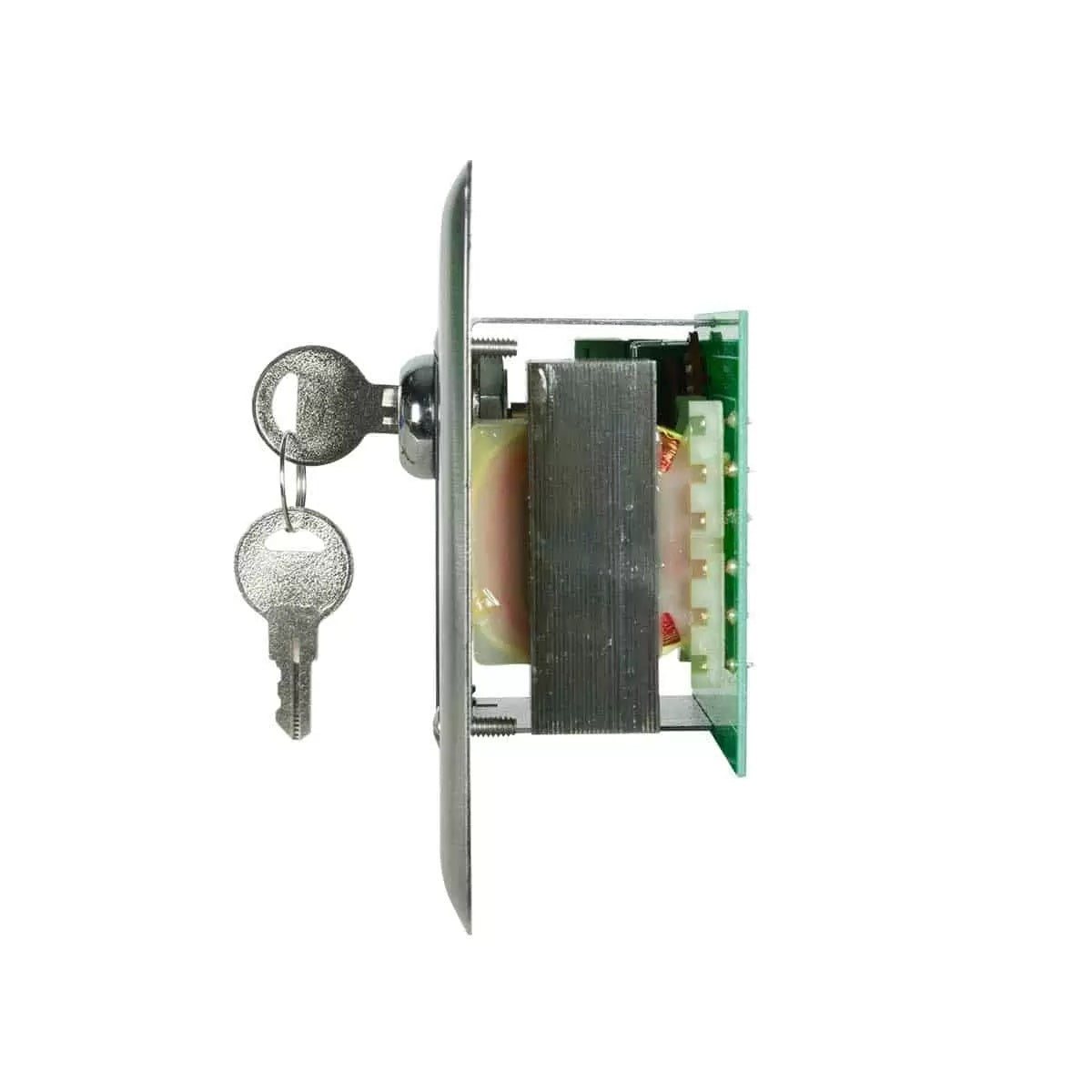

- Autoformer Attenuator Design Provides Clean Passive 70V Level Control
- Ten-Position Control With 3dB Steps For Precise And Repeatable Adjustment
- Two Pre-Off 6dB Steps Allow Gradual Fade Before Muting The Zone
- Phoenix-Style Termination For Secure And Serviceable Field Wiring

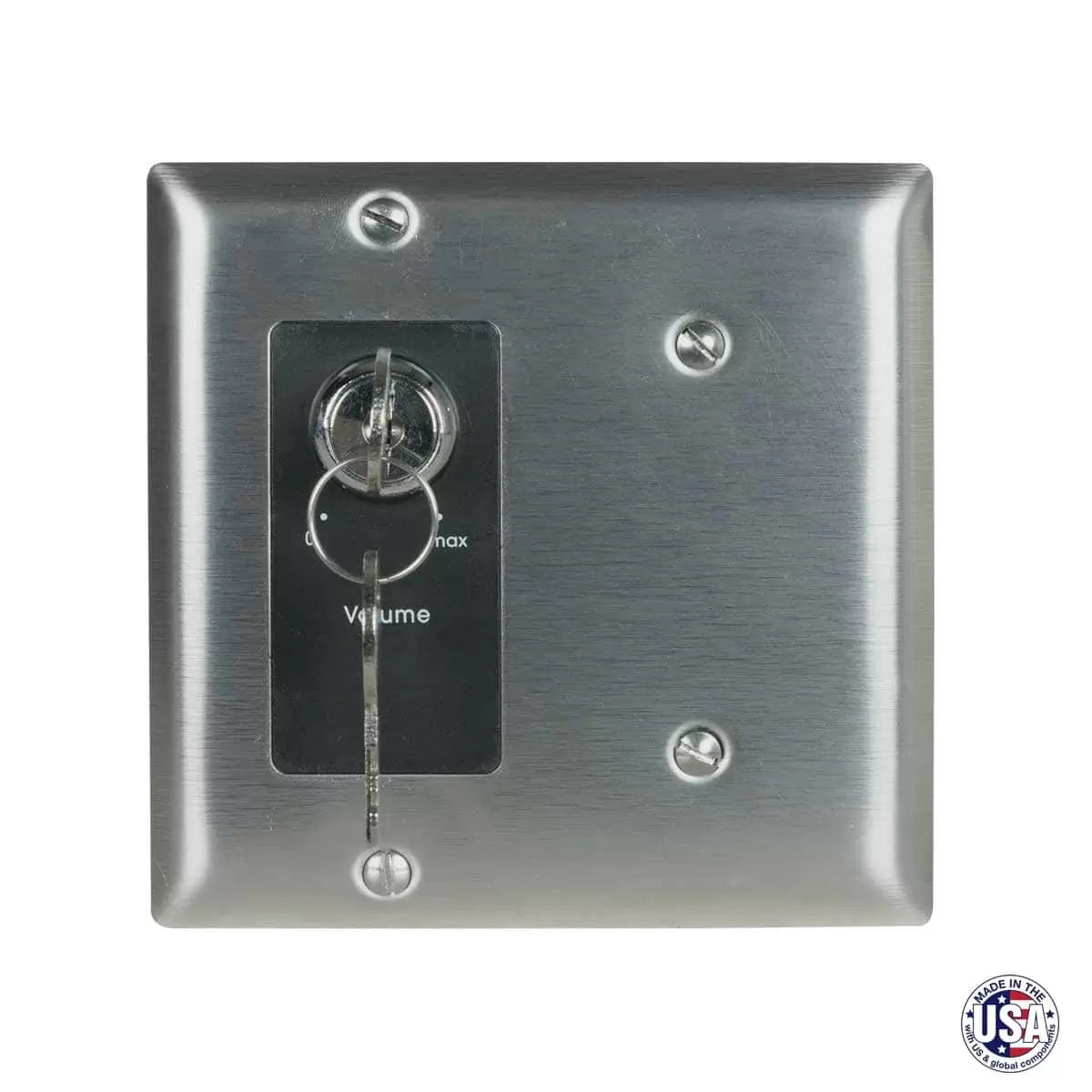

- Stainless Steel And Black Decorator Wall Plate Included For Finished Install Look
The Lowell KL200-DSB is built for installed audio environments where access control over volume is a priority. Designed specifically for 70V speaker line systems, it suits commercial installs such as restaurants, retail spaces, houses of worship, and corporate facilities where authorized-only volume adjustment is required. The key activation switch prevents unauthorized changes, making it a practical choice for any venue where sound management must stay in the hands of staff or technicians.
The autoformer attenuator design provides clean, passive attenuation across ten volume positions with 3dB steps and a total range of 33dB, including two 6dB steps before the off position. This stepped approach gives installers precise, repeatable control without signal degradation. Phoenix-style termination accepts 14-gauge wire, keeping connections secure and serviceable. The unit mounts in a standard 2-gang electrical box and ships with a stainless steel and black decora-style wall plate, so no additional hardware is needed for a finished installation.
Downloads
Downloads
Specifications
