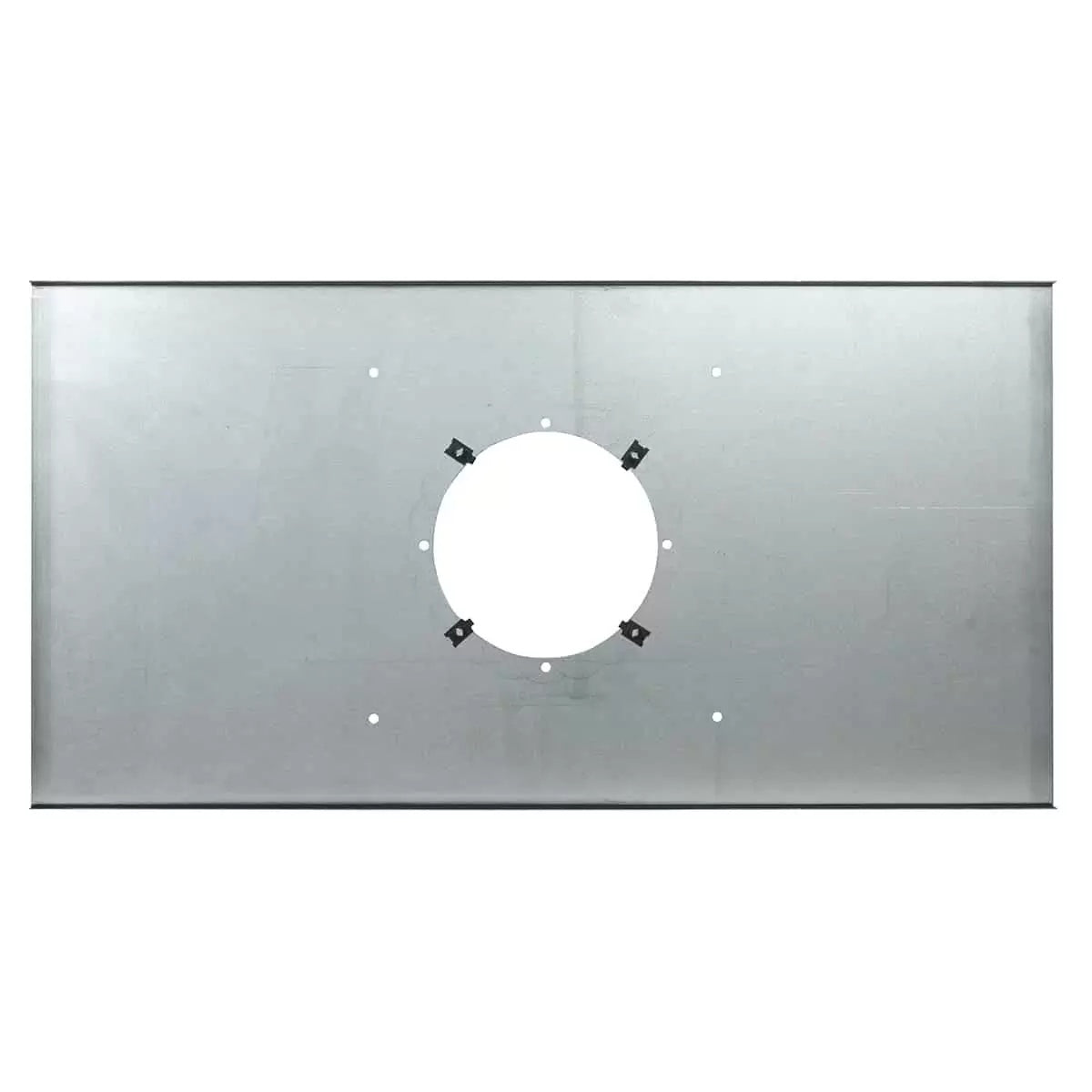

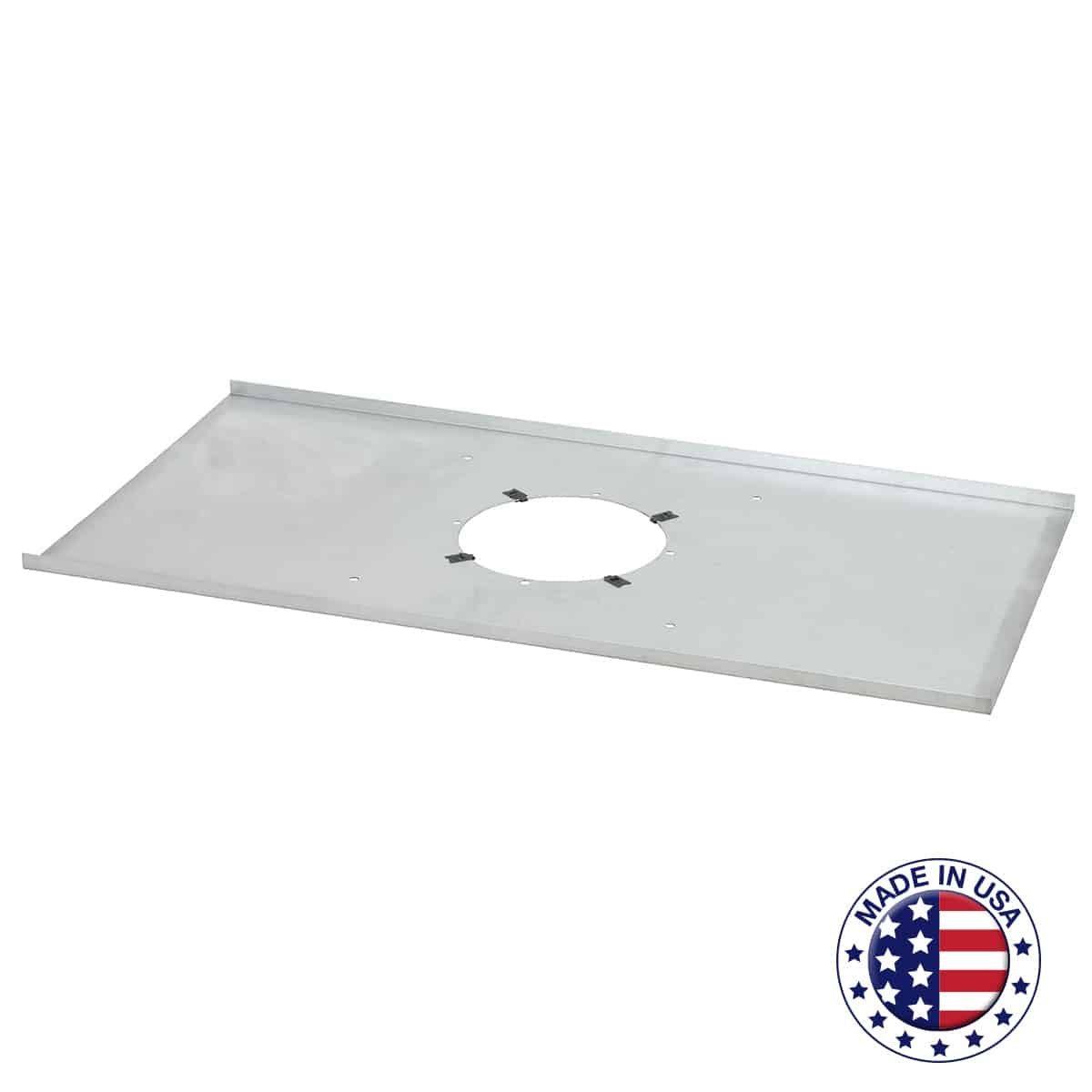

Lowell LBS4-R Tile Bridge For 4" Ceiling Speaker Installation
Lowell LBS4-R Tile Bridge For 4" Ceiling Speaker Installation
SoundPro Item: 32975 | Part Number: LBS4-R
Usually ships in 5-7 business days
- Formed Steel Construction Provides Lightweight Yet Rigid Ceiling Support
- 22-Gauge Galvanized Steel Resists Corrosion In Plenum Environments
- Spans 2x2 And 2x4 Suspended Tile Grids For Versatile Commercial Install Use
- Prevents Tile Sag By Transferring Speaker Weight To Ceiling Structure Above
- Screw-Mount Grille Interface Ensures A Secure, Finished Appearance
- Infinite Baffle Design Eliminates Need For A Separate Backbox
- Includes Mounting Clips For Streamlined Grid Attachment
The Lowell LBS4-R is a formed steel tile bridge engineered for AV integrators installing 4-inch ceiling speakers in suspended 2x2 or 2x4 tile grid systems. By spanning the ceiling grid and transferring speaker assembly weight to the structural support above, the LBS4-R prevents tiles from sagging over time and preserves the finished appearance of the installation. This is a practical requirement in commercial installs where aesthetics and building code compliance both matter.
Designed specifically for infinite baffle applications, the LBS4-R does not accommodate a backbox. This makes it the right choice for installations where the plenum space serves as the baffle volume, and where a separate enclosure is neither required nor permitted. The screw-mount grille interface keeps the installation clean and secure. Many jurisdictions require tile bridges by code, making this a standard line item for commercial ceiling speaker installs in offices, retail environments, hospitality spaces, and houses of worship. Priced individually and ordered in multiples of 10 to align with typical project quantities.
Downloads
Downloads
Specifications
