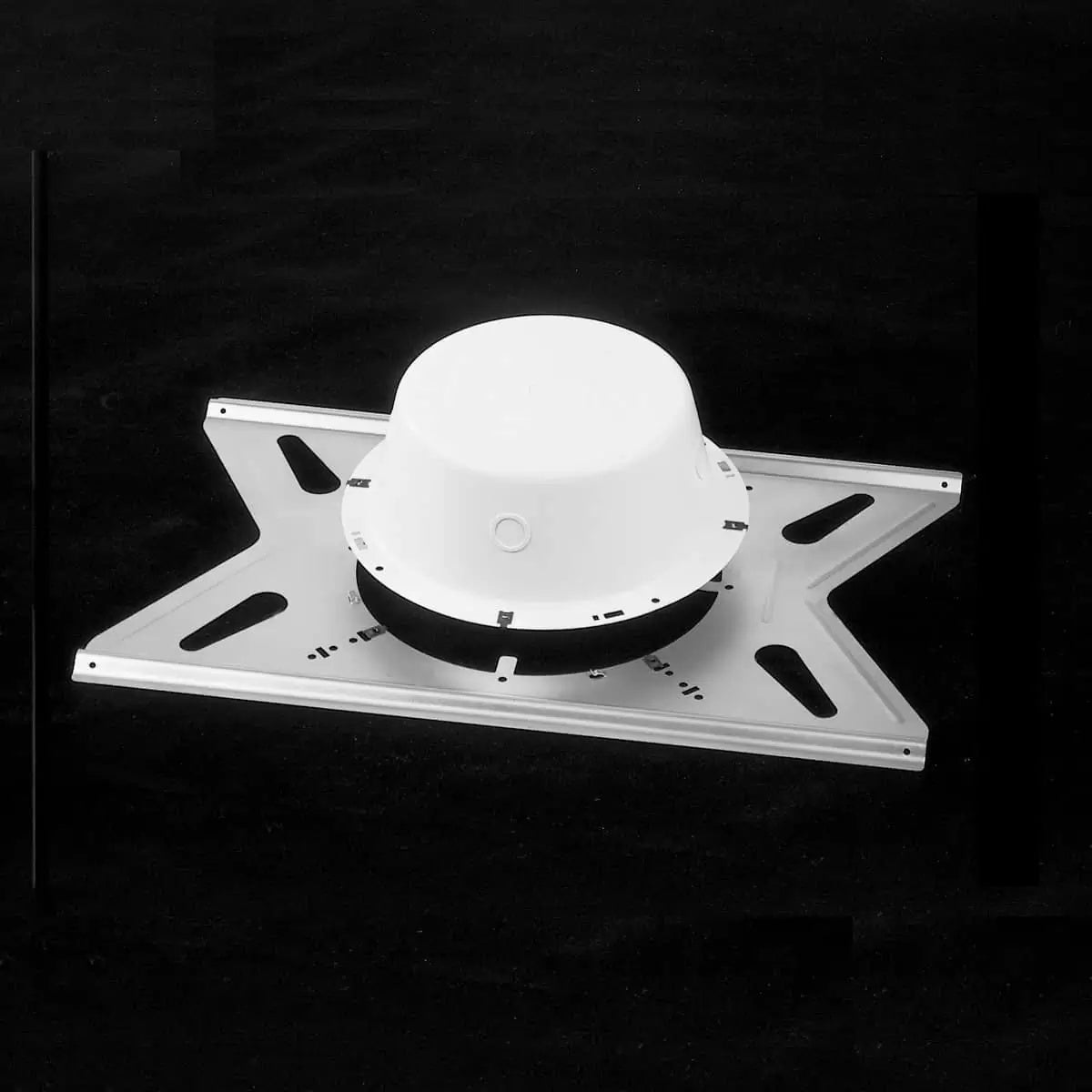

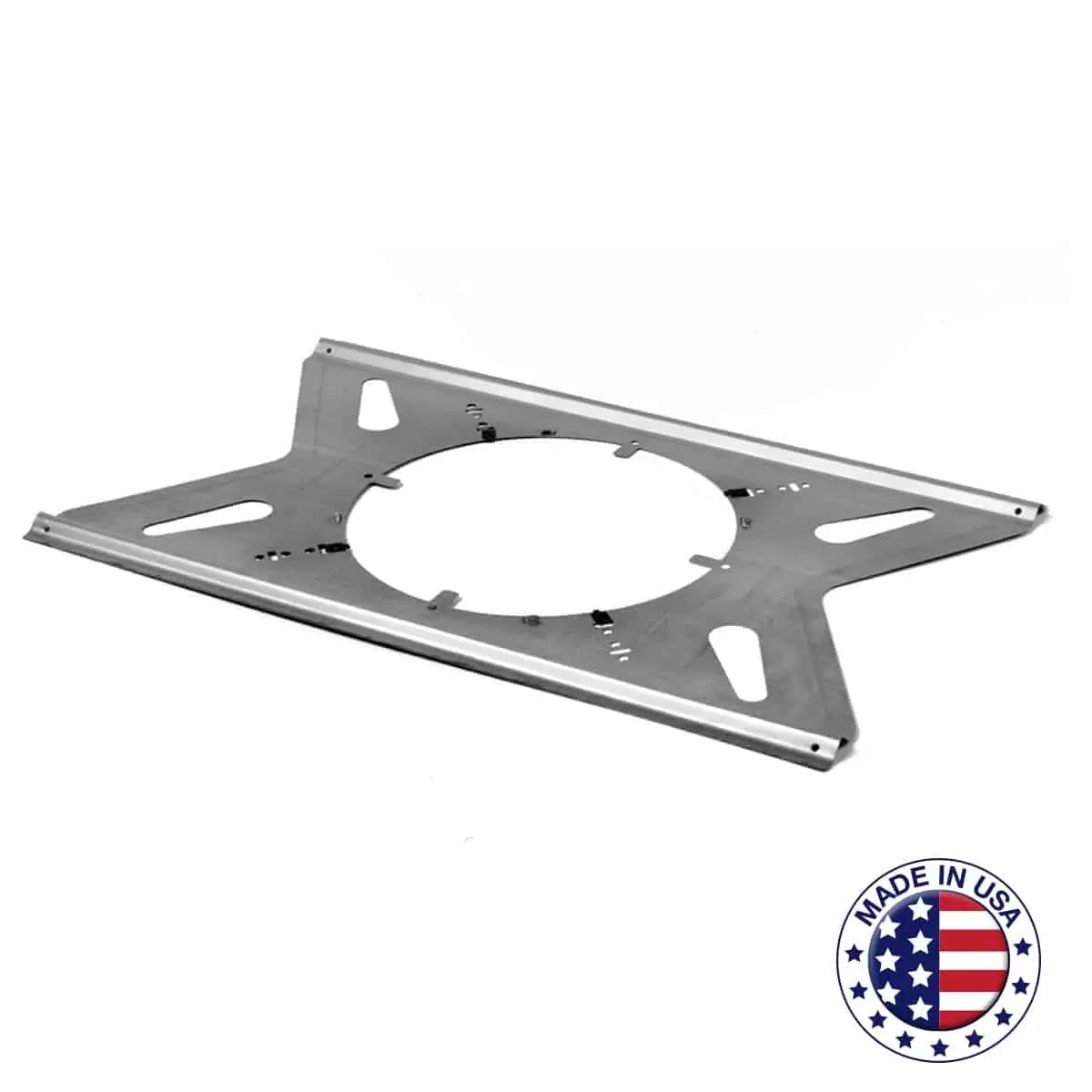

Lowell LBS8R1 Tile Bridge For Suspended Ceiling Speaker Install

Lowell LBS8R1 Tile Bridge For Suspended Ceiling Speaker Install

SoundPro Item: 86711 | Part Number: LBS8R1

$19.89
$22.60 $19.89
Your Price Sold out
MSRP: $22.60 | MAP: $19.89

Usually ships in 5-7 business days

  • Transfers Speaker Load To Ceiling Structure To Prevent Tile Sag
  • Compatible With Screw-Mount Or Torsion Grille Speaker Assemblies
  • Usable With Or Without A Backbox For Code-Flexible Installation
  • Wire-Tie Points Included For Seismic Anchoring Where Required By Code
  • Formed Galvanized Steel Construction Provides Rigid, Lightweight Support
Log in or register for YOUR best price

Ceiling speaker installations in commercial and institutional environments must account for the load placed on suspended tile grids. Without a tile bridge, the weight of a speaker assembly can cause tiles to sag, compromising both appearance and structural integrity. The Lowell LBS8R1 is designed to transfer that load directly to the ceiling support structure in standard 2x2 or 2x4 suspended ceilings, keeping tiles flush and installations looking professional over time.

AV integrators working in offices, classrooms, houses of worship, retail spaces, and similar installed audio environments will find the LBS8R1 useful for both new construction and retrofit projects. It accommodates 8-inch drivers with screw-mount or torsion grilles and can be installed with or without a backbox depending on local code requirements. Wire-tie points are included for seismic anchoring where mandated by code, making this bridge suitable for installations in jurisdictions with strict structural requirements. Formed from 24-gauge galvanized steel, it provides a rigid, lightweight platform without adding unnecessary mass to the ceiling assembly. Sold individually and ordered in multiples of 10.

Downloads

View full details

Specifications

Construction
Material
24-gauge galvanized steel
Dimensions
Overall
23.75" x 15.5"
Opening Diameter
10.75"
Compatibility
Driver Size
8 inch
Grille Type
Screw-mount or torsion
Backbox Requirements
Use with or without backbox
Identifiers
Sold As
Priced each, order in multiples of 10
