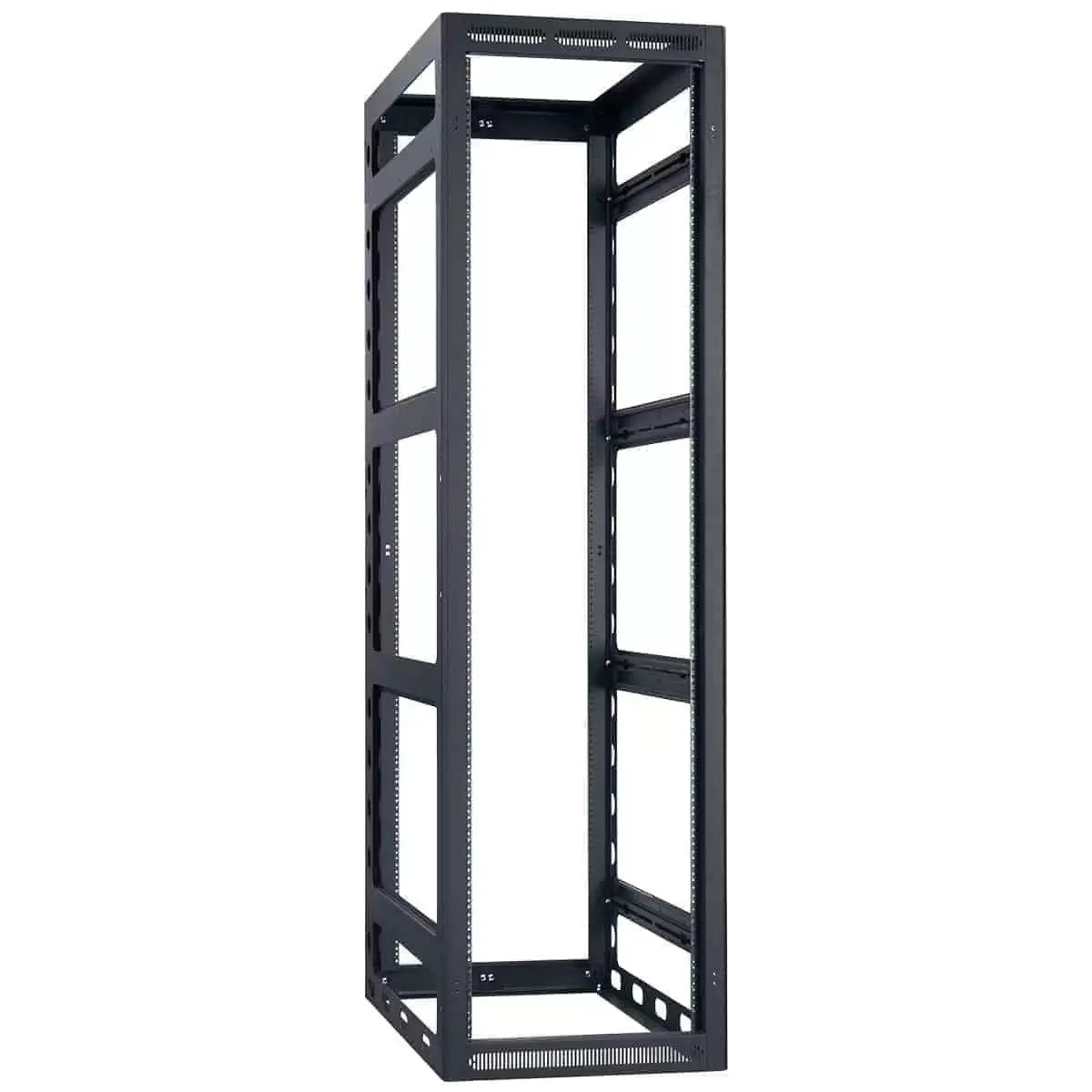

Lowell LGR Gangable AV Rack Open-Frame Steel Install Rack | 36"D | 44U | Without Rear Door

Lowell LGR Gangable AV Rack Open-Frame Steel Install Rack | 36"D | 44U | Without Rear Door

SoundPro Item: 33157 | Part Number: LGR-4436-LRD

$2,137.17
$2,428.60 $2,137.17
Your Price Sold out
MSRP: $2,428.60 | MAP: $2,137.17

Usually ships in 5-7 business days

  • Fully-Welded Steel Frame With Reinforced Base Delivers 3150 Lb Load Capacity
  • Gangable 23" Wide Footprint Enables Clean Side-By-Side Multi-Bay Configurations
  • Open Sides With 2" Holes Support Organized Cable Runs Between Adjacent Racks
  • Configurable Top Accepts Optional 19" Fan Panels For Active Cooling
  • Fully Adjustable 10-32 Tapped Rails With Printed RU Scale Fit Standard Equipment
  • Integrated Lacing Points, Knockout Panels, And Holes For Complete Cable Management
  • Black-Textured Powder-Coat Finish Suits Exposed And Concealed Install Environments
Log in or register for YOUR best price

The Lowell LGR Series is built for AV integrators and systems contractors who need a robust, field-proven rack platform for installed environments. The fully-welded steel construction with a 14-gauge steel base reinforced at load-bearing junctions delivers a 3150 lb load capacity, making it suitable for densely populated equipment rooms, control rooms, and multi-bay AV rack builds. The 23-inch wide open-frame footprint is designed to gang multiple units side by side, with open sides featuring 2-inch holes for clean, managed cable runs between bays. Two pairs of fully adjustable rails are tapped 10-32 with a printed RU scale, accepting standard 19-inch rack equipment without modification.

The configurable top accepts optional 19-inch fan panels for active thermal management, a critical consideration in enclosed or high-density installs. Multiple lacing points, knockout panels, and integrated cable holes keep signal and power runs organized across complex systems. Pilot point screws with captive washers, a grounding stud, threaded inserts for optional leg levelers, and beveled corners reflect a design engineered for professional installation rather than consumer use. The black-textured powder-coat finish suits both exposed and concealed rack rooms. Available in multiple rack space and depth configurations, and with or without a rear door, the LGR Series scales from compact utility installs to full-height multi-bay equipment rooms. Optional front door and side panels are available separately for installations requiring additional access control or dust protection.

Downloads

View full details

Specifications

Dimensions
Height
83.13"
Width
23.06"
Depth (Overall)
36.00"
Depth (Usable)
33.34"
Construction
Frame Gauge
16-gauge steel
Base Gauge
14-gauge steel
Finish
Black-textured powder-coat
Performance
Rack Space
44U
Load Capacity
3150 lbs.
Rail Threading
10-32
Rear Door
No
