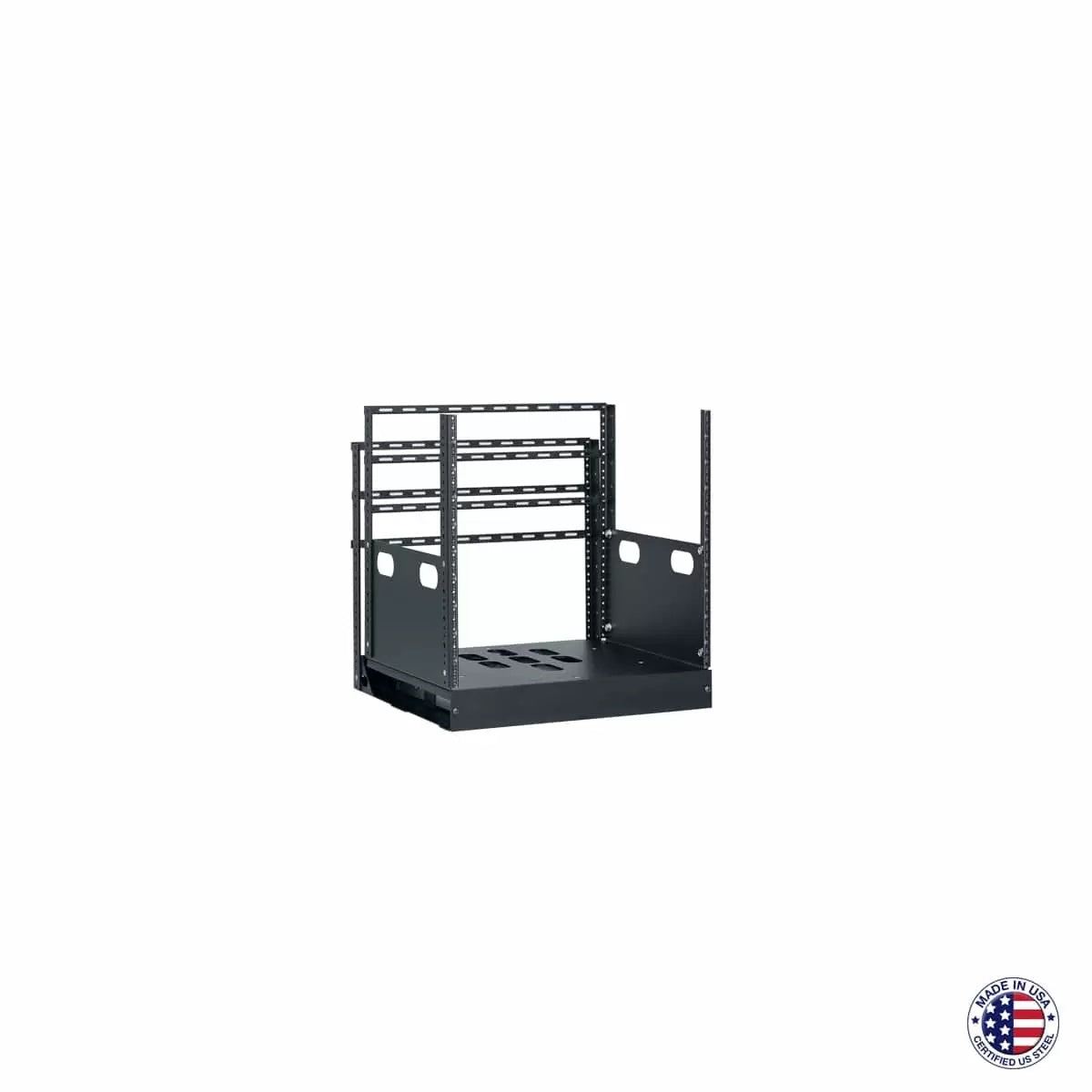

Lowell LPTR4 Pull & Turn AV Rack Built-In Rotating Rack | 10U | 23"D

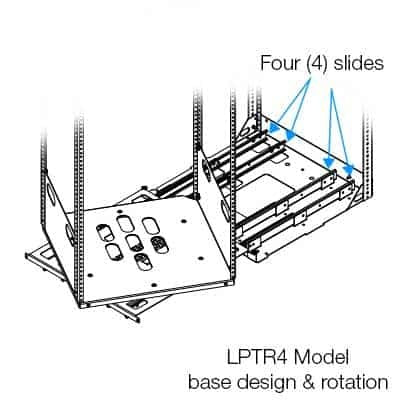

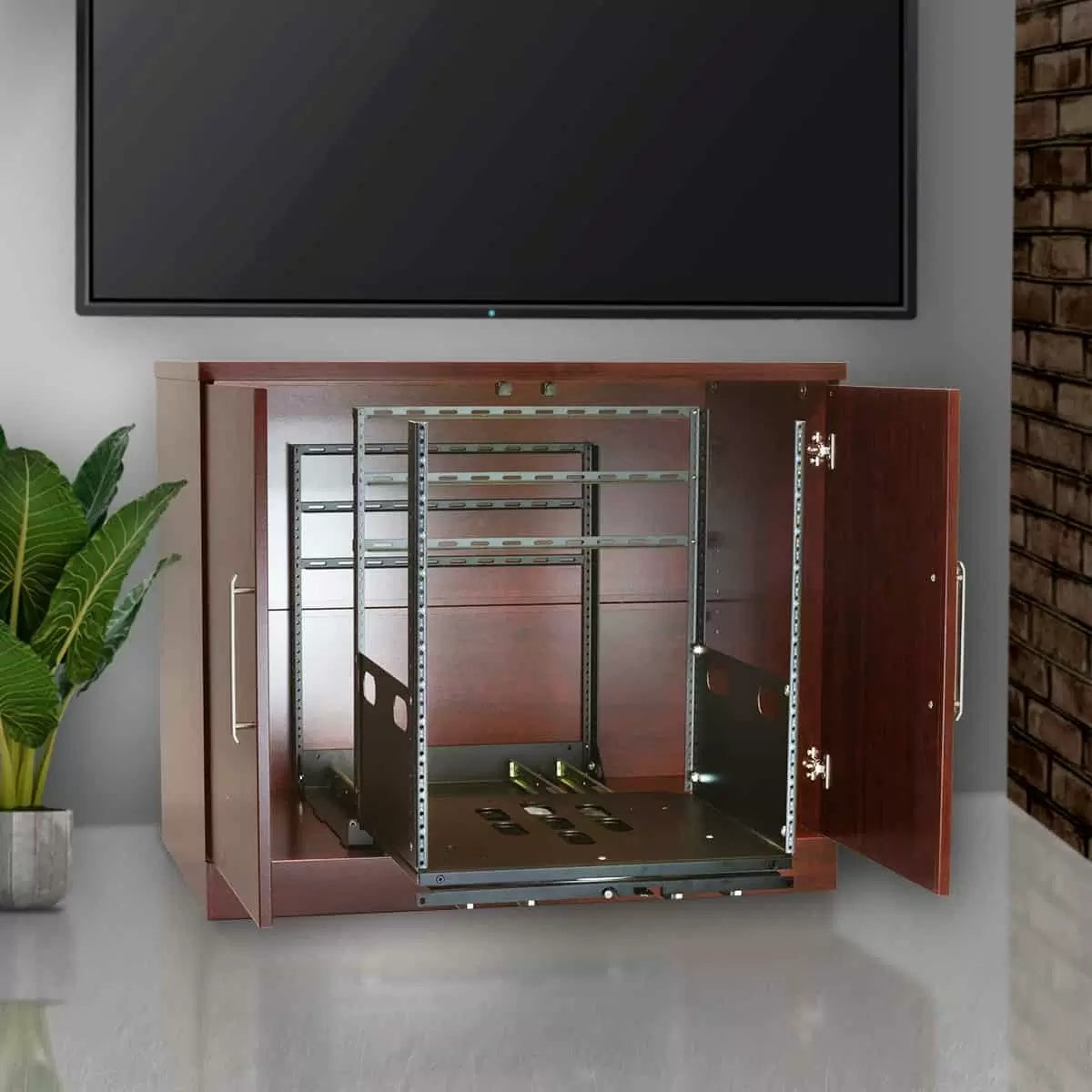

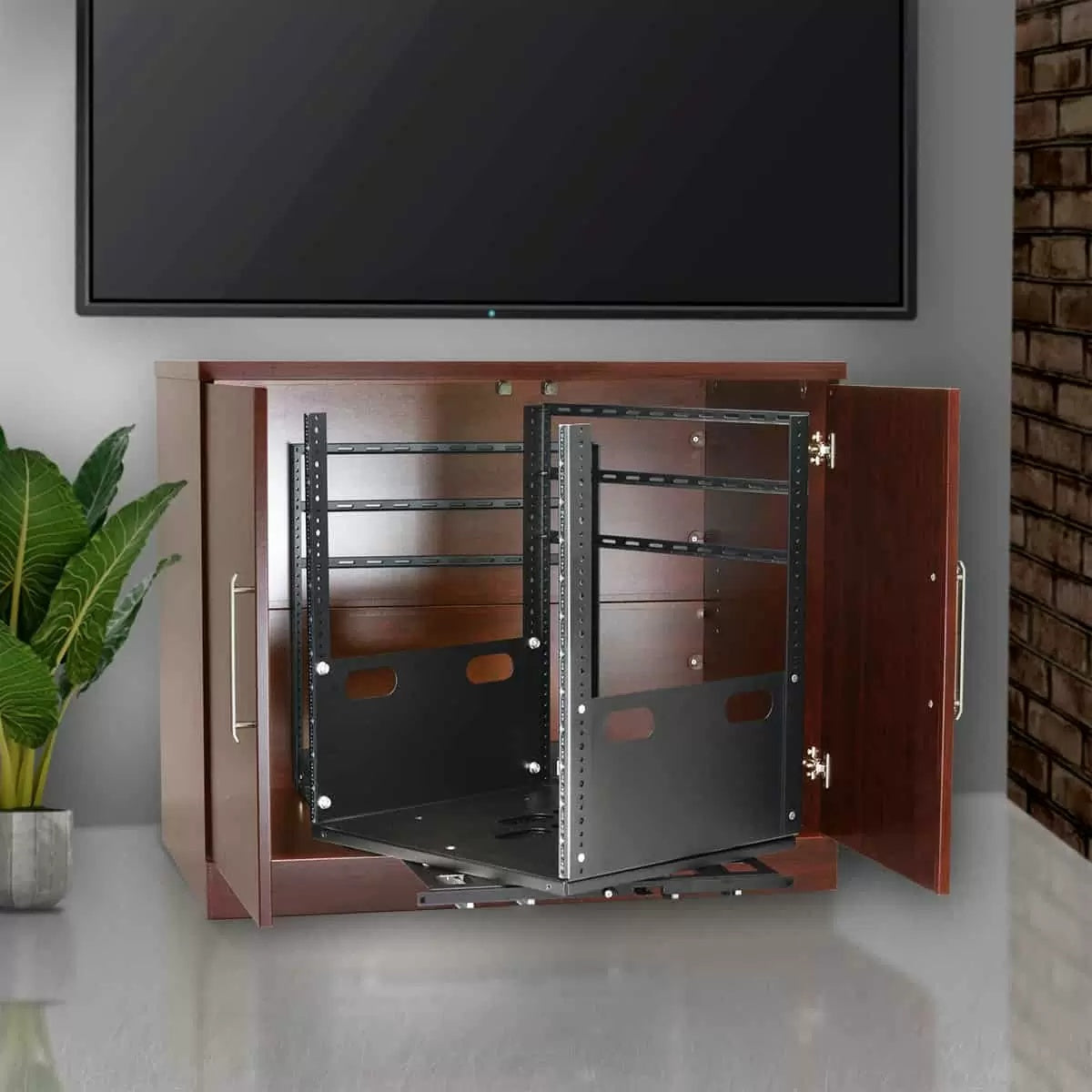

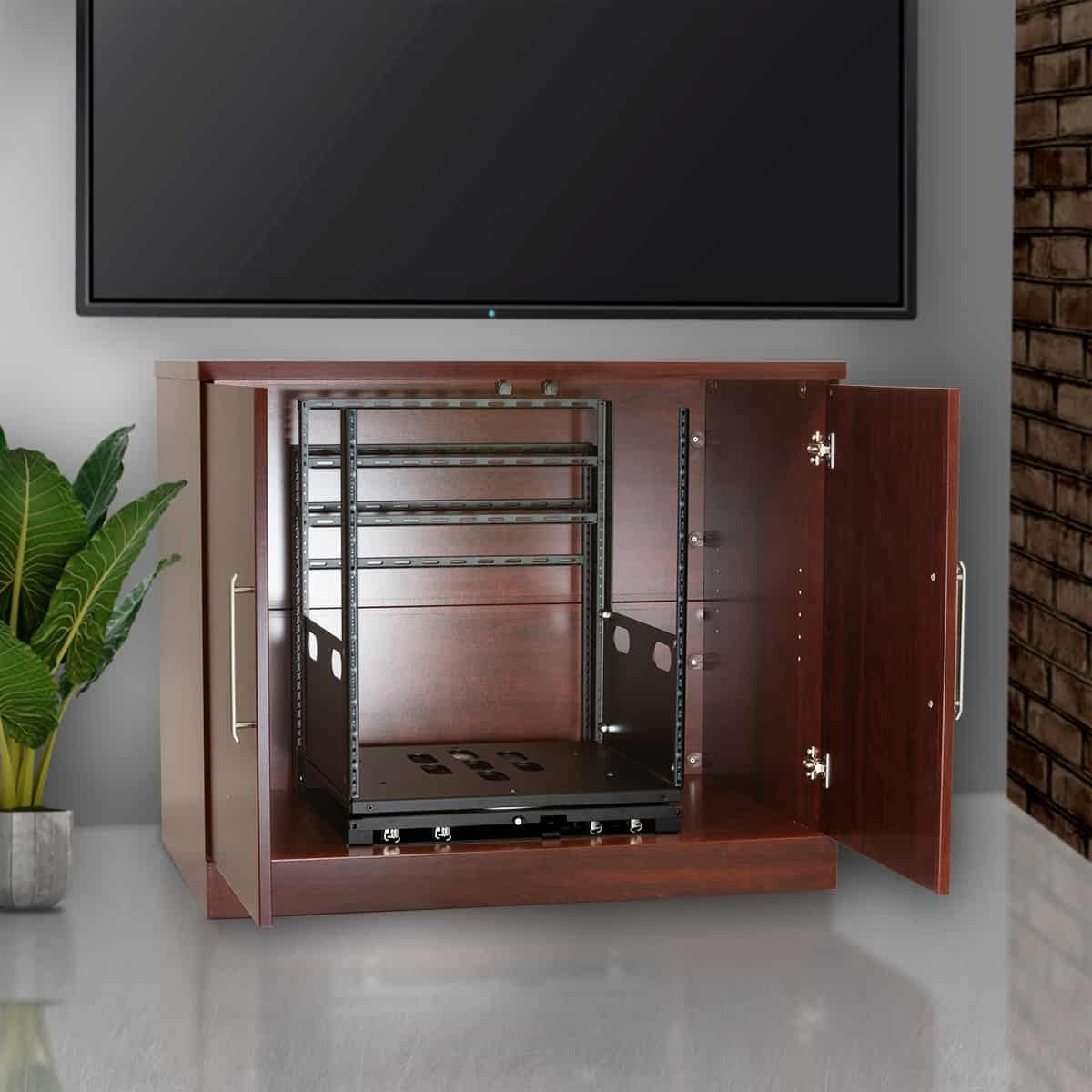

The Lowell LPTR4 Pull and Turn AV Rack is engineered for AV integrators specifying built-in equipment installations inside credenzas, cabinetry, and architectural millwork. Where conventional fixed racks make rear cable management and servicing impractical, the LPTR4 solves the problem mechanically. The top rack section slides forward on four support rails anchored in the base, then rotates left or right, locking positively at 60 or 90 degrees. That locked service position gives technicians unobstructed access to rear connections, patch points, and equipment without dismounting anything from the rack frame.

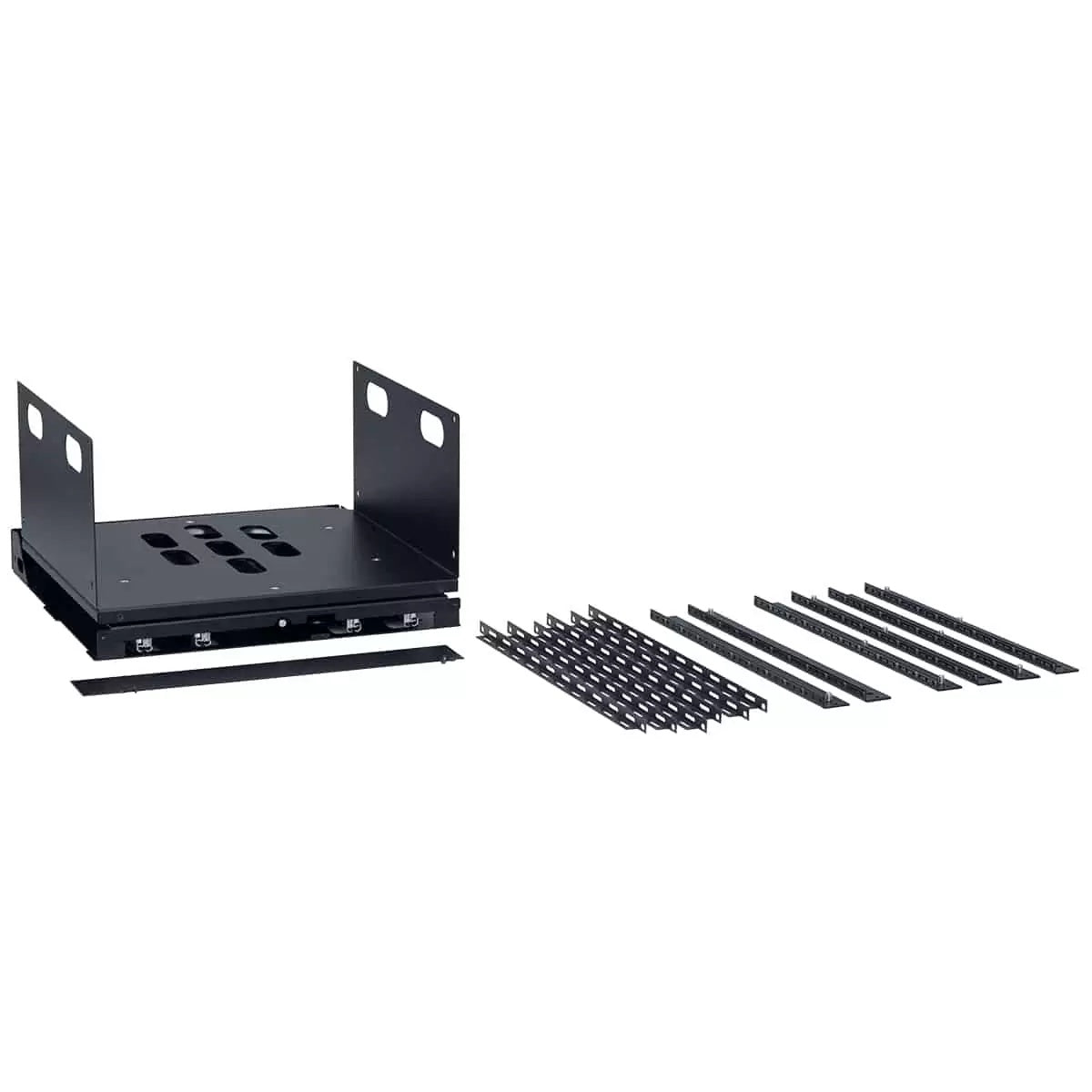

The rack is built around 11-gauge steel corner post mounting rails tapped to the industry-standard 10-32 thread pattern, giving integrators a rigid, predictable mounting surface for any standard rack-mount gear. The removable base accommodates flush or recessed installations, and six cable lacing bars are included to keep wiring organized through rotation cycles. A front securing panel holds the rack closed in its installed position and presents a finished face when the system is in normal operation. Available in 10U, 12U, 14U, and 16U rack space configurations and in two depth options, the LPTR4 family scales to fit the equipment complement and the furniture cavity without requiring custom fabrication.

For AV system designers working on conference rooms, boardrooms, hospitality installations, or any project where rack equipment must live inside finished furniture, the LPTR4 eliminates the tradeoff between clean aesthetics and practical serviceability. It ships unassembled in two cartons, keeping freight dimensions manageable and allowing on-site final assembly to match installation sequencing.
