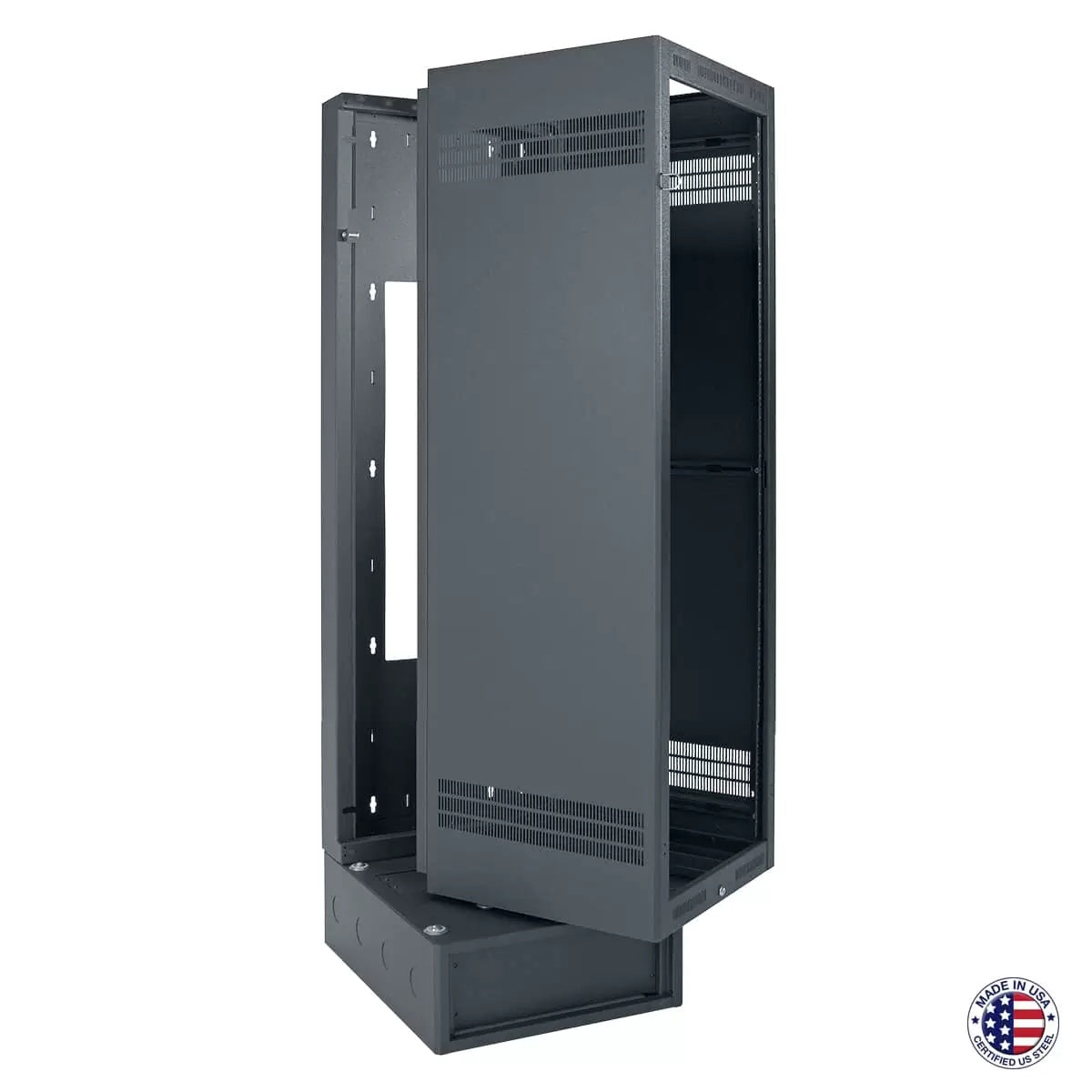

Lowell LWBR Wall Rack with 4U Base Swing-Out Wall Rack | 40U | 28"D

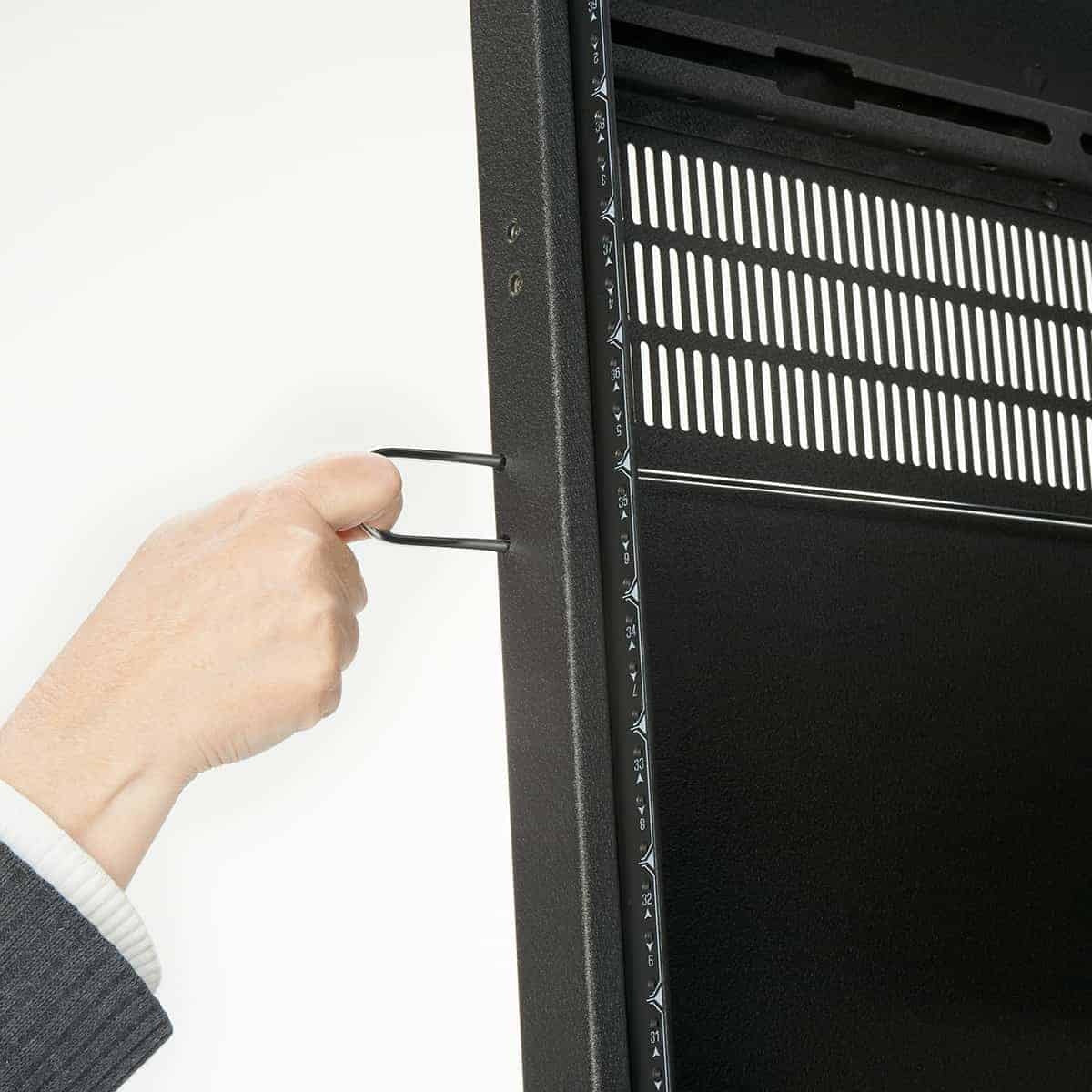

The Lowell LWBR series is built for AV integrators and systems contractors who need reliable, serviceable wall-mounted rack infrastructure in commercial installations. Each unit swings open from its backbox with a single-release grasp and pivots on spring-loaded hinges and stainless steel ball transfers, giving technicians clear access to rear equipment connections without pulling any gear. The cabinet swing direction is field-changeable to left-hand orientation, which is a practical advantage in tighter mechanical rooms, closets, or wall-mounted deployments where right-hand clearance is limited.

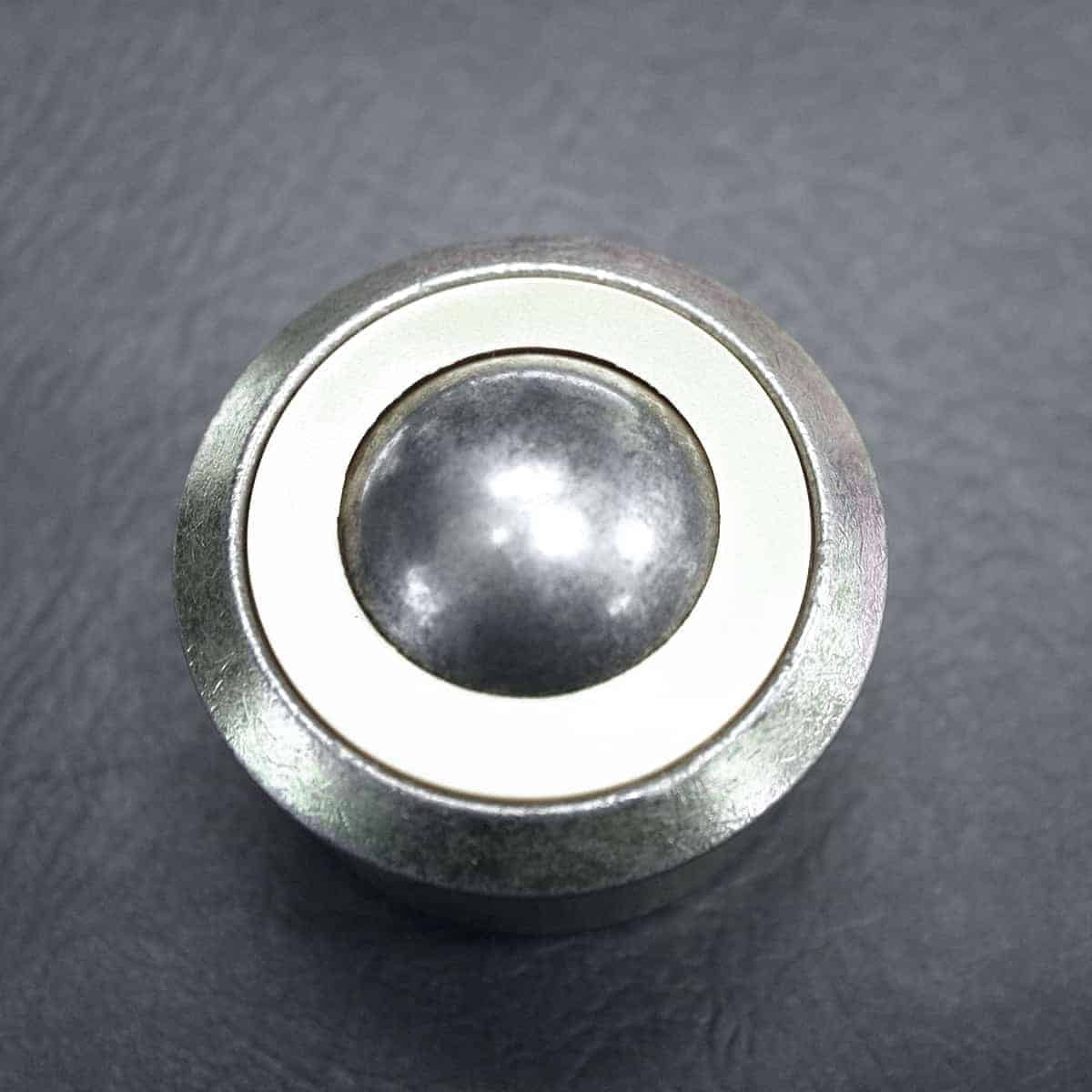

The integrated 4U support base adds usable rack space for equipment or an optional drawer, and its stainless steel ball transfers bear the cabinet's load during service. The backbox mounts on 16-inch centers with a large central cutout that clears wall obstructions, and the top knockout panel accommodates wireless antennas and conduit runs. Adjustable mounting rails tapped 10-32 and a top integral EIA rail accept standard 19-inch accessories. The series is available in multiple rack space and depth configurations to match the demands of each installation.

Compared to fixed wall racks, the swing-out design eliminates the need for rear access panels or front-to-back cable management workarounds. The 500 lb load rating, welded cabinet construction, slam latch closure, and black-textured powder-coat finish make these units appropriate for permanent installs in education, corporate AV, hospitality, and government facility projects where longevity and serviceability are both required.
