Lowell LWSR Series Swing Open Wall Mount AV Rack | 10U
Lowell LWSR Series Swing Open Wall Mount AV Rack | 10U
SoundPro Item: 33409 | Part Number: LWSR-1022
Usually ships in 5-7 business days
- Swing-Open Front Section Provides 90-Degree Access To Rear Cabling And Connections
- Right Or Left-Hand Swing Orientation Configurable At Install
- 16-Gauge Steel Backbox Delivers Structural Rigidity For Wall-Mounted Installations
- Two Center Locks On Backbox Secure The Enclosure During Operation
- 10-Inch Wide Center Wiring Path With Laser-Cut Knockout Panels Manages Cable Ingress
- Top And Bottom Vents On Mounting Section Support Passive Airflow For Installed Gear

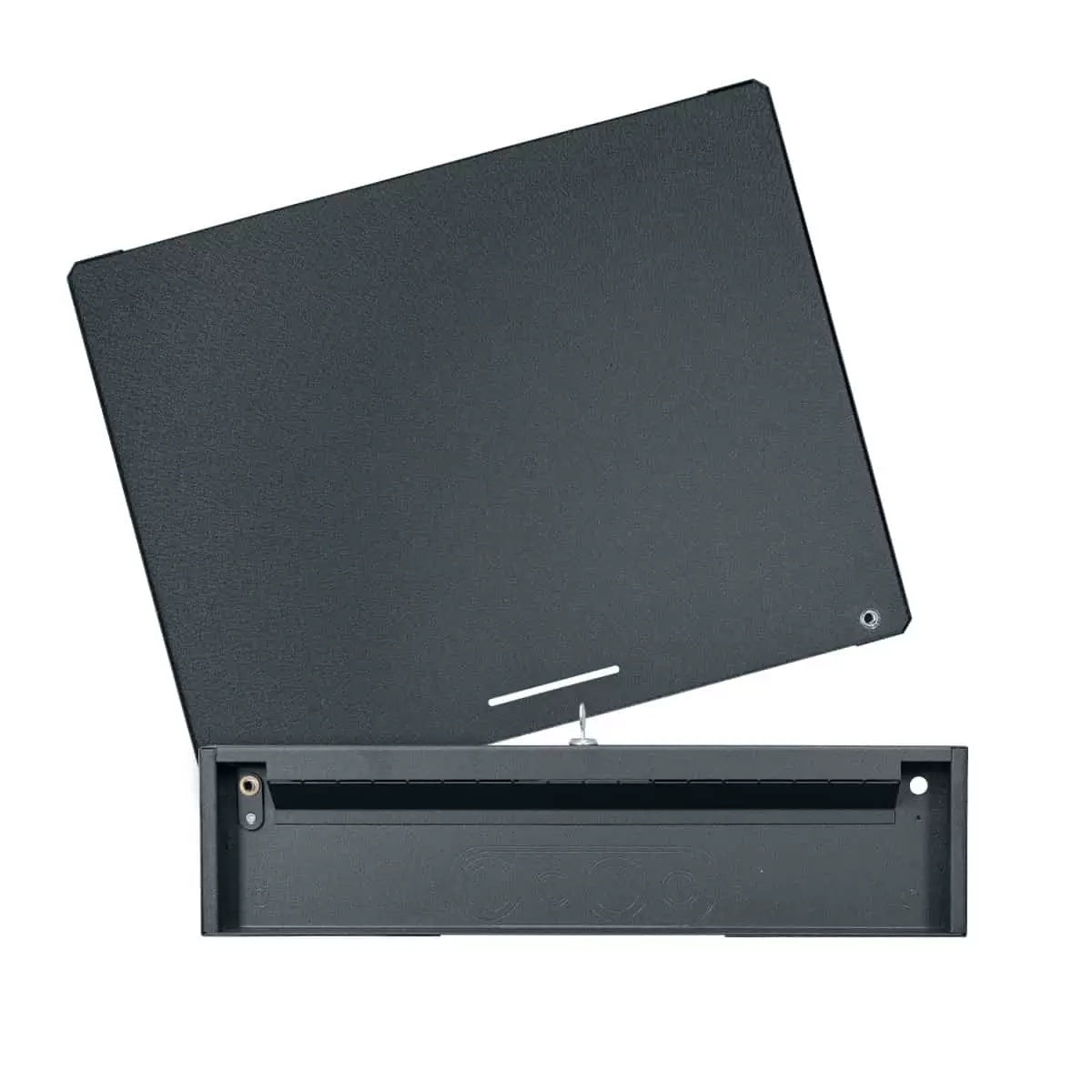

- Optional Rear Rails And Front Door Available To Expand Configuration Options

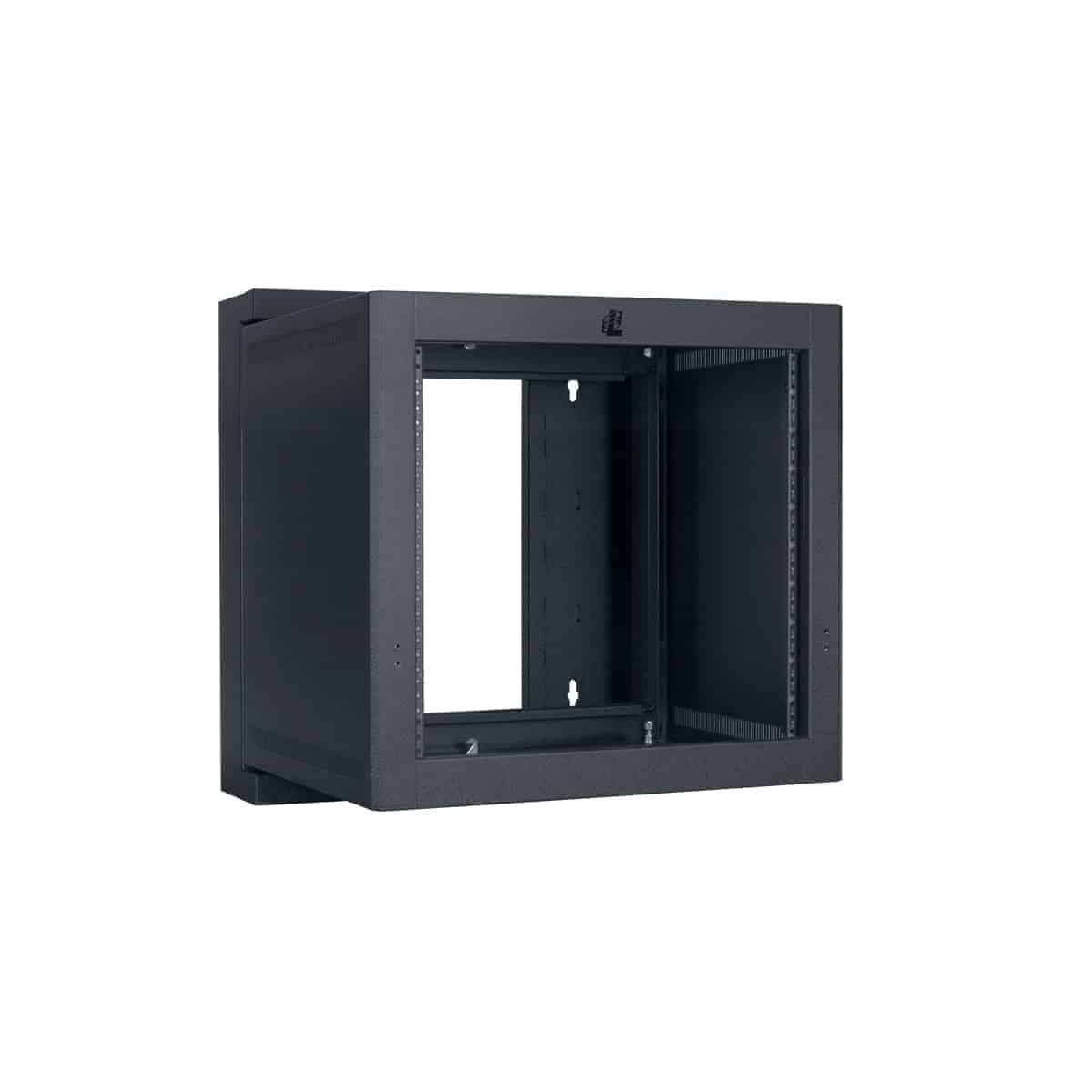

The Lowell LWSR Series is designed for AV integrators and system installers who need a reliable, wall-mounted rack solution with practical rear-access capability. The two-part construction separates the backbox from the front mounting section, allowing the front to swing open a full 90 degrees for straightforward access to cable terminations, rear equipment connections, and wiring without demounting the enclosure. Available in 7U, 10U, 12U, and 16U configurations, the series scales to fit everything from small control rooms and conference spaces to larger distributed audio and video installations.

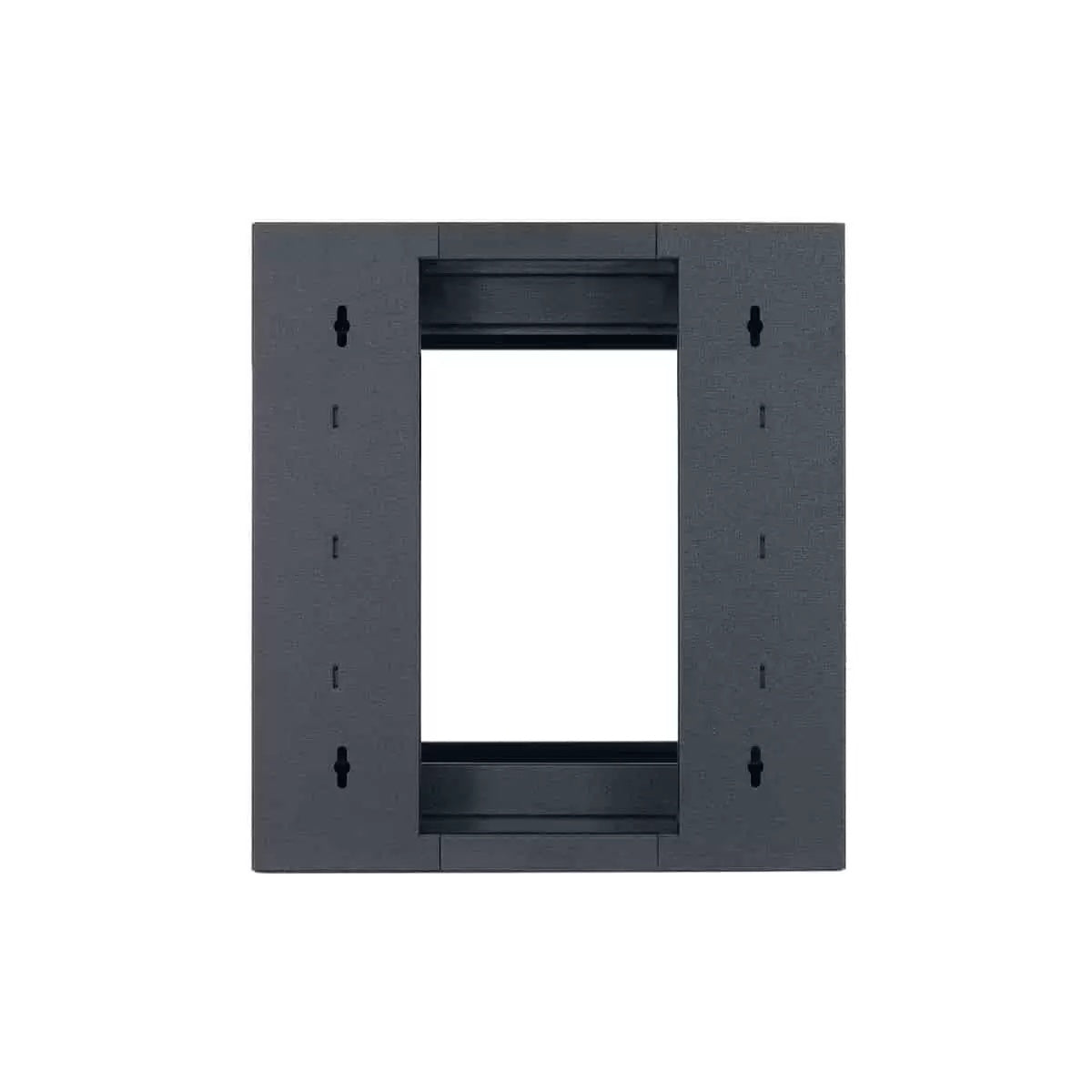

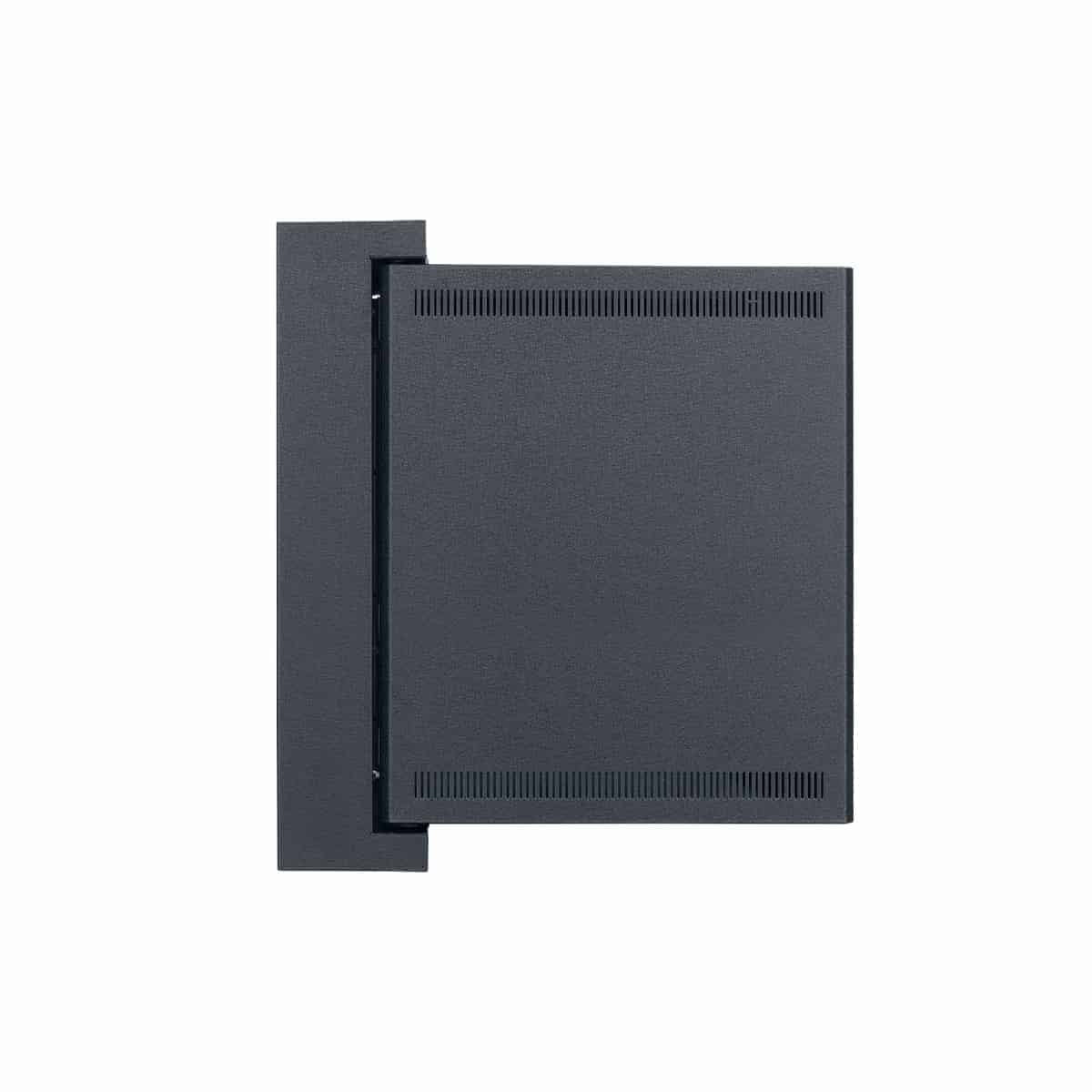

The 16-gauge steel backbox provides the structural backbone for the system. Two center locks secure the enclosure, and a 10-inch wide center wiring path with integral laser-cut knockout panels on the top and bottom manages cable ingress cleanly. The front mounting section attaches via heavy-duty bolts through steel fasteners with securing nuts, and the installer can choose right- or left-hand swing orientation to suit the room layout. Welded sides with top and bottom vents on the mounting section support passive airflow for installed electronics.
Fixed-position 10-32 tapped rails are included as standard, with optional RRTBF rear rail brackets available to convert fixed rails to adjustable and add rear rail support for deeper equipment. An optional front door is also available for installations where panel protection or aesthetics are a priority. The black-textured powder-coat finish suits both exposed and semi-concealed installs.
