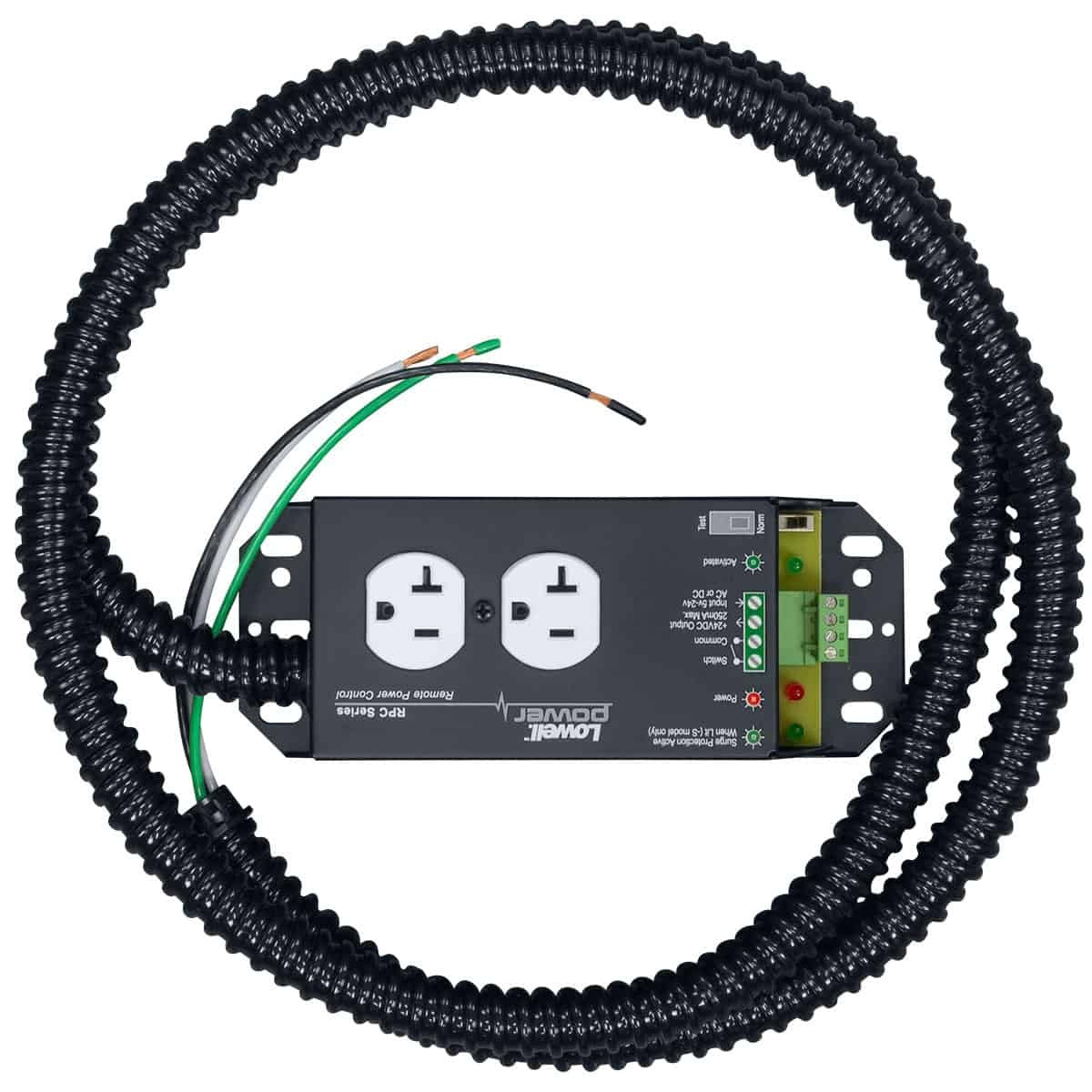

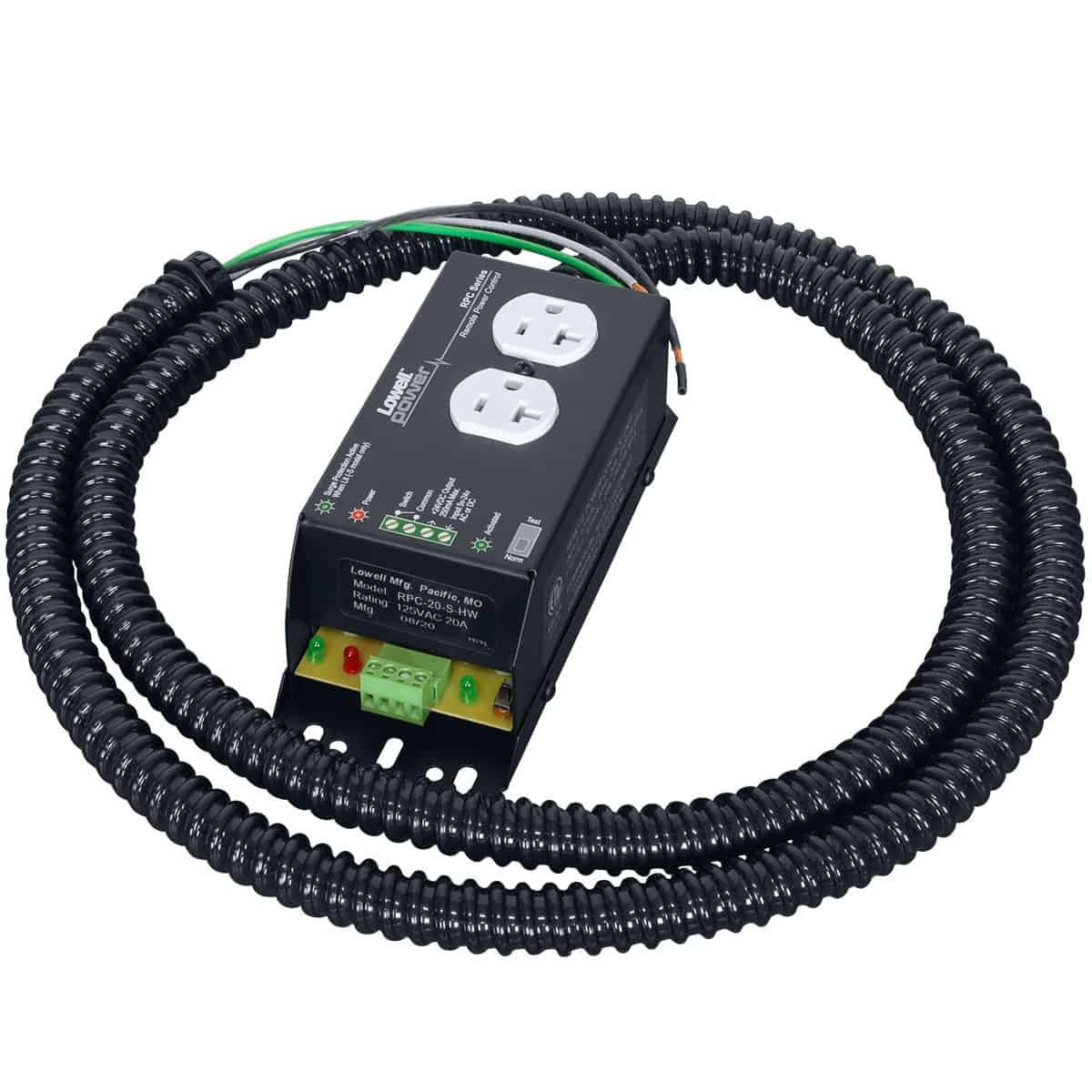

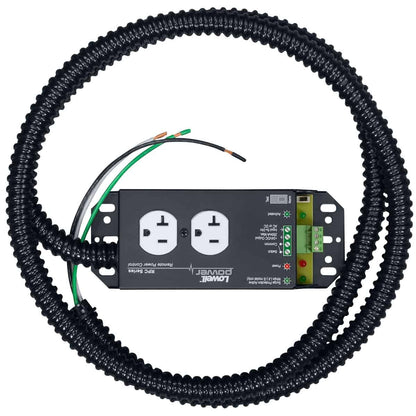

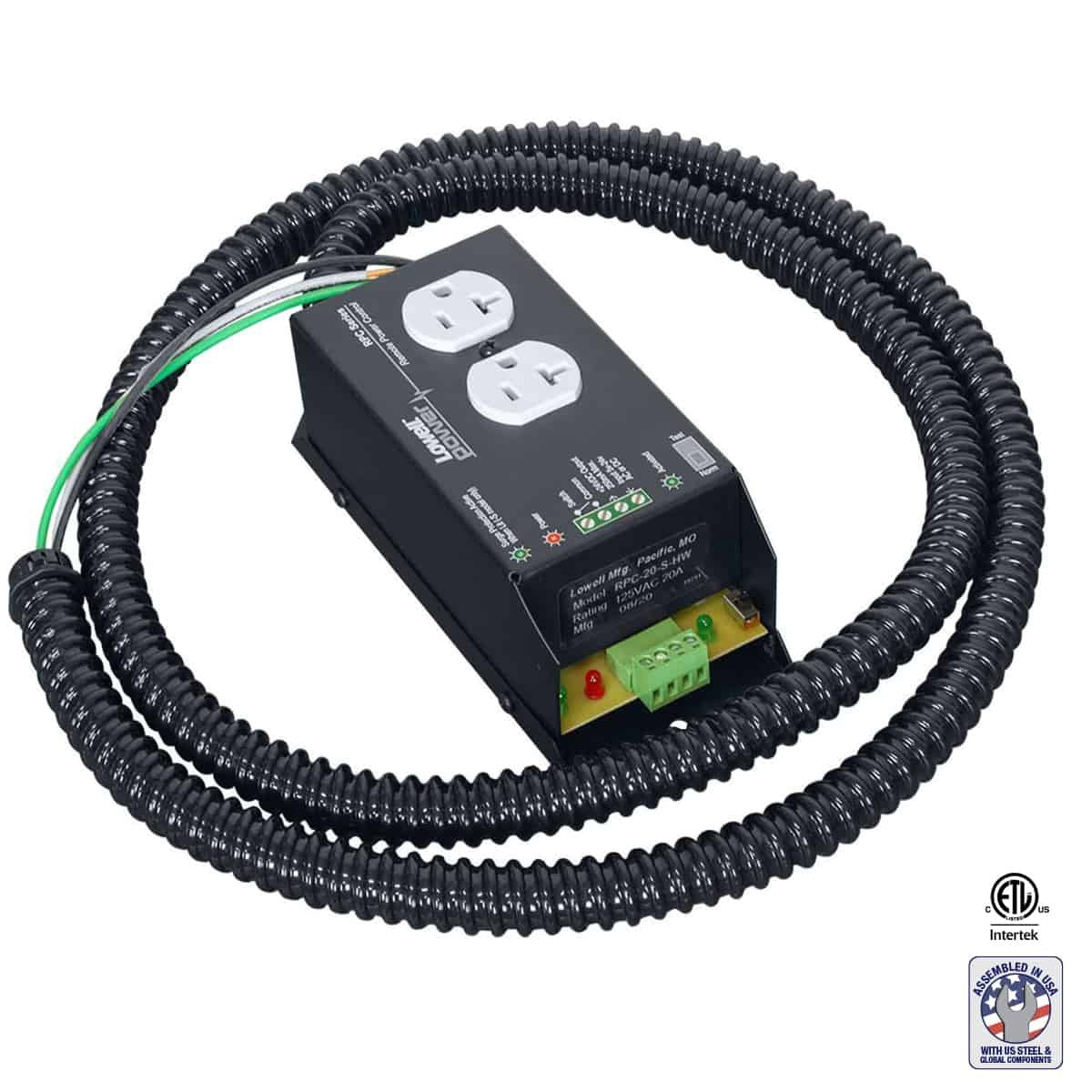

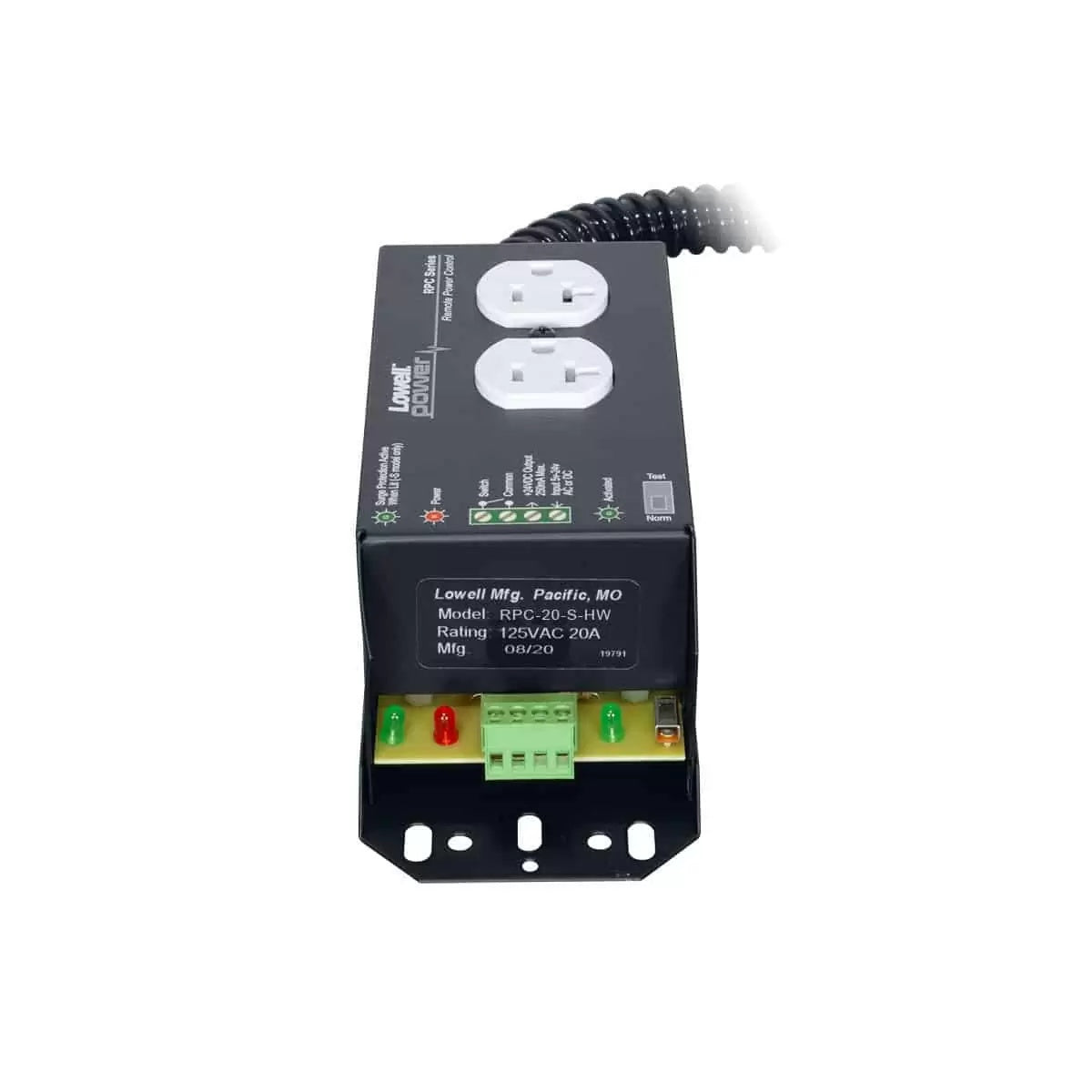

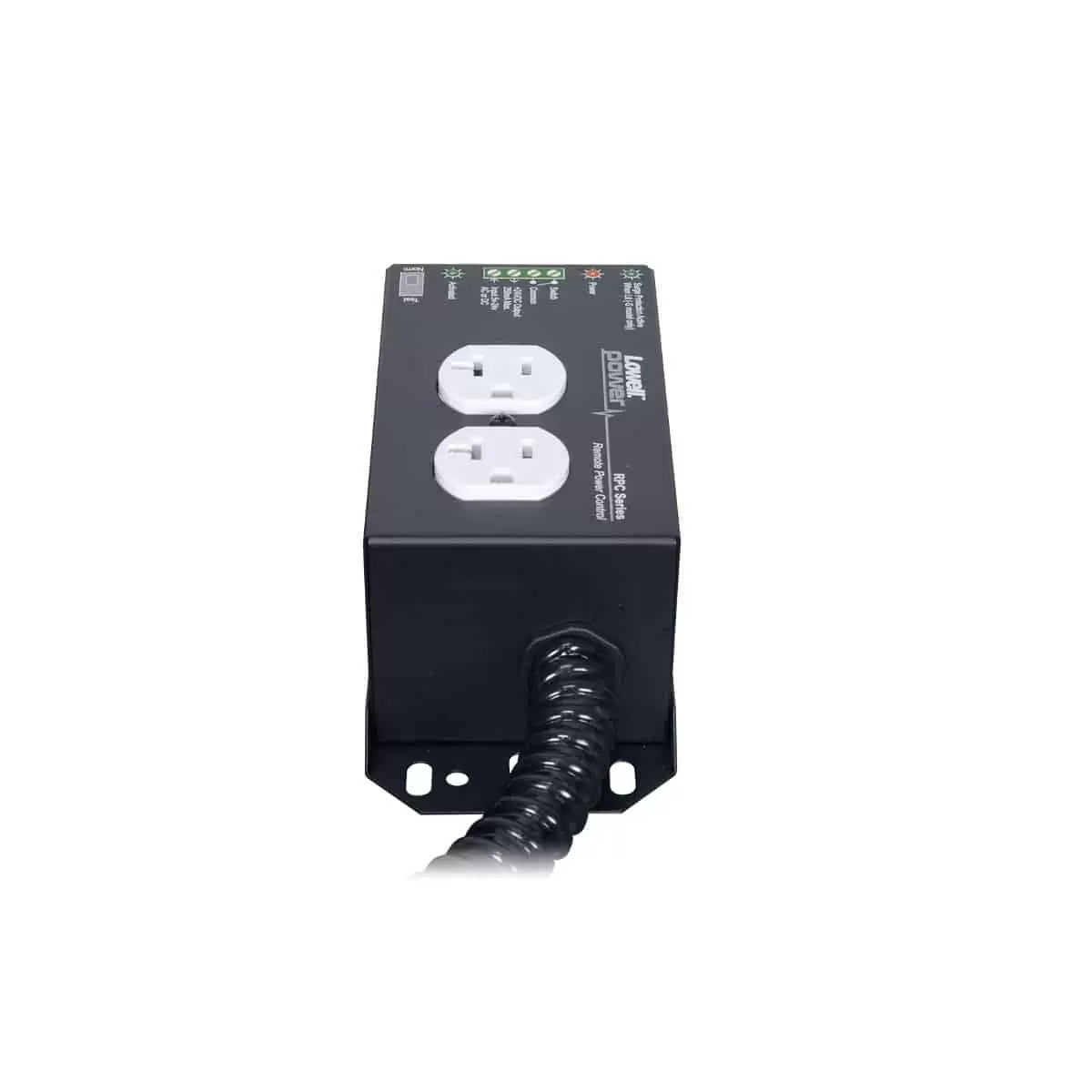

Lowell RPC-20-SHW Remote Power Control With Surge Suppression
Lowell RPC-20-SHW Remote Power Control With Surge Suppression
SoundPro Item: 33796 | Part Number: RPC-20-SHW
Usually ships in 5-7 business days
- Dry Contact And Low-Voltage Trigger Compatibility For Flexible Control System Integration
- Hardwired Conduit Termination Supports Permanent Installed AV Environments
- Surge Suppression Protects Connected Equipment From Transient Power Events
- Steel Chassis With Black Finish For Discreet Rack Or Enclosure Mounting
- Intrinsically Safe Low-Voltage Control Method For Code-Friendly AC Switching
The Lowell RPC-20-SHW is built for AV integrators and systems engineers who need a reliable, low-voltage method of switching AC power to equipment at remote locations. It accepts dry contact closure or voltage output triggers ranging from 5V to 24V AC or DC at 5mA, making it compatible with a wide range of control systems, automation platforms, and sequential power controllers without requiring high-voltage switching at the control point.
Designed for permanent installed environments, the RPC-20-SHW uses hardwired termination via a 6-foot non-metallic flexible conduit, suitable for in-wall or rack-adjacent installations where traditional outlet-based connections are not appropriate. The two 20A outlets support full 125VAC loads, and integrated surge suppression protects downstream equipment from transient events. The steel chassis with black finish is sized for unobtrusive mounting in equipment rooms, racks, or above-ceiling enclosures where space and aesthetics both matter.
For integrators specifying power control in boardrooms, houses of worship, classrooms, or broadcast facilities, the RPC-20-SHW offers a code-friendly, intrinsically safe approach to remote AC switching. It pairs naturally with relay panels, DSP control outputs, and third-party automation systems that provide the required trigger signal, giving system designers flexibility without additional relay hardware.
