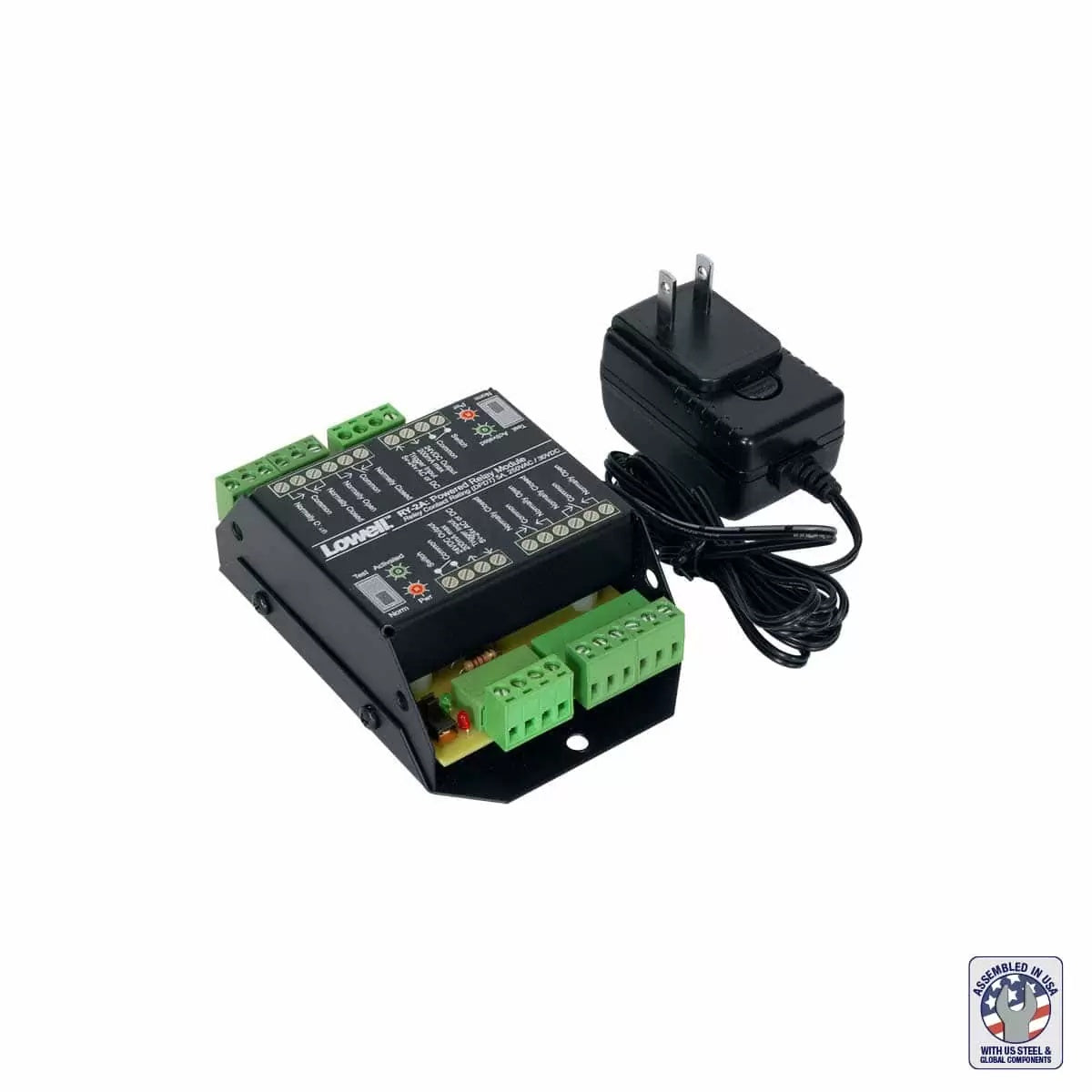

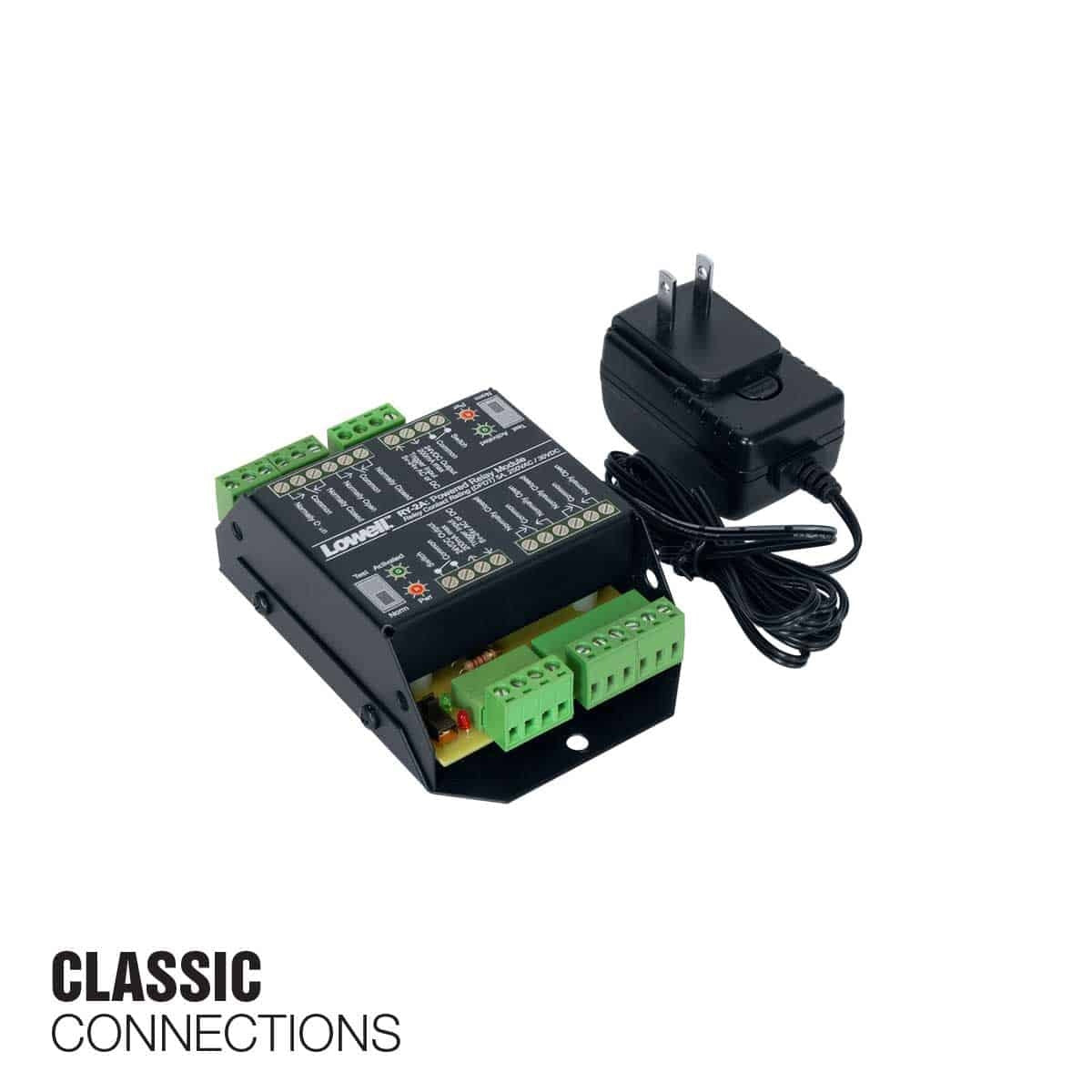

Lowell RY-2A Dual DPDT General Purpose Relay Module

Lowell RY-2A Dual DPDT General Purpose Relay Module

SoundPro Item: 128228 | Part Number: RY-2A

$262.77
$298.60 $262.77
Your Price Sold out
MSRP: $298.60 | MAP: $262.77

Usually ships in 5-7 business days

  • Two Independent DPDT Relays Allow Flexible Signal Switching In A Single Module
  • Onboard Test Switch Enables Relay Verification Without An External Control Signal
  • Detachable Phoenix-Style Terminals Speed Up Wiring And Field Service
  • Broad Activation Voltage Range Ensures Compatibility With Most Control Systems
  • Permanently Attached Power Supply Eliminates The Need For A Separate Adapter
  • Enclosed Steel Chassis Protects Relays And Components In Installed Environments
Log in or register for YOUR best price

The Lowell RY-2A is a general purpose relay module designed for systems integrators and AV installation professionals who need reliable relay switching in installed audio and control systems. With two independent DPDT relays housed in a protective steel enclosure, it handles signal routing, muting, and equipment switching tasks where clean, isolated contact closures are required.

Each relay activates via contact closure or voltage input across a wide 5-24V AC or DC range, making the RY-2A compatible with a broad range of control systems and automation interfaces. The permanently attached power supply accepts 100-250VAC input and delivers 24VDC at 500mA, eliminating the need for a separate wall adapter in installations. Detachable Phoenix-style terminals simplify wiring during initial install and make field service faster without rewiring the entire assembly.

The enclosed chassis protects internal components in rack or wall installations, and the onboard test switch allows technicians to verify relay operation during commissioning without requiring a control signal. For integrators working on distributed audio, paging, or AV switching applications, the RY-2A provides a self-contained solution that reduces external component count and speeds up system buildout.

Downloads

View full details

Specifications

Electrical
Activation Input
5-24V AC or DC
Power Supply Input
100-250VAC
Power Supply Output
24VDC, 500mA
Contact Rating
5A
Construction
Chassis Material
Steel
Chassis Dimensions
5.00" x 1.69" x 3.28"
Terminal Type
Detachable Phoenix-style
Relay Configuration
Number Of Relays
2
Relay Type
DPDT (Double-Pole Double-Throw)
Relay Operation
Independent
Activation Method
Contact closure or voltage input
Controls
Test Switch
Yes
