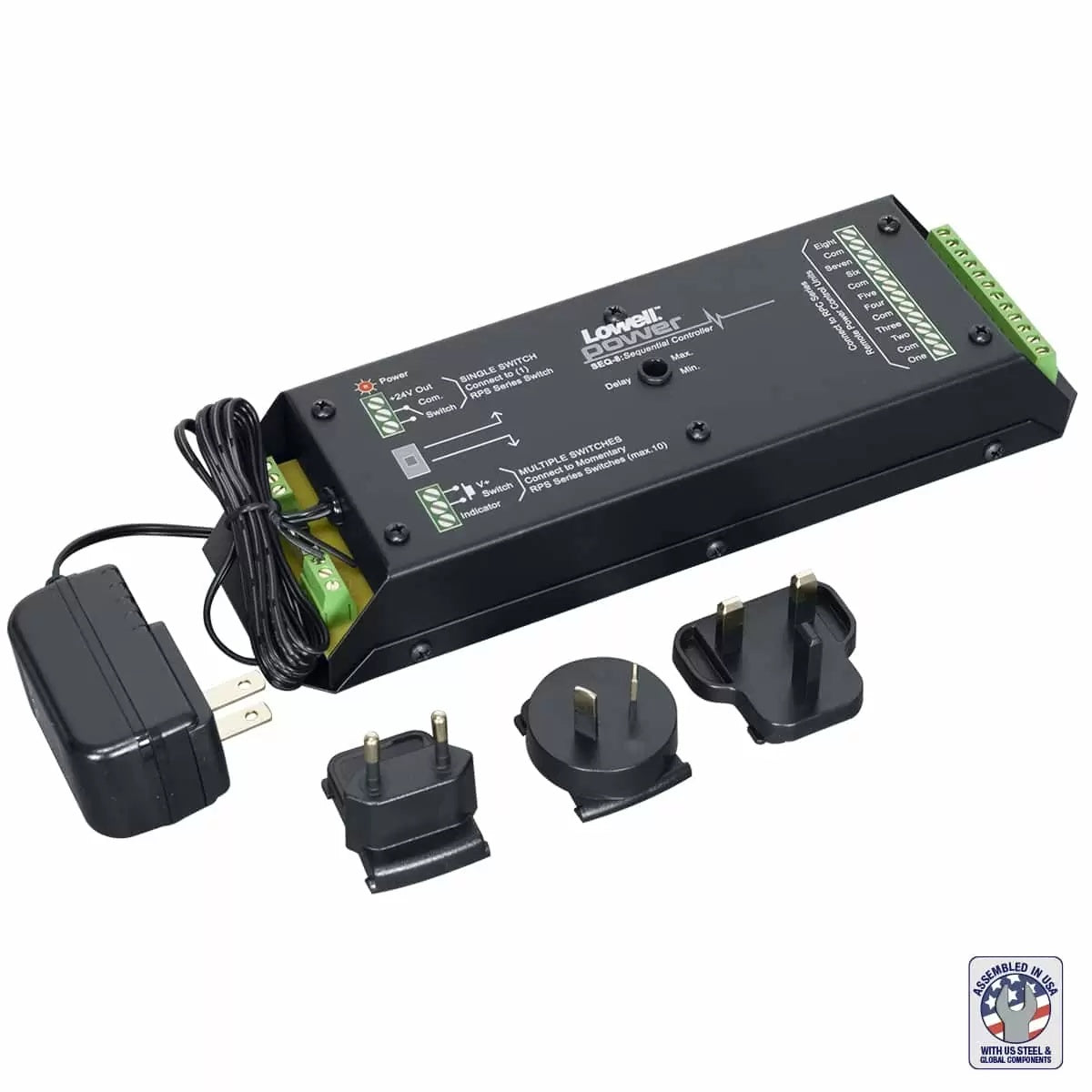

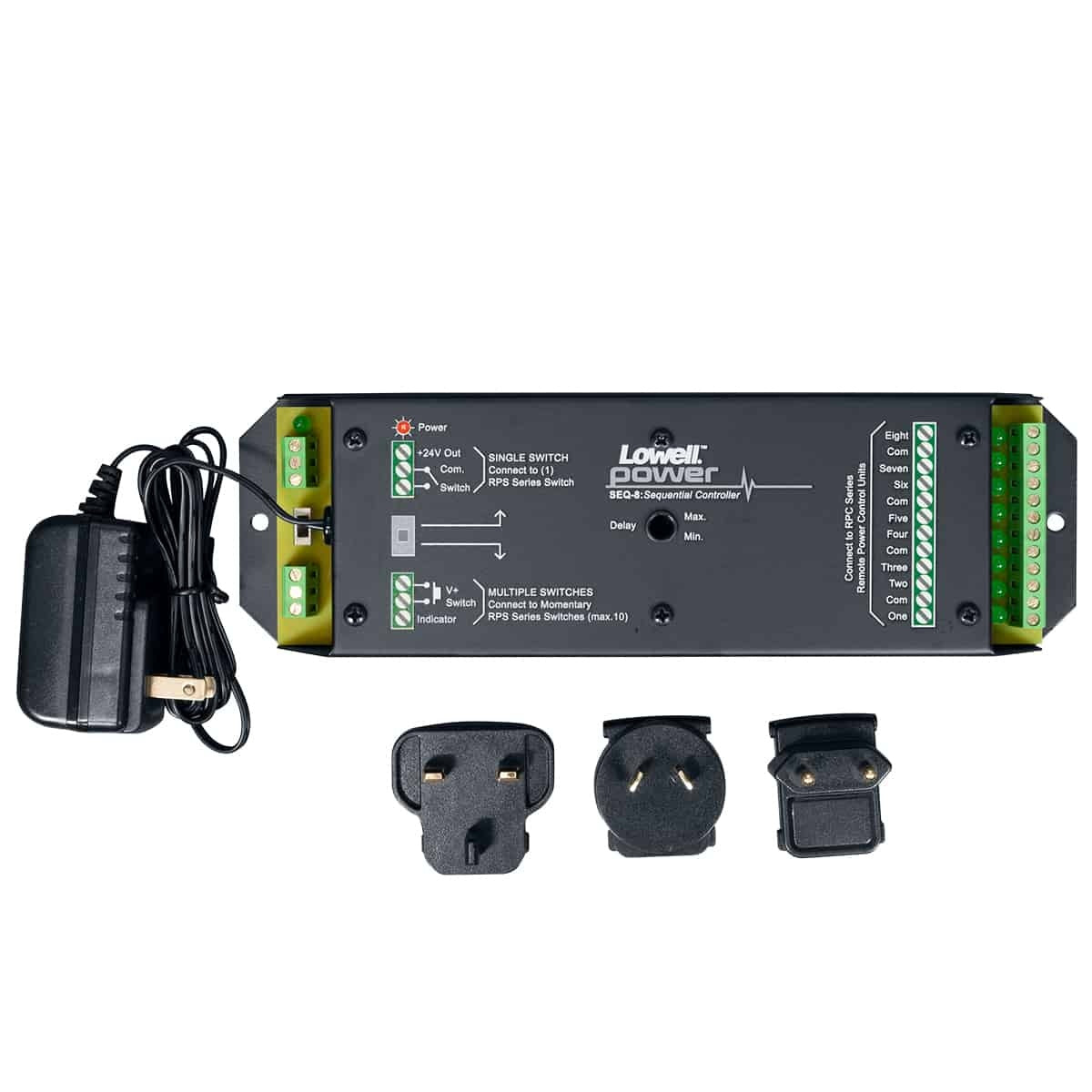

Lowell Power Sequencer AC Equipment Startup Controller | 8-Step | Wire Connections

Lowell Power Sequencer AC Equipment Startup Controller | 8-Step | Wire Connections

SoundPro Item: 49151 | Part Number: SEQ-8

$449.50
$510.80 $449.50
Your Price Sold out
MSRP: $510.80 | MAP: $449.50

Usually ships in 5-7 business days

  • Adjustable Step Delay For Precise Startup Timing Across Different Installation Demands
  • LED Status Indicators Allow Fast Visual Verification Of Sequencer Operation
  • External Trigger Compatibility Integrates With SPST Switches And DSP Voltage Connections
  • Available In Pass-Thru RJ45 And Wire Connection Variants To Match Wiring Topologies
  • Available In 4-Step And 8-Step Configurations To Suit Single Or Multi-Zone Installs
  • Sequential Activation And Reverse-Order Deactivation Protects Connected AC Equipment
Log in or register for YOUR best price

Lowell Power Sequencers are built for AV integrators and systems engineers who need reliable, time-delayed activation and deactivation of AC-powered equipment in installed environments. Whether the application is a boardroom, house of worship, courtroom, or distributed AV system, these sequencers eliminate the power surge and equipment stress caused by simultaneous startup by stepping power on and off in a controlled sequence. Sequencing is initiated via an external trigger, and the delay between steps is adjustable, giving integrators precise control over startup timing to match the demands of each installation.

Available in 4-step and 8-step configurations and in pass-thru RJ45 or classic wire connection variants, the Lowell Power Sequencer family scales from focused single-zone installs to complex multi-room deployments. The RJ45 pass-thru versions integrate directly with Lowell RPC-P Series remote power controls and can expand to virtually unlimited devices with the RY-P1 relay module, while wire-connection versions suit traditional low-voltage wiring topologies. All models include LED status indicators for fast system verification and are designed to work with low-voltage remote power controls, making them a practical fit within larger Lowell rack and power control ecosystems.

Downloads

View full details

Specifications

General
Model
SEQ-8
Step Count
8
Connection Type
Wire Connections
Dimensions
Chassis Width
10.00"
Chassis Depth
3.281"
Chassis Height
1.687"
Electrical
Power Supply Input
100-240VAC
Power Supply Output
24VDC, 500mA
Power Supply Cord Length
6 ft.
Auxiliary Output
24VDC, 300mA max
Plug Adaptors Included
NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112
Performance
Adjustable Step Delay
0.5 to 10 seconds
Switch Mode
Single or Multiple (selectable via slide switch)
Closure Circuits
8 delayed closure circuits, sequential activation, reverse-order deactivation
External Trigger Type
SPST maintained contact closure (single) or SPST normally open momentary closure (multiple)
Certifications
Power Supply Listing
UL Listed
