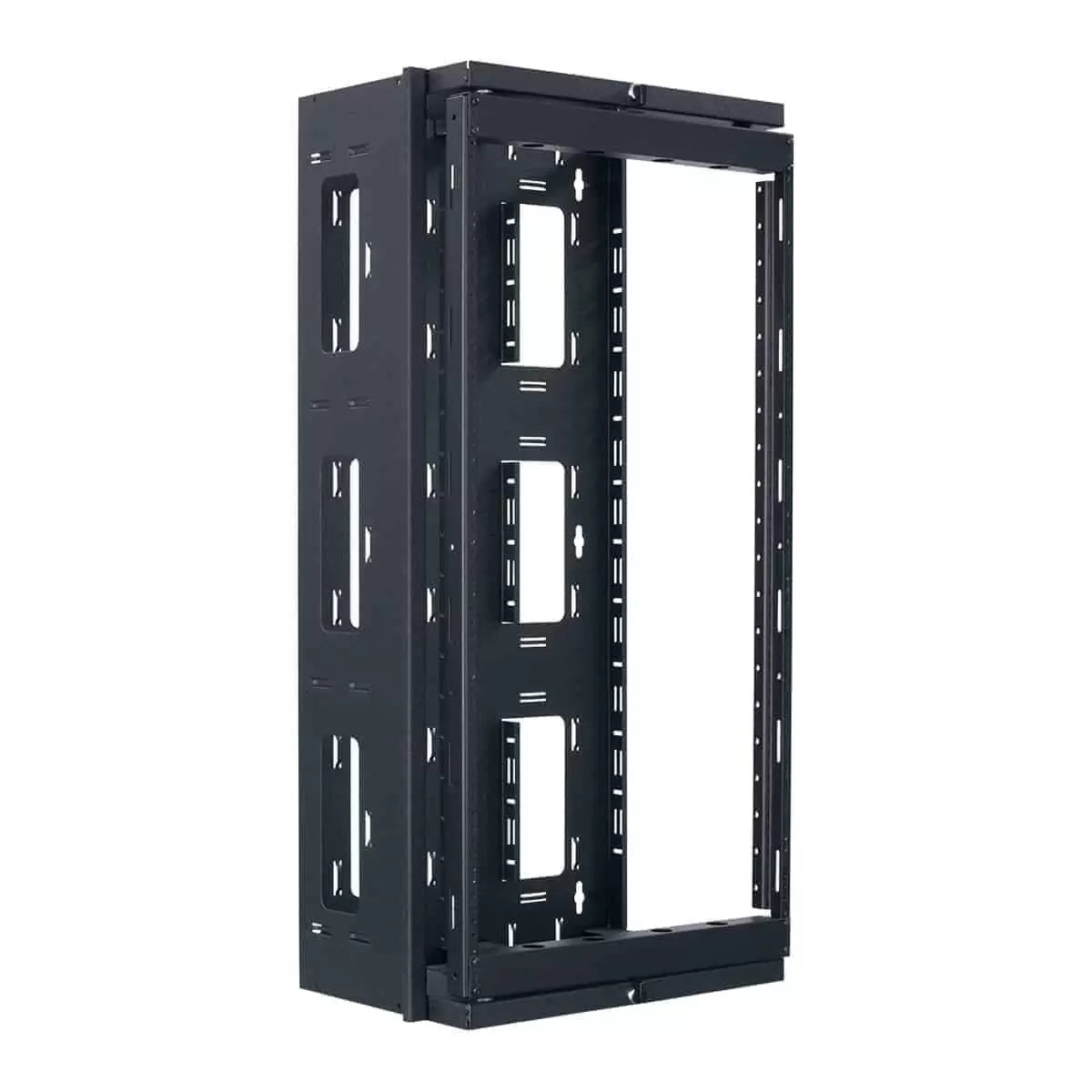

Lowell SGR Series Swing Gate Wall Rack For AV Installs | 20U | 12"D

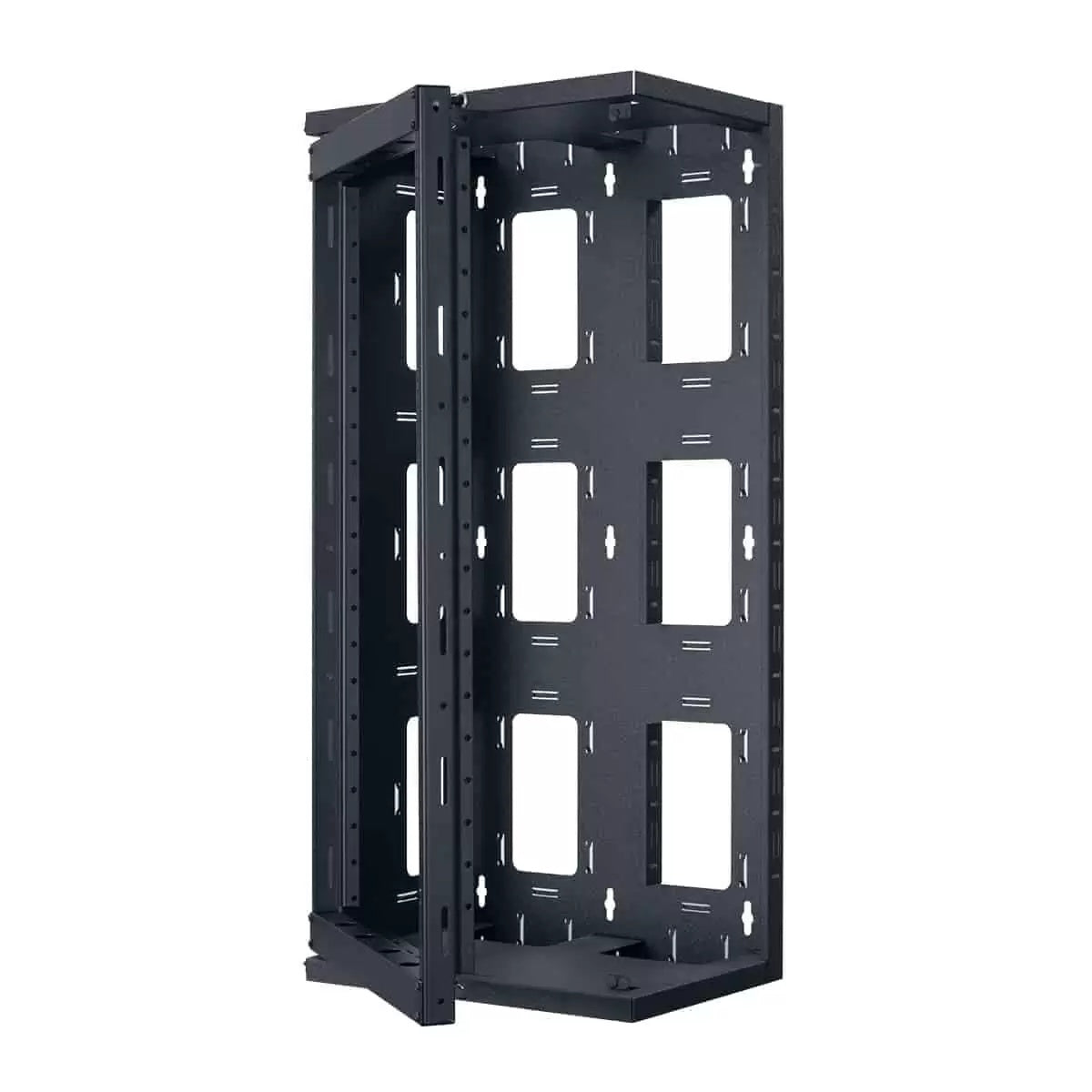

The Lowell SGR Series is designed for AV integrators and telecom installers who need reliable, accessible wall-mount racking in equipment rooms, IT closets, and voice and data environments. The swing gate front opens a full 90 degrees to either side, leaving the rack completely open for cable dressing, patching, and equipment service without removing the unit from the wall. This makes the SGR Series a practical choice wherever ongoing access to patch panels, routers, hubs, switches, and similar equipment is a daily operational requirement.

Heavy-gauge steel construction and a 150 lb load capacity make this rack suitable for dense installations where structural integrity matters. Fixed-position rails tapped 10-32 accept standard rack hardware, and mounting holes on 16-inch centers align with standard stud spacing for straightforward wall installation. A thumb latch secures the gate when closed, and abundant cable paths and tie points keep wiring organized behind the frame. Two-piece field assembly simplifies shipping and on-site handling for single-person installs.

The SGR Series is available in 12U and 20U rack heights, with 12-inch and 18-inch depth options, allowing integrators to match the rack to the physical footprint and equipment depth of each unique installation. Where other open-frame wall racks offer fixed fronts or limited cable access, the SGR swing gate design eliminates the need to reach around a static frame, reducing installation time and long-term maintenance effort.
