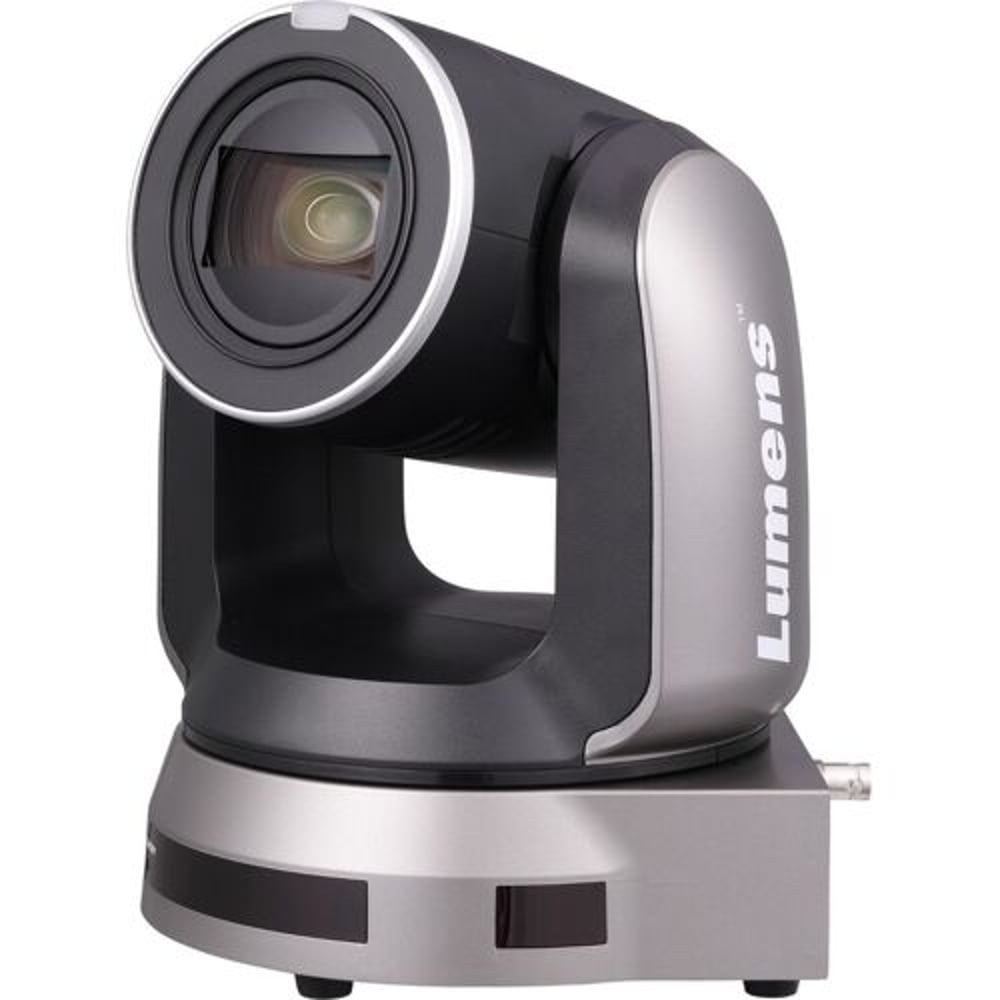

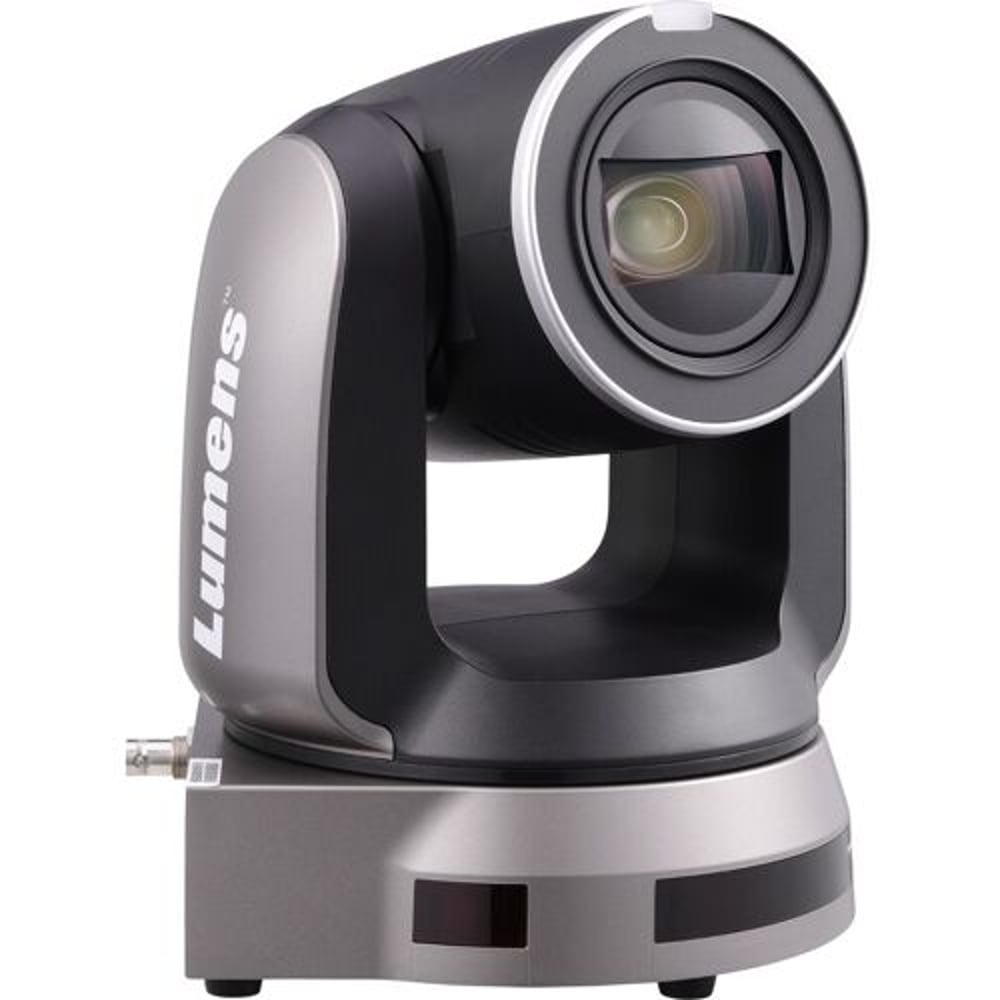

LUMENS VC-A71PB 30X Optical Zoom 4K Ip Pan Tilt Zoom Ptz Video Camera

LUMENS VC-A71PB 30X Optical Zoom 4K Ip Pan Tilt Zoom Ptz Video Camera

SoundPro Item: 113176 | Part Number: VC-A71PB

$3,025.00
$3,465.00 $3,025.00
Your Price Sold out
MSRP: $3,465.00 | MAP: $3,025.00

Usually ships in 5-7 business days

  • 4K UHD 60fps and 1080P 60fps output
  • 30x optical zoom, 63° maximum horizontal field of view
  • 12G-SDI, HDMI, Ethernet, and USB 3.0 video output
  • Triple stream HEVC/H.264 IP video output
  • Supports RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocols
  • Maximum horizontal/vertical speed of rotation: 300° /sec
  • Supports Power Over Ethernet (PoE++)
  • Smart AF: AI-enabled autofocus system
  • FreeD protocol for live VR/AR production

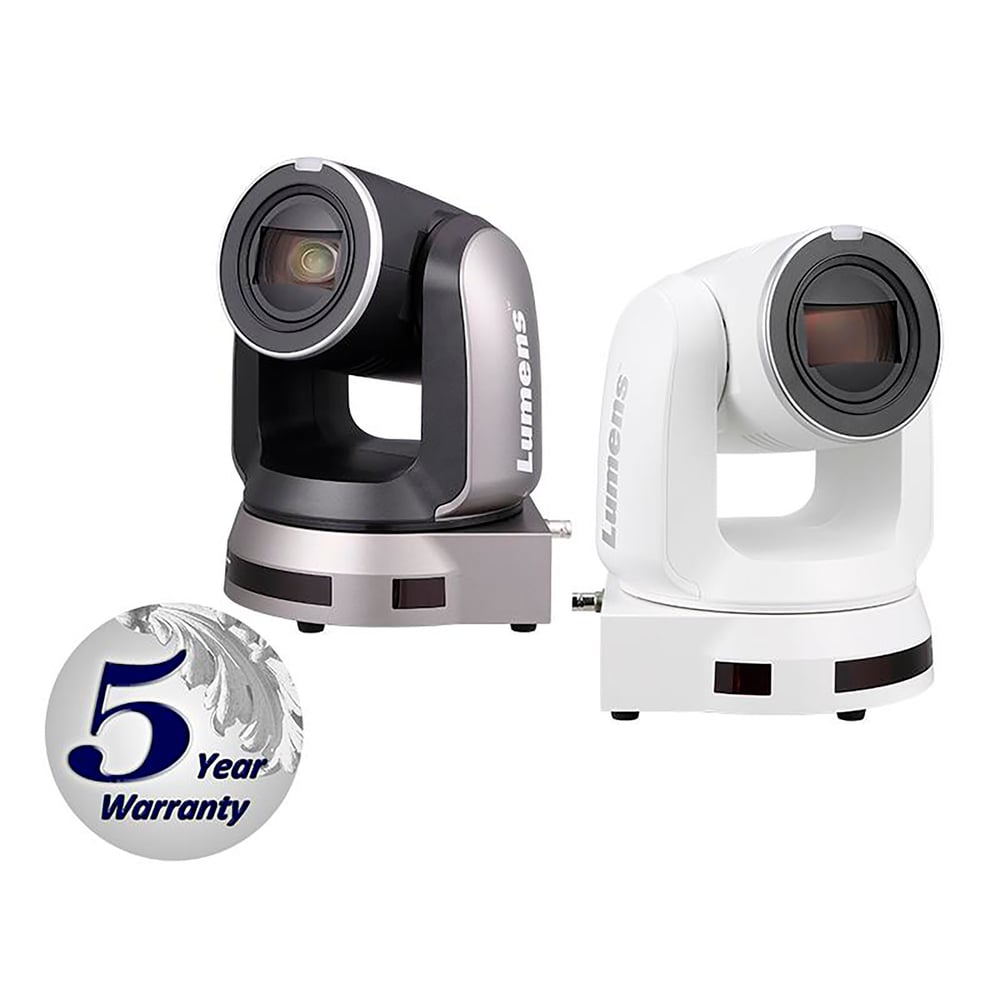

  • 5 Year Warranty
Log in or register for YOUR best price

Broadcast Quality UltraHD Video
Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces great 4K and HD results. Operating in lighting conditions down to 0.05 lux, the smooth video output makes it an ideal camera for producing sports, theatre, and live events. Its excellent color reproduction and 12G-SDI output mean it's a great choice for productions where image quality is of the highest importance.

AV and Broadcast Integration
The VC-A71P integrates with a variety of professional AV, IT, and broadcast workflows. The camera is ready for SDI and HDMI video workflows, IP networks, direct video streaming, and video conferencing via USB 3.0. Each interface will output video simultaneously, creating a flexible installation, monitoring, switching, and distribution options.

Live VR/AR Video Production
VC-A71P supports the popular FreeD protocol which outputs the camera's positional data over IP in real-time. This enables users to work with state-of-the-art Virtual Reality and Augmented Reality sets without the need for additional sensors.

Control and Power

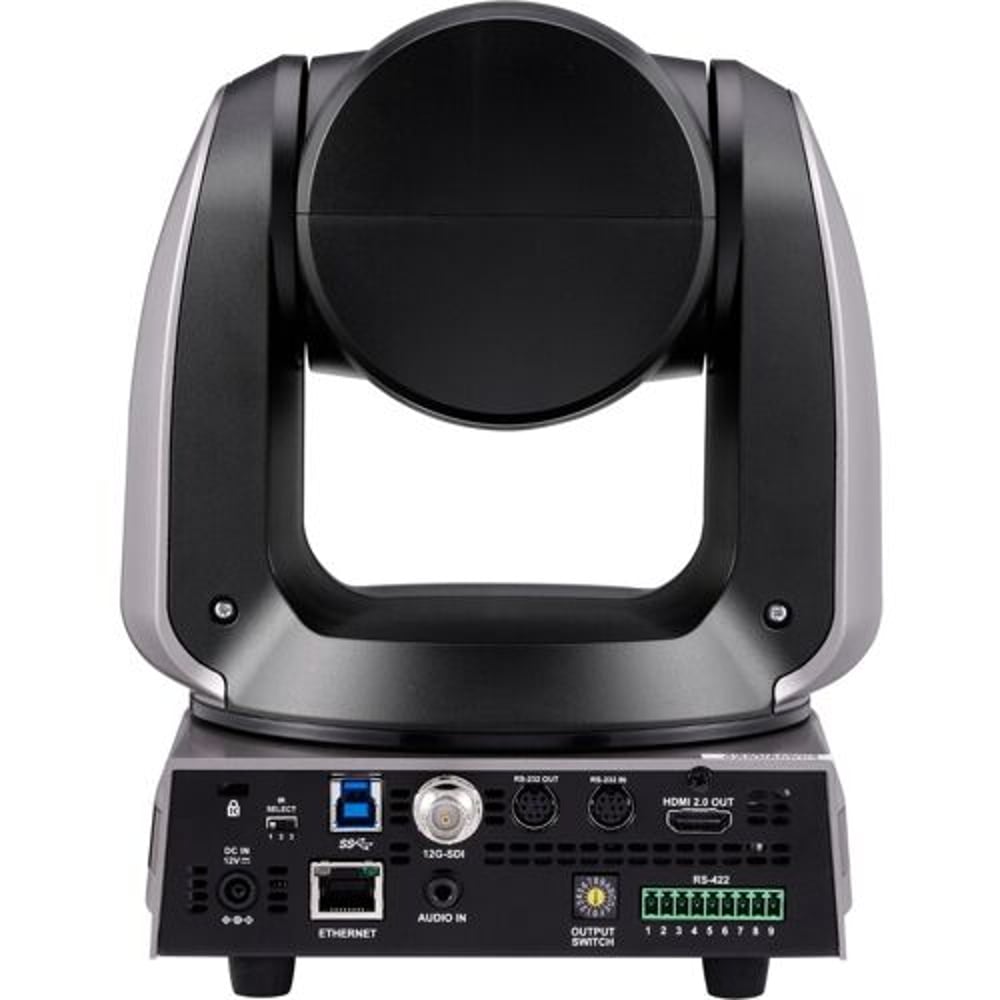

Lumens' PTZ cameras offer users a high degree of versatility. The VC-A71P can be powered by a dedicated 12v DC adapter, or via POE++, giving network managers the option to install devices in any position. Multiple control protocols (Visca, Pelco, Onvif and UVC) and interfaces (RS-232, RS-422, Ethernet and USB 3.0) enable cameras to join new or existing networks.

Face Recognition Autofocus System
Equipped with Lumens' Smart AF algorithm, VC-A71P can intelligently identify human faces and automatically detect the eyes and mouth. This enables the camera to keep the subject in sharp focus all the time.

Semi-Autonomous Production
Each camera supports up-to 256 presets, allowing users to switch angles and zoom positions, and engage tracking movements at the touch of a button. The advanced Auto Focus, Auto Exposure and Auto White Balance algorithms automatically deliver consistent images while zooming and panning, or under changing lighting conditions. Together, these advanced functions allow a single operator to manage multiple cameras and to produce multi-camera productions without the need for a large crew.

Applications

  • Broadcast and Video Studios: built-in 12G-SDI, IP control and tally lights make VC-A71P and ideal 4K studio camera.
  • Live Events and Sports: Shooting UltraHD at 60p delivers smooth, high-quality images, with the zoom lens able to shoot wide and deliver extreme close-ups.
  • Next Generation AV Installation: featuring major control protocols and with support for multiple power and video output options, VC-A71P can integrate into the corporate, house of worship and education installations to deliver higher quality results.
View full details

Specifications

'General Information
Manufacturer
Lumens
Manufacturer Part Number
VC-A71PB
Brand Name
Lumens
Product Model
VC-A71P
Product Name
4K 60fps IP PTZ Camera
Product Type
Network Camera
Technical Information
Recording Formats
4K
HD Recording
Yes
Display & Graphics
Image Sensor Type
CMOS
Color Supported
Color
Field of View
Horizontal: 3.7 to 63° Vertical: 2.1 to 35.4° Diagonal: 4.2 to 72.3°
Effective Camera Resolution
9.2 Megapixel
Video
Video Formats
H.264
H.265
H.265 (HEVC)
HEVC
MJPEG
Maximum Video Resolution
3840 x 2160
Maximum Frame Rate
60 fps
Analog Video Signal Format
12G-SDI
Lens
Lens Type
Varifocal
Minimum Focal Length
6.50 mm
Maximum Focal Length
202 mm
Lens Included
Yes
Minimum Aperture
f/4.8
Maximum Aperture
f/1.6
Optical Zoom
30x
Exposure
Shortest Shutter Speed
1/10000 Second
Longest Shutter Speed
1/1 Second
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes
Interfaces/Ports
HDMI
Yes
Network (RJ-45)
Yes
Power Description
Input Voltage
12 V DC
Physical Characteristics
Product Color
Black
Miscellaneous
Features
PTZ
Automatic White Balance
Auto Gain Control
Wide Dynamic Range
3D Noise Reduction
Microphone In
Audio Compression
Built-in Tally Light
Warranty
Limited Warranty
5 Year
